Product Overview

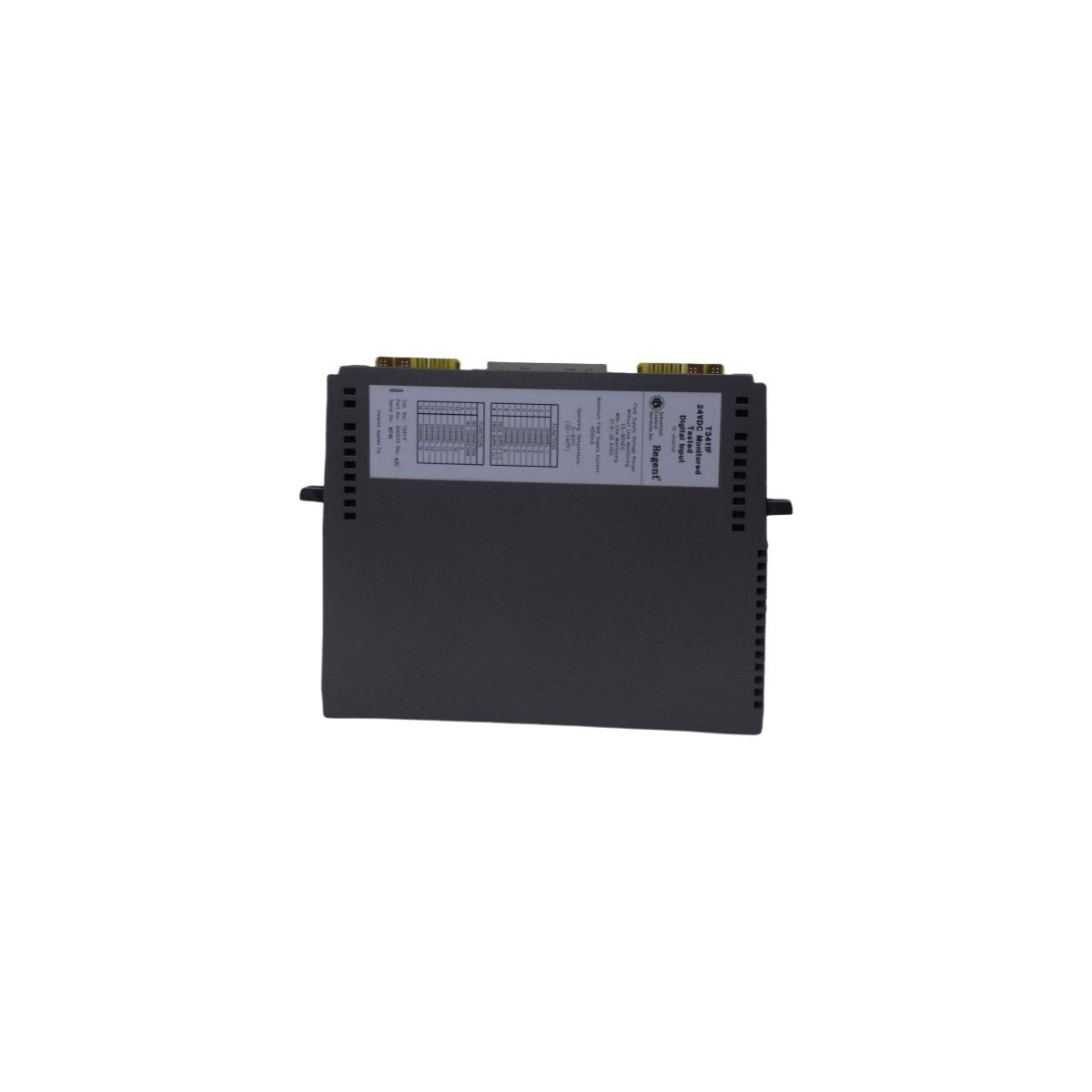

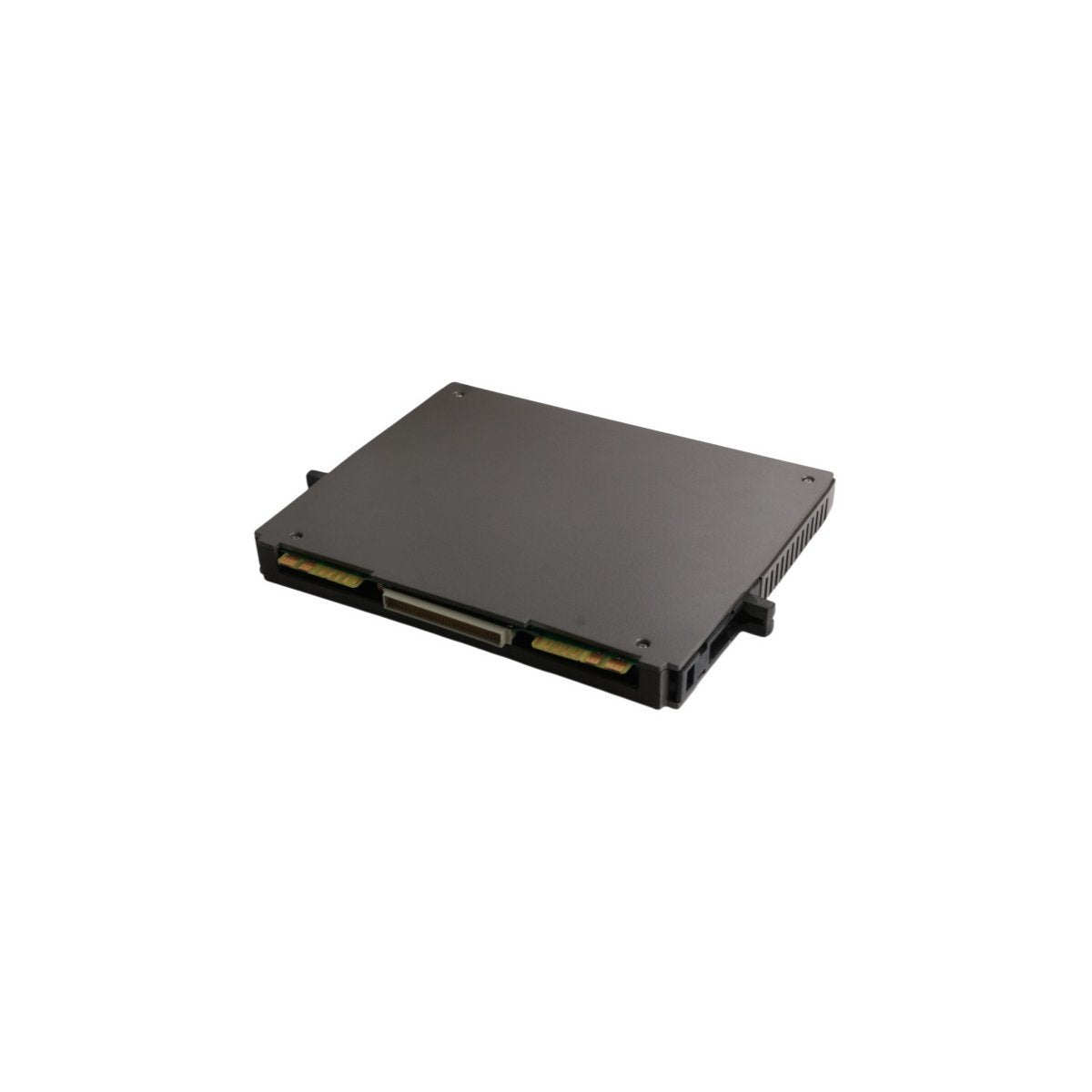

The Rockwell ICS Triplex T3411F is a high-integrity Monitored Digital Input Module designed to provide enhanced diagnostic oversight for critical industrial control loops. Unlike standard digital inputs, the T3411F features specialized monitoring circuitry that supervises the health of each field connection, allowing the system to distinguish between a legitimate signal change and a potential wiring fault. This capability is vital for high-stakes automation environments where signal veracity directly impacts operational safety.

Engineered to integrate seamlessly with the ICS Triplex safety platform, this module provides 8 independent channels optimized for low-power operation. By monitoring inputs with high precision, the T3411F helps plant operators maintain maximum system availability, identifying open or short circuits before they can result in an unplanned process shutdown.

Key Technical Characteristics

The T3411F is built to deliver deterministic performance and environmental resilience in mission-critical applications.

• Integrated Line Supervision: Every input channel is equipped with active monitoring to detect field wiring discrepancies, providing a ±1% diagnostic accuracy for signal verification.

• Low-Voltage Efficiency: Optimized for 12V DC operation, the module minimizes heat dissipation and power consumption within the control cabinet, which is essential for long-term component reliability.

• Robust Signal Handling: Supports a load current of up to 25mA per channel, ensuring high compatibility with a broad spectrum of industrial sensors, proximity switches, and dry contact actuators.

• Industrial Network Integration: Features a native Modbus RTU communication interface, facilitating high-speed data exchange and remote diagnostic reporting to the central controller or DCS.

• Harsh Environment Durability: Constructed with industrial-grade components designed to withstand extreme temperature fluctuations and high-humidity processing areas.

• Global Safety Compliance: Certified to CE, UL, and RoHS standards, ensuring the hardware meets international requirements for safety, electrical stability, and environmental responsibility.

Technical Specifications

• Manufacturer: Rockwell Automation / ICS Triplex

• Model Number: T3411F

• Product Series: ICS Triplex Control System

• Module Type: Monitored Digital Input

• Input Channels: 8 Independent Channels

• Operating Voltage: 12V DC

• Load Current: 25mA per channel

• Accuracy: ±1% Monitoring Accuracy

• Communication Interface: Modbus RTU / Ethernet Router Service

• Weight: 1.42 kg (3.13 lbs)

• Dimensions: 3.3 x 26.5 x 35.5 cm

• HS CODE: 8537101190

• Country of Origin: USA

Industrial Application and Reliability

The T3411F Monitored Digital Input Module is frequently utilized in safety-instrumented functions where the failure of a sensor or its wiring must be immediately identified. Its robust architecture makes it a preferred choice for the oil and gas, pharmaceutical, and power generation sectors. Although formally discontinued by the manufacturer in late 2018, the T3411F remains a crucial component for supporting existing legacy infrastructures that require authentic, high-precision replacement parts to maintain their original safety certifications.

With its proven track record for stability and precision, the T3411F ensures that critical data from the field reaches the logic solver without interference. This module provides engineers with the transparency needed to perform proactive maintenance, significantly reducing the risk of spurious trips and improving overall plant productivity.
