Product Overview

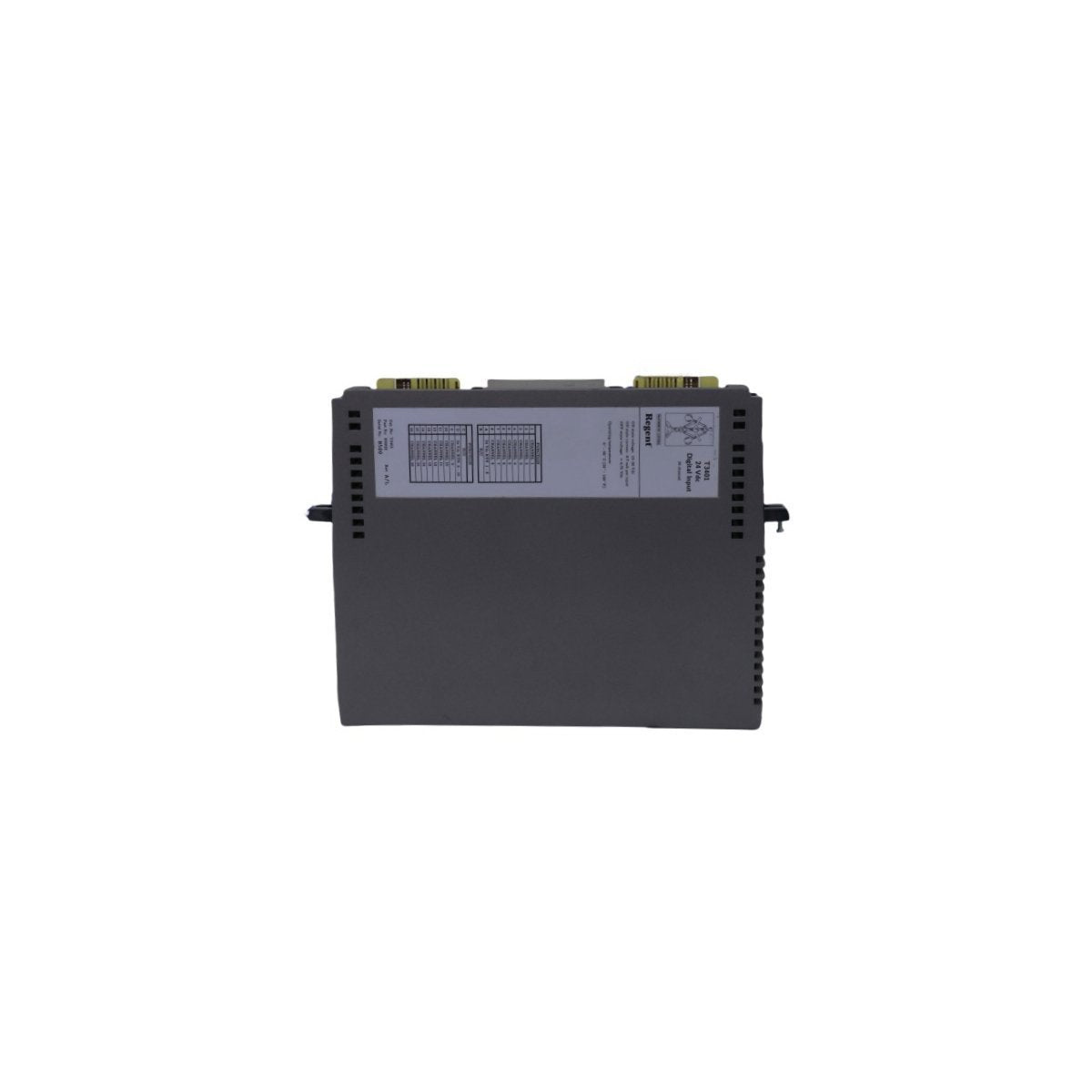

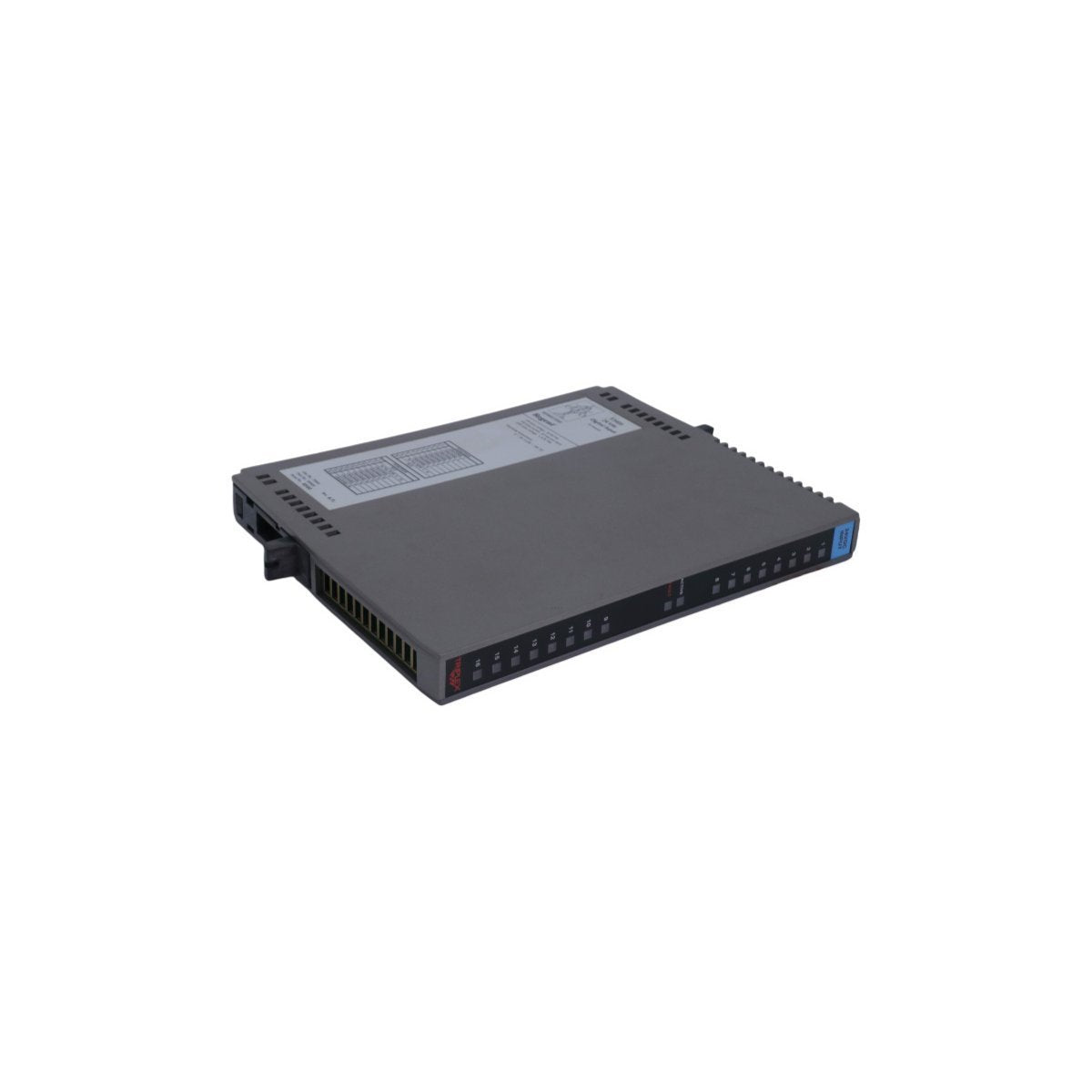

The Rockwell ICS Triplex T3401 is a high-reliability DC digital input module engineered for precision monitoring within complex industrial control environments. This module functions as a critical interface between field-level binary sensors and the primary PLC processor, facilitating the accurate acquisition of status data from switches, contacts, and other discrete devices. Designed for maximum uptime, the T3401 ensures that critical signal transitions are captured with high fidelity, even in electrically noisy or harsh atmospheric conditions.

The T3401 is optimized for energy-efficient operation, utilizing a 12V DC logic-side power requirement that minimizes the thermal footprint within control cabinets. Its robust architecture is specifically tailored for industries where safety and reliability are non-negotiable, such as oil and gas processing, power generation, and specialized manufacturing.

Key Technical Characteristics

The T3401 is distinguished by its precise monitoring capabilities and flexible communication integration.

• Multi-Channel Monitoring: Features 8 independent digital input channels, allowing for the concurrent tracking of multiple field device states.

• Superior Accuracy: Delivers a ±1% monitoring accuracy, providing the exactness required for sensitive control loops and diagnostic reporting.

• Low Power Consumption: Operates on a 12V DC input, supporting sustainable energy management and reduced heat dissipation in high-density rack configurations.

• Network Versatility: Integrated Modbus RTU protocol support enables the module to communicate seamlessly with diverse industrial networks and supervisory systems.

• Environmental Resilience: Engineered to maintain peak performance under extreme temperature fluctuations and high humidity, ensuring long-term durability.

• Certified Compliance: Fully meets CE, UL, and RoHS international standards for safety, performance, and environmental responsibility.

Technical Specifications

• Manufacturer: Rockwell Automation (ICS Triplex)

• Model Number: T3401

• Module Type: DC Digital Input

• Number of Inputs: 8 Channels

• Input Voltage: 12V DC

• Load Current per Channel: 25mA (Maximum)

• Monitoring Accuracy: ±1%

• Communication Protocol: Modbus RTU

• Dimensions: 3.3 x 26.5 x 35.5 cm

• Weight: 1.3 kg (2.87 lbs)

• Operating Standards: CE, UL, RoHS compliant

• Origin: USA

System Integration and Application

The T3401 module is frequently deployed in distributed control systems (DCS) where modularity and ease of integration are paramount. Its standard form factor allows for rapid installation into existing ICS Triplex frames, while the Modbus RTU interface simplifies the data mapping process for system engineers.

By providing a stable and accurate digital input layer, the T3401 helps operators maintain the integrity of their safety-critical systems, allowing for proactive maintenance and rapid response to field events. This makes it an essential component for legacy system support and new automation builds requiring high-performance discrete signal processing.
