Product Overview

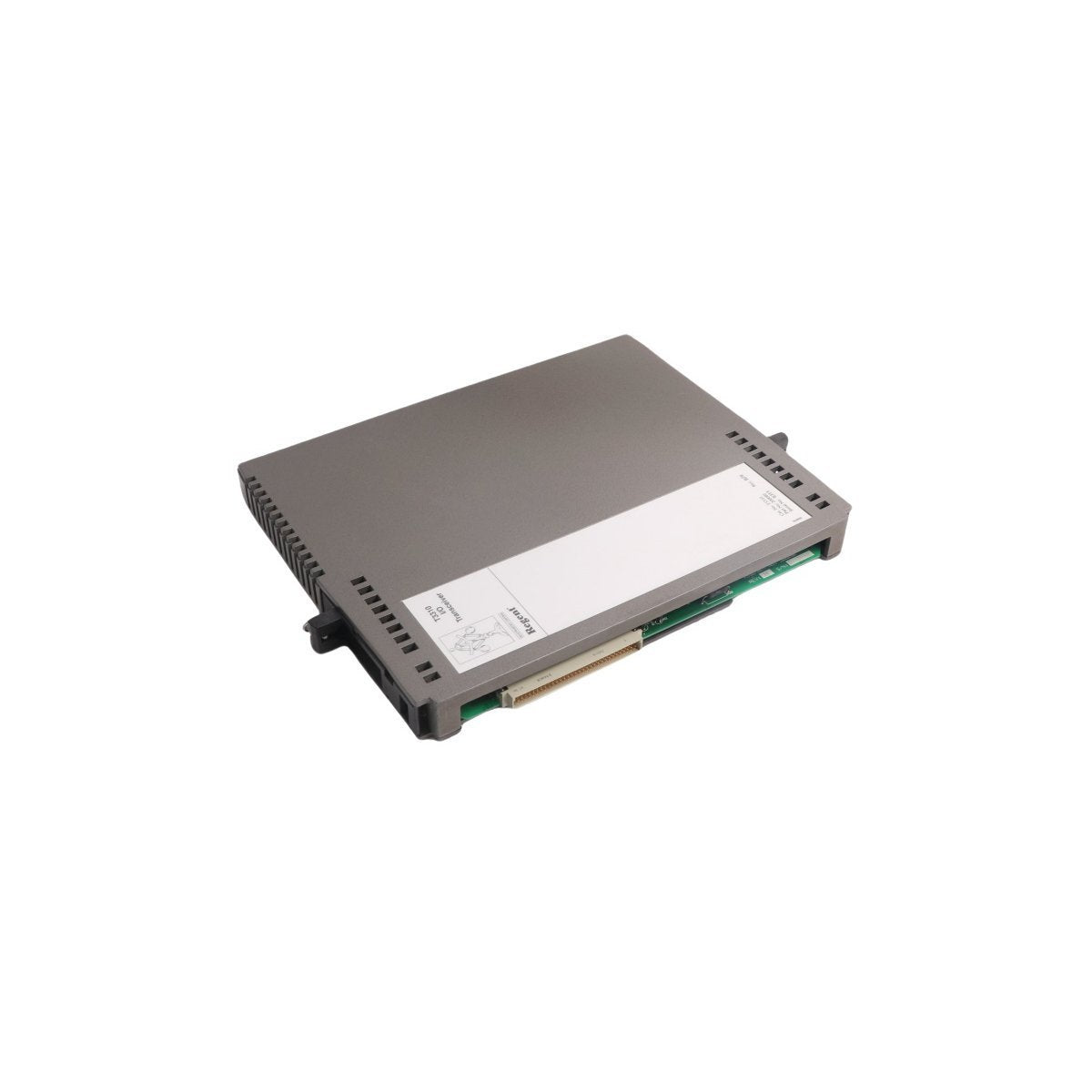

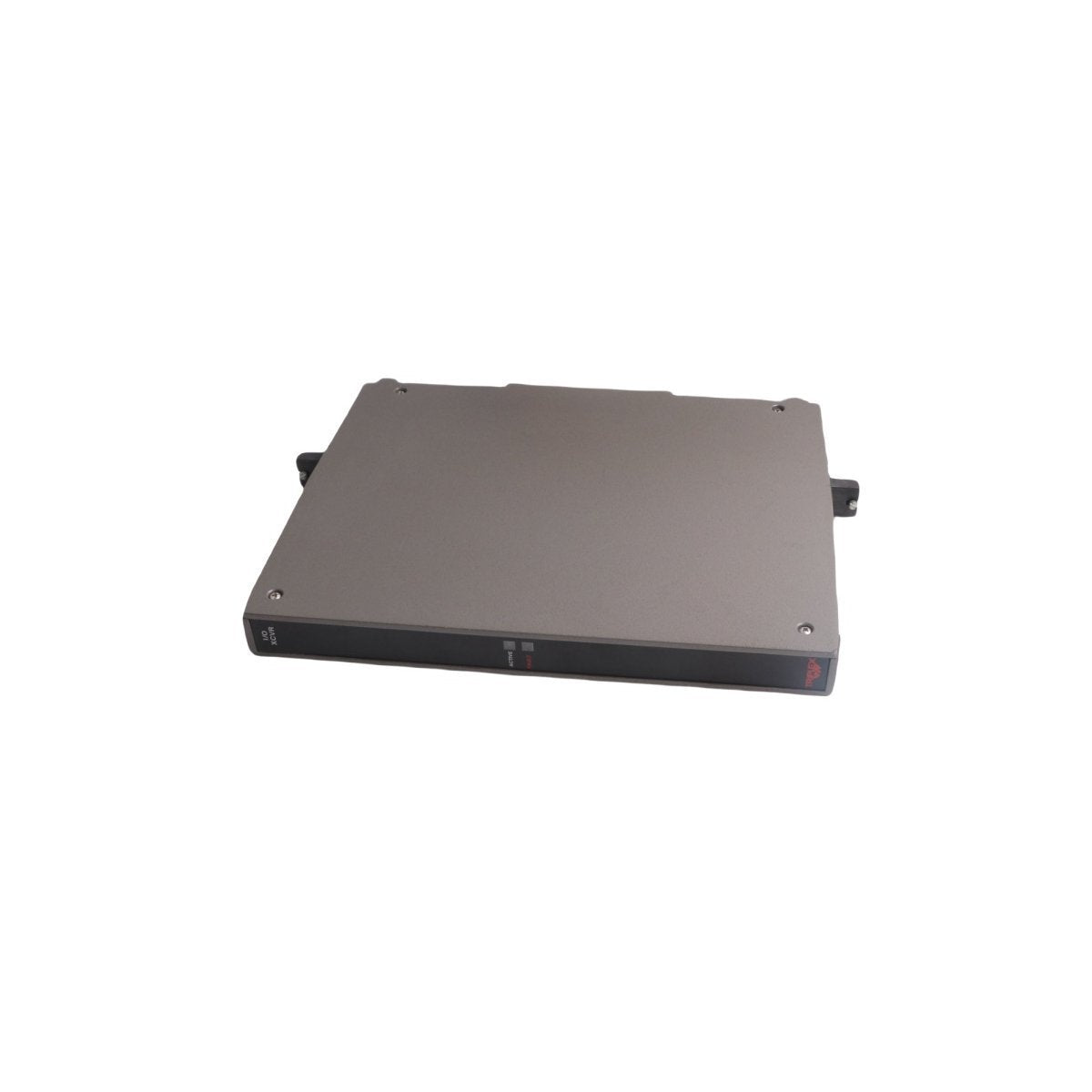

The T3310 is a high-reliability I/O Transceiver module engineered specifically for the ICS Triplex Regent Control System. Designed to facilitate robust data communication between the central processor and distributed I/O racks, this module serves as a critical link in Fault-Tolerant control architectures. Its primary function involves the high-speed transmission and reception of process signals, ensuring that real-time data from field sensors is accurately reported to the logic solver while maintaining the system's Triple Modular Redundancy (TMR) integrity.

In critical infrastructure sectors such as petrochemical refining, offshore oil and gas, and power generation, the T3310 provides the determinism required for safety-instrumented systems (SIS). By isolating communication paths and providing localized signal conditioning, it ensures that thermal monitoring and process variables remain stable even in the presence of electromagnetic interference or hardware degradation.

Technical Performance and Resilience

The T3310 is built to withstand the rigorous demands of industrial "hot-zone" environments. Its electrical and mechanical design prioritizes uptime and signal purity under extreme conditions.

• Redundant Communication Paths: Supports the Regent system's fault-tolerant philosophy by providing multiple data lanes, preventing a single point of failure from compromising the process.

• Environmental Hardening: The module is coated and constructed to resist corrosive atmospheres and wide temperature fluctuations, making it suitable for unconditioned field cabinets.

• High-Speed Transceiver Logic: Utilizes advanced transceiver circuitry to minimize latency between the field-side I/O and the controller backplane, supporting rapid response for safety trip functions.

• Modular Integration: Designed for hot-swappable installation within the Regent chassis, allowing for maintenance and module replacement without requiring a complete system shutdown.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)

• Model Number: T3310

• System Series: Regent Control System

• Module Type: I/O Transceiver

• Data Transmission: High-speed Fault-Tolerant Link

• Operating Temperature: Tested for extreme industrial ranges

• Weight: 1.3 kg (2.87 lbs)

• Dimensions: 30.5 x 26.5 x 3.1 cm

• Mounting: Regent Chassis Slot

• Certifications: Designed for SIL-rated environments and hazardous locations

Industrial Applications and Safety

The T3310 Transceiver is a standard component in systems where the "cost of failure" is high. Its ability to maintain continuous monitoring makes it a staple in the following applications:

• Emergency Shutdown Systems (ESD): Serving as the communication backbone for trip initiators and final control elements.

• Fire and Gas (F&G) Detection: Managing high-density sensor arrays across large-scale facilities.

• Turbine Control: Providing the high-speed feedback necessary for managing rotational speeds and thermal protection in power turbines.

• Critical Process Control: Overseeing chemical reactions where temperature and pressure precision are non-negotiable for safety.
