Product Overview

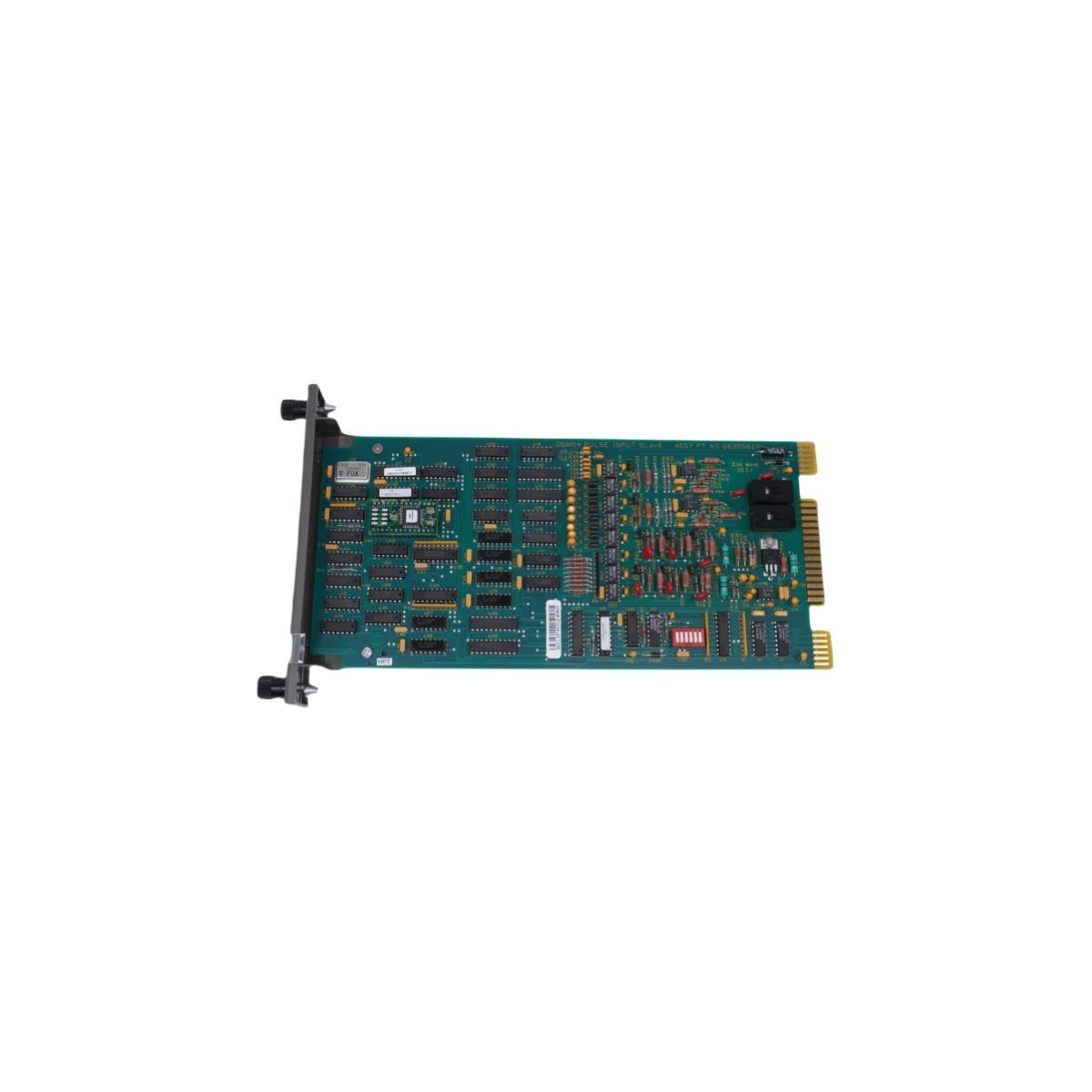

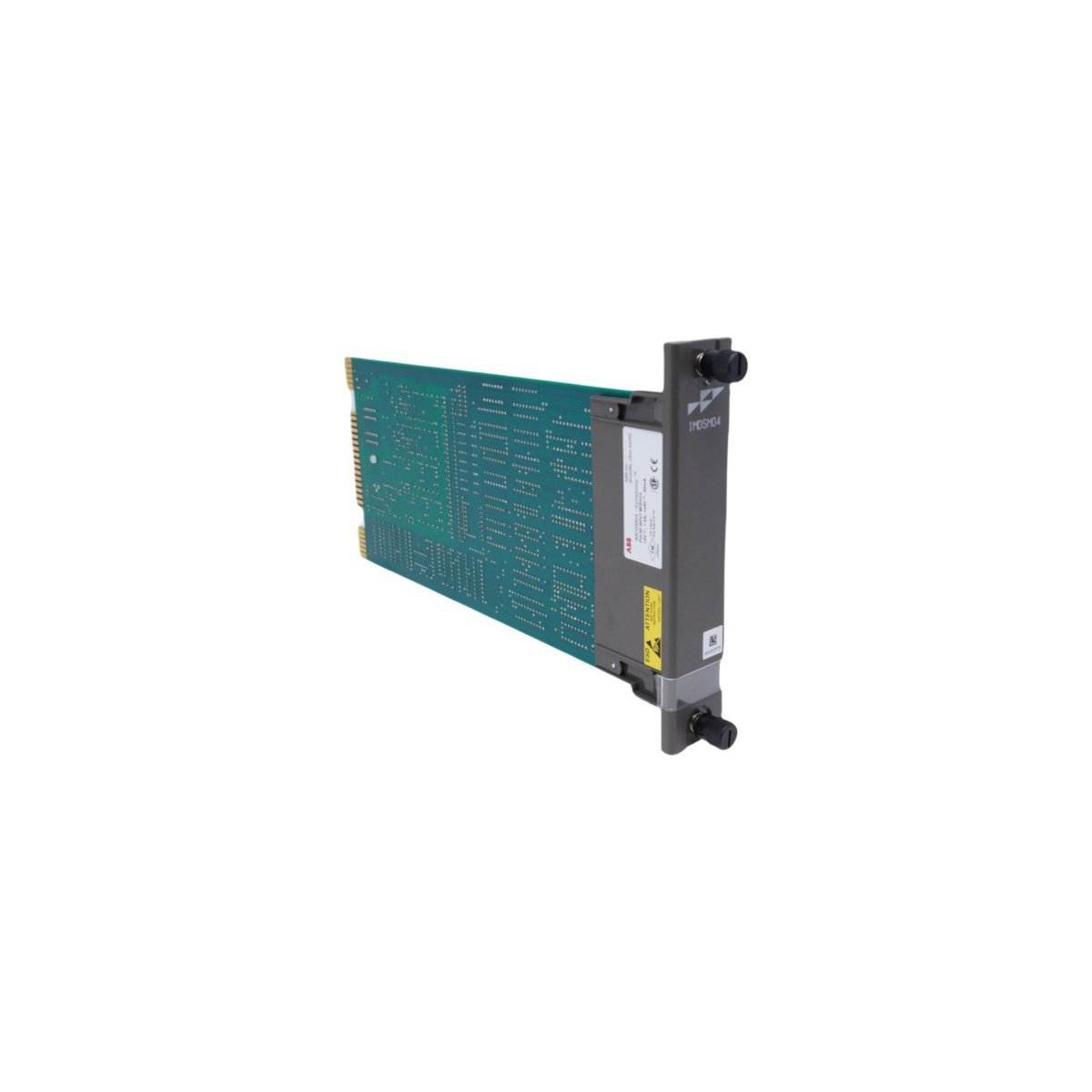

The ABB IMDSM04 serves as a high-performance Pulse Input Slave Module within the Harmony Rack (HR Series) I/O family. Engineered for the Bailey Infi 90 and Symphony DCS ecosystems, this component facilitates the precise acquisition of digital pulse signals from field instrumentation. It acts as a critical interface for converting high-frequency pulse data into actionable digital information for the primary controller. Designed for long-term reliability in demanding industrial sectors, the IMDSM04 ensures data integrity across 16 dedicated channels, supporting complex automation architectures with a focus on high-speed processing and robust signal isolation.

Core Hardware Specifications

• Manufacturer: ABB

• Series: Bailey Infi 90 / Symphony Plus (Harmony Rack)

• Module Type: Pulse Input Slave

• Channel Count: 16 Digital Input Channels

• Input Voltage: 24V DC Nominal

• Interface Compatibility: Profibus-DP and MODBUS protocols

• Protection Rating: IP20 (Finger-safe)

• Operating Temperature: -25°C to +60°C (-13°F to 140°F)

• Physical Mass: 0.28 kg

• Exterior Dimensions: 3.5cm x 31cm x 17.5cm

• Country of Origin: Sweden

• HS Tariff Code: 8537101190

Primary Industrial Deployment

The IMDSM04 is specifically utilized in environments where high-speed pulse counting and frequency measurement are vital for process control. Common applications include:

• Flow Measurement: Interfacing with turbine flow meters to calculate volumetric throughput in oil, gas, and chemical processing.

• Rotational Speed Monitoring: Tracking motor and turbine RPM via proximity sensors or encoders to ensure machinery remains within safe operational limits.

• Utility Metering: Consolidating pulse outputs from energy, water, or gas meters into a centralized DCS for billing and resource management.

• Positioning Systems: Assisting in the feedback loops for material handling equipment where precise incremental movement tracking is required.

• Power Generation: Integration into boiler and turbine control systems for high-fidelity signal monitoring.




FAQ

Q: Is the ABB IMDSM04 compatible with existing Symphony Plus systems?

A: Yes, the IMDSM04 is designed for seamless backward and forward compatibility within the Harmony Rack I/O series, functioning effectively in both legacy Bailey Infi 90 and modern Symphony Plus DCS environments.

Q: What is the primary function of the 16 channels on this module?

A: The 16 channels are configured to accept pulse or digital inputs from field devices, allowing the module to count pulses or measure frequencies for transmission to the master controller via the bus interface.

Q: Does this module require a specific mounting orientation?

A: The module is designed for standard Harmony Rack slot installation. While it is robust, proper airflow should be maintained within the cabinet to stay within the -25°C to +60°C operating range.

Q: What communication protocols does the IMDSM04 support for data transfer?

A: This slave module is highly versatile, supporting high-speed data transfer through Profibus-DP and offering integration flexibility with other systems using the MODBUS protocol.

Q: What is the current lifecycle status of the IMDSM04?

A: The IMDSM04 is currently listed as an Active product within the spare parts and expansion market, though it is primarily utilized for maintaining and scaling existing Harmony Rack and Infi 90 installations.
