Product Overview

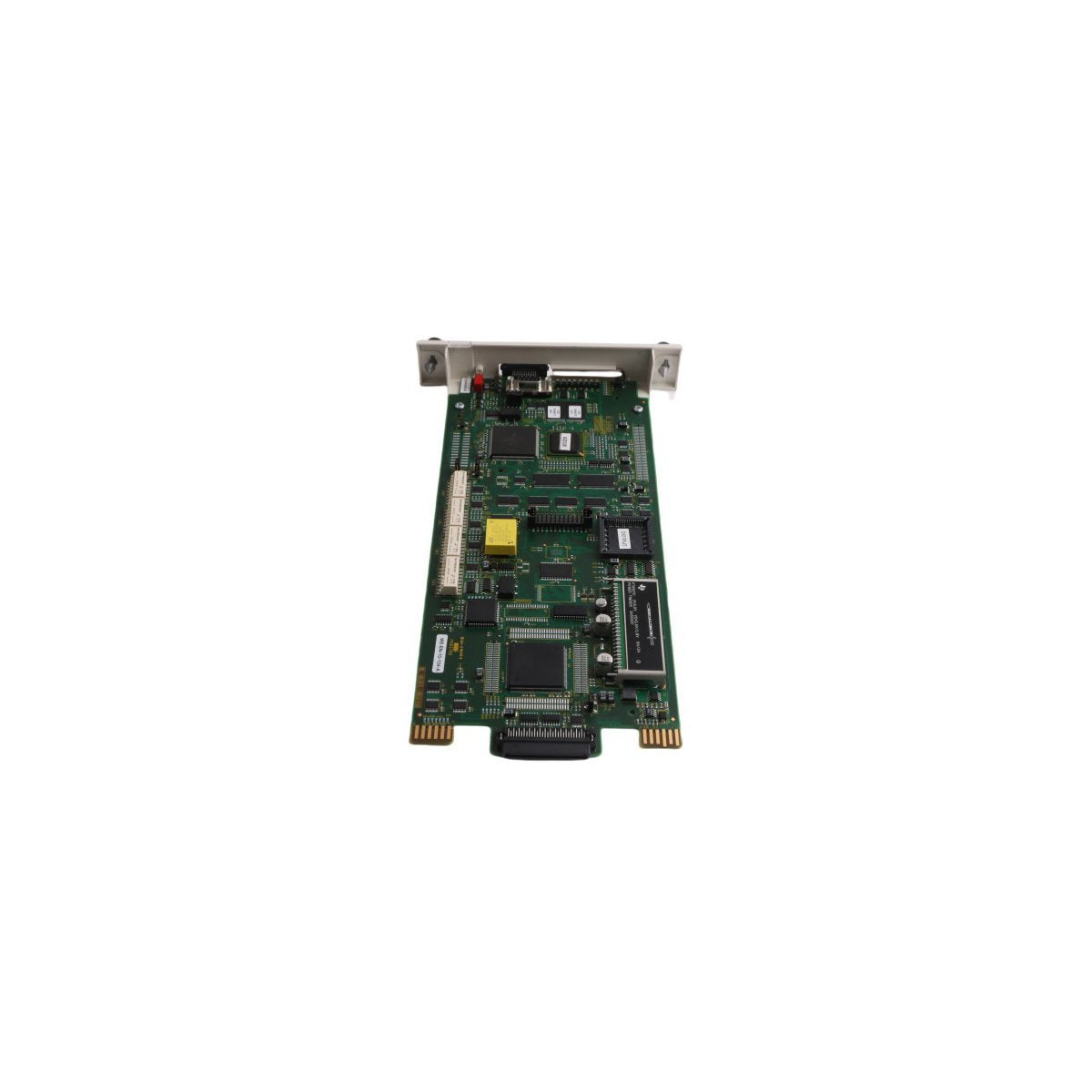

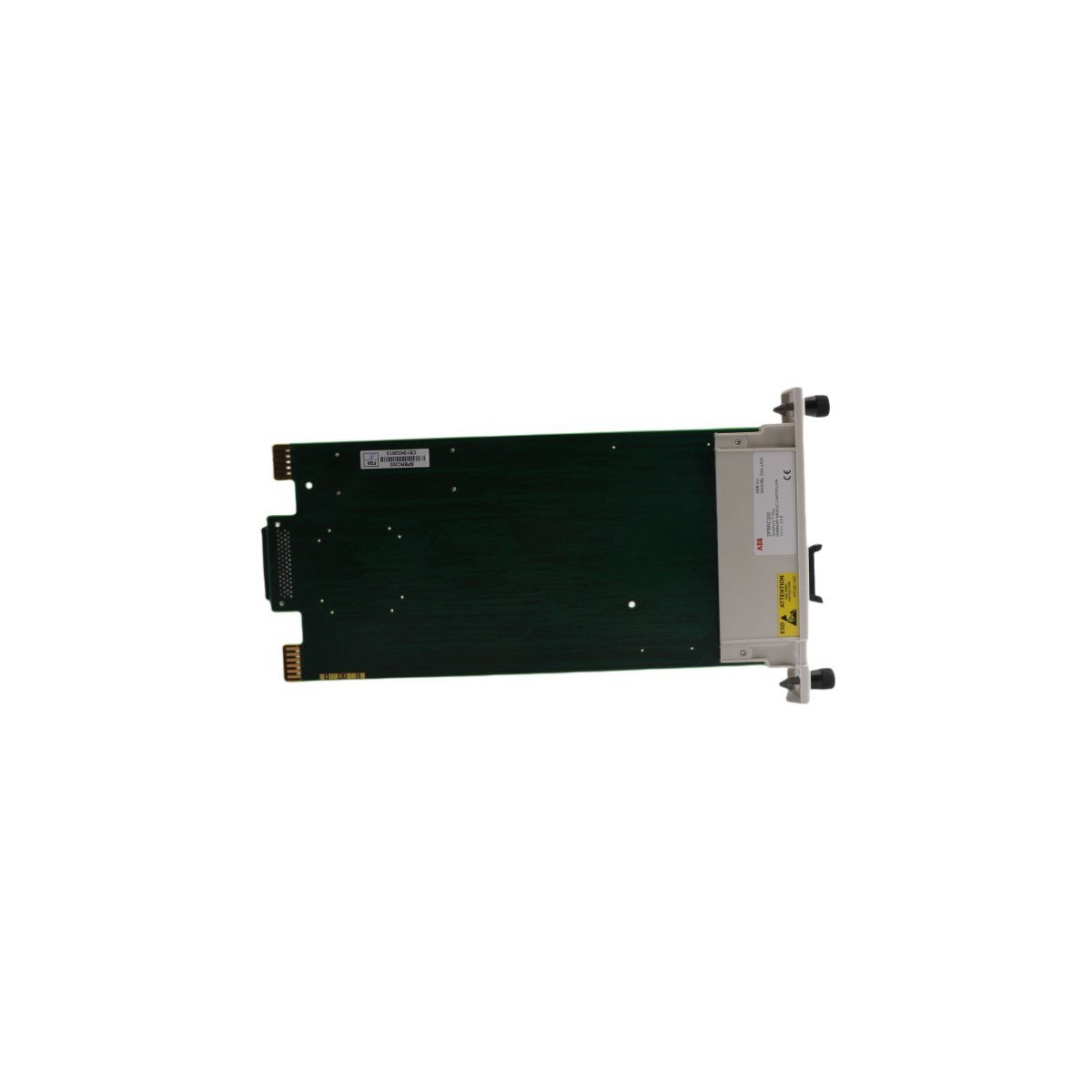

The ABB SPBRC300 is a high-performance Bridge Controller and Central Unit designed for the Symphony Plus Distributed Control System (DCS) architecture. Engineered to serve as the functional core of an automation rack, this module facilitates complex logic execution and high-speed data processing. The SPBRC300 acts as a sophisticated bridge between the plant-level communication network and the localized I/O modules, managing 16 integrated digital inputs and 8 digital outputs. By utilizing a ruggedized Swedish design, this controller ensures that critical infrastructure—such as power plants and water treatment facilities—operates with maximum uptime and precise regulatory control.

Hardware Infrastructure and Physical Metrics

• Component Classification Controller Central Processing Unit

• Model Identifier SPBRC300

• System Family Symphony Plus / DCS

• I/O Capacity 16 Digital Inputs / 8 Digital Outputs

• Protocol Support Ethernet/IP and Modbus TCP/IP

• Network Interfacing Dual Ethernet Router Connectivity

• Unit Mass 0.24kg

• Physical Proportions 3.5cm x 32cm x 17.6cm

• Manufacturing Origin Sweden

• Tariff Code (HS) 8537101190

• Operational Status Active

Strategic Deployment and System Utilization

The SPBRC300 is predominantly utilized in sectors requiring massive scalability and high-availability control, such as thermal power generation and large-scale manufacturing. Within a Symphony Plus environment, the bridge controller manages the handshaking between high-level SCADA systems and field-level sensors. Its dual-protocol support for Modbus and Ethernet/IP allows it to integrate with both legacy hardware and modern smart instrumentation. Due to its lightweight 0.24kg construction and slim 3.5cm width, it is ideal for high-density cabinet installations where space efficiency is prioritized. The module’s ability to handle complex mathematical algorithms and interlocking logic makes it a cornerstone for optimizing boiler control, turbine monitoring, and balance-of-plant automation.

FAQ

Q: Can the SPBRC300 be used as a drop-in replacement for older BRC series controllers?

A: The SPBRC300 is part of the Symphony Plus evolution. While it maintains a similar form factor to legacy BRC units, you should verify firmware compatibility and bus communication speeds to ensure a seamless migration without software conflicts.

Q: How does the controller handle redundant network configurations?

A: This module features built-in support for redundant Ethernet ports, allowing it to maintain communication with the DCS network even if one cable or router path fails, which is vital for mission-critical safety systems.

Q: What is the benefit of having integrated digital I/O on the central unit?

A: The 16 inputs and 8 outputs allow for high-speed local interlocking and monitoring without the need for external I/O modules, reducing latency for critical safety trips and localized control sequences.

Q: Is specialized software required to configure the SPBRC300?

A: Configuration is typically performed using ABB’s Symphony Plus Engineering toolset (Composer), which allows for drag-and-drop logic programming and comprehensive network diagnostic mapping.

Q: Does the module require a separate battery for memory retention?

A: The SPBRC300 utilizes non-volatile flash memory for application storage; however, a backup battery is often used for real-time clock maintenance and transient data retention during power cycles.
