Product Overview

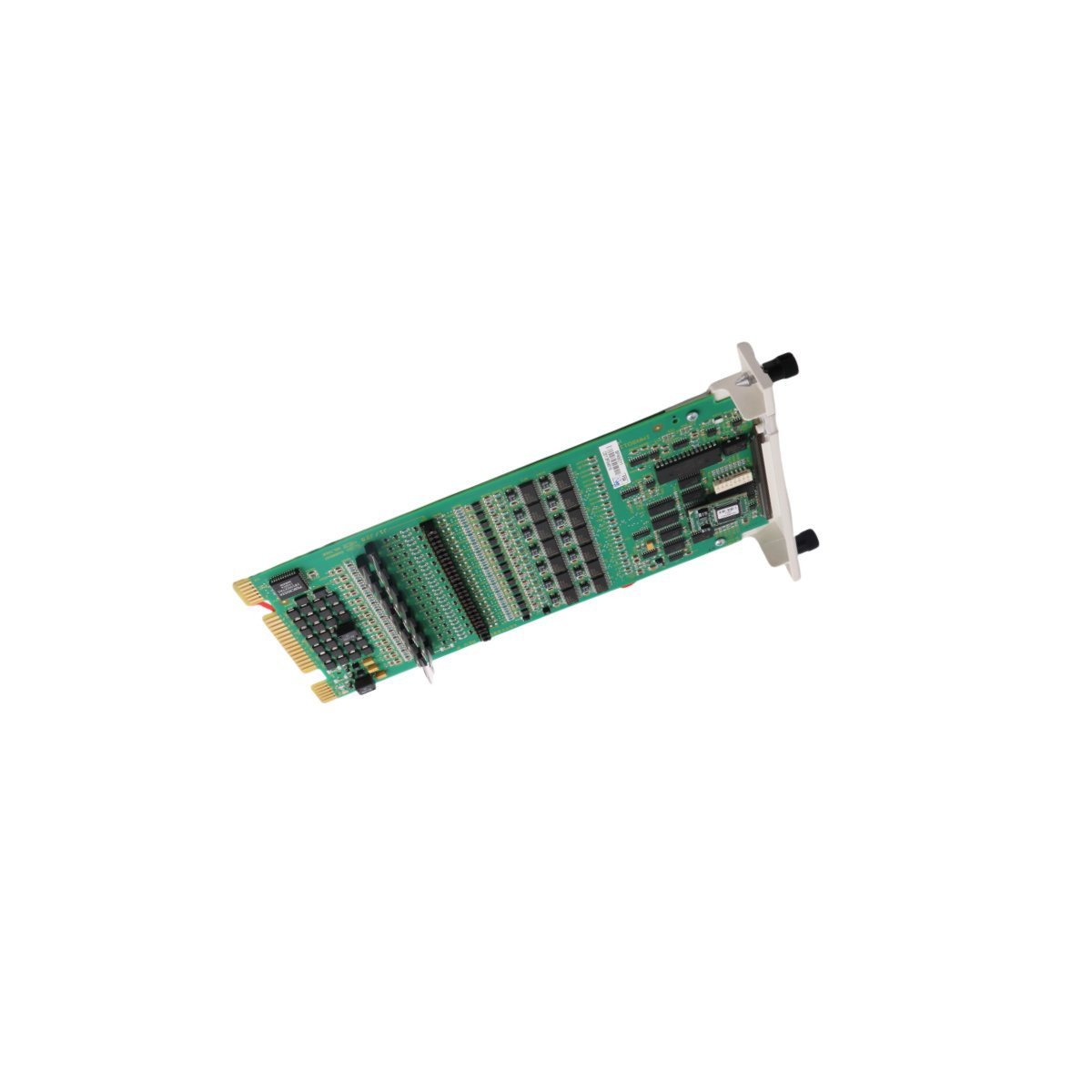

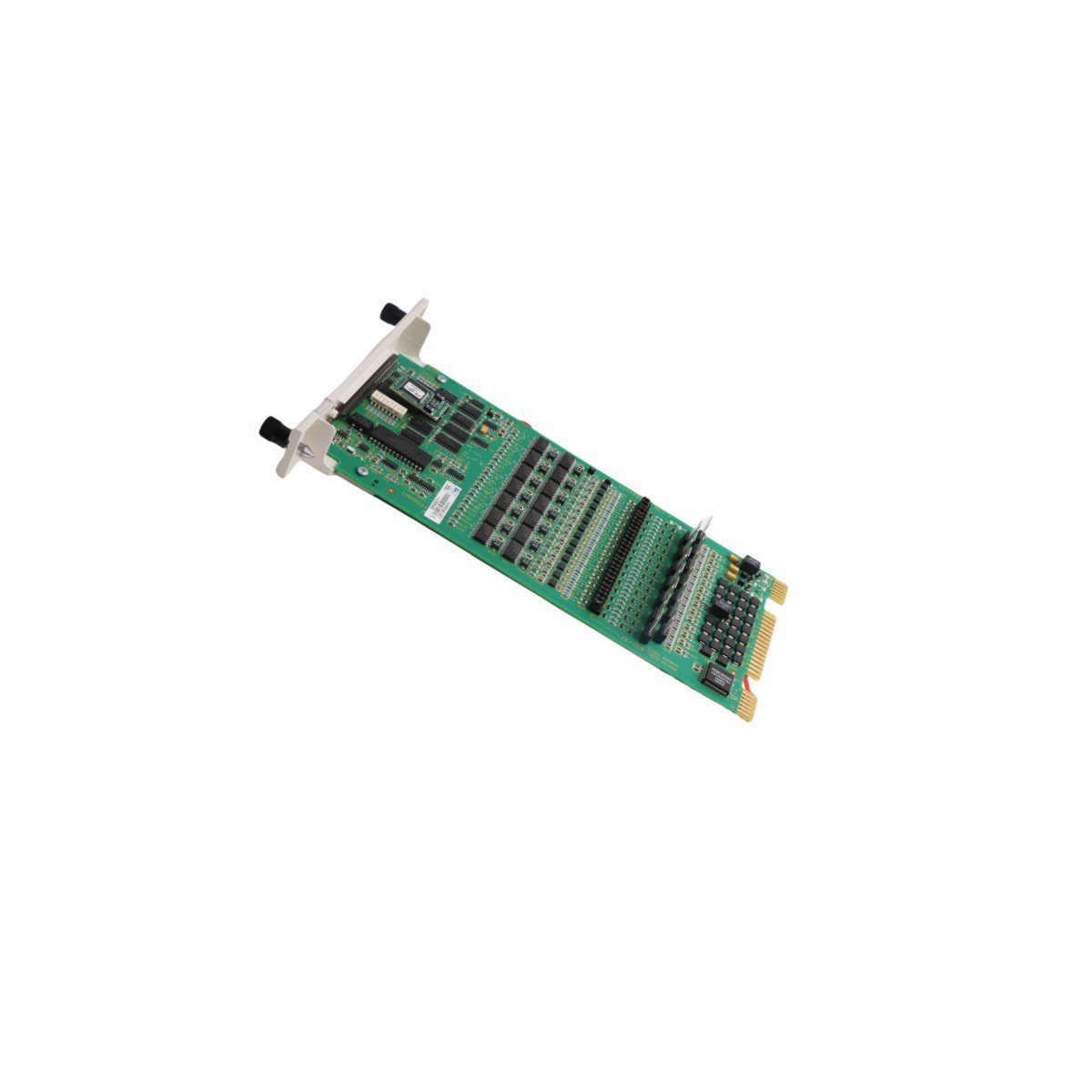

The ABB SPAS011 is a high-precision Analog Input Module designed specifically for the Symphony Plus Distributed Control System (DCS) architecture. This module functions as a critical bridge between field instrumentation and the control environment, converting continuous physical signals—such as temperature, pressure, and flow—into digital data for system processing. Built to maintain signal integrity in electrically noisy industrial settings, the SPAS011 employs advanced hardware filtering to eliminate interference. As a core component of the Symphony Plus series, it ensures high-speed data acquisition and seamless integration with existing Harmony rack-based configurations, providing operators with accurate, real-time process visibility.

Hardware Specifications and Physical Data

• Signal Conditioning: Integrated high-impedance protection and signal isolation per channel.

• Network Integration: Fully compatible with Ethernet router communication services for decentralized architectures.

• Diagnostic Capability: Features continuous self-monitoring and channel-level fault detection to support predictive maintenance.

• Architecture: Designed for vertical rack mounting with high-density pin connections for secure signal routing.

Strategic Industrial Applications

The SPAS011 is engineered for industries where process variables must be monitored with zero-tolerance for signal drift. Its primary deployment scenarios include:

• Thermal Power Generation: Monitoring boiler pressure, steam temperature, and turbine expansion sensors in real-time.

• Chemical and Refining Processes: Interfacing with 4-20mA loop transmitters for hazardous area monitoring and precise fluid dynamics control.

• Water Treatment Utilities: Tracking level, pH, and turbidity sensors across geographically distributed treatment facilities.

• Metallurgical Operations: High-accuracy sensing for furnace temperature control and cooling system oversight.

FAQ

Q: Does the SPAS011 support 4-20mA current loop inputs?

A: Yes, the SPAS011 is primarily designed to handle standard industrial analog signals, including 4-20mA current loops and voltage inputs typical of Symphony Plus environments.

Q: Can this module be used as a replacement for older Harmony series analog boards?

A: The SPAS011 is part of the Symphony Plus evolution and is often backward compatible with specific Harmony Rack systems. It is advised to verify the specific sub-rack termination unit compatibility.

Q: How does the module indicate a hardware failure or signal loss?

A: The module is equipped with on-board LED status indicators and transmits digital diagnostic flags to the DCS HMI, alerting operators to channel-specific faults or hardware malfunctions.

Q: Is calibration required before installing a brand-new SPAS011?

A: New units are factory-calibrated in Sweden; however, standard commissioning procedures usually involve a loop-check to ensure the field instrument and module are synchronized within the DCS software.

Q: What is the benefit of the high-impedance protection mentioned in the specs?

A: High-impedance circuitry prevents the module from loading the signal source, ensuring that the measurement remains accurate and protecting the internal electronics from field-side voltage spikes.
