Product Overview

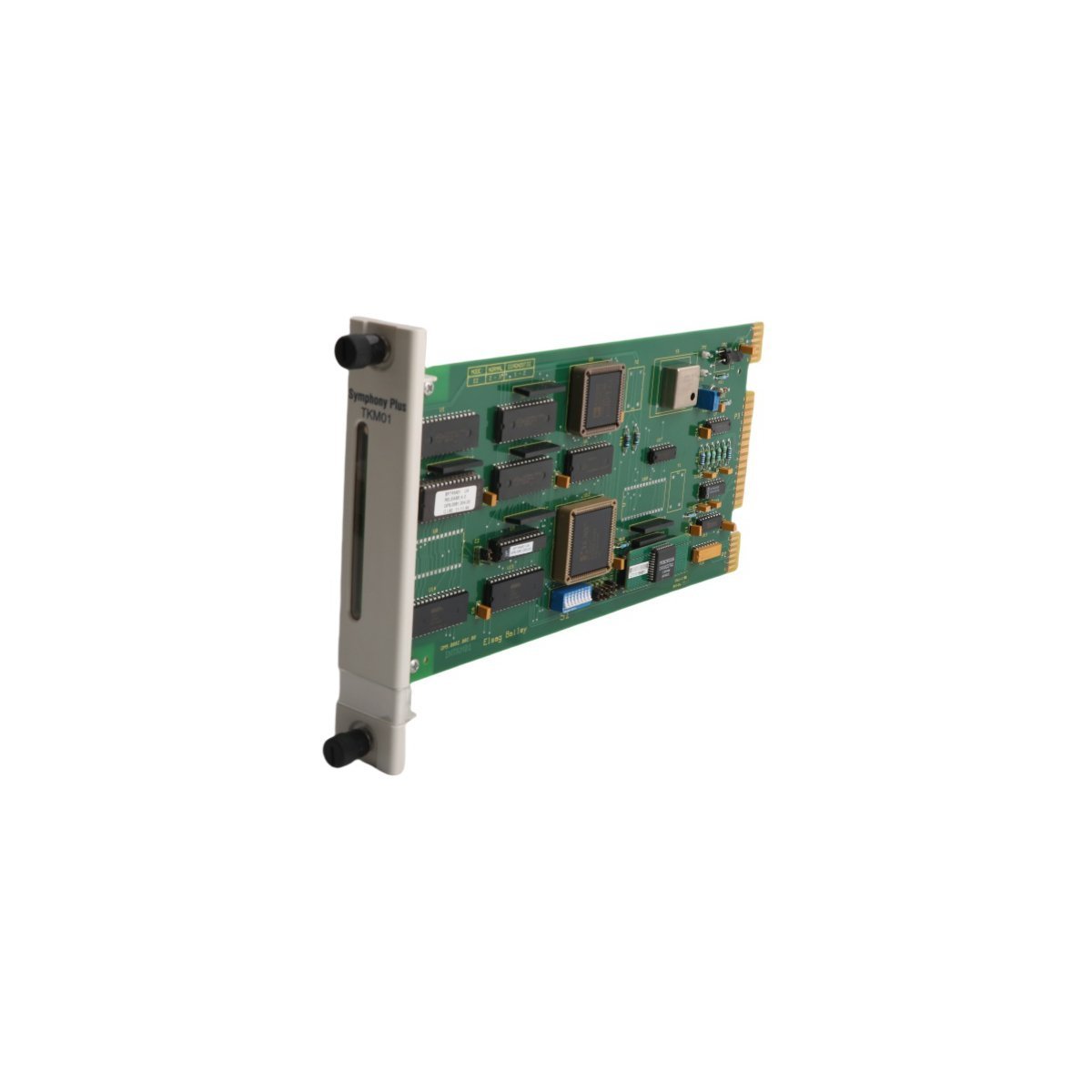

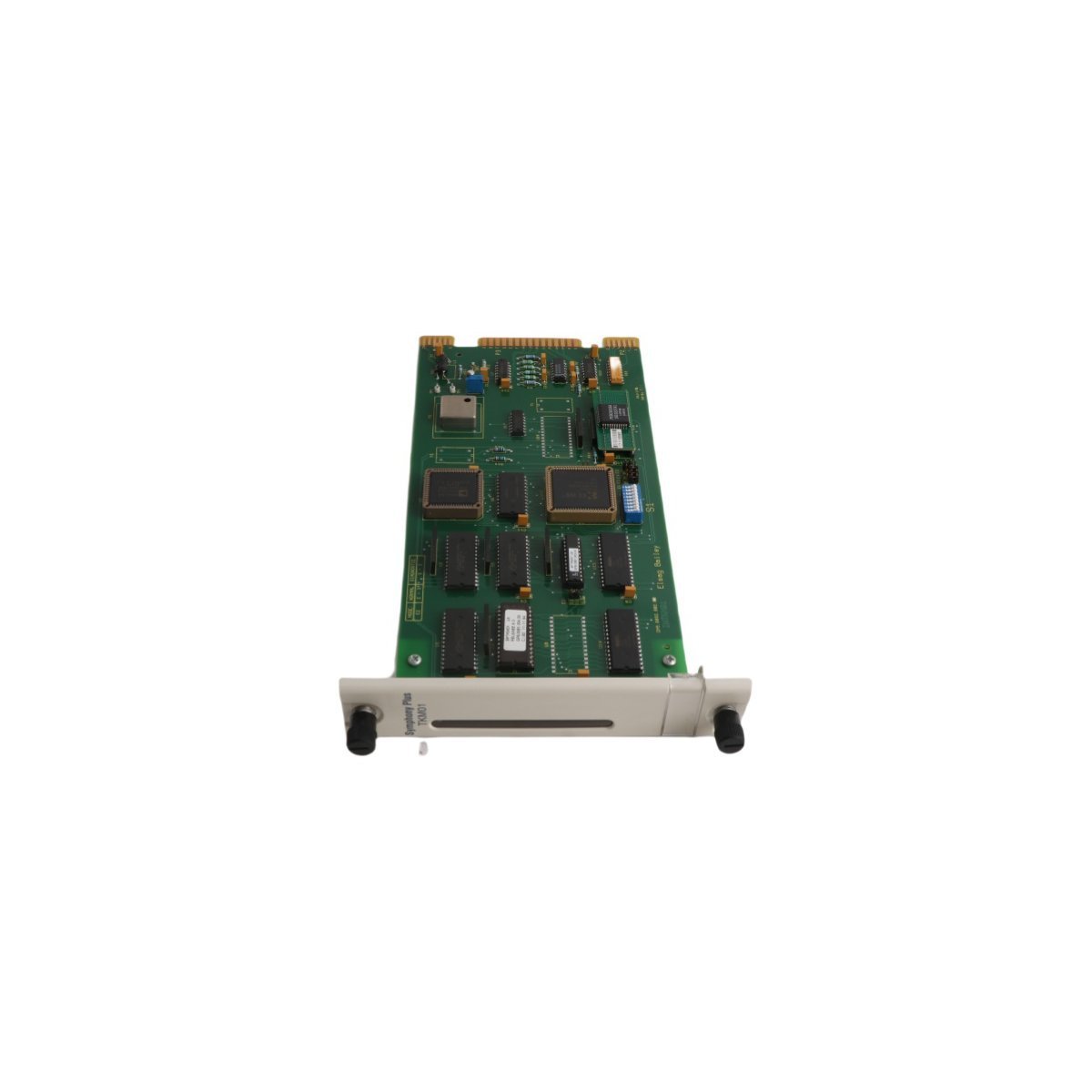

The ABB SPTKM01 is a high-precision Sequence of Events (SOE) Time Keeper Master designed for the Symphony Plus Distributed Control System (DCS) environment. This specialized synchronization module acts as the authoritative clock source for a control network, ensuring that every digital transition and system alarm across multiple racks is timestamped with sub-millisecond accuracy. By establishing a unified temporal reference, the SPTKM01 enables plant engineers to reconstruct the exact order of operations during a trip or system failure. This capability is vital for modern industrial facilities where understanding the "first-out" alarm is essential for rapid troubleshooting and maintaining operational safety.

Technical Hardware Infrastructure and Parameters

• Module Classification SOE Master Timing & Synchronization Unit

• Model Identifier SPTKM01

• System Platform Symphony Plus / DCS

• Memory Architecture Integrated high-capacity non-volatile flash for event logging

• Communication Protocol Modbus RTU & System Bus Integration

• Networking Compatible with Ethernet Router architectures

• Operational Temperature -20°C to +60°C

• Unit Mass 0.28kg

• Physical Dimensions 3.5cm x 31cm x 17.6cm

• Manufacturing Origin Sweden

• Tariff Code (HS) 8537101190

Industrial Deployment and Forensic Utility

The SPTKM01 is primarily utilized in sectors requiring rigorous audit trails and forensic fault analysis, such as thermal power generation, grid substations, and complex petrochemical refineries. Within a Symphony Plus cabinet, the Time Keeper Master synchronizes all local I/O modules, preventing clock drift that could lead to misinterpretation of high-speed digital events. Its 0.28kg compact design allows it to be integrated into existing control lineups without significant hardware overhead. By leveraging Modbus RTU connectivity, the SPTKM01 can also share its precise time data with third-party diagnostic tools, providing a comprehensive historical log that is critical for regulatory compliance and long-term system optimization.

FAQ

Q: How does the SPTKM01 differ from a standard system clock?

A: While a standard clock tracks time for the HMI, the SPTKM01 is an SOE Master. It provides high-resolution synchronization directly to the hardware level, ensuring that event sequences are recorded with millisecond precision rather than the second-level resolution typical of general IT clocks.

Q: What happens to the logged events if the system loses power?

A: The module is equipped with non-volatile flash memory. This ensures that all captured timestamps and event sequences are retained securely even during a total power loss, allowing for post-mortem analysis once the system is restored.

Q: Can this module interface with GPS-based external time sources?

A: Yes, in many Symphony Plus configurations, the SPTKM01 can be synchronized to an external master GPS clock via a communication gateway, ensuring the entire plant DCS is aligned with Coordinated Universal Time (UTC).

Q: Is the SPTKM01 compatible with older Harmony or INFI 90 systems?

A: The SPTKM01 is native to the Symphony Plus series. While it shares conceptual roots with earlier Bailey timing modules, you should verify the specific bus interface and firmware version to confirm compatibility with legacy hardware.

Q: How many event logs can the module store internally?

A: The internal storage capacity is designed to handle several thousand high-resolution events. However, the module typically streams these in real-time to the DCS historian, using its internal memory as a buffer to ensure no data is lost during network congestion.
