Product Overview

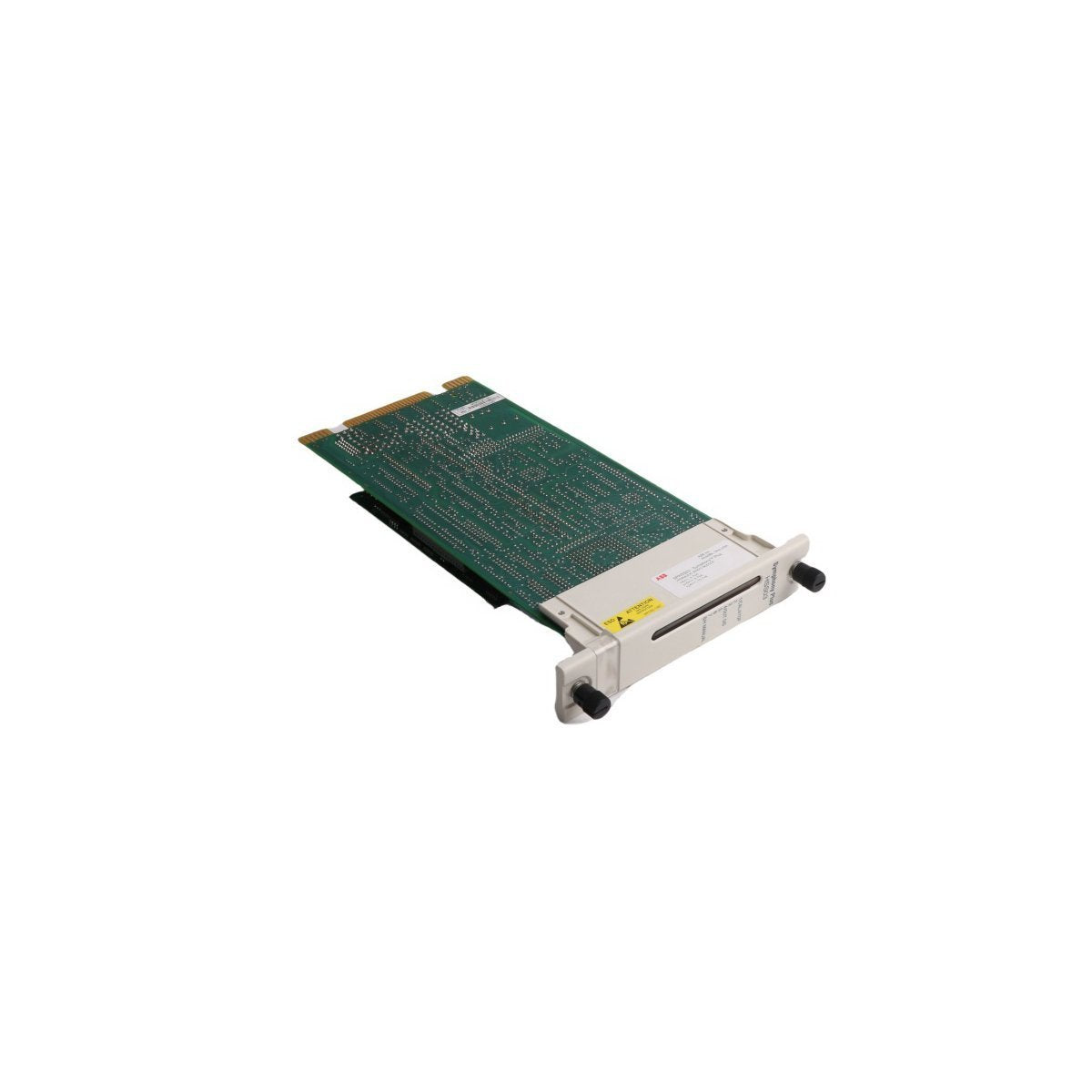

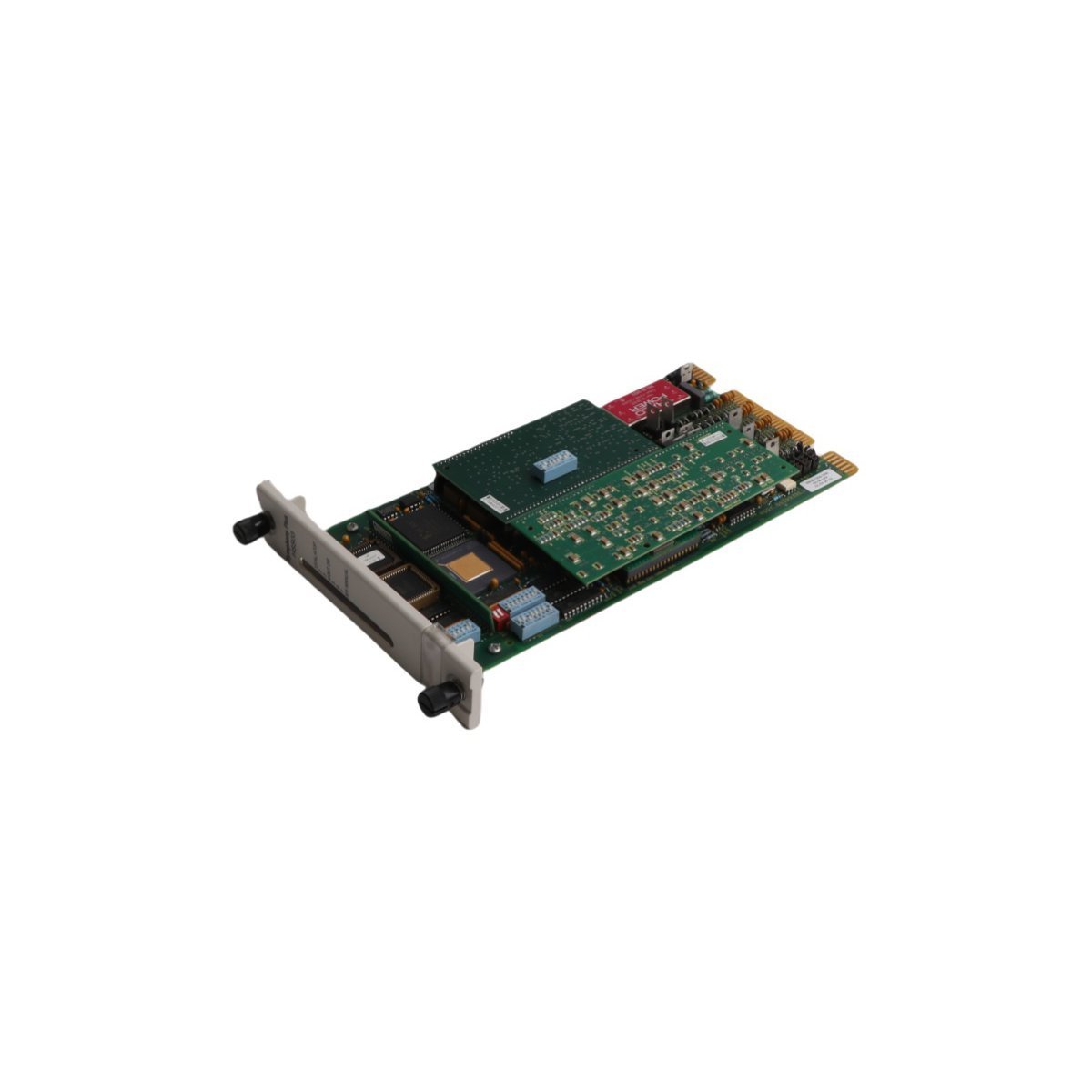

The ABB SPHSS03 is a high-precision Hydraulic Servo Module engineered for the Symphony Plus Distributed Control System (DCS) and Digital Control Unit (DCU) architectures. This specialized module functions as the critical interface for the high-speed regulation of hydraulic actuators, typically used in steam turbine governor systems and fuel valve positioning. By providing rapid signal processing and closed-loop control, the SPHSS03 ensures that hydraulic machinery responds with sub-millisecond accuracy to process setpoints. Its architecture is optimized for the demanding dynamics of turbine control, where precise positioning and system stability are essential for operational safety and power grid synchronization.

Technical Hardware Infrastructure and Parameters

• Module Function Hydraulic Servo Control / DCU Interface

• Model Identifier SPHSS03

• System Environment Symphony Plus / Harmony Rack

• Supply Voltage 200 VAC nominal

• Current Ratings 3 A rated (9 A maximum surge capacity)

• Rotational Support High-speed operation up to 6000 rpm logic processing

• I/O Configuration 3 Inputs and 2 Outputs for localized feedback loops

• Unit Mass 0.54kg

• Physical Proportions 3.5cm x 31cm x 17.6cm

• Manufacturing Origin Sweden

• Tariff Code (HS) 8537101190

Industrial Applications and Dynamic Use Cases

The SPHSS03 is a primary choice for heavy-duty process industries requiring high-torque modulation, such as thermal power plant turbine control, large-scale hydroelectric gate positioning, and petrochemical compressor regulation. Within a Symphony Plus rack, the module manages the servo-valve drive signals, translating digital commands into the precise electrical currents required to move hydraulic rams. Its 0.54kg compact Swedish-engineered design allows for seamless integration into existing control cabinets while providing the robust EMI shielding necessary to operate near high-voltage motor control centers. By utilizing its integrated input/output channels, the SPHSS03 provides real-time feedback on valve position and hydraulic pressure, ensuring that the DCS can execute proactive maintenance routines and emergency shutdown sequences with total reliability.

FAQ

Q: What is the primary role of the SPHSS03 in a turbine control system?

A: The SPHSS03 acts as the localized controller for hydraulic actuators, managing the high-speed positioning of steam or fuel valves to maintain precise turbine speed and power output.

Q: Is the SPHSS03 0.54kg module hot-swappable within the Symphony Plus rack?

A: While Symphony Plus hardware is designed for modularity, you must follow the specific ABB safety protocols for Hydraulic Servo modules, as removing a module during active control can lead to an immediate trip of the hydraulic valve.

Q: How does the 6000 rpm specification apply to a static control module?

A: In the context of the SPHSS03, this refers to the module's high-speed internal processing capability and its ability to synchronize with rotating machinery operating at high velocities, ensuring the feedback loop remains deterministic.

Q: Does the SPHSS03 require an external power supply?

A: Yes, the module is rated for a 200 VAC supply. It is essential to ensure that the power quality is stabilized to prevent fluctuations from affecting the precision of the servo-valve output signals.

Q: Can this module interface with third-party hydraulic valves?

A: The SPHSS03 is designed to work with standard industrial servo-valves. However, the specific electrical characteristics (mA/V) of the third-party valve must be verified against the module’s output specifications for compatible operation.
