Product Overview

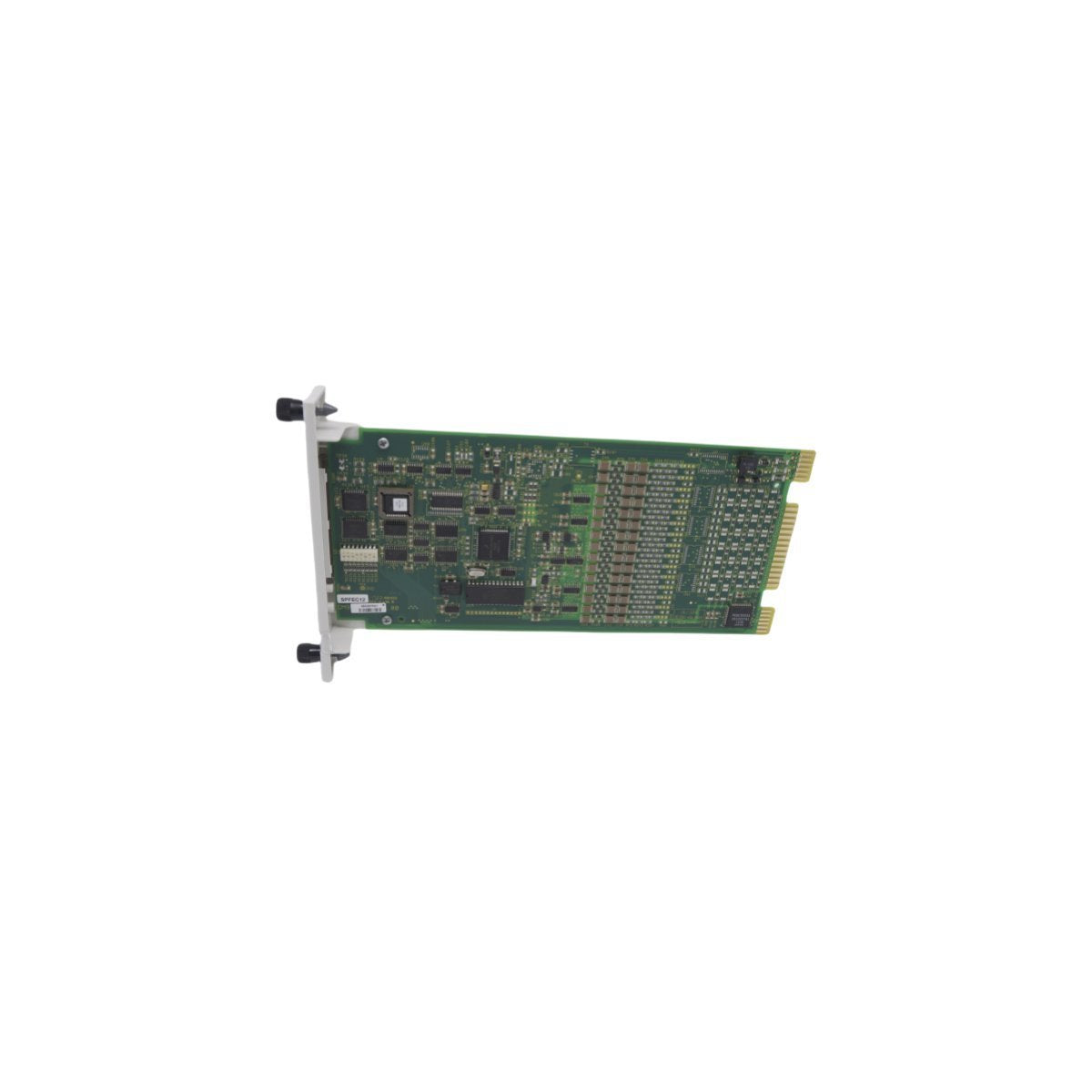

The SPFEC12 is a high-density Analog Input (AI) module developed by ABB for the Symphony Harmony Rack (HR) architecture. This hardware acts as a precision data acquisition interface, digitizing analog signals from various field instruments for use within the Distributed Control System (DCS). Engineered to provide a high degree of signal resolution, the SPFEC12 utilizes integrated interference rejection circuitry to eliminate electromagnetic noise, ensuring that process variables are reported with absolute accuracy. This module is an essential component for maintaining the operational integrity of Symphony Plus and Harmony systems, offering a reliable pathway for real-time monitoring of critical industrial parameters.

Core Functional Parameters and Hardware Details

• Model Identification: SPFEC12

• Component Classification: Analog Input (AI) Module

• Product Line: Symphony Harmony Rack (HR Series)

• Input Density: 16 High-Precision Analog Channels

• Communication Compatibility: Seamlessly interfaces with MODBUS RTU and TCP protocols

• Signal Integrity: Advanced onboard filtering for electrically dense environments

• Physical Mass: 0.22 kg

• Form Factor: 31.3 cm (L) x 17.7 cm (W) x 3.7 cm (D)

• System Environment: Compatible with Symphony Plus and Harmony controller families

• Manufacturing Origin: Sweden

Strategic Implementation and Industrial Utility

The SPFEC12 is specifically deployed in large-scale infrastructure projects where continuous data acquisition and high rack density are required:

• Thermal Power Generation: Capturing precise temperature and pressure readings from boiler and turbine sensors to maintain plant efficiency.

• Petrochemical Refining: Monitoring sensitive flow rates and liquid levels during complex chemical batching and distillation processes.

• Municipal Water Management: Integrating remote sensor data from filtration units and regional distribution networks for centralized control.

• Upstream Oil & Gas: Gathering critical process data from remote wellheads and offshore platforms for high-availability monitoring.

• Legacy System Maintenance: Serving as a vital replacement component for sustaining existing Harmony Rack installations that reached the discontinuation phase in late 2018.
