Product Overview

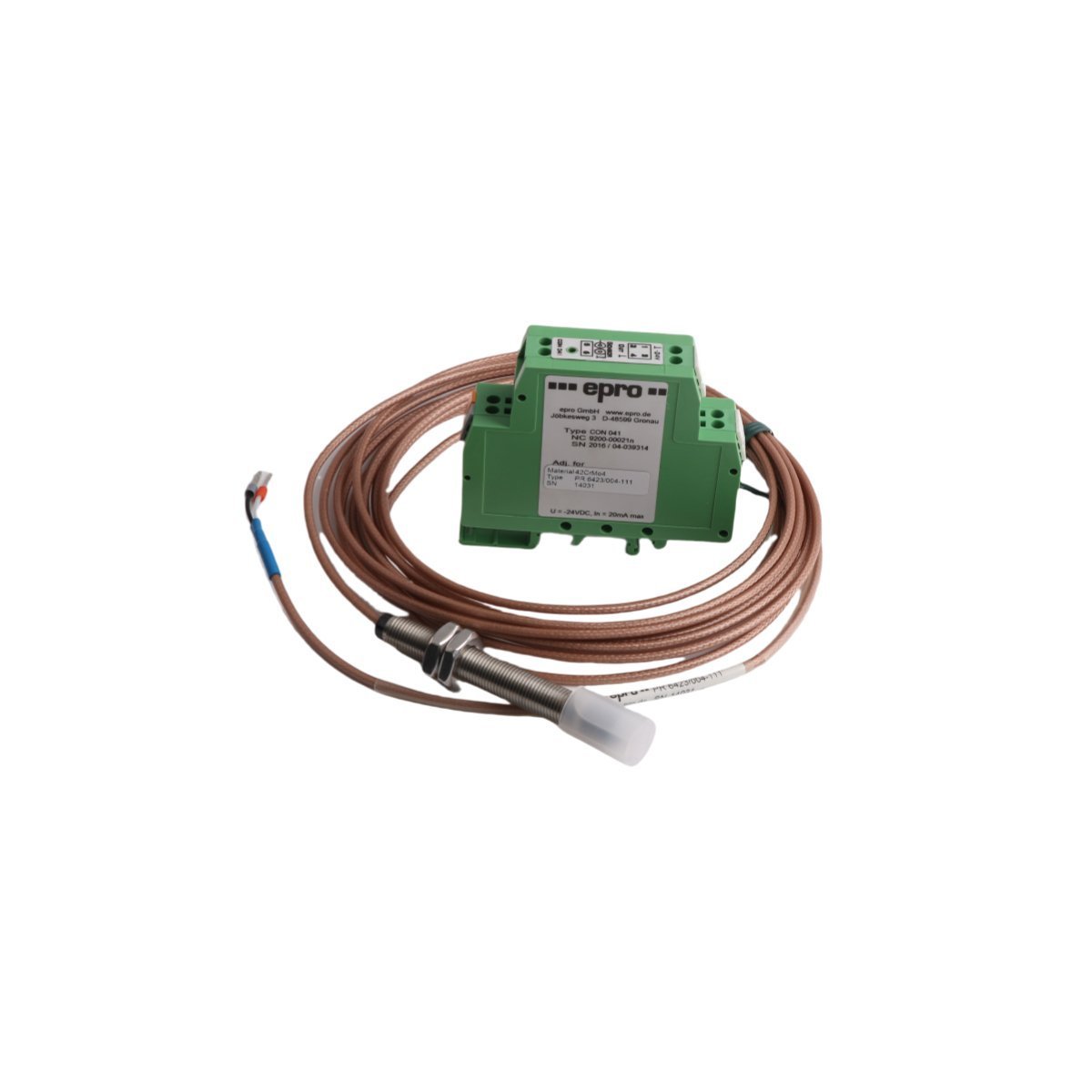

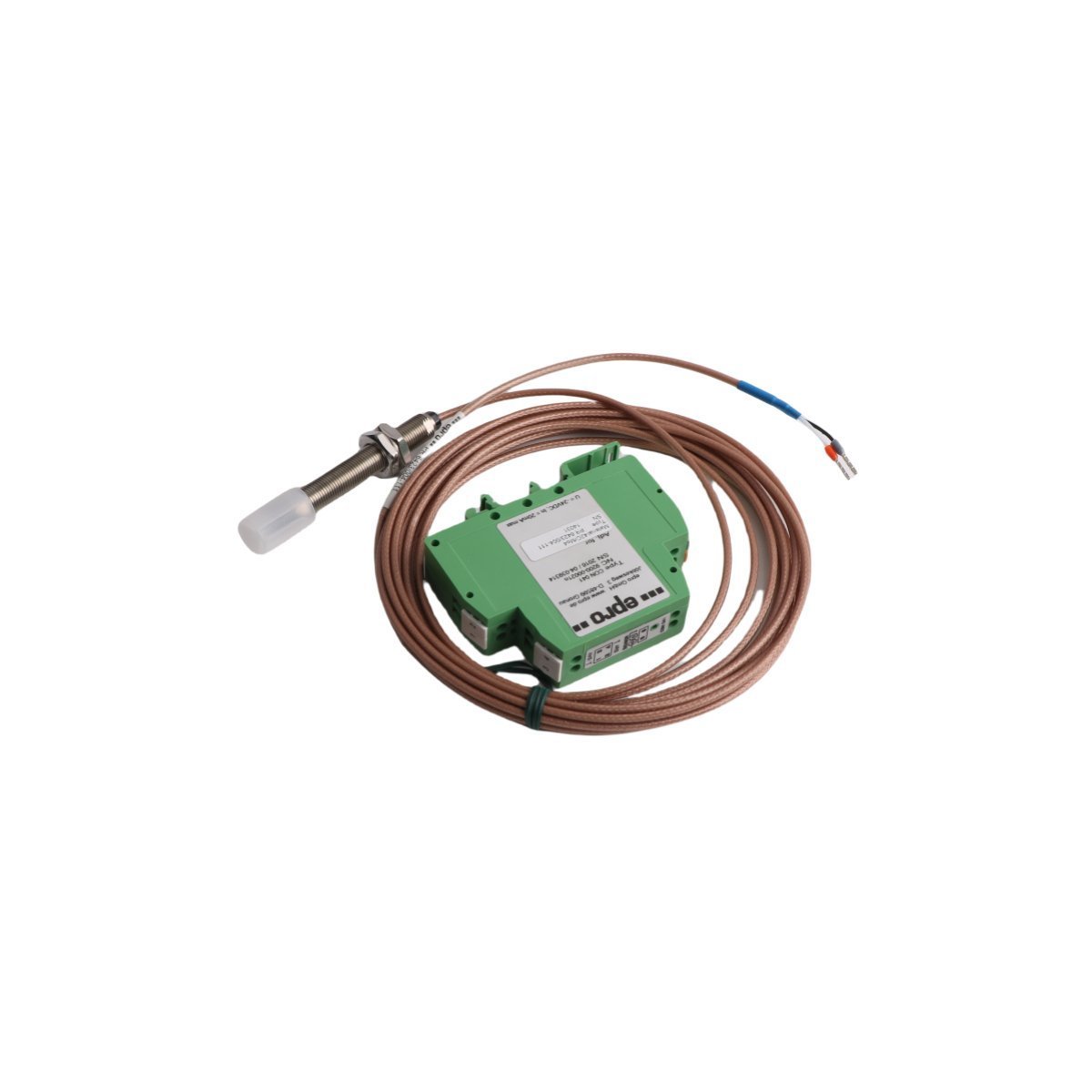

The Emerson PR6423/004-111, paired with the CON041 signal converter, is a sophisticated industrial sensing solution designed for non-contacting displacement and speed monitoring. This eddy current probe functions by generating an electromagnetic field at the sensor tip, allowing it to detect minute changes in distance relative to a conductive target. By translating these physical gaps into precise electrical data, the unit provides critical information regarding the operational state of high-speed rotating shafts. It serves as a primary input for machinery protection systems, ensuring that vibration and rotational velocity stay within safe engineering limits.

Core Architecture and Hardware Features

The PR6423/004-111 is engineered to maintain high-resolution signal integrity within the turbulent environments of industrial machinery cabinets.

• Measurement Principle: Non-contacting inductive eddy current sensing.

• Signal Conditioning: Integrated CON041 converter for high-fidelity signal processing.

• Mounting Interface: CON041 standard DIN rail mount for secure rack integration.

• Interference Rejection: Advanced onboard filtering technology to eliminate electromagnetic noise (EMI).

• Construction: Ruggedized housing built to resist moisture, oil mist, and thermal stress.

• System Accuracy: High-sensitivity detection capable of sub-micron displacement measurement.

• Platform Compatibility: Optimized for low-impedance signal transmission to DCS and PLC control units.

Functional Scope and Industrial Applications

This transducer system is an essential diagnostic tool used across power generation and heavy processing industries. Its primary role is to act as a high-precision "Speed Prob" or vibration sensor for critical assets that cannot afford unplanned downtime.

In petrochemical refineries and gas plants, this sensor is frequently mounted on centrifugal compressors and steam turbines to monitor radial vibration and axial thrust. Because the sensor operates without physical contact, it eliminates mechanical wear, making it ideal for long-term deployment in inaccessible areas of the machine housing. When connected to a Distributed Control System (DCS), the PR6423/004-111 enables real-time monitoring and automated safety shutdowns, protecting expensive hardware from catastrophic damage caused by shaft misalignment or bearing failure.
