Product Overview

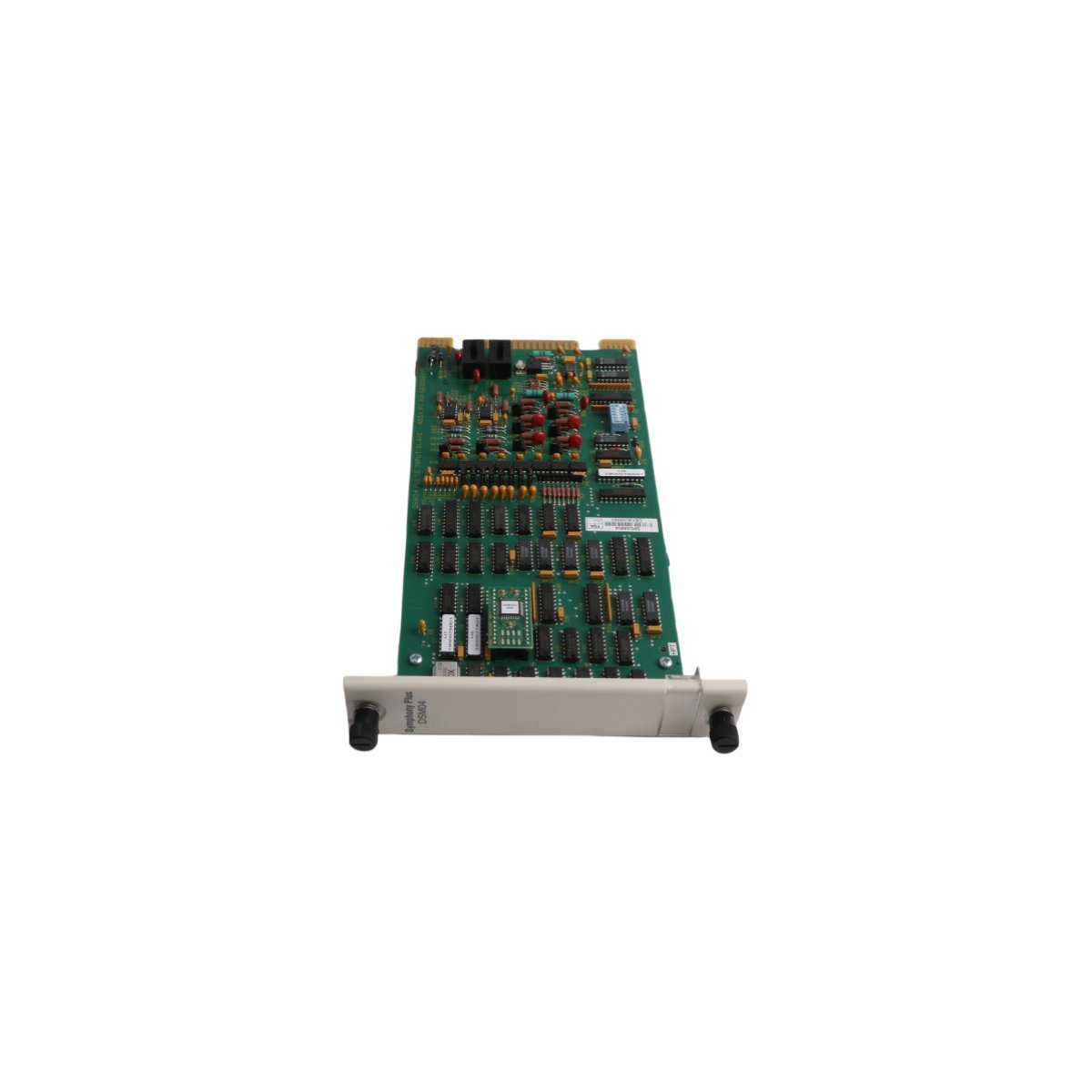

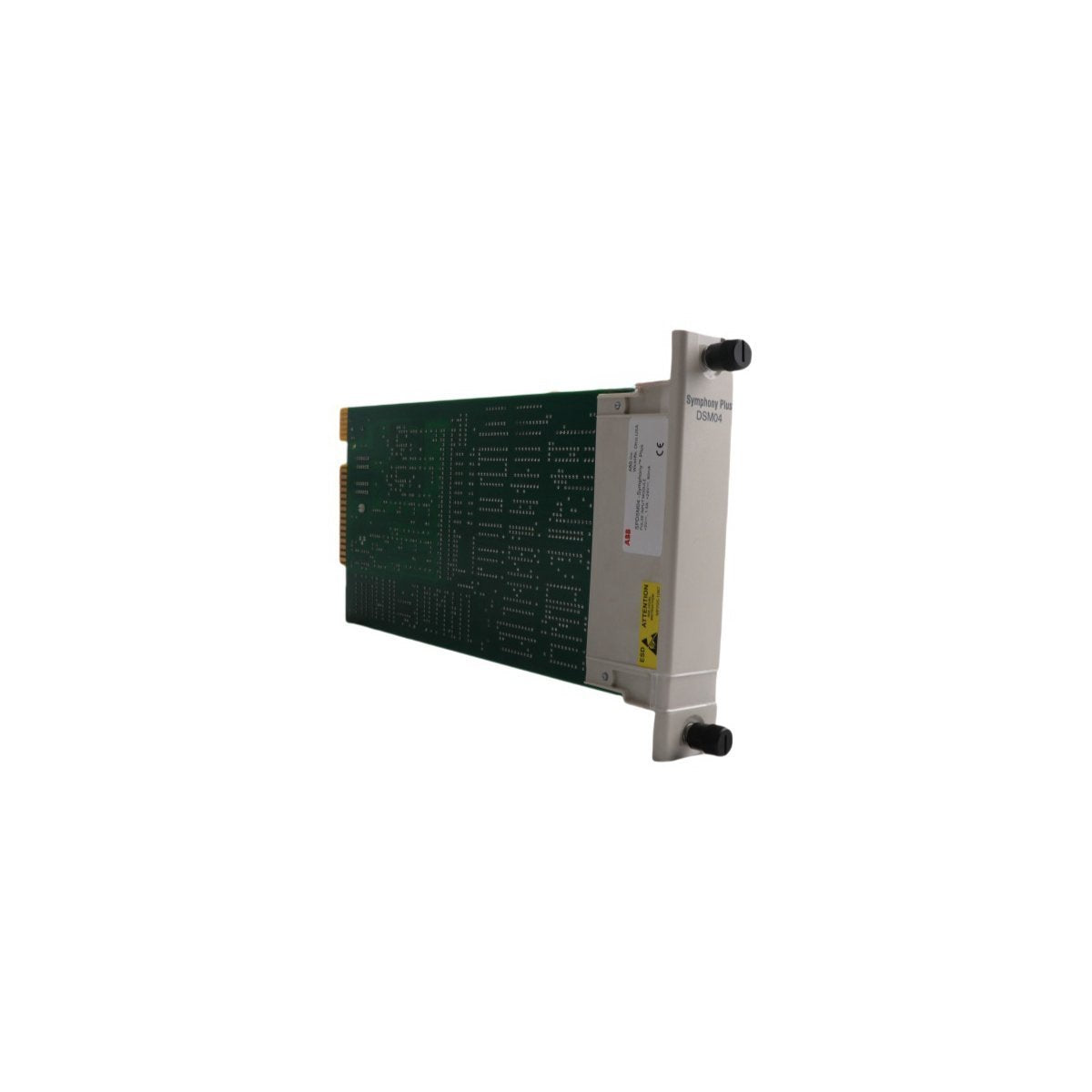

The ABB SPDSM04 is a high-precision pulse input interface engineered for the Symphony Plus Distributed Control System (DCS). This module is specialized for capturing and processing high-frequency pulse signals from field instrumentation, such as flow meters, tachometers, and encoders. By providing a bridge between rapid physical events and the digital control environment, the SPDSM04 ensures that time-sensitive data is digitized with extreme fidelity. Its architecture is built to withstand the electromagnetic interference typically found in heavy industrial power and process plants, ensuring that pulse counts and frequency measurements remain accurate during continuous operation.

Component Performance Data

• Module Designation: SPDSM04

• Hardware Category: High-Speed Pulse Input

• System Family: Symphony Plus

• Frequency Response: Supports up to 1 MHz pulse rates per channel

• Measurement Precision: Accuracy rated at ±0.1%

• Communication Link: Ethernet-ready via DCS routing services

• Dimensions: 3.5cm x 31.4cm x 17.5cm

• Unit Mass: 0.3kg

• Country of Origin: Sweden

• Functional State: Active Production

Strategic Industrial Usage

The SPDSM04 is an essential asset for sectors requiring granular monitoring of high-speed mechanical or fluid processes.

• Turbine Speed Monitoring: Tracking rotational velocity in steam or gas turbines to manage overspeed protection and governor control.

• Precision Flow Totals: Interfacing with pulse-output flow sensors in chemical or water treatment facilities for accurate volume accumulation.

• Material Conveyance: Synchronizing high-speed belt or feeder pulses in mining and bulk material handling to prevent system bottlenecks.

• Energy Metering: Capturing pulse outputs from utility-grade power meters for real-time consumption analysis and load balancing.

Engineering Features and Integrity

Designed for seamless integration, the SPDSM04 features a ruggedized internal circuit topology that allows it to operate reliably in high-vibration and varying temperature zones. The module’s 1 MHz sampling capability ensures that no pulses are missed even during peak operational speeds, providing engineers with a comprehensive data set for process optimization. Its slim-profile PCB design is optimized for high-density cabinet mounting, while its plug-and-play compatibility with Symphony Plus controllers minimizes commissioning time. With built-in diagnostic routines, the SPDSM04 can detect signal loss or wiring faults, significantly enhancing the safety and self-monitoring capabilities of the broader automation network.
