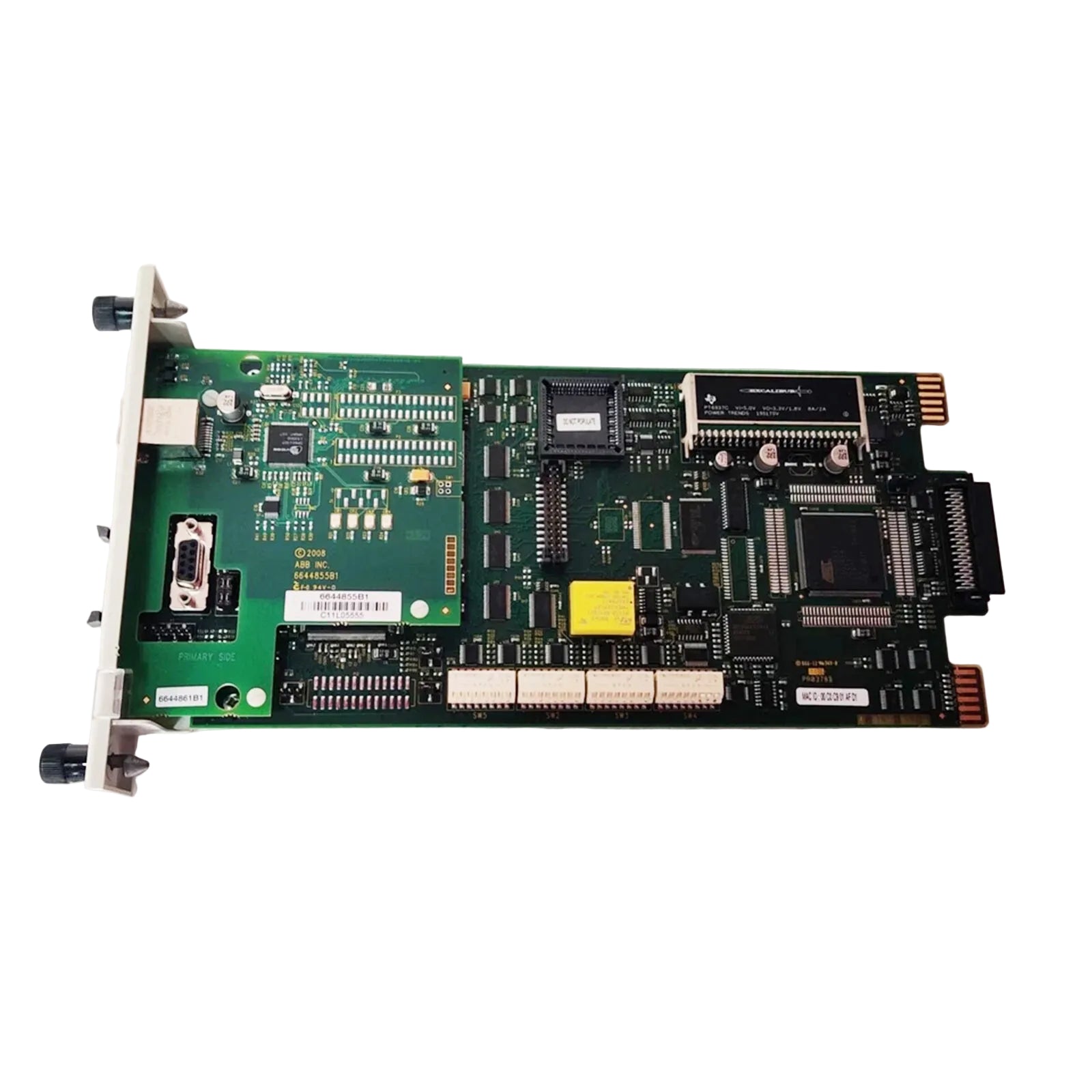

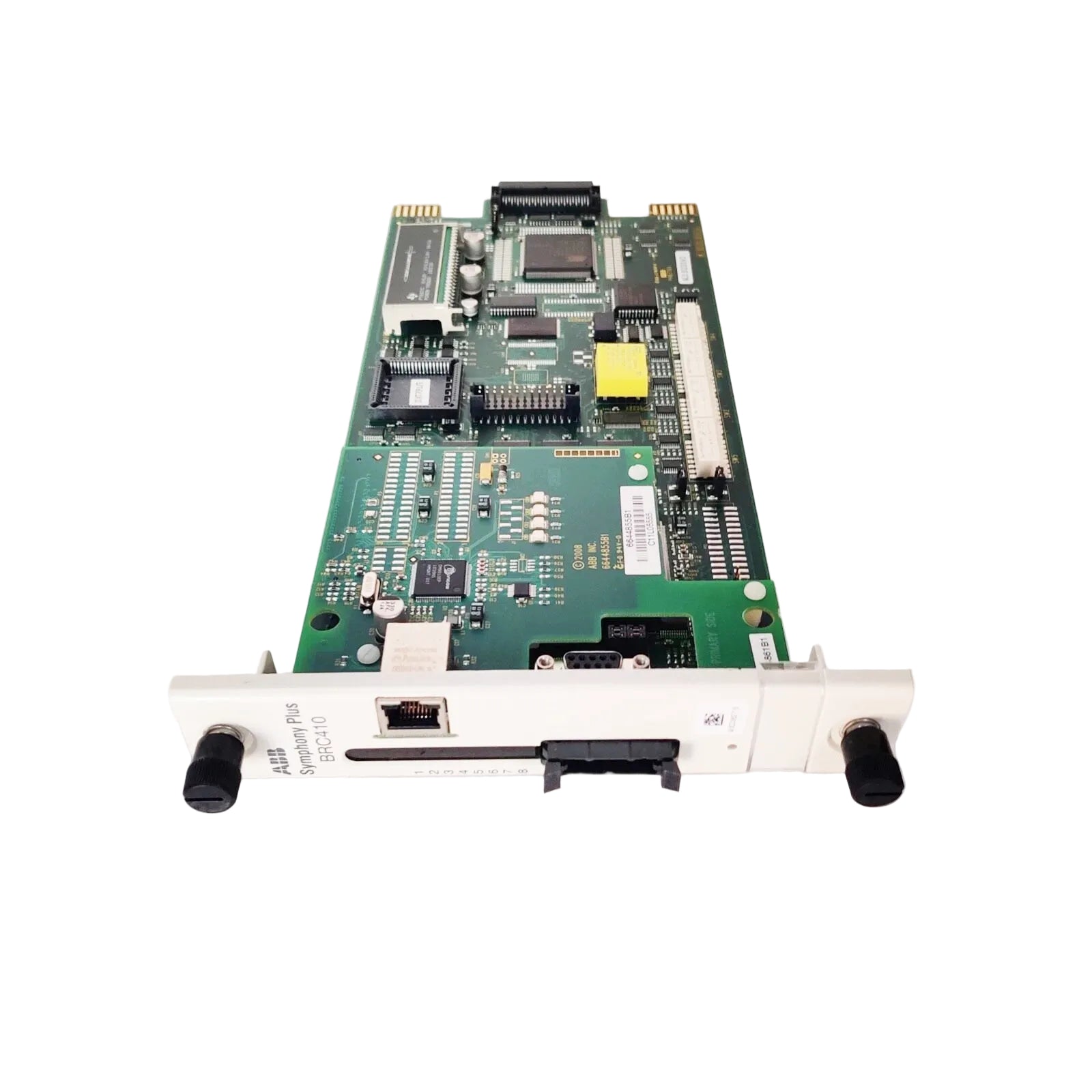

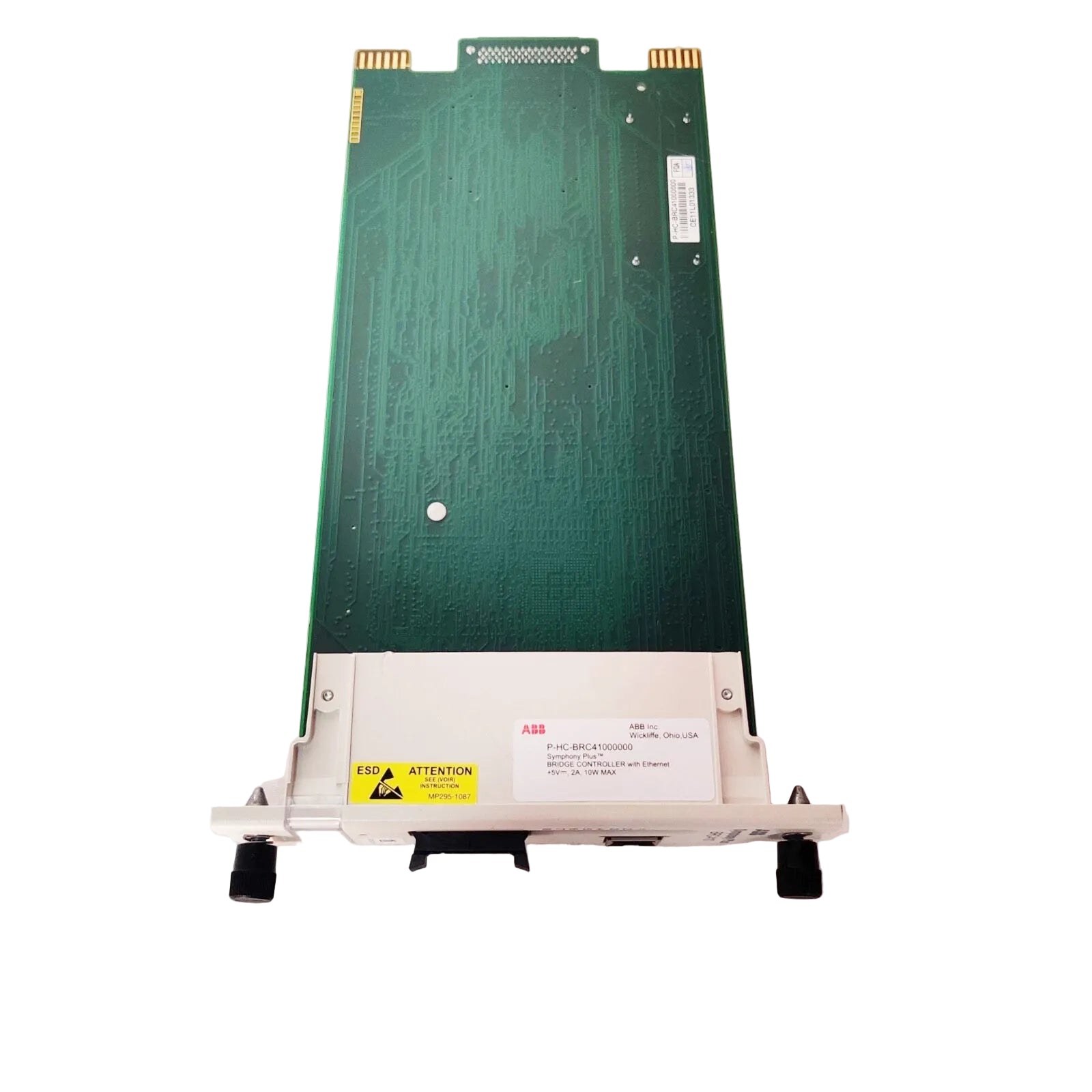

Configured for execution of complex control logic and multi-protocol network interfacing in Symphony Plus and Harmony Rack systems, the ABB SPBRC41000000 (BRC410 S+ Control Processor) provides direct physical/electrical execution.

Controller Capabilities and Technical Parameters

Deterministic Networks and Firmware Flash Compatibility

The BRC410 interfaces directly with existing INFI 90 systems while incorporating an integrated Modbus TCP interface over an open Ethernet link. Real-time data movement relies on structured firmware flash compatibility parameters to maintain synchronization between the embedded processing core and host interfaces. To sustain high-throughput sequencing without impacting loop runtime, the controller manages internal bandwidth via hard-coded backplane bus communication velocity allocations. This ensures deterministic data distribution across up to 30,000 function blocks while executing concurrent client/server connections over the integrated 10/100 Mbps communication interface.

Technical Queries and Engineering Data

Q: How does the processing loop execution respond during active firmware flash updates?

A: The processor must be placed in a non-executing configuration state prior to initiating firmware alterations. Flash updates overwrite volatile operational matrices, requiring a post-update cold reset sequence to resume standard block evaluation.

Q: What is the maximum current load imposed by the BRC410 on the backplane logic power supply rail?

A: Under peak execution demands with all serial links and the Ethernet port operating at full bandwidth, the module draws a maximum steady-state current of 2 A across the +5 VDC system bus rail.

Q: How does the BRC410 partition the execution of 30,000 function blocks to prevent processing cycle overruns?

A: The runtime environment splits block execution across up to 8 distinct execution segments. Engineers configure individual cycle periods per segment to optimize processing priority for high-speed loops versus slower supervisory operations.

Installation and Wiring Directives

• Electrostatic Prevention: Secure a verified ESD wrist strap to the cabinet frame before extracting the processor from its protective shielding to safeguard integrated logic gates against static discharge.

• Slot Alignment and Insertion: Insert the board vertically along the designated chassis guide rails. Apply continuous even pressure until the rear multi-pin plug is fully seated into the rack backplane connector before engaging mounting latches.

• Communication Cable Shielding: Utilize fully shielded RJ45 and serial cables to connect to peripheral networks. Ensure the outer cable shields terminate directly to the metal housing of the interface connector or the cabinet grounding bus.

• Thermal Management: Maintain clear clearances above and below the processor module to guarantee unhindered air convection across the card components, preventing localized heat collection from exceeding the 70 deg C threshold.

Standard Procurement Kit

• 1 x ABB BRC410 (SPBRC41000000) Control Processor

• 1 x Final Pass Hardware Test Certificate

• 1 x Industrial Electrostatic Protection Jacket

Logistics and Packaging Information

Delivery time: 2-7 days when payment finish, routed via global express carriers including DHL, FEDEX, or UPS. All precision automation hardware ships inside specialized anti-static industrial packaging containing multi-layer impact cushioning to prevent environmental or physical damage during global transport.
