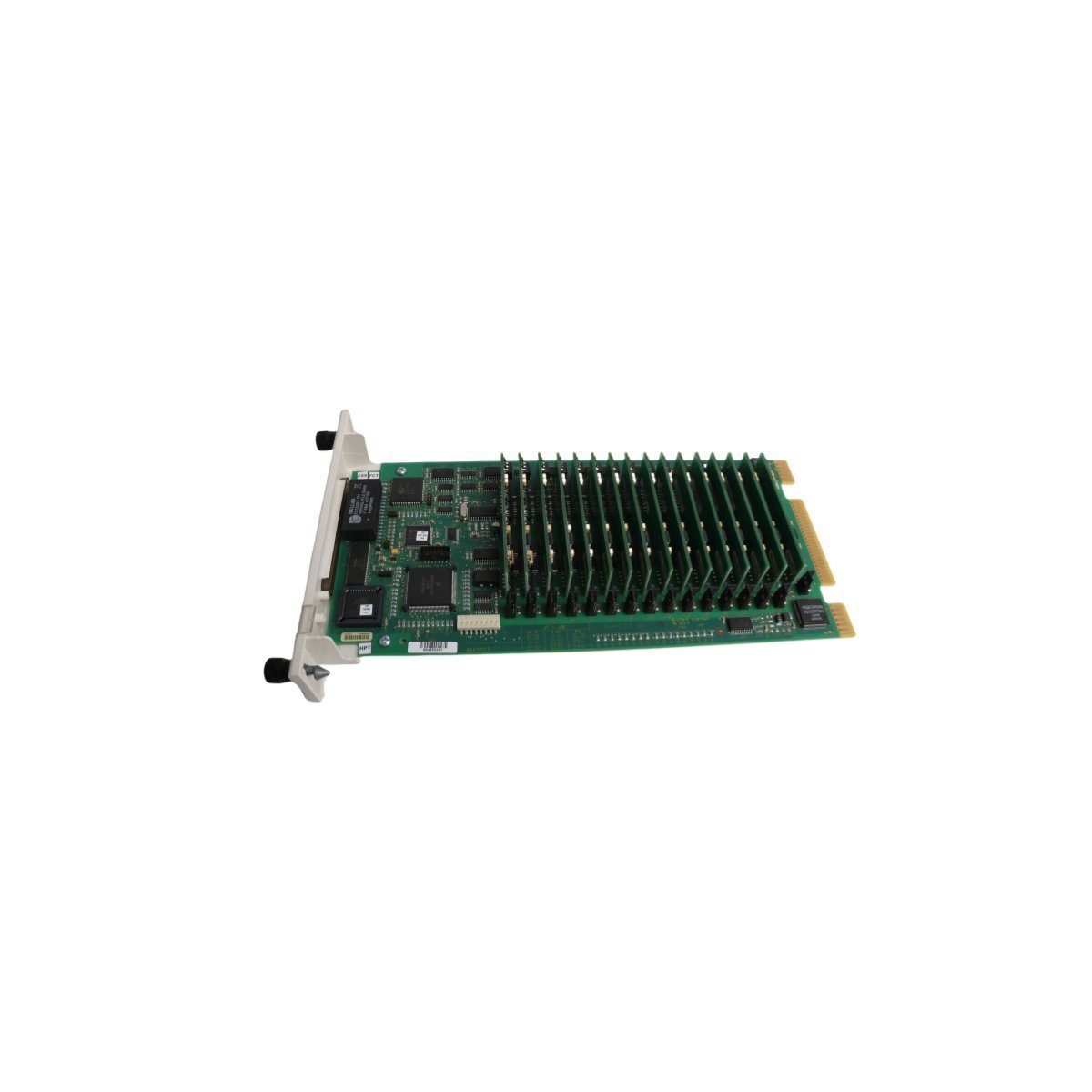

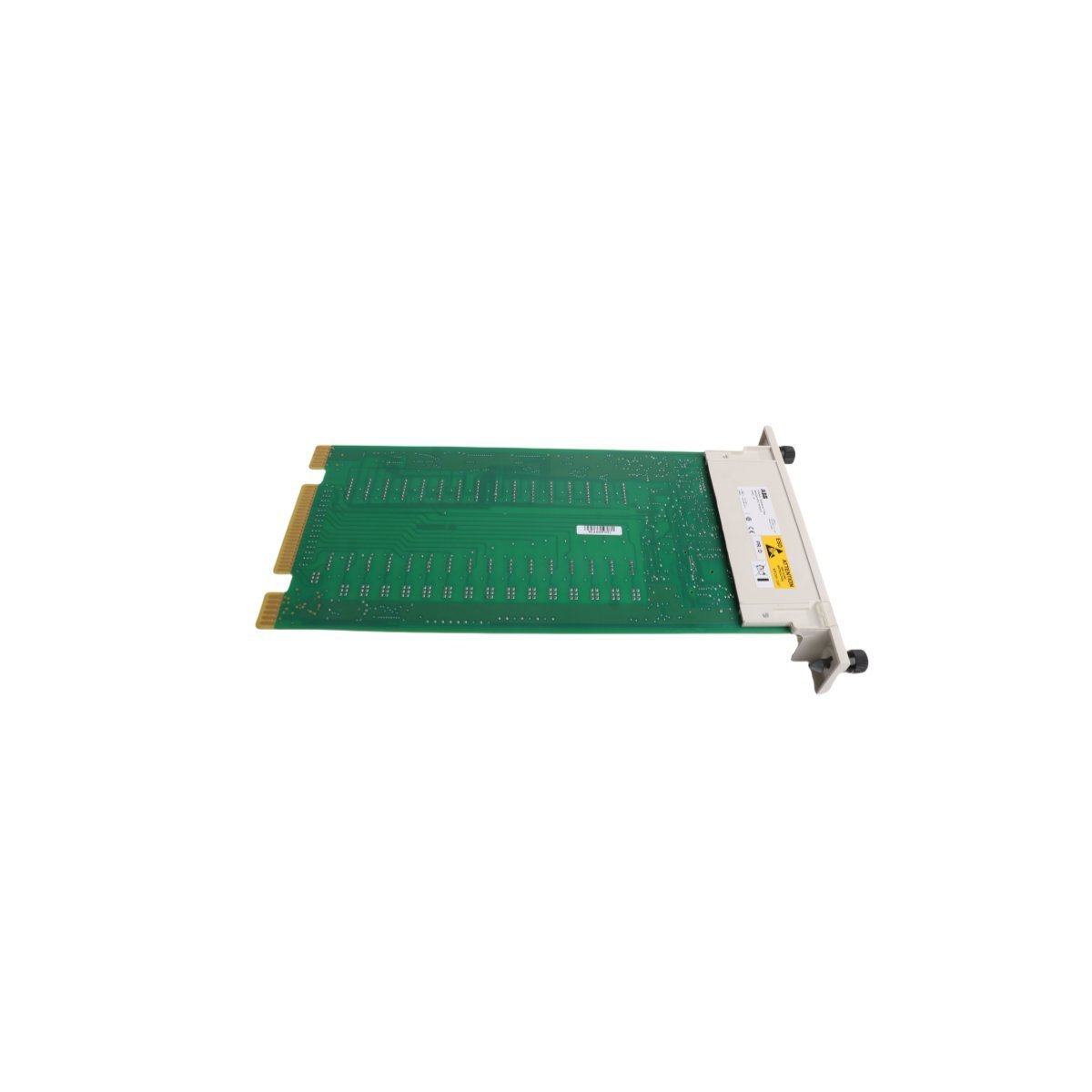

Product Overview

The SPASI23 is a high-density Analog Input Module designed specifically for the ABB Symphony Plus distributed control system (DCS). This module functions as a critical data acquisition interface, converting analog field signals into precise digital values for use by the system's control logic. Engineered to support the evolution of the Harmony Rack (HR) architecture, the SPASI23 provides a bridge for both legacy system maintenance and modern plant expansions. It specializes in high-speed signal conditioning and A/D conversion, ensuring that process variables such as flow, temperature, and pressure are monitored with maximum fidelity and minimal latency across the plant network.

Hardware Parameters and Structural Benchmarks

The SPASI23 is built for 24/7 continuous operation in rack-mounted industrial environments. It features a ruggedized PCB design and high-grade internal components to maintain accuracy across varying thermal gradients.

• Model Number SPASI23

• Module Function Analog Input Slave

• System Architecture Symphony Plus / Harmony Rack

• Input Channel Density 16 High-Precision Channels

• Signal Conversion 12 to 15-bit resolution (software selectable)

• Physical Mass 0.3 kg

• Chassis Profile 3.5 x 32.5 x 17.5 cm

• Isolation Integrity Galvanic isolation between field inputs and system logic

• Operational Range Hardened for demanding industrial temperatures

• Compliance Certification CE, UL, and CSA certified

• Country of Manufacture Sweden

Specialized Industrial Implementations

This Symphony Plus module is a cornerstone for large-scale automation where signal reliability directly impacts operational safety and bottom-line efficiency.

• Power Generation Monitoring Acquiring critical data from boiler feed pumps and turbine sensors to ensure stable energy output in thermal and nuclear plants.




• Petrochemical Process Control Managing complex analog loops for distillation columns and refinery reactors where high-speed sampling is required for PID stability.

• Water and Wastewater Management Monitoring geographically dispersed level and flow transmitters to provide centralized control over municipal distribution networks.

• Pulp and Paper Production Regulating steam pressures and chemical dosing through accurate feedback from field instrumentation.

• Modernization and Retrofitting Ideal for upgrading legacy Bailey Infi 90 installations to the Symphony Plus platform without requiring a complete re-wiring of the existing cabinet infrastructure.
