Product Overview

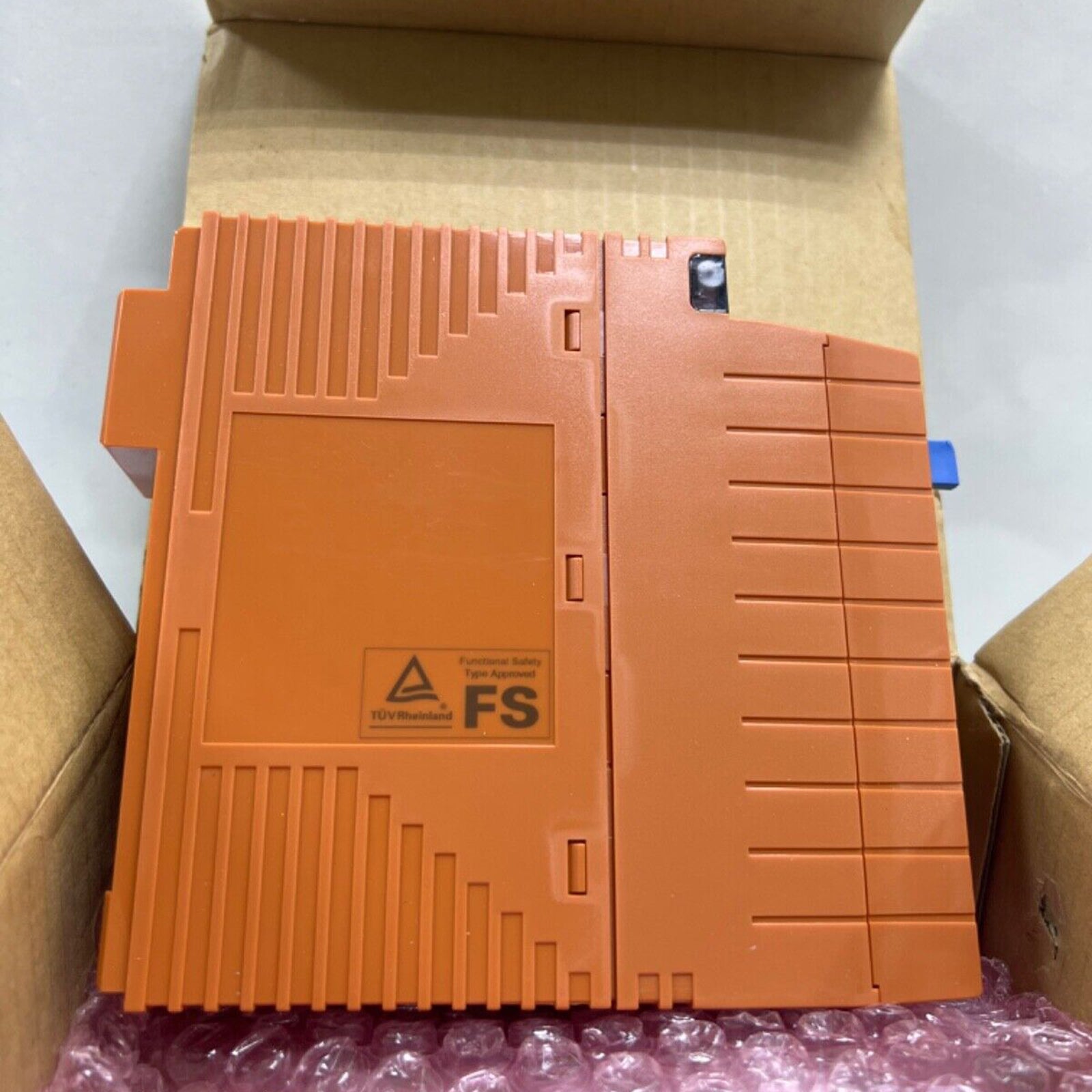

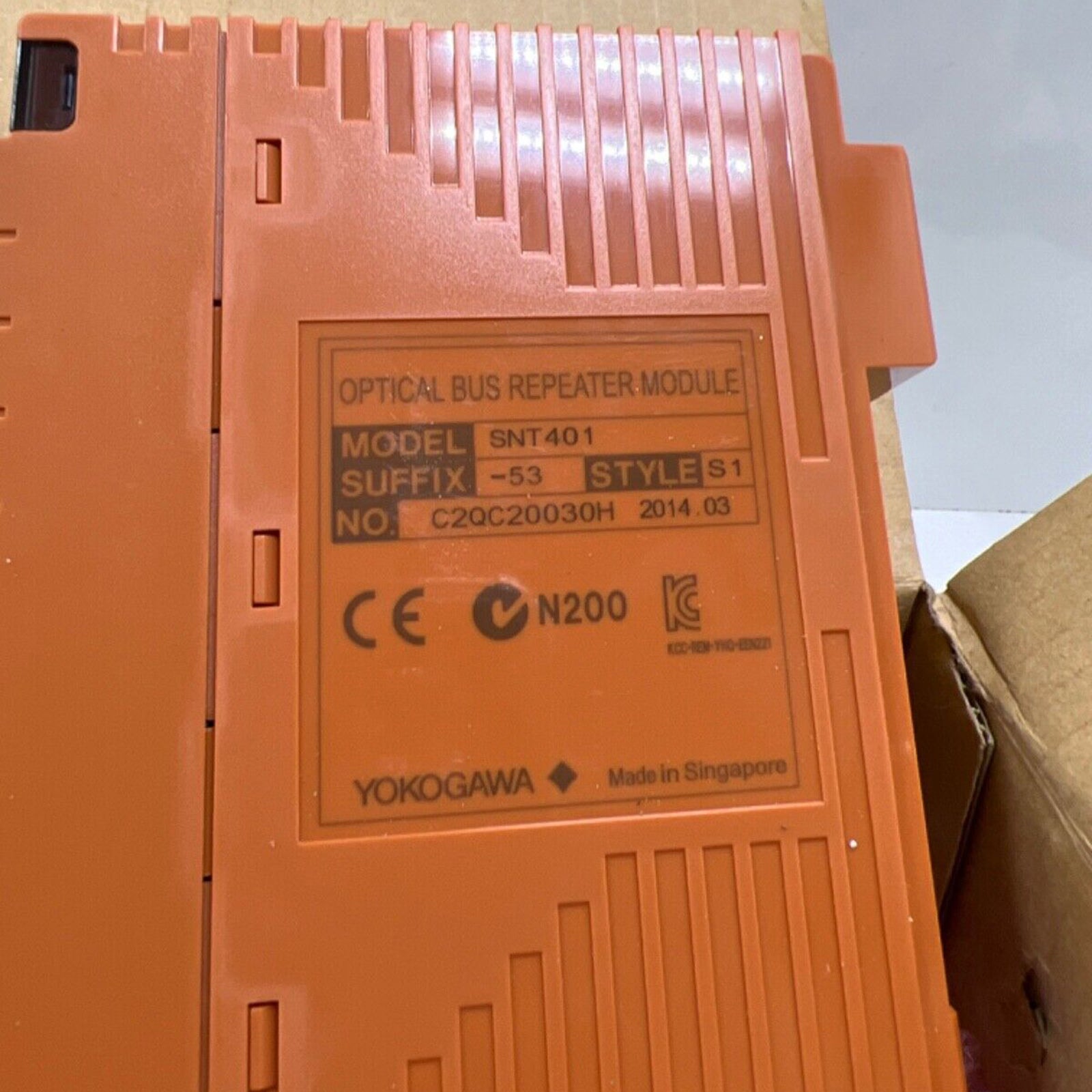

The Yokogawa SNT401-53 is a specialized optical communication interface designed to facilitate the long-range extension of the Enhanced Service Bus (ESB). Primarily utilized within the ProSafe-RS safety instrumented system and high-availability CENTUM environments, this module converts electrical bus signals into optical data for transmission over fiber optic media. By migrating from copper to fiber, the SNT401-53 eliminates the distance constraints of standard cabling while providing total immunity to electromagnetic interference and ground loops. It supports complex network architectures, allowing remote I/O nodes to remain synchronized with the safety controller across expansive industrial complexes.

Physical Architecture and Performance Metrics

The SNT401-53 is built for extreme reliability, offering consistent performance across a wide environmental spectrum.

• Communication Medium: Quartz Single-mode Optical Fiber

• Signal Conversion: Electrical-to-Optical ESB transport

• Network Topology Compatibility: Supports Star and Chain configurations

• Operational Reach: Standard 5 km (Extends to 10 km on Vnet/IP R1.03+ systems)

• Cascading Limit: Maximum of 2 stages for chain-type links

• Current Consumption: 0.5 A

• Thermal Endurance: Wide operating range from -20°C to +70°C

• Corrosion Protection: ISA Standard G3 compliant (Maintenance grade)

• Unit Weight: 0.3 kg (300g)

• Approximate Dimensions: 130 mm x 130 mm x 35 mm

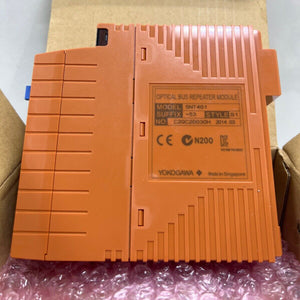

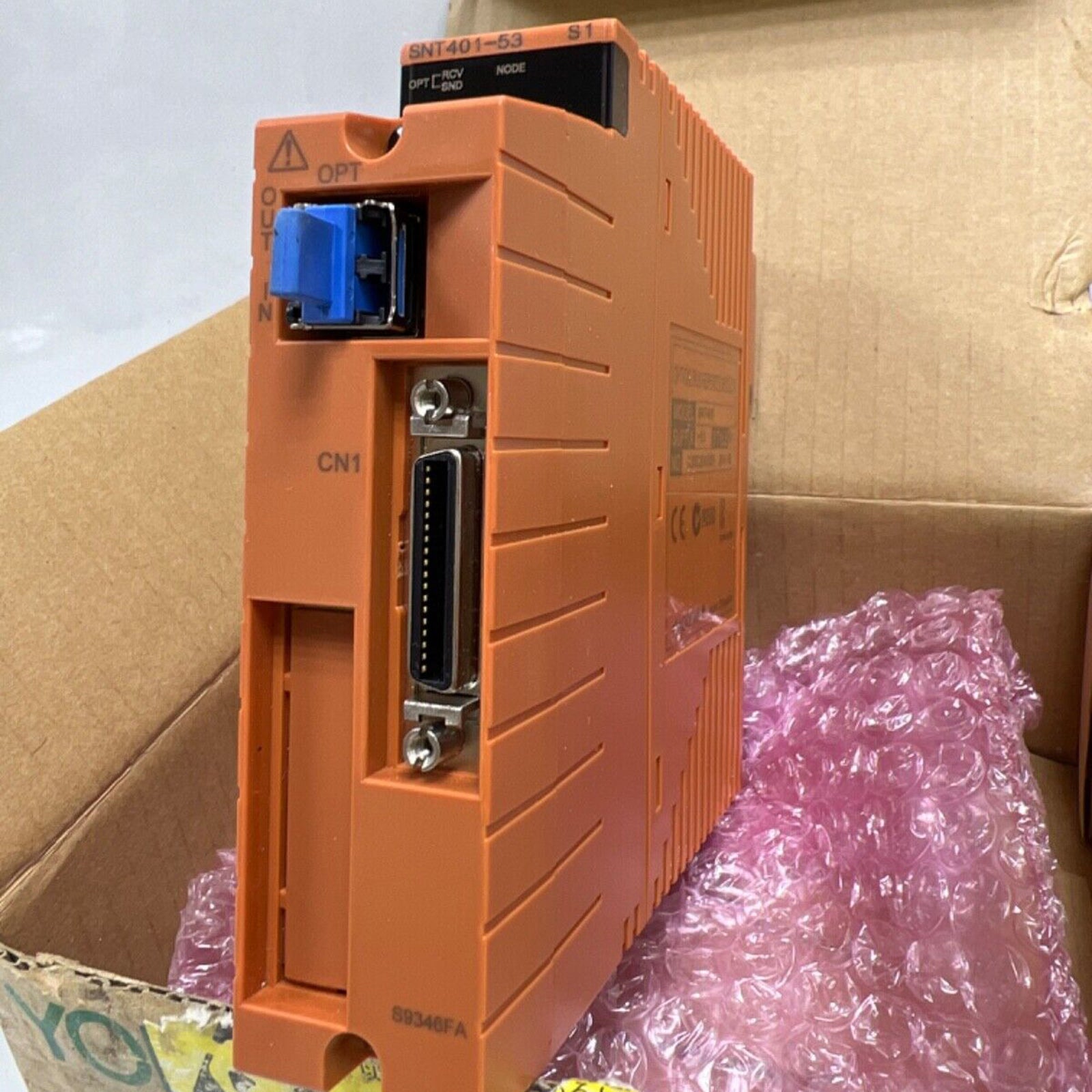

• Connection Interface: LC Fiber Optic Connectors

Deployment Scenarios and Field Utility

This repeater module is essential for distributed safety and control architectures that require high-speed data integrity over significant distances.

• Distributed Safety Instrumentation: Linking remote safety I/O nests to the main ProSafe-RS controller in large-scale oil and gas upstream facilities.

• Refinery Infrastructure: Providing a stable communication backbone between distant process units where lightning protection and noise immunity are critical.

• Marine and Offshore Platforms: Connecting auxiliary control stations to a centralized bridge system via fiber optics to prevent signal degradation caused by shipboard electrical noise.

• Harsh Temperature Environments: Deploying control nodes in unheated or high-heat industrial zones, leveraging the module’s robust -20°C to 70°C operating rating.

FAQ

Q: Does the SNT401-53 provide explosion protection for hazardous zones?

A: No, the SNT401-53 is a standard industrial module with ISA Standard G3 protection for corrosive gases, but it does not carry a specific explosion-proof rating. It should be installed in a suitable enclosure for such environments.

Q: What is the maximum distance I can achieve with a single SNT401-53 link?

A: Under standard conditions, the distance is 5 km. However, if integrated into a Vnet/IP system with software version R1.03 or later, the maximum transmission distance can be extended up to 10 km.

Q: Can I mix star and chain topologies in my network design?

A: Yes, the SNT401-53 is versatile and allows for both star and chain layouts to be combined within a single system architecture, provided the maximum of 2 stages in any single chain branch is not exceeded.

Q: Is this module compatible with standard CENTUM VP systems?

A: Yes, it is used across the FIO (Field network I/O) family, though it is most frequently found in ProSafe-RS safety systems for long-distance node connection.

Q: What type of fiber optic cables should be used with the SNT401-53?

A: For optimal performance and to reach the specified distances, quartz single-mode optical fiber is required. Connection is typically made using LC-type connectors.
