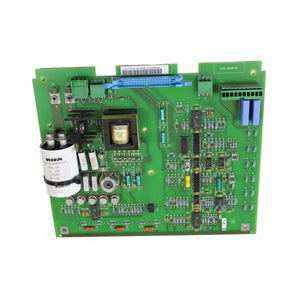

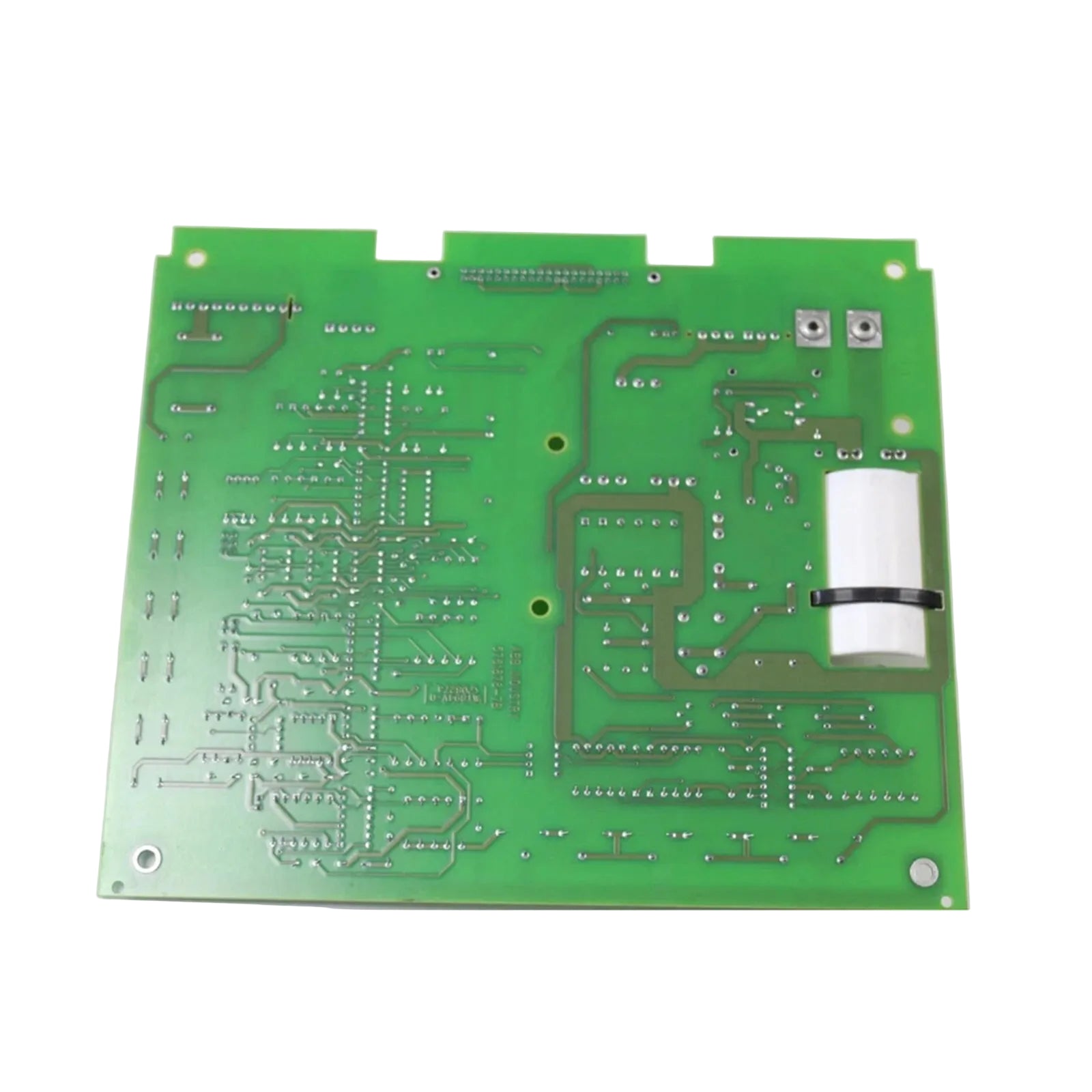

Configured for chopper firing sequence control and DC drive regulation in ABB industrial drive systems, the ABB SNAT617CHC (SNAT617CHC Control Module) provides direct electrical execution. The board processes control-level switching commands, manages gated drive signals, and interfaces with associated power regulation assemblies through dedicated control connectors and internal drive communication paths.

Model Identification Reference

The supplied unit is identified under the following manufacturer references without functional deviation:

• SNAT617CHC

• SNAT 617 CHC

• SNAT-617-CHC

Electrical and Mechanical Specifications

Backplane Communication and Drive Coordination

The SNAT617CHC control board exchanges timing and control-state information through the internal drive control architecture. Signal routing integrity between the chopper control section and associated firing circuits must be maintained with low-noise grounding practices.

Firmware and hardware compatibility must be verified against the installed ABB drive generation before replacement. Mixed board revisions within the same control rack can introduce synchronization inconsistencies during dynamic load transitions.

Technical Service Questions

Q: Does the SNAT617CHC support hot replacement while the drive cabinet remains energized?
A: The board is intended for installation under de-energized conditions. Internal capacitor discharge verification is required before connector removal.

Q: Is shield grounding required for adjacent control wiring?
A: Yes. Shield continuity should terminate at the designated cabinet grounding reference to reduce switching noise coupling.

Q: Can the module operate independently from the associated drive control rack?
A: No. The board depends on external drive control infrastructure and regulated internal supply distribution.

Q: Are connector insertion cycles limited during maintenance activity?
A: Repeated insertion and removal should be minimized to prevent connector contact wear and signal instability.

Cabinet Installation Notes

Before installation, isolate incoming drive power and confirm DC bus discharge according to plant lockout procedures. Inspect the board for connector oxidation, bent pins, or conductive contamination prior to insertion.

Route signal wiring separately from motor output conductors to reduce electromagnetic coupling. Maintain cabinet airflow clearance around the module surface to prevent localized thermal accumulation near power switching sections.

Use anti-static handling procedures during transport and installation. Grounded wrist straps and conductive packaging are recommended when replacing the board inside energized control environments.

Ordering Information

• SNAT617CHC Chopper Control Board

• Anti-static protective packaging

• Industrial protective outer carton

• Optional related ABB drive control boards available separately

Logistics and Dispatch Details

Delivery time: 2-7 days when payment finish. Shipment arranged through DHL, FedEx, or UPS logistics channels. All units are packed using anti-static industrial packaging with reinforced carton protection for electronic control assemblies.
