Product Overview

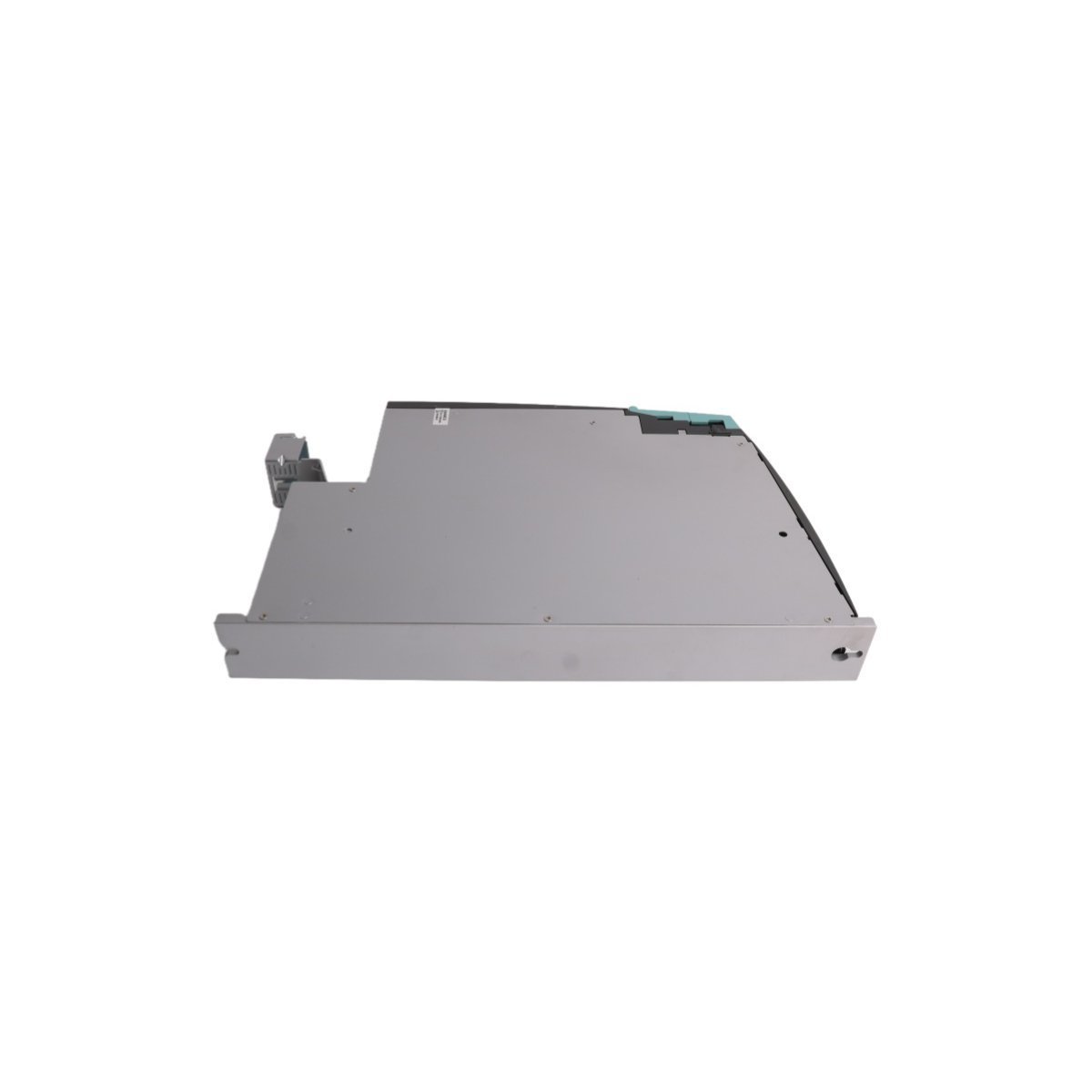

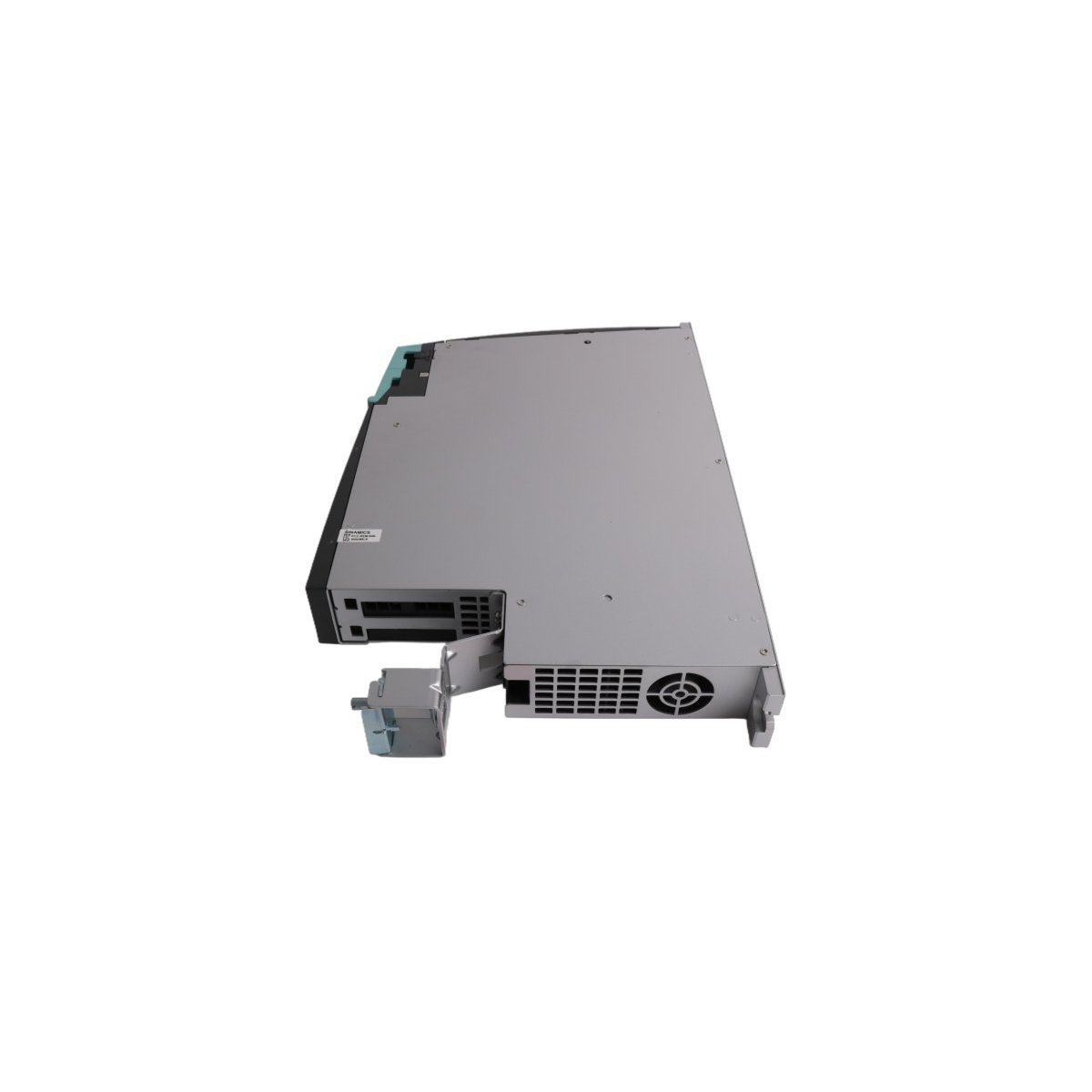

The Siemens 6SL3120-1TE21-8AD0 is a high-performance SINAMICS S120 Single Motor Module engineered for sophisticated motion control in decentralized drive architectures. This Booksize D-type inverter module is designed to draw power from a common DC link ($510V$ to $720V$ DC) and deliver a precise 3-phase AC output to a single motor. Rated for a continuous current of 18A and a power output of 18.5kW to 21kW (depending on application duty), it offers exceptional power density in a slim-profile chassis. The module is a critical component for high-dynamic servo applications, providing the fast response times and integrated safety protocols necessary for modern, high-speed production machinery.

Core Architecture and Performance Dynamics

The 6SL3120-1TE21-8AD0 is defined by its ultra-low latency control and robust thermal management, ensuring stable operation under heavy industrial cycles.

• High-Speed Control Loops: Achieves current control cycles of $62.5\mu s$ and speed control cycles of $125\mu s$ for maximum dynamic precision.

• Safety Integrated Features: Built-in support for safety functions including STO, SBC, and SS1, compliant with SIL 2 (IEC 61508) and PL d (ISO 13849-1).

• Network Connectivity: Utilizes the DRIVE-CLiQ digital interface for automatic parameter identification and high-speed data synchronization.

• Pulse Management: Features optimized pulse patterns with a $4kHz$ switching frequency to minimize motor heating and acoustic noise.

• Thermal Design: Employs an internal air cooling system with integrated fans, allowing for continuous operation at $40^\circ C$ with derating possibilities up to $55^\circ C$.

• Cable Management: Supports shielded motor cable runs up to 70 meters ($230$ feet) while maintaining electromagnetic compatibility.

Strategic Deployment and Industrial Logic

This motor module is optimized for multi-axis systems where coordinated movement and high torque accuracy are fundamental requirements.

Precision Machine Tooling and CNCIn milling and turning centers, the 6SL3120-1TE21-8AD0 provides the current stability required for high-speed spindles and axis feed motors. The $62.5\mu s$ current control ensures that surface finishes remain consistent even during complex simultaneous 5-axis movements.

Automated Packaging and BottlingFor high-speed rotary fillers and pick-and-place robots, this module delivers the rapid acceleration and deceleration curves needed to maximize throughput. The integrated Safety Integrated functions allow for reduced safety distances and faster operator intervention recovery.

Textile and Printing MachineryIn applications requiring precise tension control, such as web handling or fabric weaving, the module’s fine-tuned torque regulation prevents material stretching or breakage. Its compact booksize design allows multiple units to be mounted side-by-side, saving significant cabinet space.

Robotics and Material HandlingThe 6SL3120-1TE21-8AD0 is frequently used in heavy-payload robotic arm joints where dynamic response is critical for path accuracy. The DRIVE-CLiQ interface simplifies the wiring of complex sensor feedback systems, reducing commissioning time and maintenance complexity.
