Product Overview

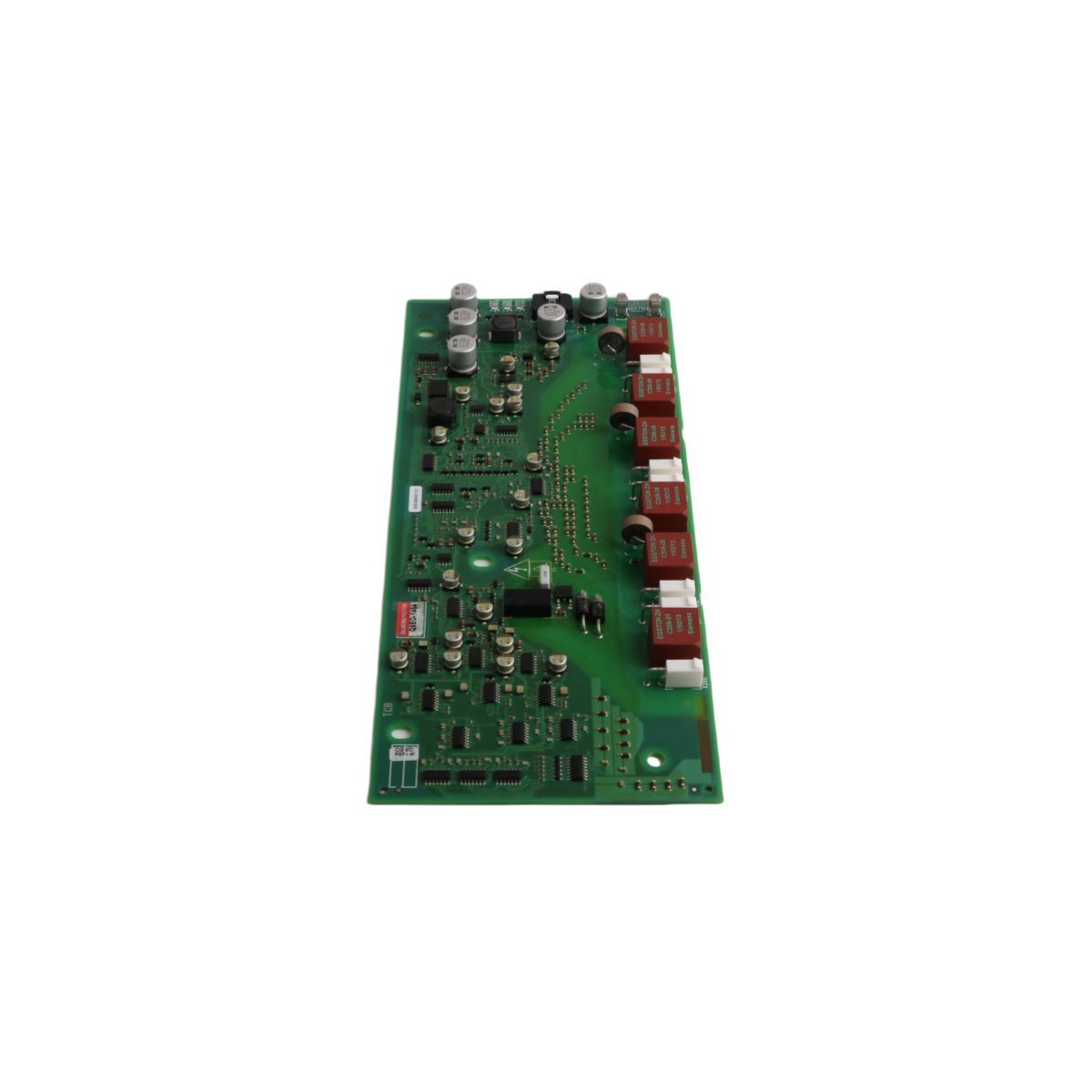

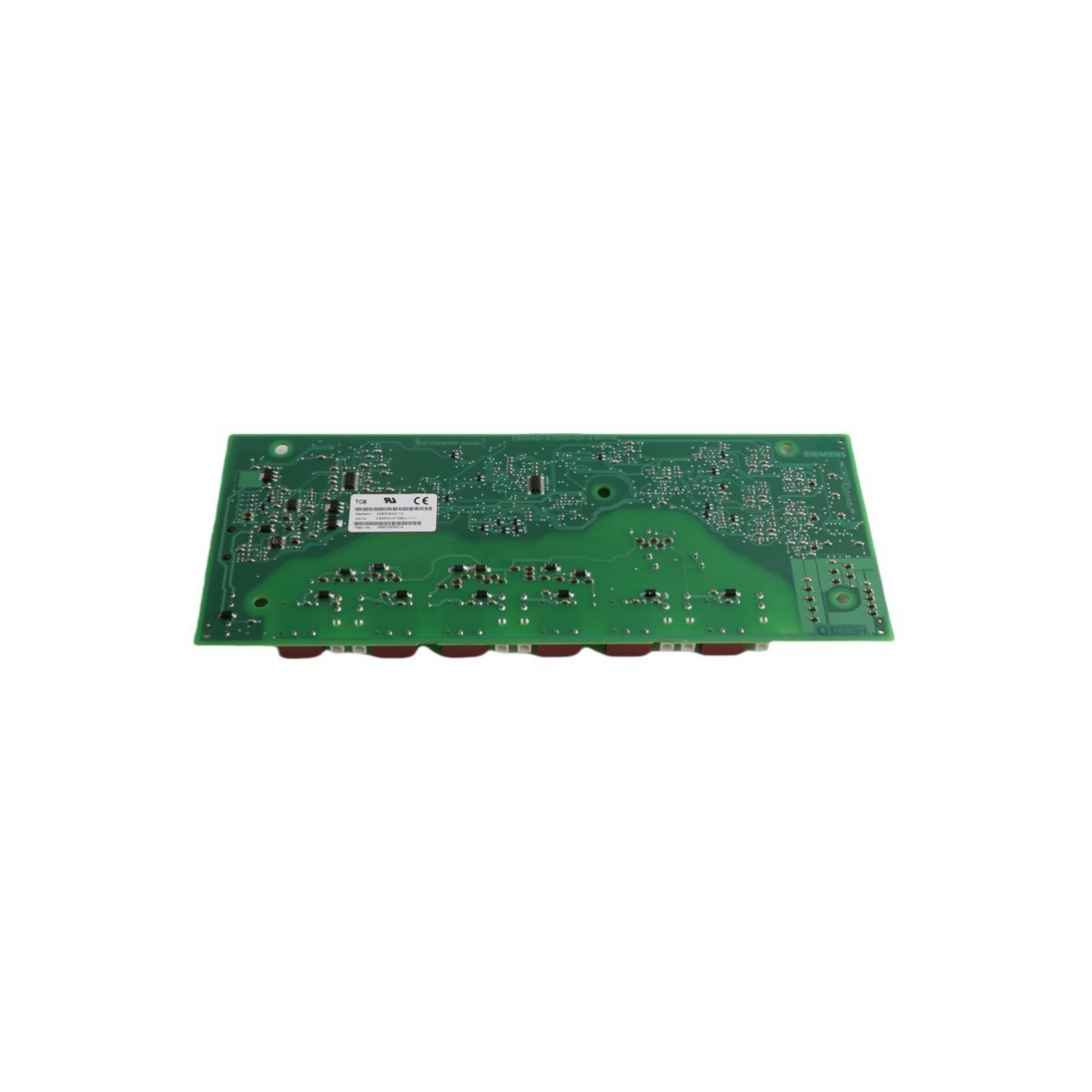

The A5E00842112 is a high-precision gate driver board engineered for the Siemens SINAMICS series of industrial power converters. Functioning as the critical switching interface between the control logic and the power semiconductors, this board is designed to manage high-voltage IGBT (Insulated Gate Bipolar Transistor) modules within heavy-duty powerblocks. It translates low-voltage command signals into robust gate pulses, ensuring synchronized and efficient power conversion. Built to operate within a broad voltage spectrum of 400V to 690V AC, the A5E00842112 is a vital component for maintaining signal integrity and electrical isolation in demanding power electronics environments.

Technical Architecture and Hardware Parameters

• Input Supply Voltage: 24V DC ($\pm$ 10%)

• Gate Drive Output: $\pm$ 15V differential pulses for precise IGBT switching

• Main Circuit Compatibility: Optimized for 400V, 500V, and 690V AC industrial systems

• Module Functionality: Integrated TCB-module logic for enhanced system coordination

• Physical Dimensions: 26 cm x 23 cm x 3.5 cm

• Weight: 0.82 kg

• Protection: High-grade galvanic isolation between logic and power stages

• Origin: German engineering and manufacturing standards

• Tariff Classification: 8537101190

Industrial Deployment and System Utility

Power Conversion Systems

The A5E00842112 is primarily utilized in large-scale motor drives and frequency converters. It manages the rapid switching cycles necessary to create variable frequency outputs, making it essential for precision speed control in high-power applications.

Heavy Manufacturing and Infrastructure

Designed for the rigors of heavy industry, this driver board is a staple in metal processing, mining machinery, and large-scale pumping stations. Its robust pulse generation ensures that powerblocks remain stable even under the fluctuating loads typical of industrial crushing or rolling equipment.

SINAMICS System Maintenance

As an OEM-level replacement part, this board allows for the efficient servicing of SINAMICS S120 or G150 power units. Its "plug-and-play" compatibility within the SINAMICS architecture simplifies the repair of failed gate drive stages, reducing the total Mean Time to Repair (MTTR) and preventing prolonged production halts.

Renewable Energy and Grid Stabilization

In large-scale wind turbine converters or grid-tie inverters, the A5E00842112 provides the reliable switching needed for clean energy conversion. Its ability to operate at 690V AC makes it perfectly suited for the utility-scale power electronics used in modern renewable energy infrastructures.
