Product Overview

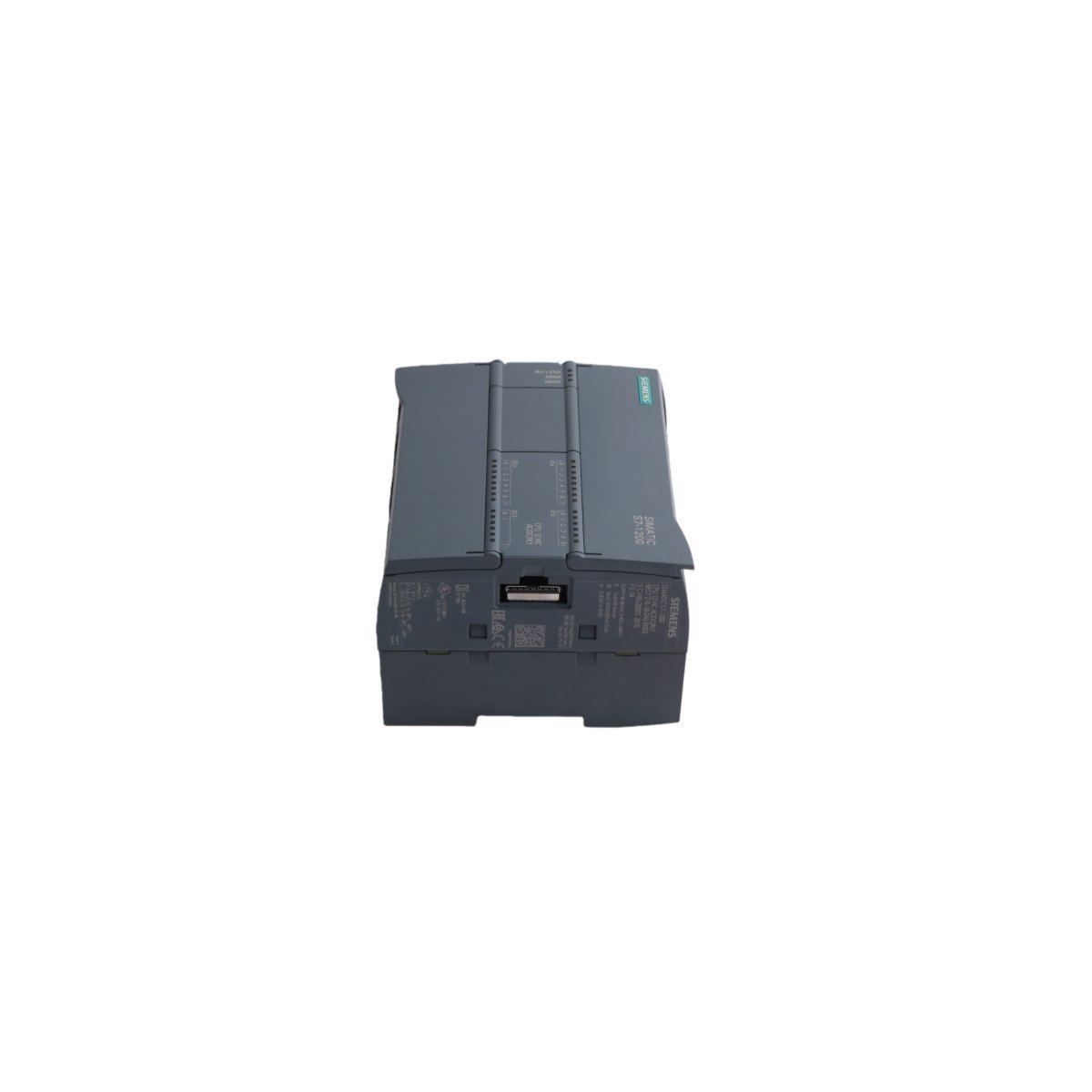

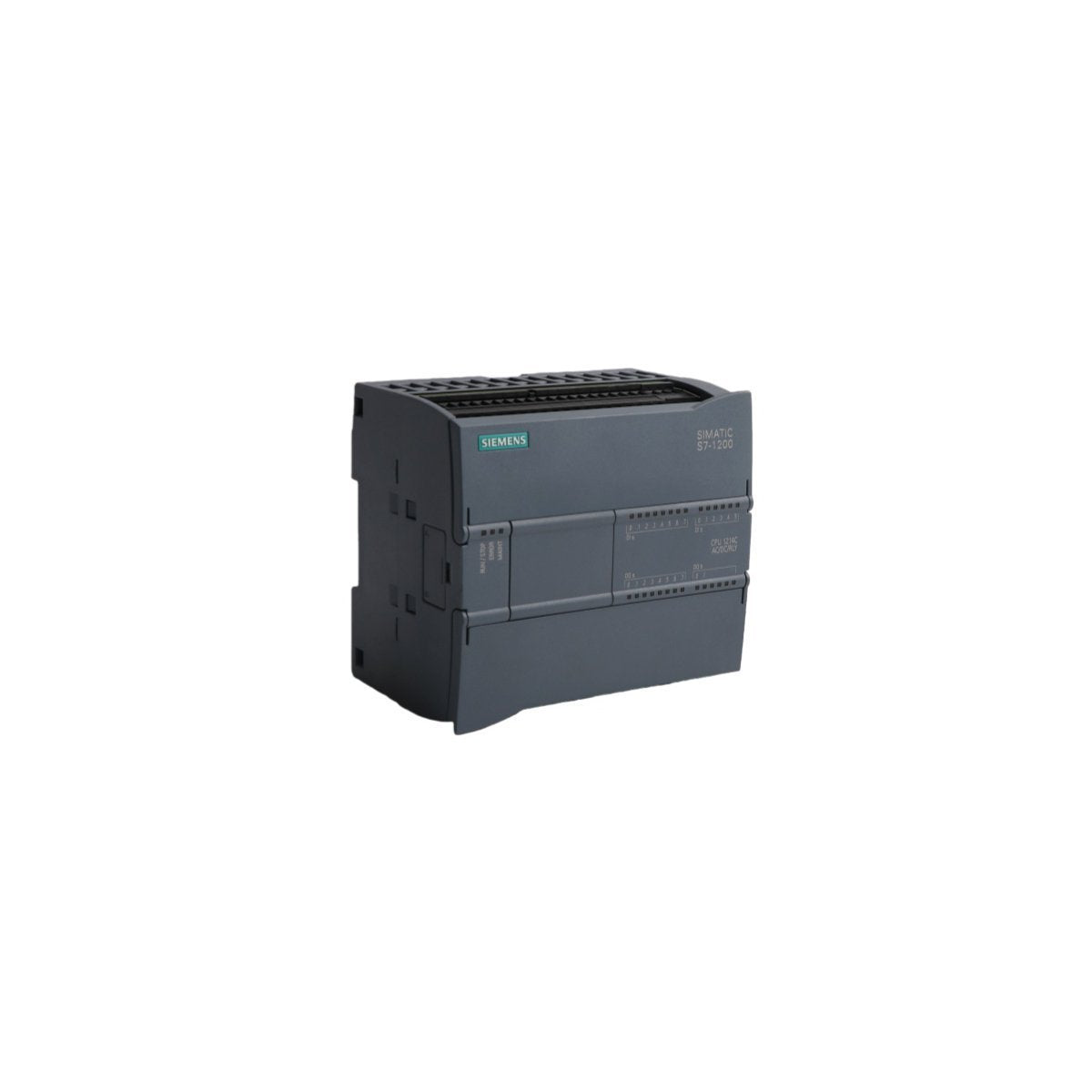

The Siemens 6ES7214-1BG40-0XB0 is a high-performance, compact central processing unit belonging to the SIMATIC S7-1200 controller family. Specifically designated as the CPU 1214C AC/DC/Relay model, this unit is designed to bridge the gap between simple logic relays and complex mid-range PLCs. It integrates a wide-range alternating current power supply, direct current inputs, and mechanical relay outputs into a single, space-saving chassis. This controller is the ideal choice for automation developers seeking an all-in-one solution that provides high-speed processing, flexible communication interfaces, and the ruggedness required for decentralized industrial applications.

Technical System Architecture and Physical Data

This CPU module provides a comprehensive suite of onboard I/O and memory resources, optimized for deterministic control cycles.

• Onboard I/O Capacity: 14 Digital Inputs (24V DC), 10 Digital Relay Outputs, and 2 Analog Inputs (0-10V DC).

• Memory Resources: 150 KB of high-speed work memory and 4 MB of integrated load memory (expandable via memory card).

• Processing Speed: Bit operations executed at 0.08 µs; floating-point math at 2.3 µs per instruction.

• Power Supply: Wide-range input from 85V to 264V AC at 47-63 Hz.

• Network Connectivity: Integrated PROFINET port supporting Ethernet communication and TIA Portal integration.

• Energy Consumption: Low-power design with a typical heat loss of approximately 14 Watts.

• Hardware Mass: 0.95 kg.

• Casing Dimensions: 11.0 cm x 10.0 cm x 7.5 cm (Standard compact housing for DIN-rail mounting).

• Country of Origin: Germany.

Industrial Applications and Field Usage

The 6ES7214-1BG40-0XB0 is specifically tailored for applications requiring local decision-making and mechanical switching of AC/DC loads.

• Machine Tooling and Fabrication: Managing the sequence of operations for automated drills, lathes, and saws where relay outputs directly control motor contactors.

• Smart Building Infrastructure: Regulating HVAC systems, lighting schedules, and access control points in commercial facility management.

• Material Conveyance: Supervising small-scale conveyor belts and sorting machines with integrated 24V encoder support for position tracking.

• Packaging and Bottling: Controlling filling cycles and labeling mechanisms that require a mix of digital sensors and analog level measurements.

• Process Skid Control: Ideal for modular water treatment units or chemical dosing skids that operate independently but require remote Ethernet monitoring.
