Product Overview

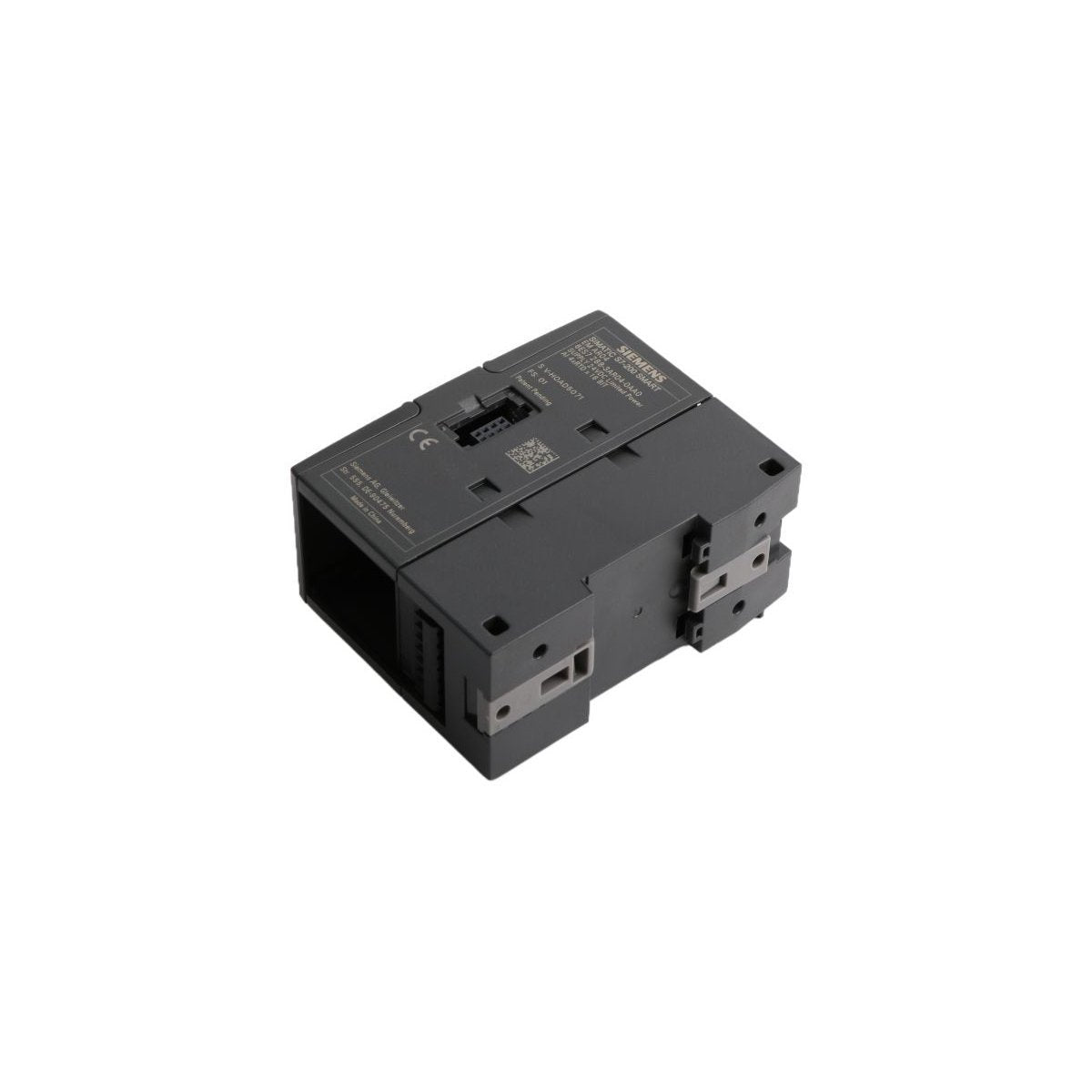

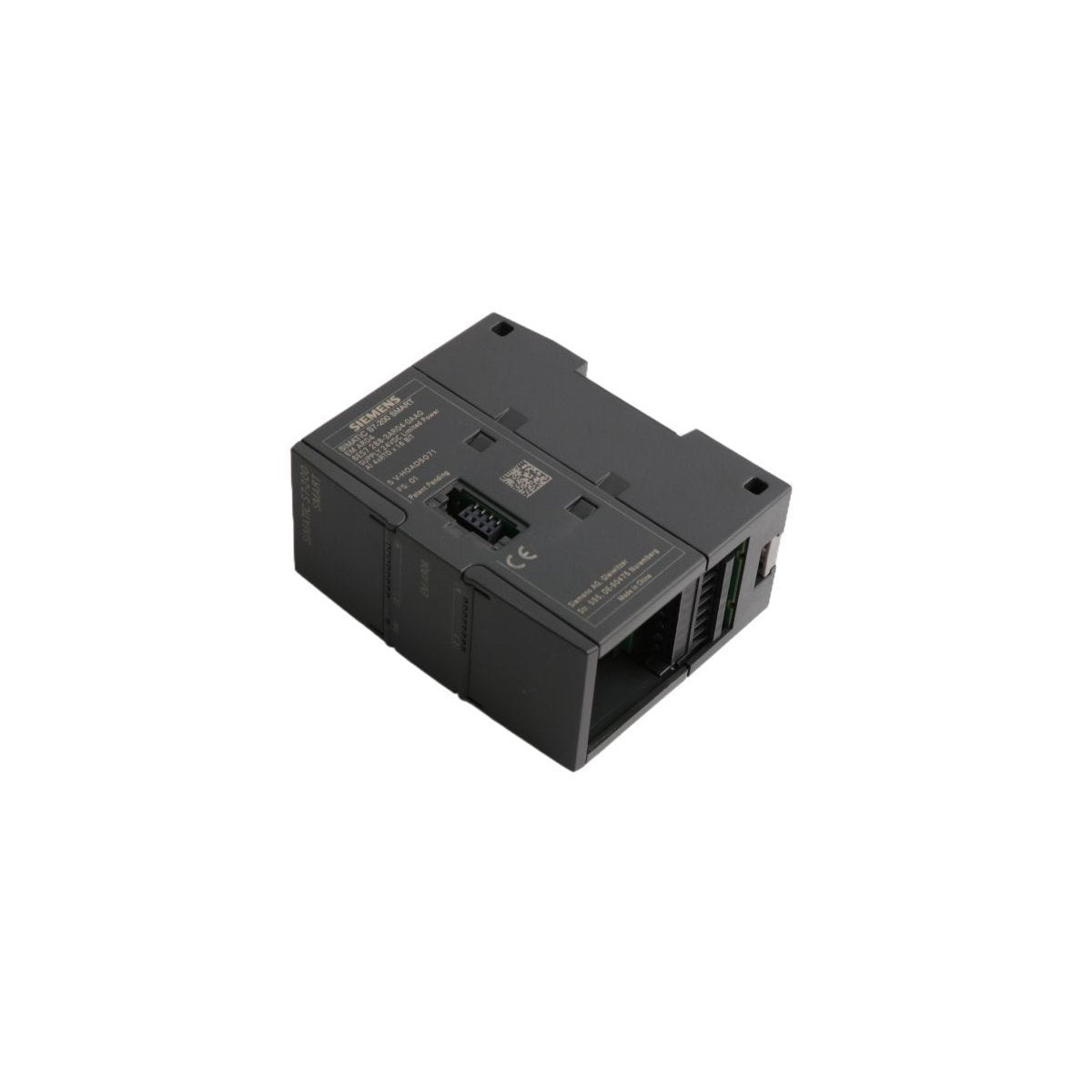

The Siemens 6ES7288-0ED10-0AA0 is a high-performance PM207 switching power supply unit specifically engineered to provide a stable 24V DC feed for the SIMATIC S7-200 SMART PLC system. While often confused with expansion I/O, this module is the primary power gateway, converting a wide range of AC input voltages into clean, regulated direct current for the processor and connected peripheral modules. Its design emphasizes energy efficiency and a compact footprint, allowing it to sit flush alongside S7-200 SMART components on a standard DIN rail. With integrated voltage adjustment and advanced protection circuits, the PM207 ensures that sensitive PLC electronics remain protected from grid fluctuations and power-up transients.

Performance Parameters and Hardware Capabilities

The PM207 is built to deliver industrial-grade power consistency with minimal thermal waste, supporting the high-reliability requirements of modern automated cells.

• Input Voltage Spectrum: Universal AC input handling from 85V to 264V, allowing for global deployment without transformers.

• Output Precision: Rated at 24V DC, adjustable between 22.8V and 26.4V via a front-mounted potentiometer to compensate for cable voltage drops.

• Energy Management: High operational efficiency of approximately 89%, with a maximum power loss limited to 15W to minimize cabinet heat.

• Load Stability: Exceptional regulation with only 0.5% fluctuation under varying loads and less than 1% overshoot during power cycling.

• Mains Buffering: Provides a critical 20ms hold-up time during brief power interruptions to prevent system resets.

• Status Monitoring: Features a high-visibility green LED indicator to confirm the presence and health of the output voltage.

Industrial Applications and Integration Scenarios

As the foundational power source for the S7-200 SMART series, the 6ES7288-0ED10-0AA0 is utilized in diverse B2B environments requiring localized control.

Machine Tool and Actuator ControlThe PM207 provides the reliable current necessary to drive solenoid valves and industrial relays. Its precise regulation prevents "chattering" in actuators, ensuring that mechanical operations remain synchronized with the PLC’s logic commands.

Decentralized Control CabinetsIn distributed automation architectures, this power supply is ideal for small-to-medium enclosures. Its compact 80mm depth and DIN rail compatibility allow for high-density mounting in shallow cabinets commonly used in HVAC and building automation.

Food and Beverage ProcessingThe wide-range input (85-264V AC) makes it suitable for food processing plants where local grid quality may vary. The 20ms buffering capability ensures that critical batch data is not lost during momentary brownouts or power switches in the facility.

OEM Equipment ManufacturingFor manufacturers of standardized packaging or textile machines, the 6ES71288-0ED10-0AA0 offers a "world-ready" power solution. Its adherence to Siemens' rigorous engineering standards provides the reliability needed for exported equipment operating in harsh electrical environments.
