Product Overview

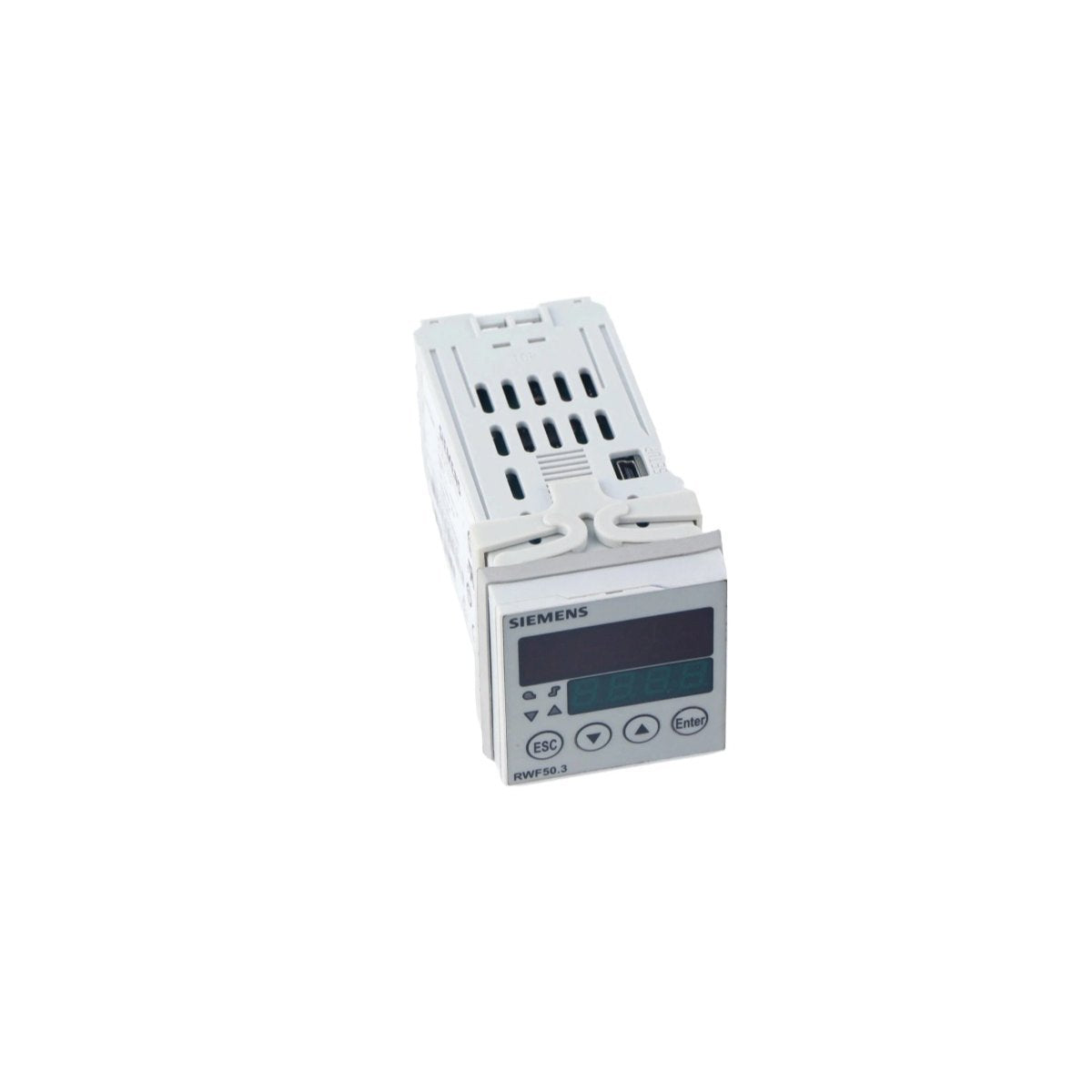

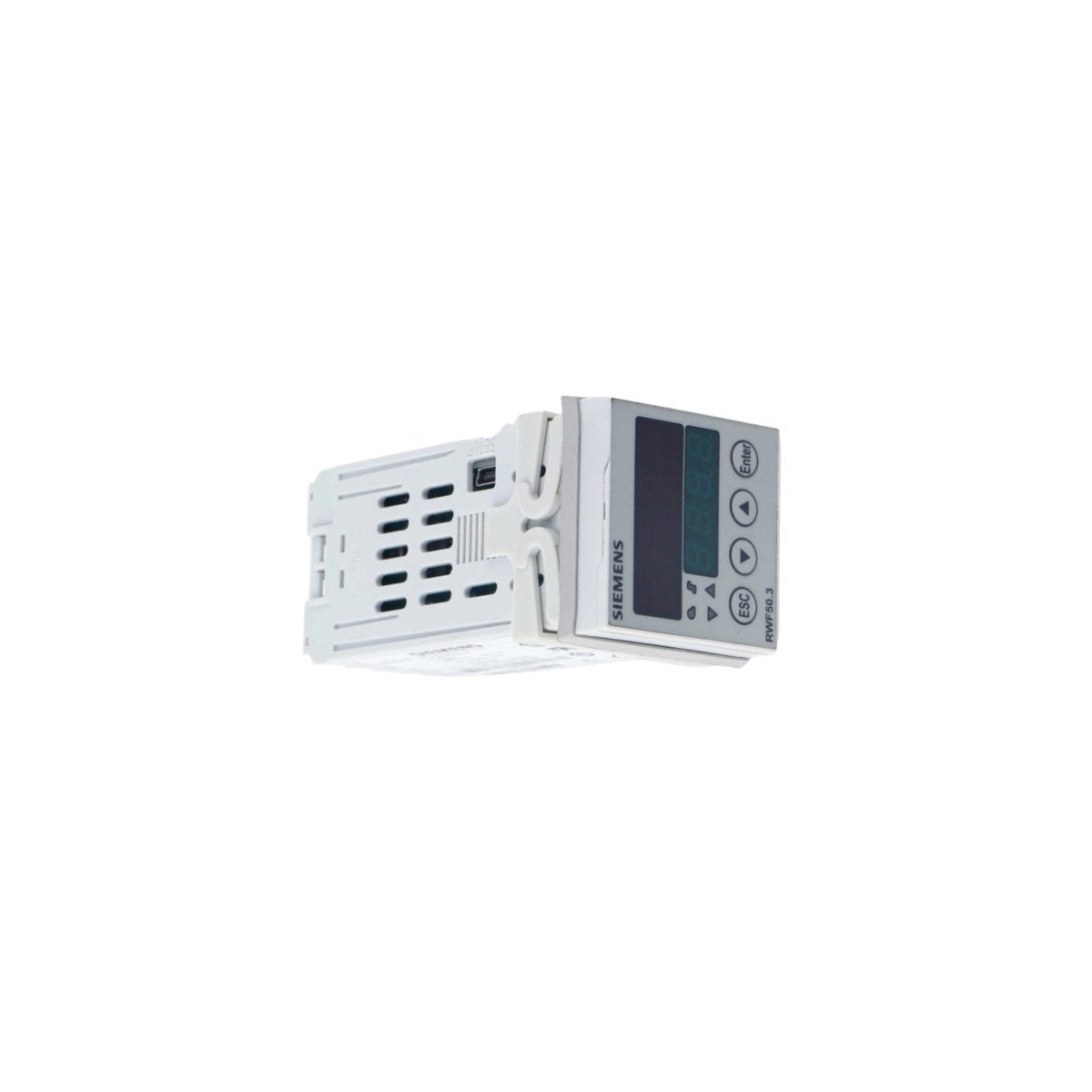

The Siemens RWF50.30A9 is a sophisticated, compact PID controller specifically engineered for the precise regulation of thermal and pressure-based processes. Operating as a versatile single-loop controller, this unit is widely utilized in industrial burner control, boiler systems, and heating plant management. It features a high-contrast digital display and an intuitive interface designed to manage modulating or multistage burners effectively. By integrating advanced control algorithms, the RWF50.30A9 ensures that setpoint temperatures and pressures are maintained with minimal deviation, optimizing fuel efficiency and system safety in high-demand heating applications.

Essential Hardware Metrics and Control Profiles

This universal controller is designed for 1/16 DIN panel mounting, combining a small footprint with a robust electrical architecture suitable for global power standards.

• Control Modes: 3-position output (modulating) or 2-stage (on/off) control.

• Universal Analog Input: Supports Pt100, Thermocouples (Type J, K, S), and standard 0..10V / 4..20mA signals.

• Integrated USB Port: Located on the front for rapid parameterization via PC software.

• Digital Input: Available for remote setpoint switching or operational locking.

• Supply Voltage: Wide-range 100V AC to 240V AC (50/60 Hz).

• Protection Rating: IP66-rated front housing for protection against high-pressure water jets and dust.

• Enclosure Format: Standardized 48 mm x 48 mm (1/16 DIN) cutout.

• Physical Depth: Approximately 80 mm.

• Weight: 0.18 kg (Unit only) / 0.95 kg (Gross shipping weight).

• Dimensions: 48 mm x 48 mm x 80 mm (standard) / 2.5 cm x 5.1 cm x 83.8 cm (boxed).

Industrial Operational Deployment

Precision Burner and Boiler ControlThe RWF50.30A9 is a staple in steam and hot water boiler management. It accurately monitors the steam pressure or water temperature via its universal input and adjusts the burner's firing rate through its modulating output. This constant adjustment prevents thermal overshoot and reduces mechanical wear on the burner components.

Process Heating and Drying OvensIn industrial drying or curing processes, maintaining a consistent temperature profile is critical for product quality. The RWF50.30A9's PID self-tuning capability allows it to adapt to the thermal mass of different oven loads, ensuring a stable environment even under fluctuating conditions.

HVAC and Building Automation IntegrationWith its ability to handle various sensor types, this controller is often integrated into central heating substations. It can act as a standalone regulator or work in tandem with a larger building management system (BMS) to control heat exchangers or circulation pumps based on outdoor temperature compensation.

Harsh Environment RegulationThanks to its IP66 rating, the RWF50.30A9 is perfectly suited for installation in environments where wash-down procedures are frequent, such as food processing or chemical manufacturing. The rugged front panel ensures that the internal electronics remain dry and functional even when cleaned with high-pressure hoses.
