Product Overview

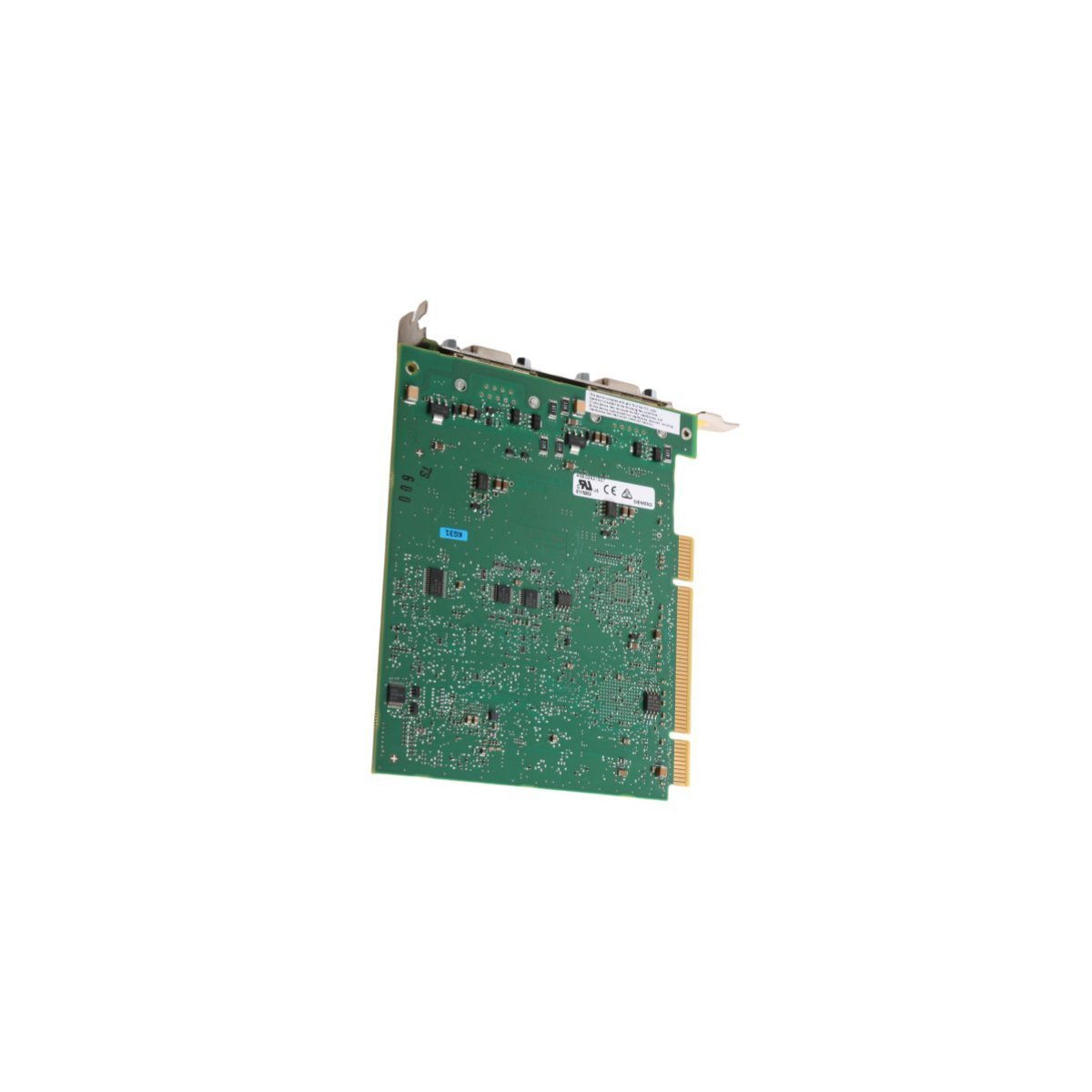

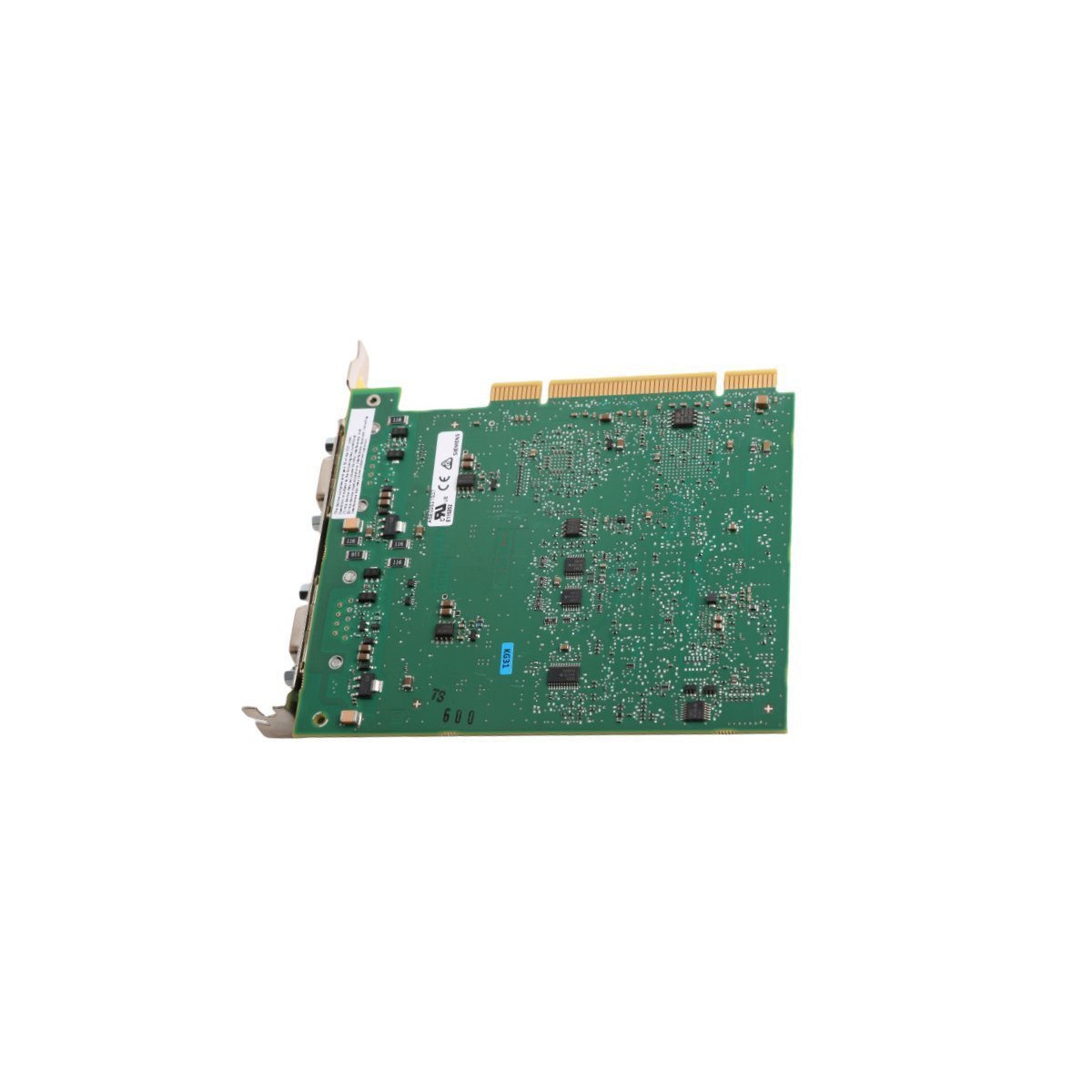

The A5E03545935 is a high-performance electronic control board specifically engineered for the power cells of Siemens Robicon Perfect Harmony Medium Voltage (MV) drives. This sophisticated module acts as the localized intelligence for individual power cells, managing critical switching sequences and monitoring internal health parameters. By utilizing high-speed digital signal processing and precision analog-to-digital conversion, the board ensures synchronized operation within the multi-level inverter topology. Its design prioritizes ultra-fast fault detection and thermal stability, making it a cornerstone component for maintaining the power quality and operational continuity of large-scale frequency converter systems.

Hardware Architecture and Functional Parameters

• Memory Configuration: Integrated 512 KB SRAM for high-speed buffering of operational data.

• Acquisition Interface: 8-channel Analog-to-Digital Converter (ADC) featuring 16-bit resolution for precise voltage and current sensing.

• Switching Frequency: Supports Pulse Width Modulation (PWM) ranges from 0 to 2.5 kHz.

• Measurement Precision: Voltage detection accuracy maintained at ±0.5% of full scale.

• High-Speed Protection: Critical fault response time triggered in less than 5 microseconds ($\le$ 5 $\mu$s).

• Power Supply Requirement: 24 VDC input via the system backplane with an 18W typical draw.

• Diagnostic Interface: Integrated relay contacts for clear cell status and error signaling.

• Climatic Resilience: Operational from -10°C to +65°C, with non-condensing humidity tolerance up to 95%.

Industrial Deployment and System Utility

Medium Voltage Drive Management

The A5E03545935 is primarily deployed within Robicon Perfect Harmony drives used in heavy industrial sectors. It manages the IGBT firing patterns and monitors DC link voltages within the power cell, ensuring the drive delivers clean, sinusoidal power to high-voltage motors.

Oil and Gas Compression

In remote pumping or compression stations, these boards facilitate the reliable operation of massive motors. Their wide temperature range and robust EMI shielding allow them to function predictably in harsh outdoor enclosures and electrically noisy environments.

Power Generation and Water Distribution

Utilized in large-scale cooling water pumps and boiler feed systems, the board's rapid 5-microsecond fault response is vital. It protects expensive drive components from catastrophic failure by instantly isolating the cell during overcurrent or overvoltage events.

Facility Lifecycle Maintenance

As a mission-critical spare part, this board allows plant engineers to perform targeted repairs on individual power cells. This modular approach to maintenance significantly reduces system downtime and avoids the high costs associated with complete drive replacements in municipal or mining infrastructures.
