Product Overview

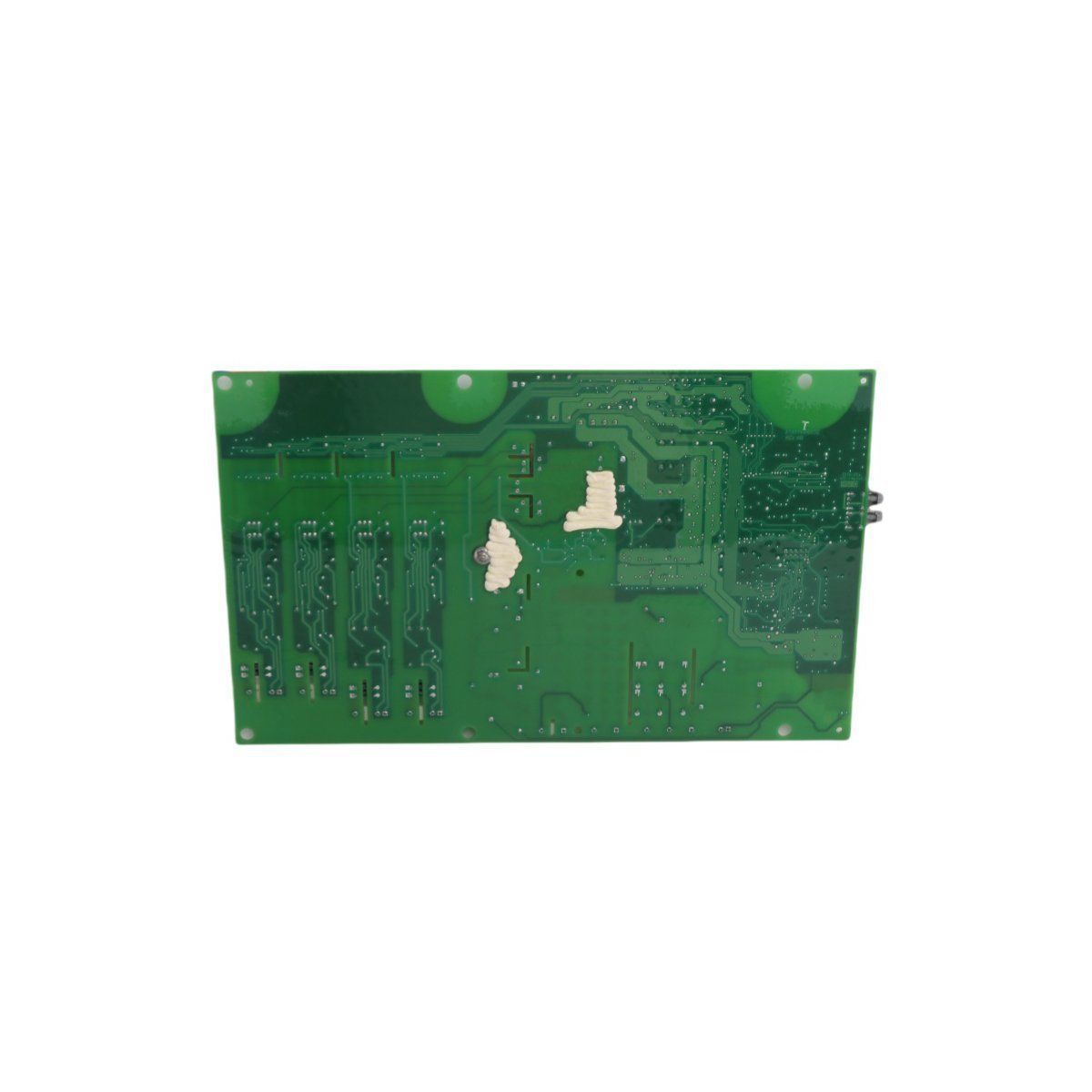

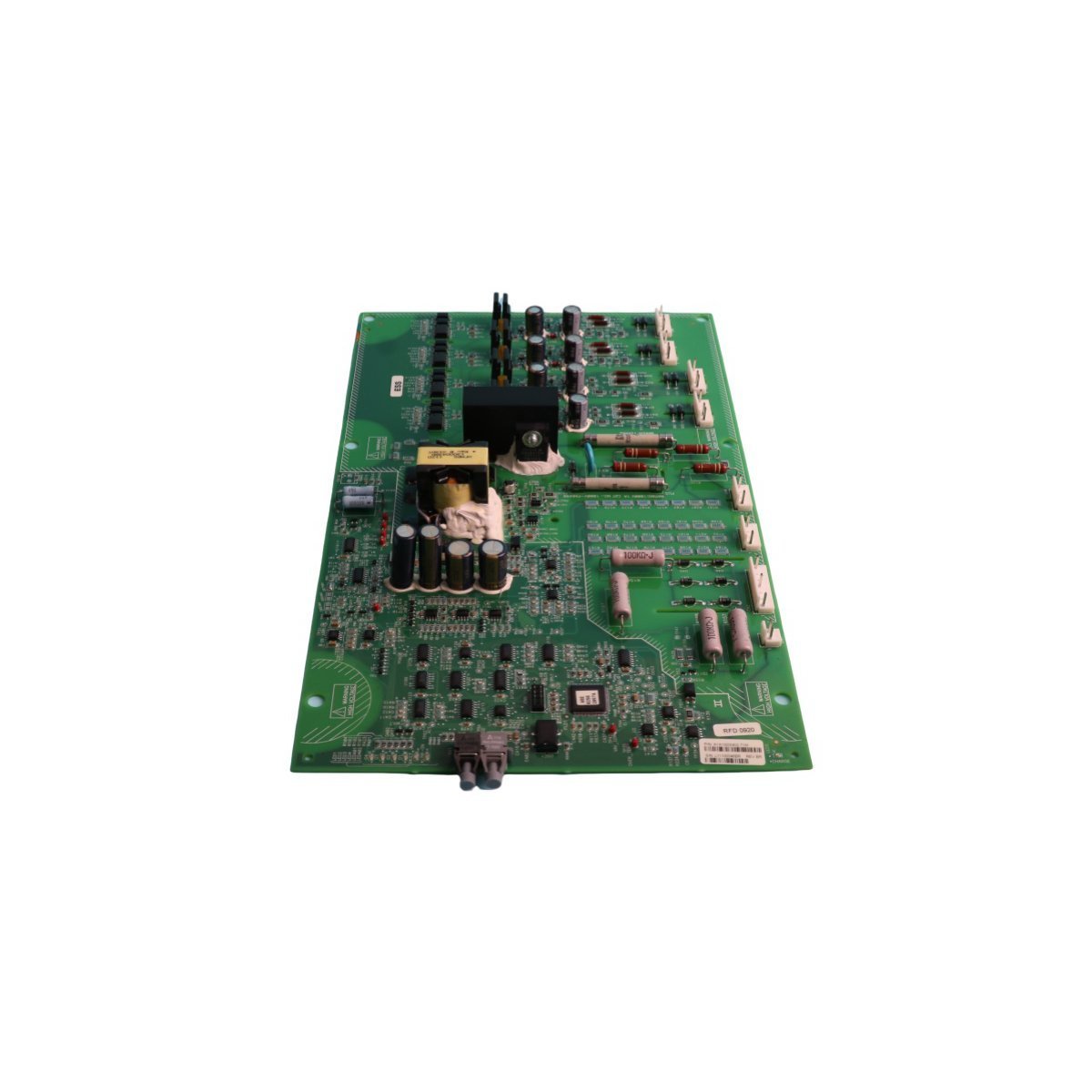

The Siemens A1A10000432.54M is a specialized power cell control board engineered for the ROBICON Perfect Harmony drive series and associated high-performance inverter systems. This board serves as the localized "intelligence" for individual power cells, utilizing sophisticated Pulse Width Modulation (PWM) algorithms to manage energy conversion with extreme precision. Designed to facilitate efficient speed and torque regulation, it ensures that motor-driven processes remain stable under fluctuating load conditions. This component is essential for maintaining the harmonic performance and operational uptime of medium-voltage variable frequency drives (VFDs) in continuous-duty industrial environments.

Essential Hardware Parameters and Technical Data

This control card is built to German engineering standards, ensuring reliable processing within the high-voltage environment of a power cell.

• Primary Function: Localized Power Cell Control and Inverter Management.

• Voltage Compatibility: Supports 480V AC input stages within multi-cell architectures.

• Control Technology: Advanced PWM (Pulse Width Modulation) for induction motor regulation.

• Networking & Communication: Integrated RS485 interface with Modbus TCP/IP support for telemetry and PLC syncing.

• Thermal Tolerance: Operational range from -20°C to +60°C.

• Drive Rating Support: Optimized for motor applications up to 5HP (approx. 3.7 kW).

• Physical Mass: 0.4 kg.

• Module Dimensions: 2.0 cm x 25.5 cm x 26.2 cm.

• Manufacturing Origin: Germany.

Industrial Implementation and Deployment

The A1A10000432.54M is predominantly utilized in sectors where high-precision motor control and energy efficiency are mandatory.

• Automotive Production: Managing variable speed drives on assembly lines and paint shop ventilation systems where precise airflow is critical.

• Metal Fabrication: Regulating motor-driven machinery for cutting, milling, and grinding, ensuring consistent torque during heavy material processing.

• Food and Beverage Processing: Governing conveyor speeds and mixing equipment where 24/7 reliability is required to meet production quotas.

• Predictive Maintenance Systems: Leveraging the Modbus TCP/IP interface to feed real-time cell health data to SCADA systems for fault prediction.

• Power Cell Retrofitting: Serving as a direct replacement part for ROBICON drive cells during system overhauls to restore original equipment manufacturer (OEM) performance levels.
