Product Overview

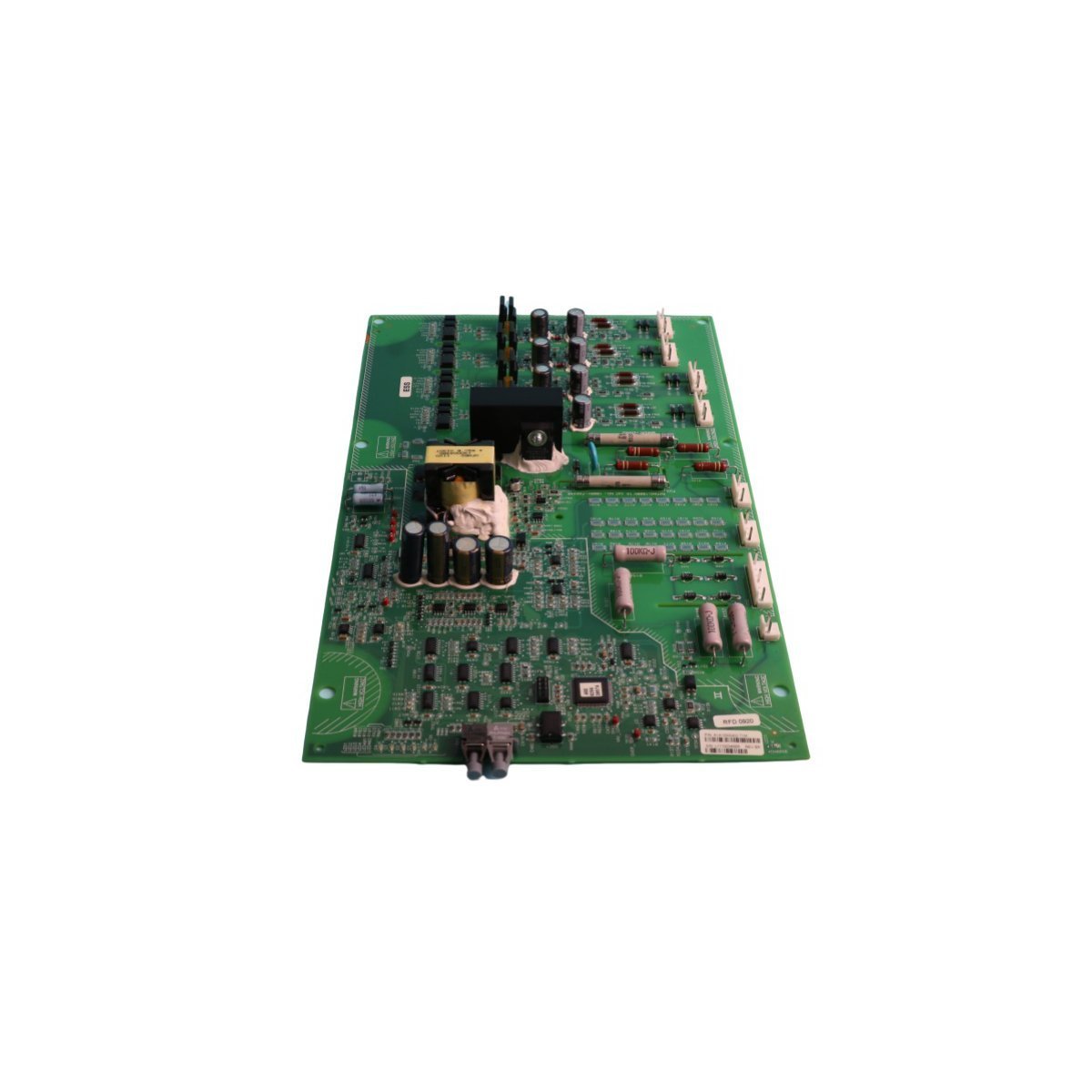

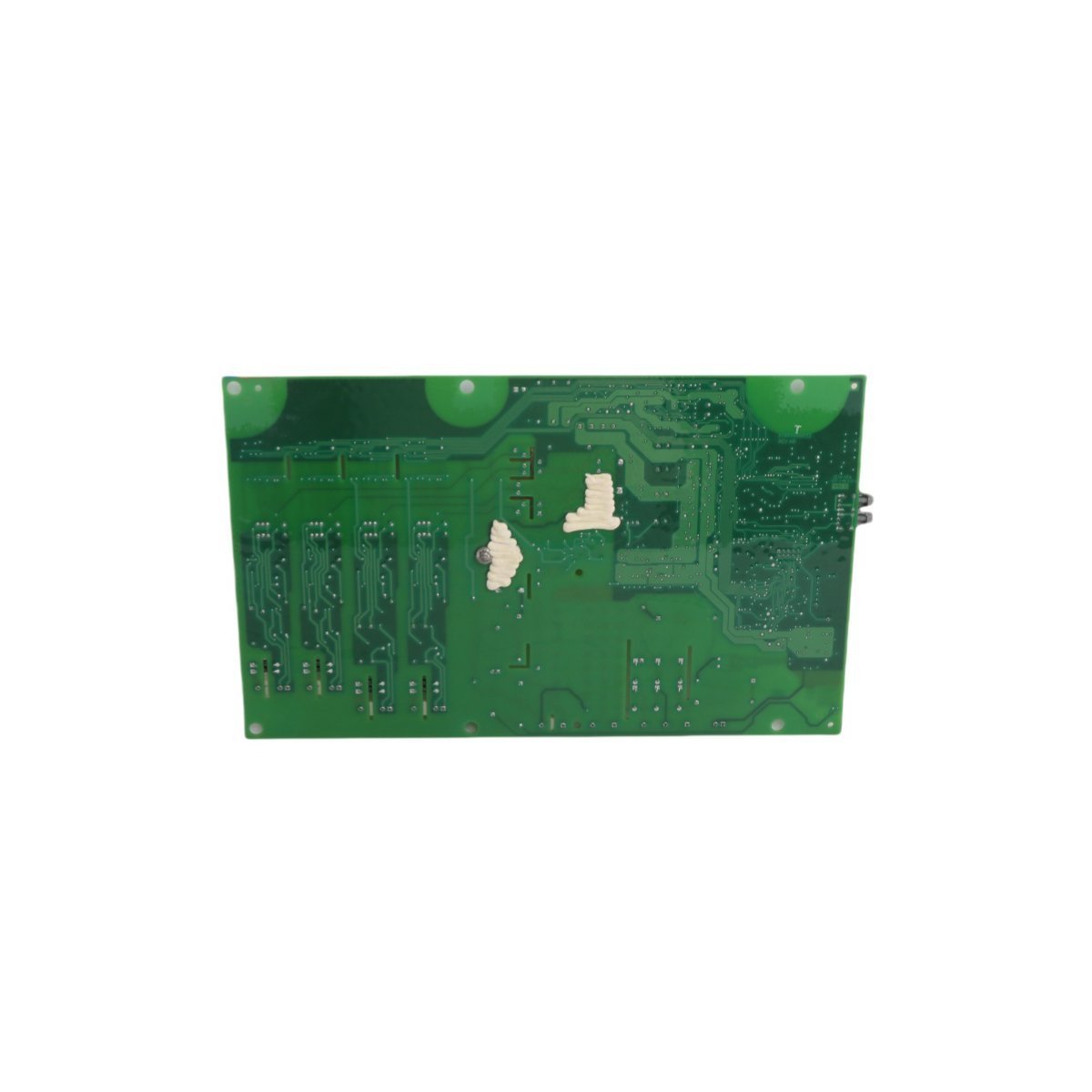

The Siemens A1A10000432.71M is a high-performance control board specifically engineered for the Robicon Perfect Harmony drive series. Acting as the primary intelligence for individual power cells, this board manages complex power conversion tasks and real-time monitoring within medium-voltage variable frequency drives (VFDs). It is designed to bridge the gap between high-level system commands and localized power execution, ensuring that each cell operates with maximum synchronization and efficiency. With integrated high-voltage isolation and advanced sensing circuitry, the A1A10000432.71M provides the deterministic control required for large-scale industrial motor applications where uptime and electrical safety are non-negotiable.

Hardware Parameters and Engineering Specifications

This control interface is built to rigorous German engineering standards, providing a compact yet electrically robust footprint for power cell integration.

• Logic Power Input: 24V DC nominal.

• Current Rating: Operating current maintained at ≤10A.

• Galvanic Isolation: 2500V AC reinforced insulation (IEC 61800-5-1 compliant) for high-voltage protection.

• Voltage Monitoring: Integrated DC bus sensing with 0-10V analog feedback scaling.

• Protective Logic: Onboard overvoltage and undervoltage trip thresholds for cell preservation.

• Environmental Resilience: Vibration resistant up to 1G (5-150Hz) and operational from -20°C to +60°C.

• Net Weight: 0.48 kg.

• Physical Dimensions: 2.0 cm x 25.5 cm x 26.2 cm.

• Manufacturing Origin: Germany.

• HS Classification: 8537101190.

Strategic Industrial Implementations

The A1A10000432.71M is a vital component for sectors relying on high-capacity motor control and energy-efficient power conversion.

• Oil and Gas Refining: Governing the power cells of large compressor drives and high-pressure pumps where precise torque control is required.

• Mining and Minerals: Managing the heavy-duty inverters for grinders, crushers, and long-range conveyor systems operating in dusty or high-vibration environments.

• Power Generation: Serving as the localized control logic for fan and pump drives in thermal power plants, ensuring stable cooling and water flow.

• Heavy Manufacturing: Providing the necessary switching intelligence for large-scale steel mill drives and extrusion machinery.

• Grid Infrastructure: Integrated into medium-voltage power quality systems to regulate harmonic distortion and maintain DC link stability.
