Product Overview

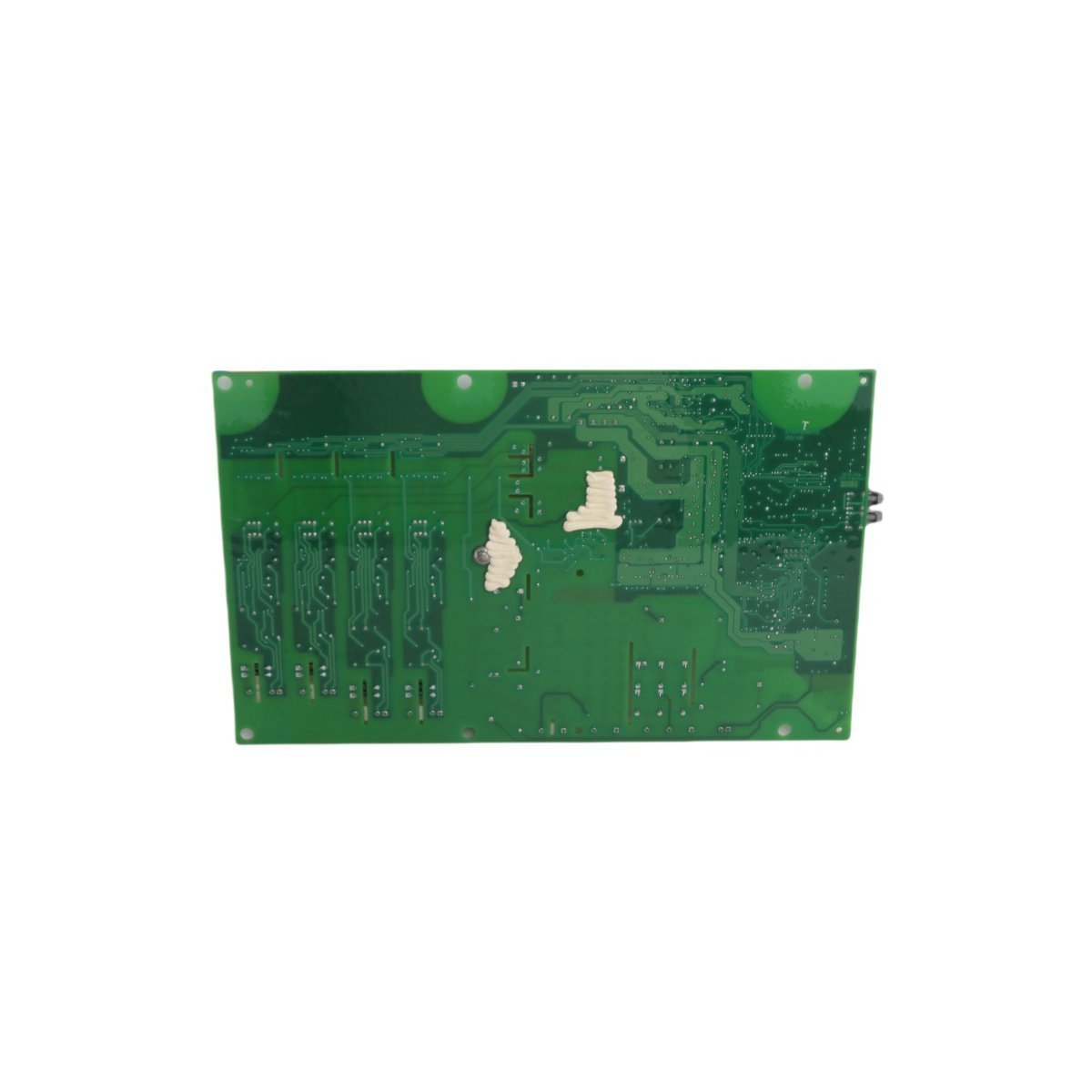

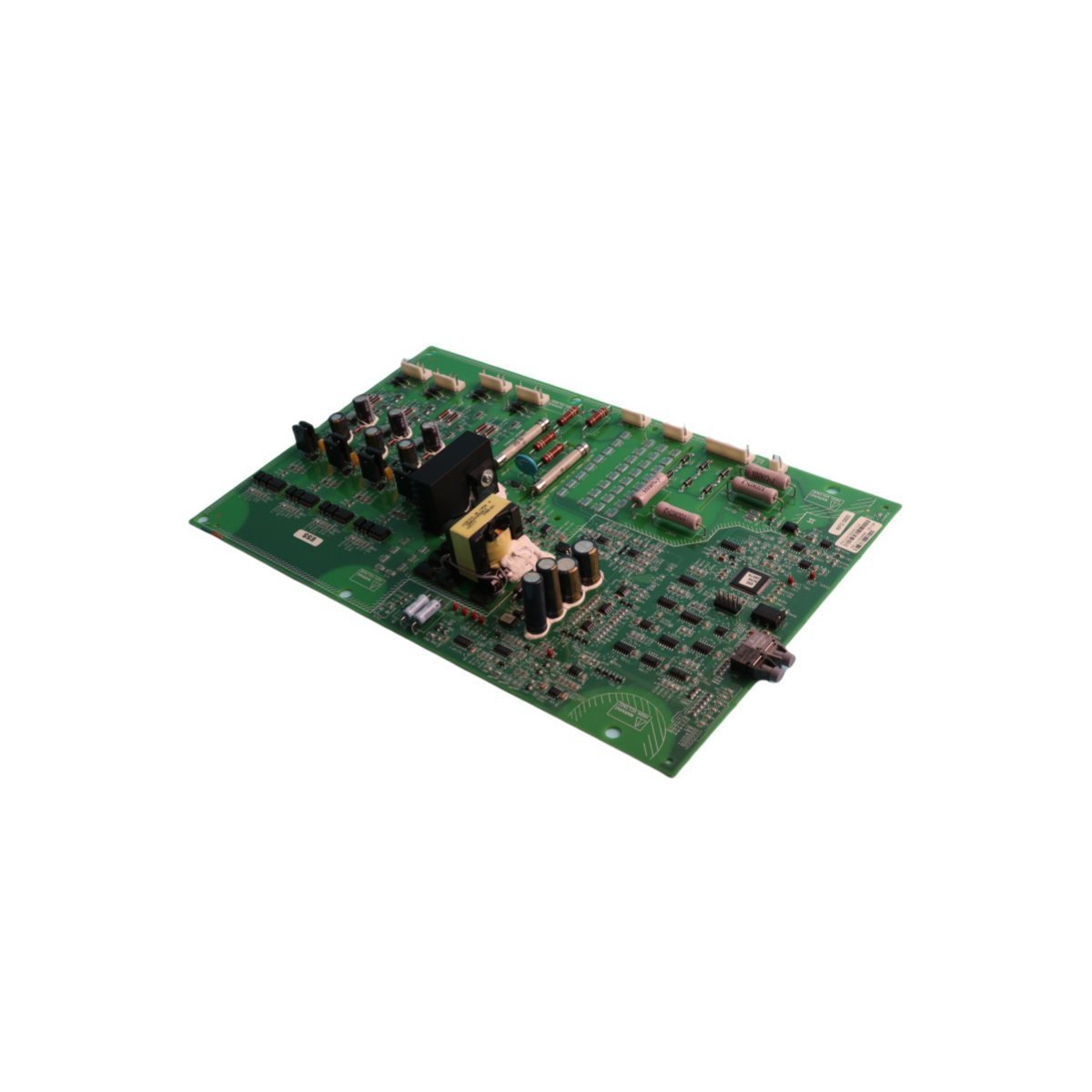

The A1A10000283.01M is a high-performance cell control and interface board engineered by Siemens for the Robicon drive series. This multi-functional electronic module serves as a critical bridge within power conversion systems, facilitating complex logic processing and communication between the central controller and power cells. Designed with a focus on industrial flexibility, the board supports a variety of signaling standards including RS-232 and dual RS-485 serial interfaces. It is specifically built to manage analog data acquisition and TTL/CMOS logic level shifting, ensuring that high-voltage drive operations are precisely synchronized with low-voltage PLC control commands. This brand-new German-made component is essential for maintaining the operational efficiency and safety of high-end variable frequency drive systems.

Hardware Configuration and Technical Capabilities

This electronic module is defined by its robust electrical isolation and wide-range signal compatibility, allowing for stable performance in electrically noisy power conversion environments.

• Logic Voltage Inputs: +5V and ±15V DC rails

• Current Rating: Variable consumption between 0.5A and 2A depending on load

• Analog Interface: Supports ±10V voltage signals or 4-20mA current loops

• Isolation Protection: Minimum dielectric strength of 1500V AC

• Communication Ports: 1x RS-232, 2x RS-485 interfaces

• Mechanical Mass: 0.5 kg (Shipping weight) / 0.4 kg (Net weight)

• Chassis Dimensions: 20.5 x 11.9 x 7 cm (Standardized profile)

• Environmental Tolerance: Rated for operation from -20°C to +60°C

• Mechanical Integrity: Vibration and shock resistant (1G at 5-150Hz)

• Signal Compatibility: TTL/CMOS logic compliant

• Manufacturing Origin: Germany

• Harmonized Code: HS 8537101190

Industrial Implementation and System Utility

The A1A10000283.01M is utilized globally across energy-intensive industries where motor control precision is non-negotiable. Its primary applications include:

• VFD Cell Management: Acting as a localized controller for individual power cells within large-scale Robicon Perfect Harmony drive systems.

• Data Translation: Converting field-level analog sensor data into digital formats compatible with high-level PLC automation networks.

• Interface Adaptation: Serving as a keypad adapter or human-machine interface (HMI) bridge for drive parameter adjustments.

• Excitation and Power Control: Managing the firing pulses and feedback loops in heavy-duty motor drive converters for mining and metal processing.

• Electromagnetic Safety: Utilizing its 1500V isolation to protect control-side electronics from high-voltage transients in power generation facilities.
