Product Overview

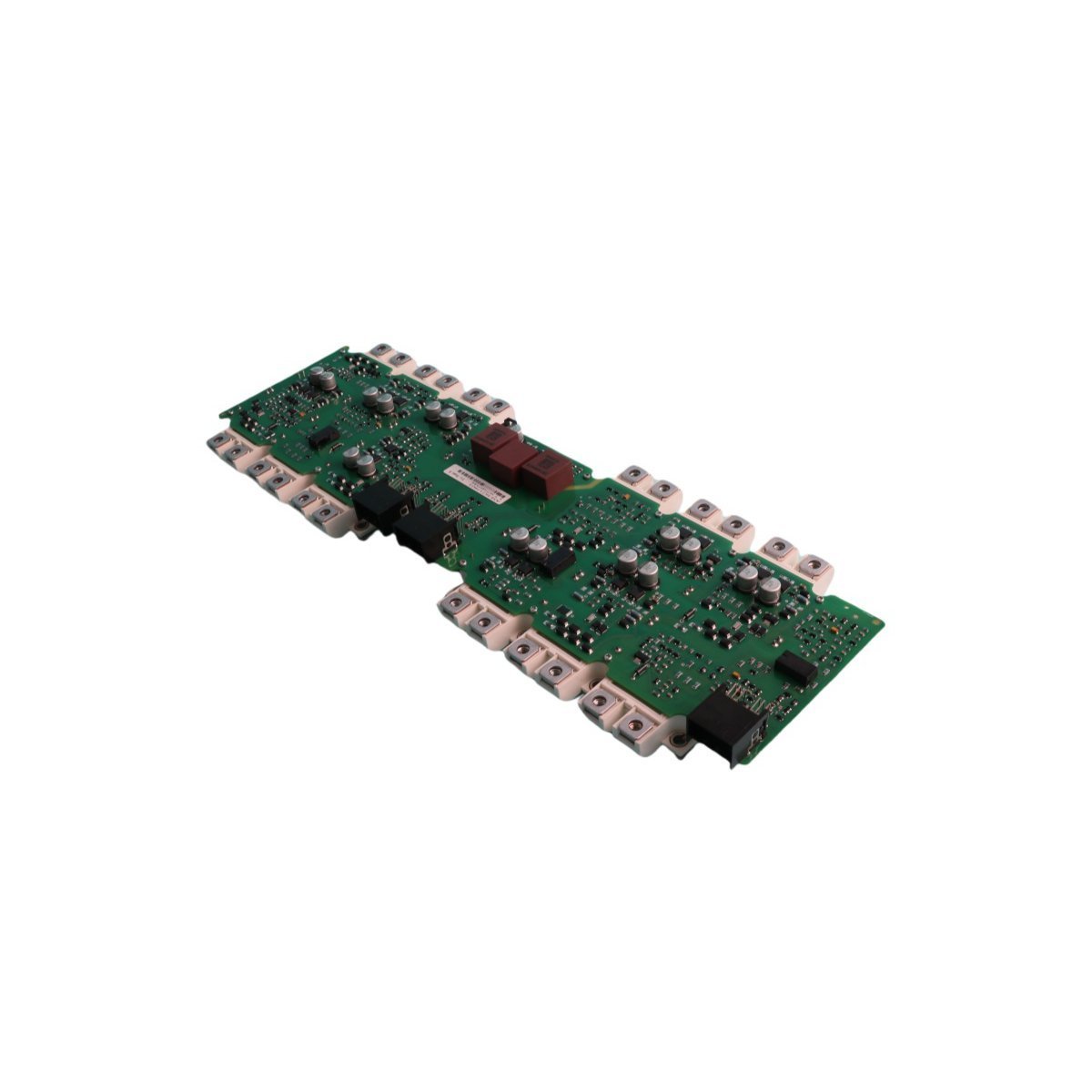

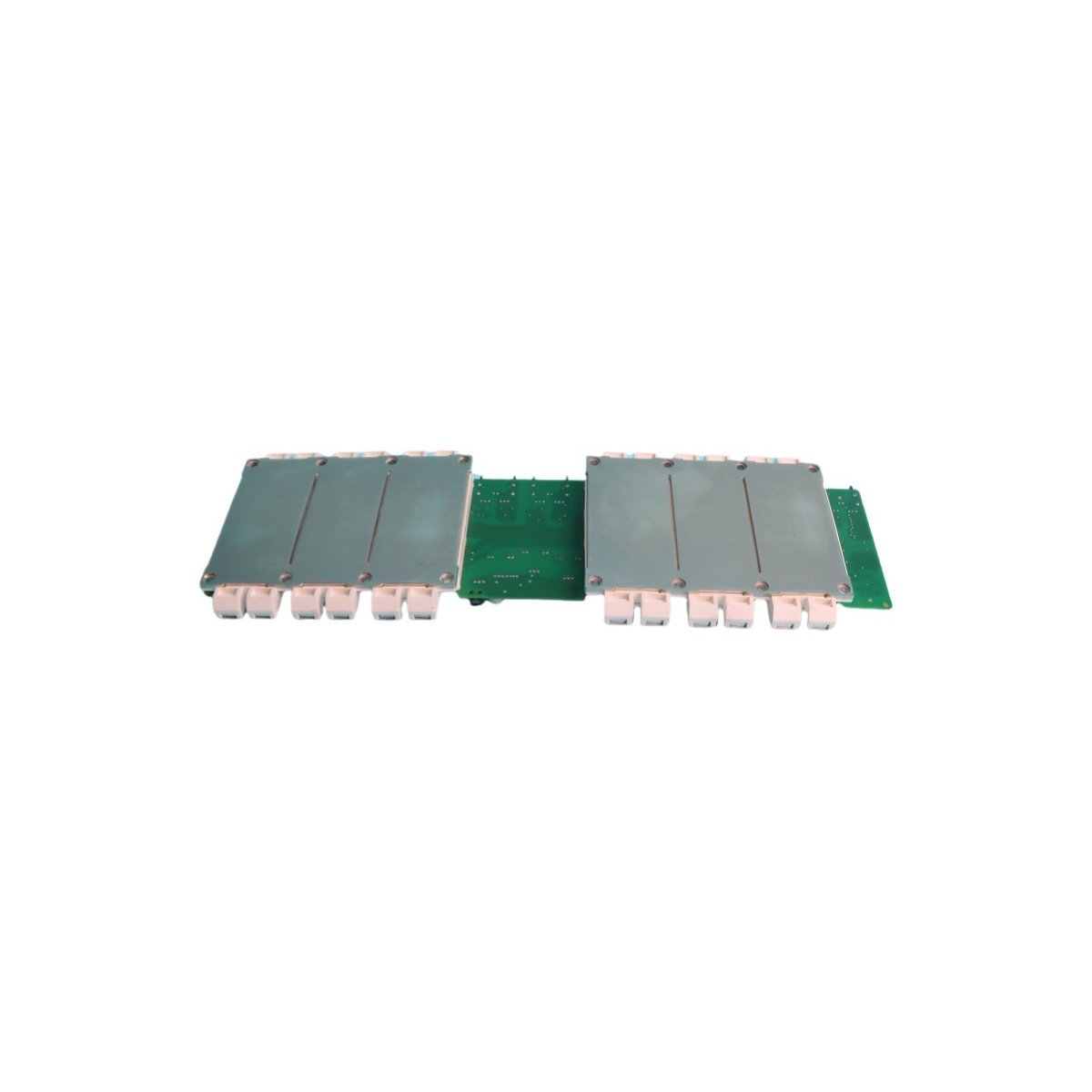

The Siemens A5E42881719 is a high-precision power conversion and signal interface module engineered for the Robicon series of industrial drives. This unit acts as a critical bridge within high-voltage inverter systems, facilitating stable power distribution and signal integrity between the control logic and the power stage. Designed for 3-phase environments ranging from 380V to 480V AC, it converts input energy into a consistent 510V to 720V DC output. Its sophisticated Active Front End (AFE) compatibility ensures a power factor exceeding 0.98, significantly reducing harmonic distortion and improving overall grid quality in large-scale industrial plants.

Technical Construction and Hardware Attributes

The A5E42881719 is characterized by its ultra-compact form factor and high-efficiency thermal design, ensuring reliable performance in densely packed control cabinets.

• Input Voltage Range: 3-Phase 380-480V AC (±10% tolerance)

• Output DC Voltage: 510V to 720V DC

• Operational Frequency: 47 Hz to 63 Hz

• Power Efficiency Rating: Greater than 96%

• Module Mass: 0.38 kg

• Chassis Dimensions: 12.2 x 10.7 x 3 cm

• Country of Origin: Germany

• Tariff Classification (HS Code): 8537101190

This power unit incorporates advanced voltage regulation circuitry and a signal interface board specifically tuned for Siemens Robicon high-voltage inverter architectures. The robust hardware design is built to withstand continuous high-power loads while maintaining a minimal footprint within the PLC system.

Industrial Applications and Deployment Environments

This module is primarily deployed in heavy-duty process industries where precise motor control and energy efficiency are non-negotiable. It is a standard component in the maintenance and assembly of Siemens Robicon Perfect Harmony GH180 drives and similar high-voltage inverter systems. Common deployment scenarios include large-scale pumping stations, mining conveyor systems, and ventilation control in oil and gas refineries. By providing a stable interface for signal processing and power conversion, the A5E42881719 ensures that heavy machinery operates with maximum uptime and minimal energy waste,
