Product Overview

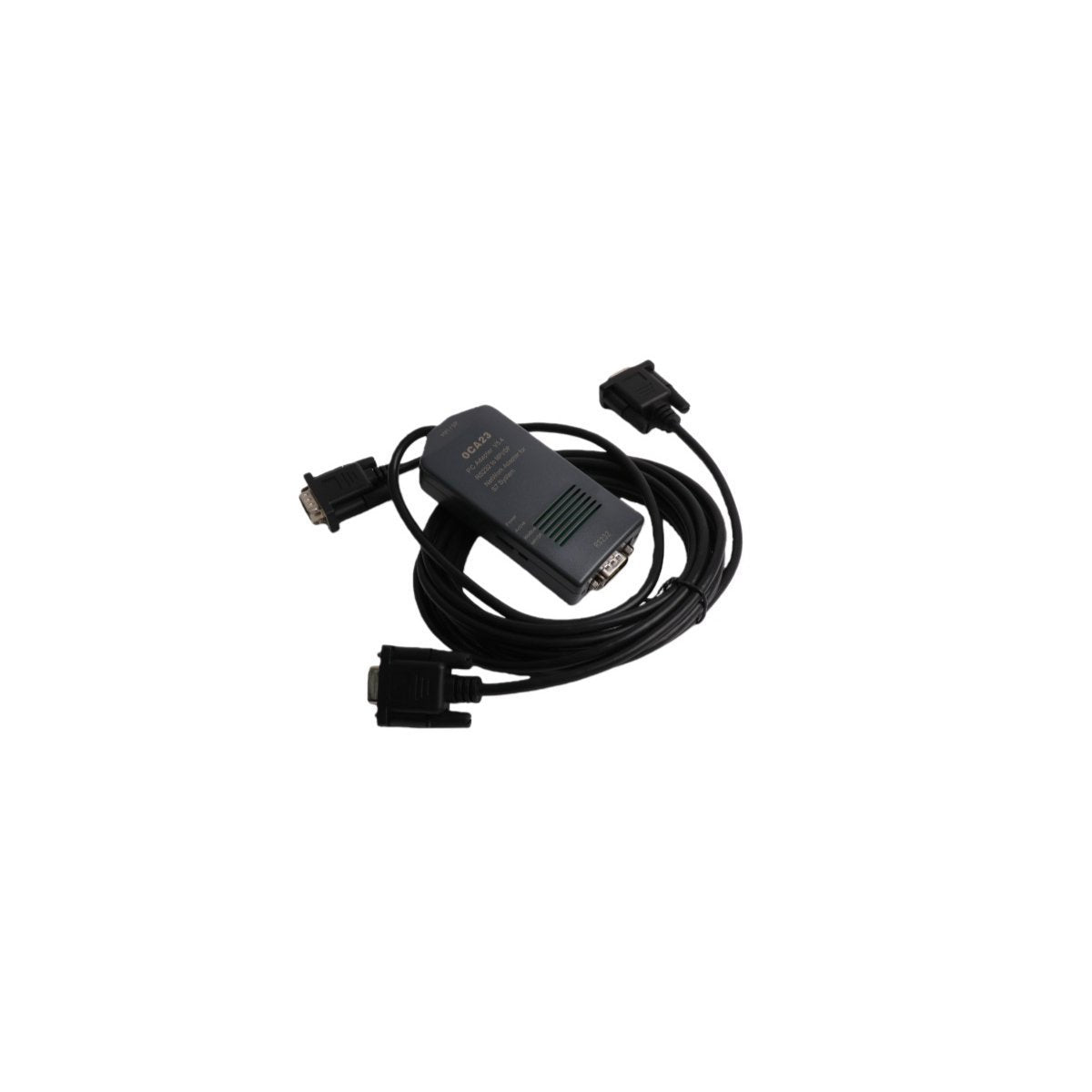

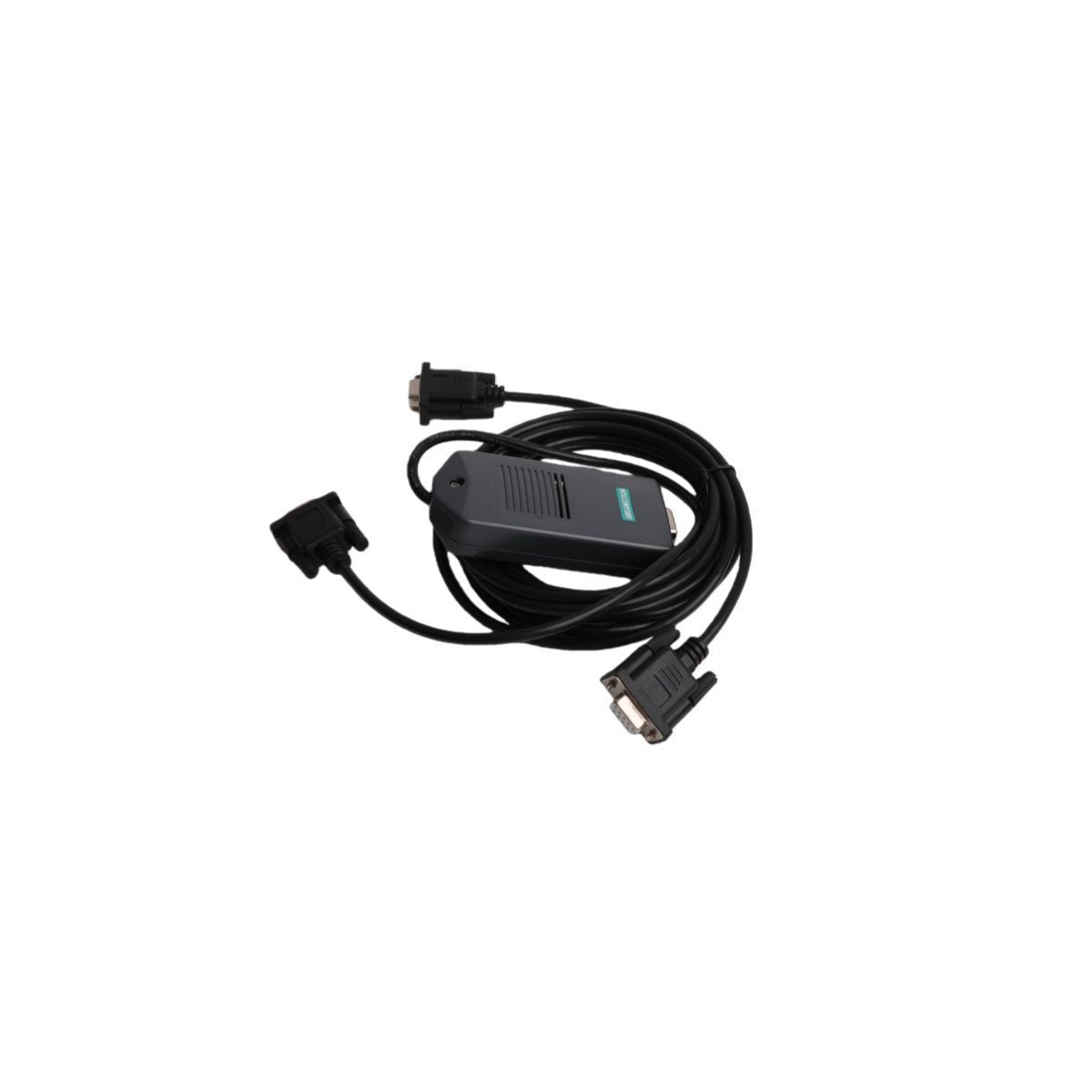

The Siemens 6ES7972-0CA23-0XA0 is a specialized PC Adapter (Version 5.1) designed to provide a high-reliability communication link between a computer and SIMATIC S7 automation systems. This interface module acts as a signal converter, bridging the standard RS232 serial COM port of a programming device with the RS485-based MPI (Multi-Point Interface) or DP (Profibus) ports found on S7-300, S7-400, C7, and M7 controllers. By eliminating the need for internal PC hardware expansions, this portable adapter provides a "plug-and-play" solution for engineers performing local programming, system configuration, and real-time diagnostics in the field or on the factory floor.

Interface Architecture and Hardware Parameters

The 6ES7972-0CA23-0XA0 is built with industrial-grade signal isolation to protect programming hardware from electrical transients:

• Host Interface: RS232 Serial (9-pin Sub-D)

• Controller Interface: MPI / PROFIBUS DP (RS485)

• Firmware Version: V5.1

• Transmission Control: Manual bitrate switch for direct-wire optimization

• Software Compatibility: Fully supports STEP 7 and TeleService software suites

• Signal Isolation: Integrated protection against electromagnetic interference (EMI)

• Remote Access Support: Modem-link capability for TeleService operations

• Unit Mass: 0.95 kg

• Device Dimensions: 2.5 cm x 5.1 cm x 83.8 cm

• Manufacturing Origin: Germany

• HS Classification: 8537101190

This adapter is powered directly via the MPI/DP interface of the PLC, reducing the need for an external power supply during standard diagnostic sessions.

Industrial Applications and Field Utility

The 6ES7972-0CA23-0XA0 is a staple tool for commissioning engineers and maintenance technicians across the global manufacturing landscape. In automotive and chemical processing plants, it is utilized for "on-the-fly" troubleshooting, allowing a laptop to monitor live PLC logic and modify parameters without halting production. Its support for TeleService makes it invaluable for remote machine diagnostics; when connected to a modem, a specialist can troubleshoot an S7-400 system across continents as if they were standing directly at the control cabinet. For facilities maintaining legacy S7-300 hardware, this adapter provides the necessary bridge to modern engineering workstations, facilitating program backups, firmware updates, and system migrations. The robust casing and high-quality shielding ensure that communication remain stable even in environments with heavy electrical noise, such as those near high-power frequency converters or welding stations.
