Product Overview

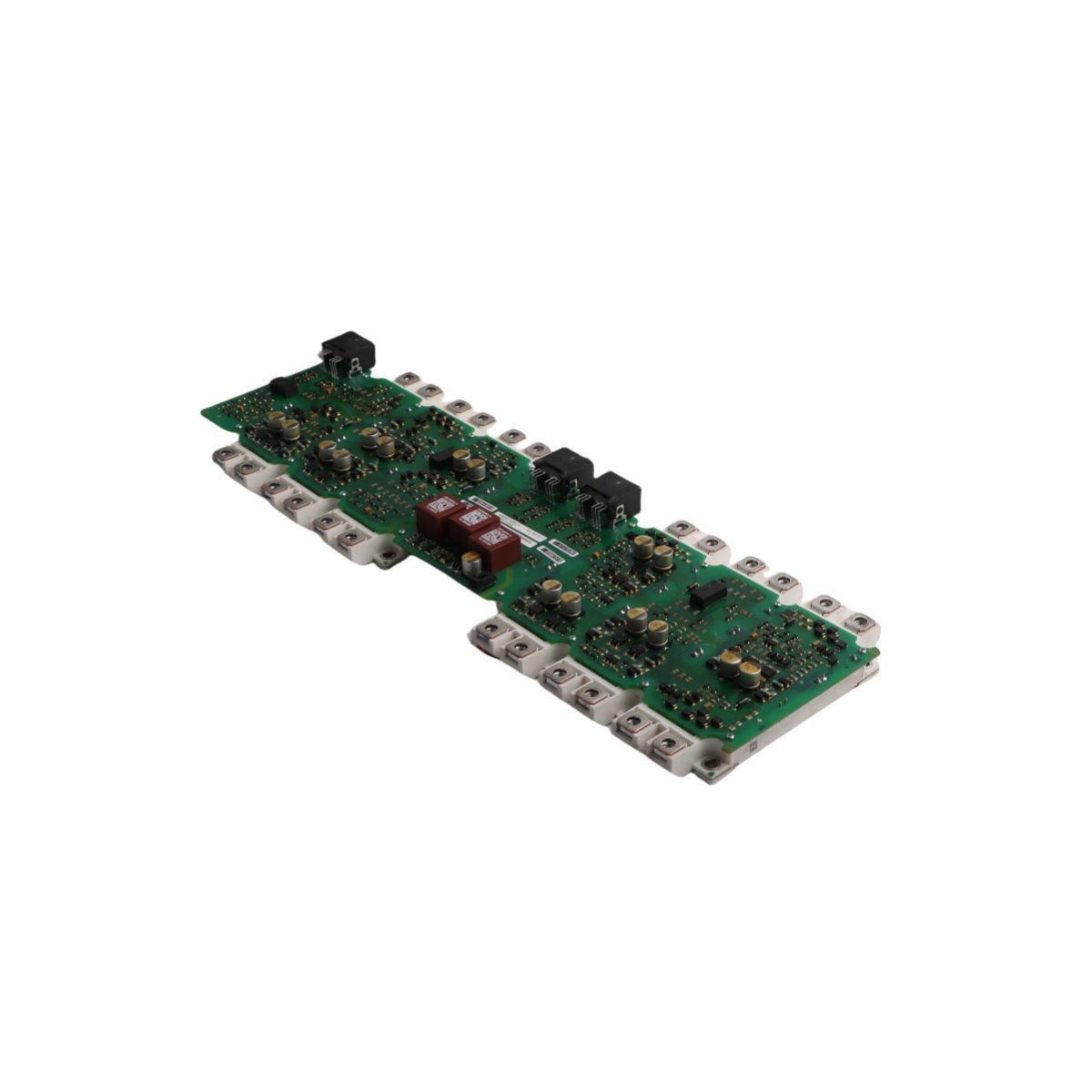

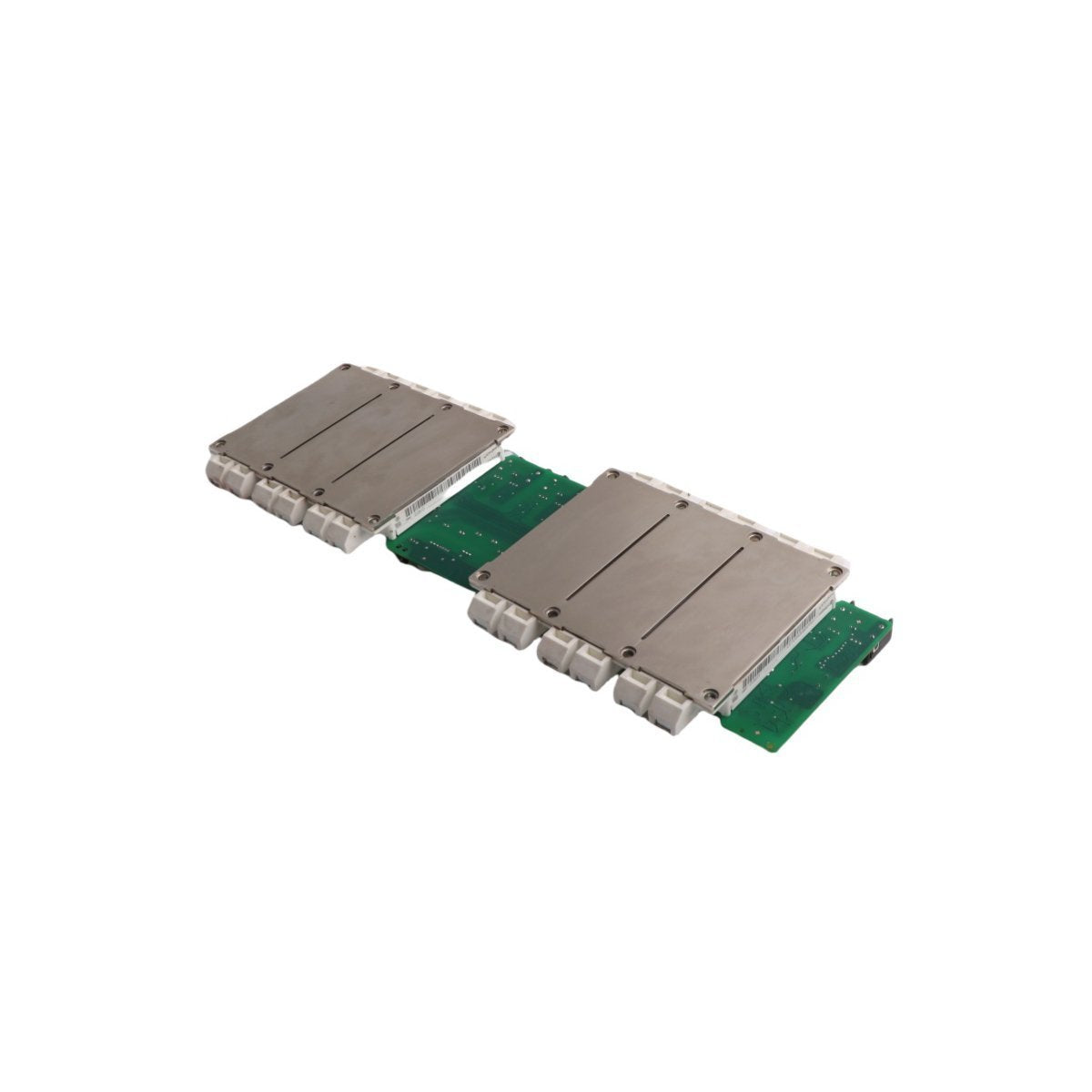

The Siemens A5E00714561 is a specialized gate driver interface board meticulously engineered for high-power IGBT (Insulated Gate Bipolar Transistor) applications. Designed to interface directly with the FS300R12KE3 silicon module, this component acts as the critical command link between low-voltage control logic and high-voltage power switching stages. By providing the exact voltage levels and current surges required for rapid gate charging, the A5E00714561 ensures efficient switching cycles and minimizes thermal losses. Its ultra-compact architecture is optimized for integration within SINAMICS drive cabinets and high-capacity inverter systems, embodying the precision of German power electronics engineering.

Essential Hardware Parameters & Performance Specs

This driver card is characterized by its precise voltage regulation and high current handling capabilities within a minimal physical footprint.

• Primary Compatibility: Specifically matched for FS300R12KE3 IGBT Silicon Modules

• Voltage Rating: Supports a Collector-Emitter voltage capacity of 1200 V

• Current Capacity: Engineered for nominal continuous currents of 300 A

• Gate Control Voltages: Optimized switching at +15 V (on) and -8 V (off)

• Switching Performance: Designed for low-latency signal propagation to ensure synchronous power phase switching

• Physical Mass: 0.04 kg (ultra-lightweight design)

• Module Dimensions: 1.5 cm x 4.0 cm x 5.8 cm

• Operating Standard: High-reliability industrial grade

• Origin: Made in Germany

• HS Classification: 8537101190

Industrial Deployment Contexts

The A5E00714561 driver board is a fundamental component for the maintenance and manufacturing of high-performance power conversion equipment.

• Variable Frequency Drives (VFDs): Serving as the core switching driver for large-scale motor control systems in the manufacturing and oil/gas industries.

• Renewable Energy Inverters: Managing the power conversion stages in wind turbine converters and large-scale solar array inverters.

• Traction Drives: Utilized in heavy-duty electric transport systems for reliable torque management and acceleration control.

• High-Power Rectifiers: Implementing precise gate control for industrial power supplies used in electrolysis and smelting processes.

• Drive System Maintenance: A critical spare part for restoring the functionality of SINAMICS G/S series inverter modules experiencing gate drive failures.
