Product Overview

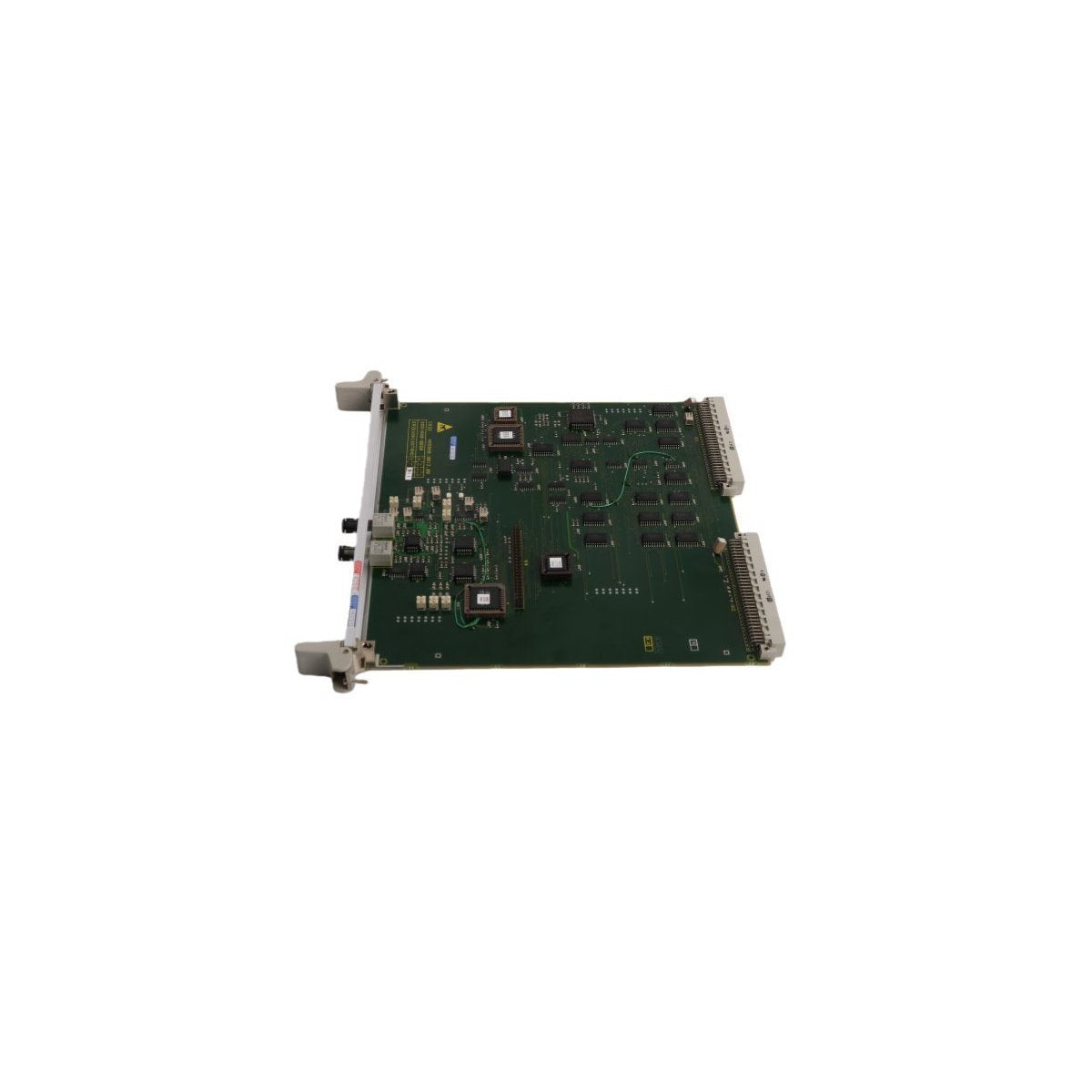

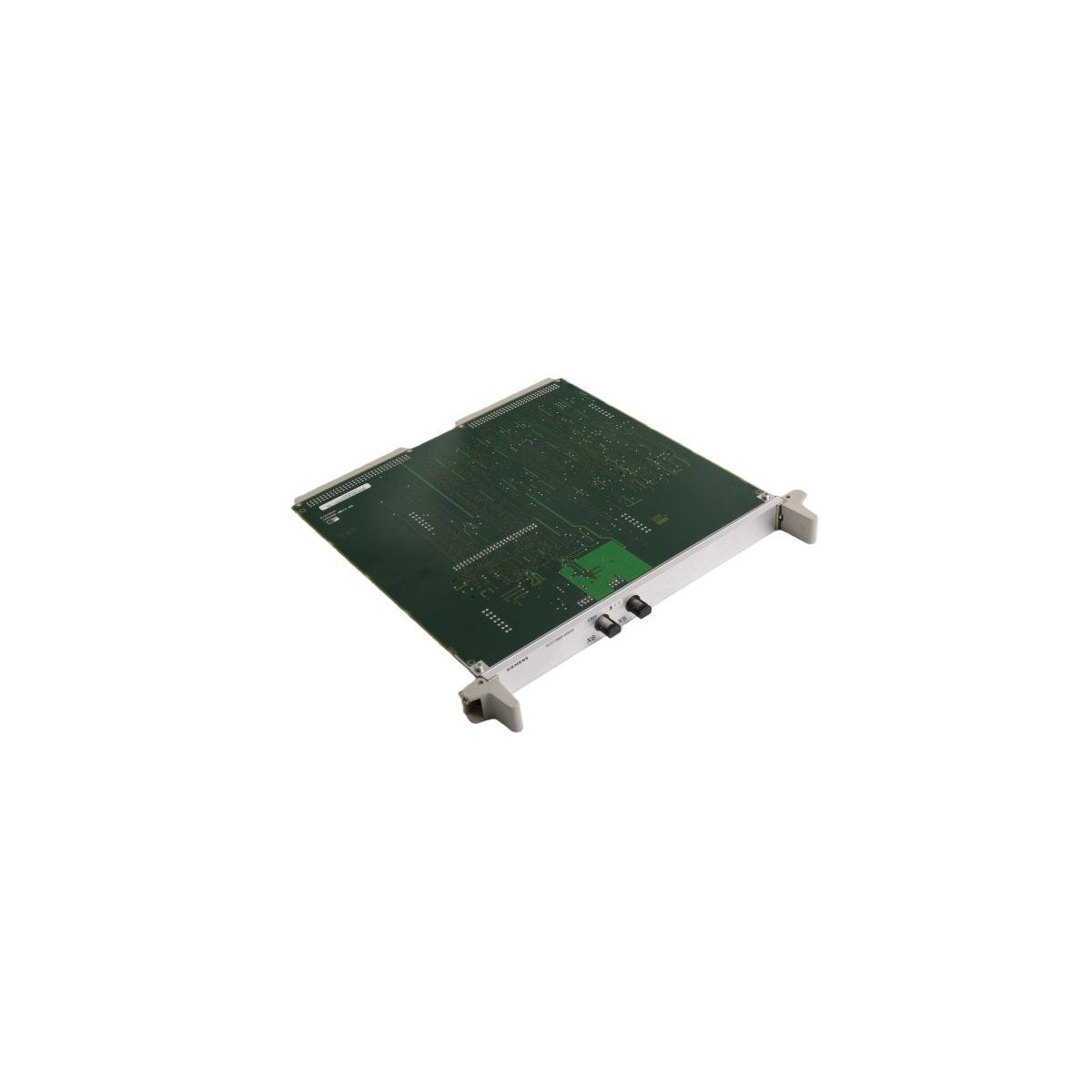

The Siemens 6DD1660-0BD0 is a high-precision CS22 Slave Module designed specifically for the SIMADYN D and SIMATIC TDC (Technology Drive Control) high-performance automation systems. This module acts as a specialized communication node, facilitating rapid and deterministic data exchange via fiber optic links. By utilizing light-based transmission, the 6DD1660-0BD0 ensures complete galvanic isolation and immunity to electromagnetic interference (EMI), which is critical for maintaining signal integrity over long distances in large-scale plant environments. It serves as the primary expansion interface for connecting multiple subracks, allowing the central processor to manage decentralized hardware with the same speed and reliability as local backplane modules.

Architectural Features and Technical Data

This interface board is engineered for ultra-high-speed synchronization and low-latency processing in high-end drive control applications.

• Communication Architecture: CS22 Slave interface for master-to-slave bus coupling.

• Transmission Medium: Fiber optic cable (ensuring zero potential difference and noise immunity).

• System Compatibility: Optimized for SIMADYN D and SIMATIC TDC racks.

• Data Throughput: High-speed synchronous data transfer for real-time motion control.

• Diagnostic Support: Integrated LED indicators for link status and module health monitoring.

• Environmental Tolerance: Hardened circuitry resistant to extreme industrial vibrations and temperature fluctuations.

• Module Weight: 0.95 kg.

• Physical Dimensions: 2.5 cm x 5.1 cm x 83.8 cm.

• Manufacturing Origin: Germany.

• Harmonized System (HS) Code: 8537101190.

Strategic Industrial Implementations

The 6DD1660-0BD0 is a staple in industries requiring massive computational power and synchronized multi-axis control.

• Metals and Mining: Coordinating complex rolling mill drives where high-speed synchronization between master controllers and remote drive subracks is essential for product quality.

• Multi-Subrack Expansion: Enabling the physical separation of control hardware across different cabinets or plant levels while maintaining a unified, high-speed bus.

• Power Electronics: Managing large-scale HVDC (High Voltage Direct Current) transmission stations where fiber optic isolation is mandatory for safety and signal clarity.

• High-Precision Testing Rigs: Providing the deterministic communication backbone for automotive or aerospace test benches requiring millisecond-accurate data logging.

• Decentralized Processing: Bridging central SIMATIC TDC processors with distributed I/O and drive interface modules in expansive manufacturing facilities.
