Product Overview

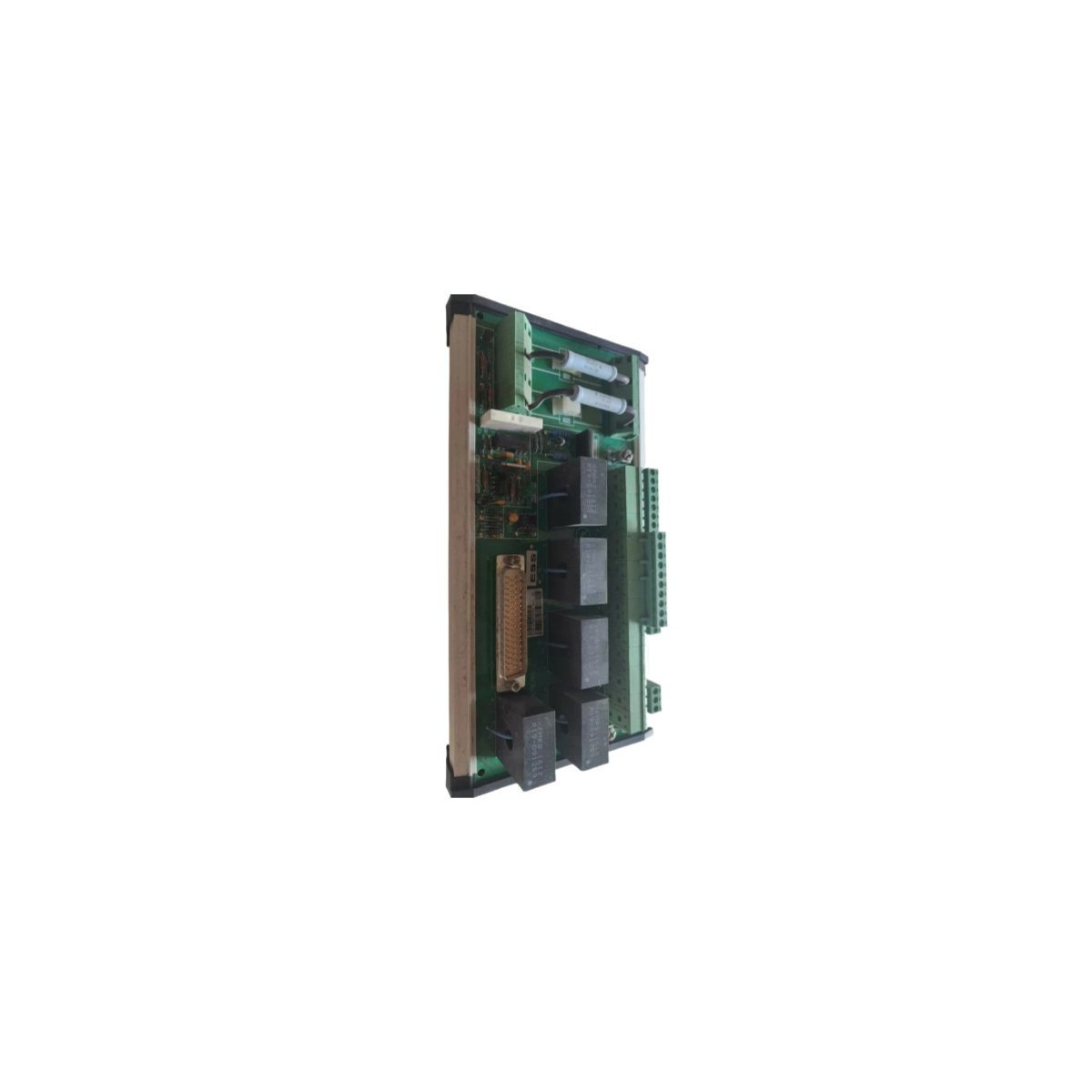

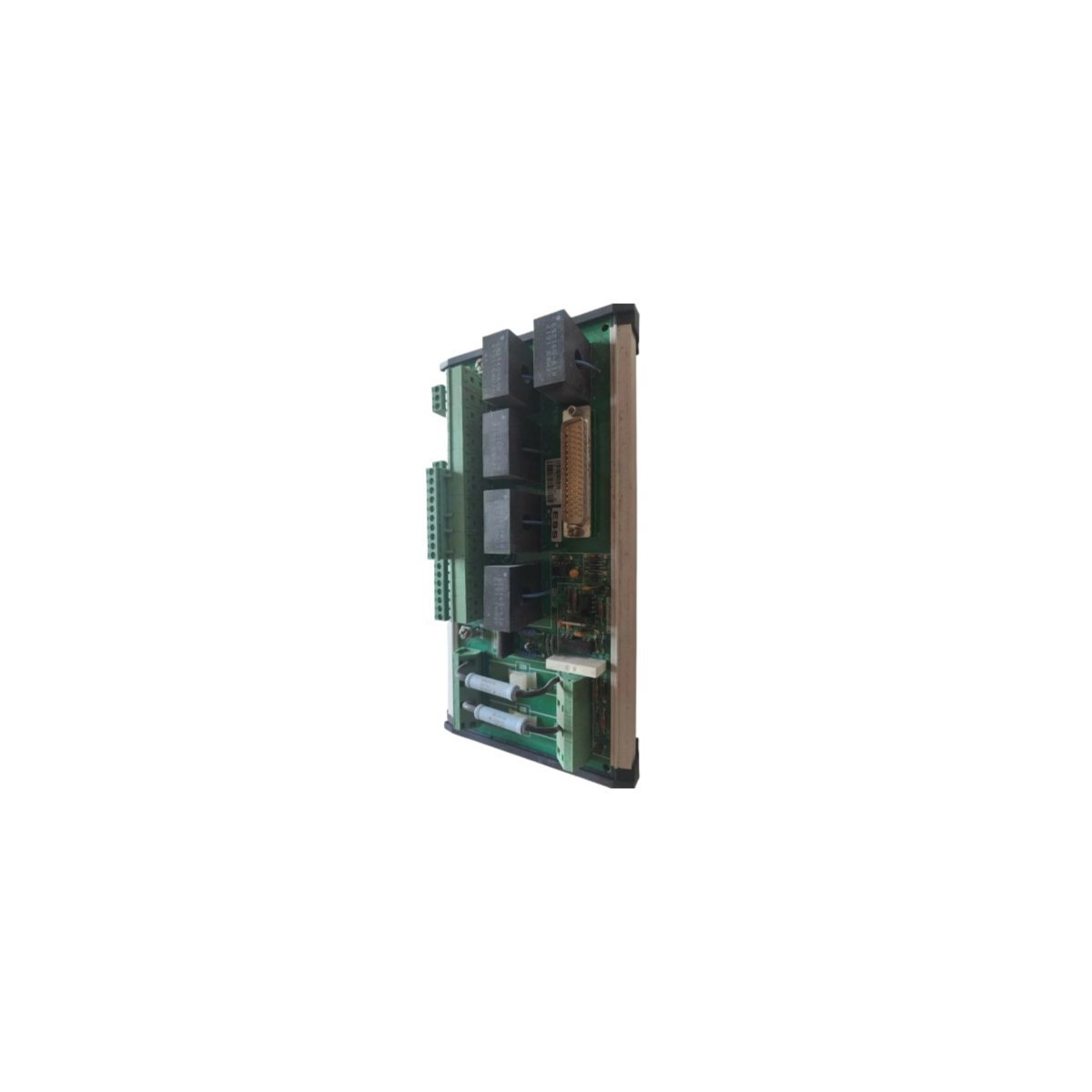

The A5E32168144 is a high-precision System Interface Board (SIB) meticulously developed for the Siemens GH180 NXGpro control architecture. Functioning as a fundamental communication and processing bridge, this PCB is a core component within the Robicon Perfect Harmony Medium Voltage AC Drive systems. It is engineered to facilitate seamless data flow and command execution between the central control logic and the drive's power stages. Built to meet German engineering standards, this board ensures the high-efficiency motor control and energy management required for sophisticated variable frequency drive (VFD) operations.

Physical and Electrical Design Metrics

This interface board utilizes an advanced multi-layer construction to maintain signal integrity while operating within tight electrical tolerances.

• Circuitry Architecture: 8-layer FR-4 high-grade PCB construction

• Standardized Format: 3U × 160 mm Eurocard form factor

• Main Power Input: 5V DC ±5% at 400 mA (Logic Supply)

• Auxiliary Power Rails: ±15V DC ±10% at 50 mA

• Signal Protection: Integrated isolation rated at 2.5 kV RMS

• Operational Environment: -25 °C to +70 °C (No derating required)

• Storage Temperature Range: -40 °C to +85 °C

• Atmospheric Resistance: 5% to 95% RH (non-condensing)

• Net Hardware Weight: 0.25 kg (Shipping weight approximately 0.95 kg)

• Shipping Dimensions: 20.5 cm x 11.9 cm x 7.0 cm

• Manufacturing Origin: Germany

Primary System Integrations

The A5E32168144 PCB is indispensable for the maintenance and deployment of specialized medium-voltage power systems.

• Robicon Perfect Harmony Drives: Serving as the primary interface for GH180 series medium voltage VFDs used in heavy industry.

• Large-Scale Pump and Fan Control: Managing energy-efficient operations in municipal water treatment plants and large-scale industrial ventilation systems.

• Extruder and Compressor Management: Providing the precision timing and feedback loops necessary for high-torque motor applications in chemical processing.

• Power Grid Stabilization: Assisting in the control of high-capacity motor starters to prevent voltage sags during industrial equipment activation.

• Legacy Control Upgrades: Integrating with NXGpro control systems to enhance the service life and productivity of existing Robicon drive installations.
