Product Overview

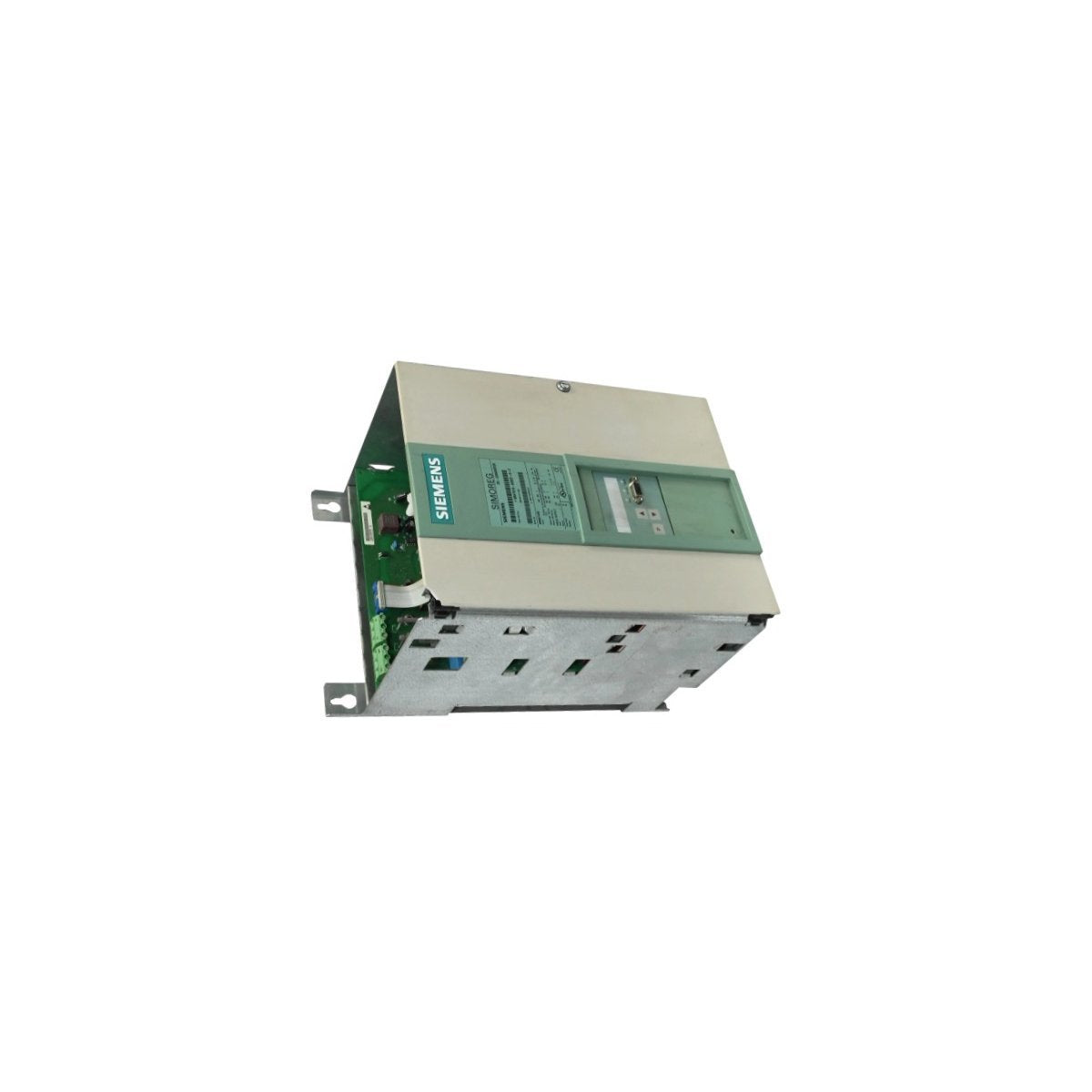

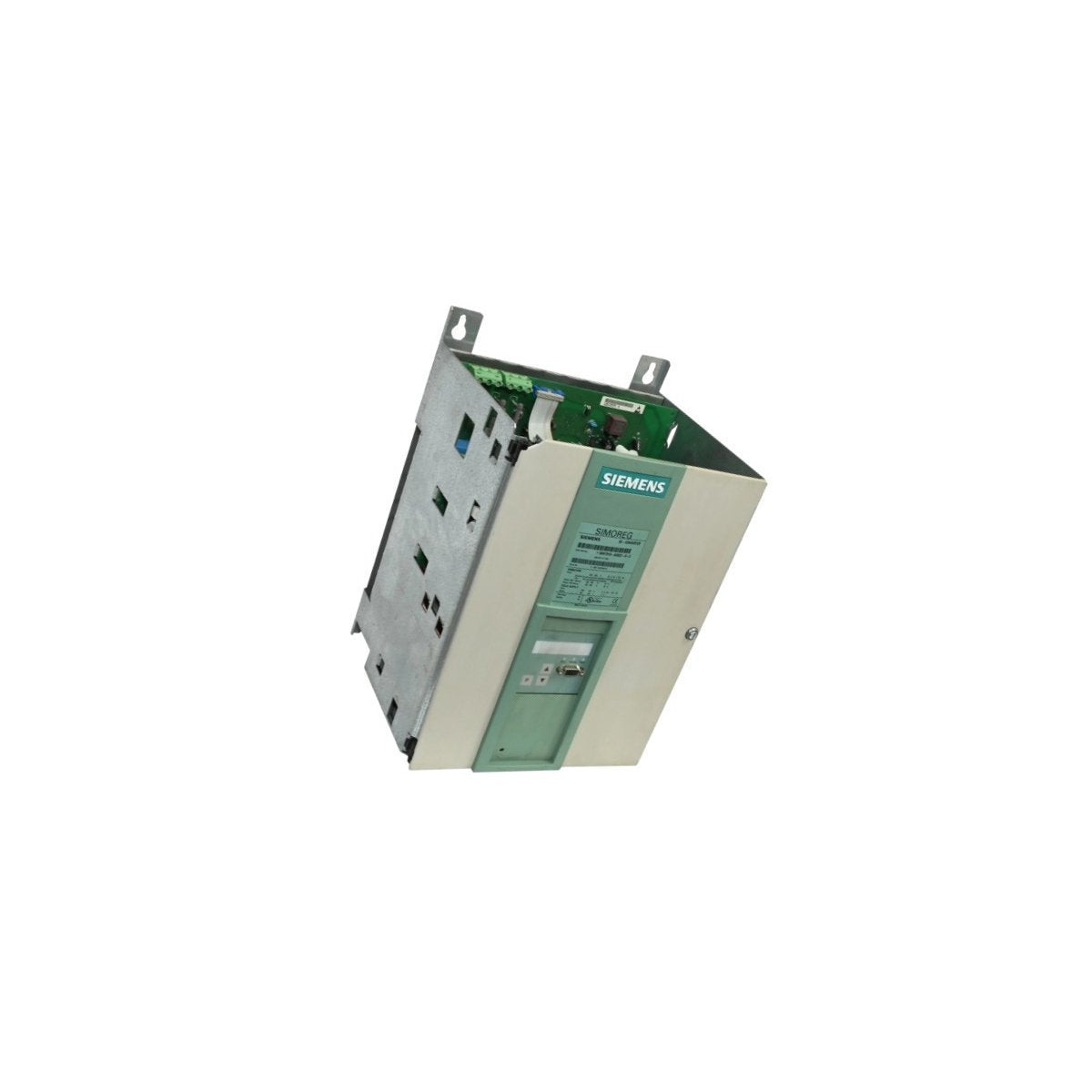

The Siemens 6RA7091-6FS22-0 is a high-capacity Converter Commutation Protector (CCP) designed exclusively for the SIMOREG DC-Master range of static converters. This specialized power module serves as a critical safety buffer in four-quadrant drive configurations, where it mitigates the risks associated with commutation failure during regenerative braking or rapid current reversals. By rapidly intervening in the armature circuit, the 6RA7091-6FS22-0 prevents fuse ruptures and semiconductor damage during line voltage dips or sudden load drops. This module is essential for protecting the high-value thyristors within the main converter and the connected DC motor, ensuring that transient energy is safely managed without catastrophic system failure.

Hardware Infrastructure and Critical Performance Data

This module is engineered for high-power industrial environments with the following technical specifications:

• Maximum Current Rating: 1200 Amperes (A)

• Operational Voltage Rating: 550 Volts (V)

• Frequency Compatibility: Global standard 50/60 Hz

• Operation Mode: Optimized for 4-Quadrant (regenerative) DC drive systems

• Parameter Adjustment: Fine-tuning via drive software (e.g., parameter p51578 for specific protection curves)

• Protective Function: Fast-acting energy reduction in the armature circuit

• Chassis Build: Industrial-grade heat dissipation housing

• Net Weight: 0.95 kg

• Unit Dimensions: 2.5 cm x 5.1 cm x 83.8 cm

• Country of Origin: Germany

• HS Export Code: 8537101190

The 6RA7091-6FS22-0 acts as a passive supervisor until a commutation fault is detected, at which point it executes a high-speed forced commutation to clear the fault safely.

Industrial Protection Strategies and Field Utility

The 6RA7091-6FS22-0 CCP is an indispensable component in heavy-duty sectors where large DC motors are subject to frequent speed changes and high-torque demands. In the metal and steel processing industries, it is utilized on rolling mills and coiling lines to prevent the drive from tripping during emergency stops or power grid instabilities. It is equally vital in the mining sector for large hoist and shovel applications, where a commutation failure could lead to significant mechanical strain or dangerous uncontrolled movements. By implementing this protector, plant engineers can significantly reduce downtime caused by blown high-speed fuses, which are often difficult to source and replace mid-shift. Furthermore, in facilities with weak power grids, the Siemens 6RA7091-6FS22-0 provides the necessary electrical stability to maintain continuous production, effectively extending the lifecycle of both the converter electronics and the motor's commutator assembly. Its integration allows for a more aggressive drive tuning without compromising the safety limits of the power semiconductor stages.
