Product Overview

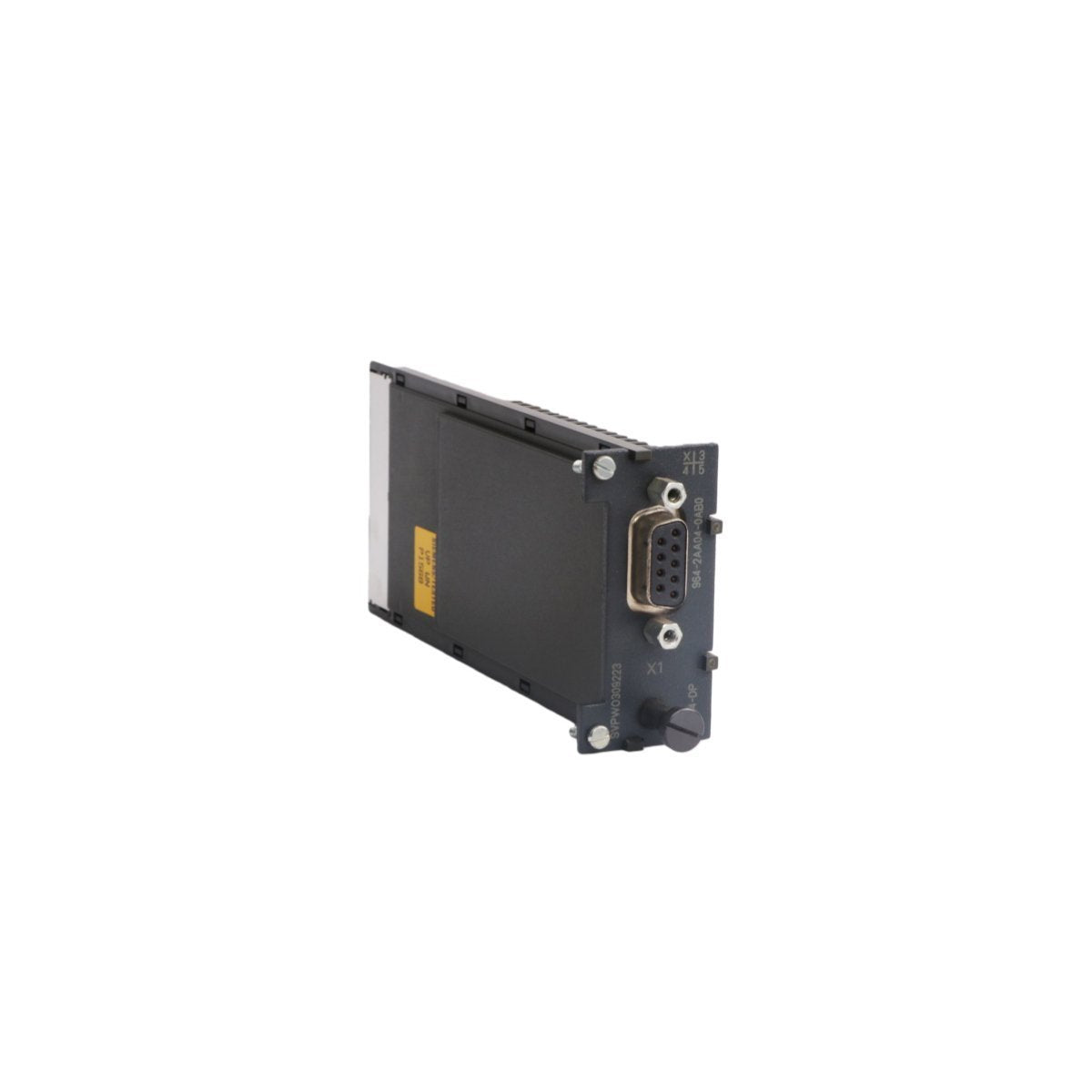

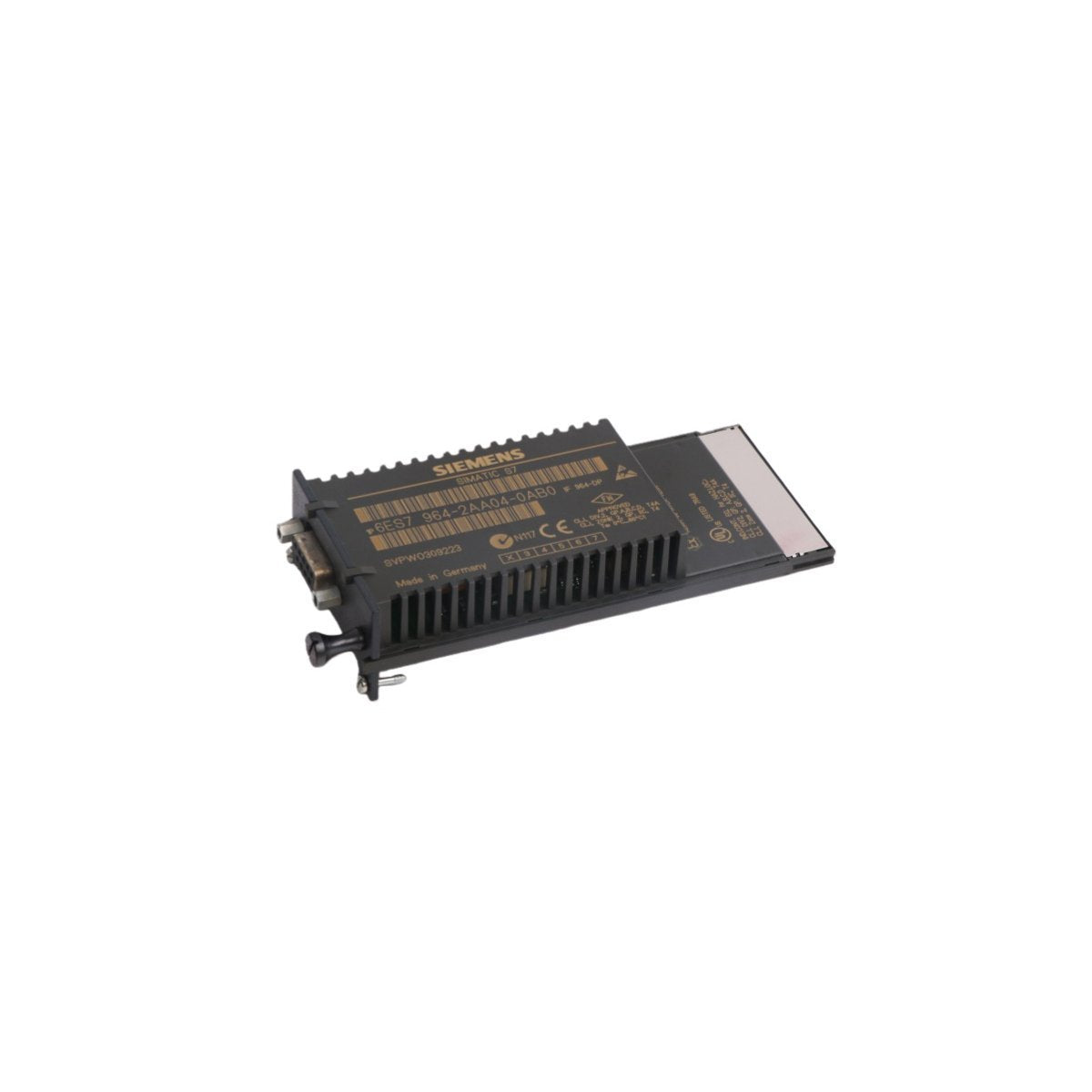

The Siemens 6ES7964-2AA04-0AB0 is a specialized plug-in interface module (IF 964-DP) designed specifically for the SIMATIC S7-400 controller platform. This module expands the communication capabilities of S7-400 CPUs, allowing them to serve as a high-performance PROFIBUS DP master. By integrating this module into the CPU's dedicated interface slot, system architects can establish a robust, high-speed connection to distributed field devices, including remote I/O, motor drives, and HMI panels. This hardware offloads intensive communication tasks from the main processor, ensuring that complex automation logic and network data exchange occur simultaneously without performance degradation.

Hardware Parameters and Core Specifications

The IF 964-DP is engineered for high-speed data integrity within the demanding electrical environments of large-scale industrial racks.

• Interface Type: PROFIBUS DP Master (RS 485)

• Connection Port: 1 x 9-pin Sub-D (F) socket

• Transmission Rate: Maximum 12 Mbit/s (automatic detection supported)

• Data Volume: Up to 244 bytes of input data and 244 bytes of output data per station

• Power Consumption: Extremely efficient, typically consuming only 1.0 W

• Voltage Supply: Internal via the S7-400 CPU bus

• Isolation: Galvanic isolation between the bus and the internal logic

• Dimensions: 26 mm (W) x 54 mm (H) x 130 mm (D)

• Device Net Weight: 0.20 kg

• Shipping Weight: 0.95 kg

• Operating Temperature: 0 °C to +60 °C

Industrial Deployment Scenarios

Large-Scale Process Distributed ControlIn oil refineries or chemical plants where sensors and actuators are spread across vast distances, the 6ES7964-2AA04-0AB0 enables the S7-400 to manage thousands of signals via a single PROFIBUS backbone. This centralized master control ensures that all remote I/O segments are synchronized with the primary process logic.

High-Speed Manufacturing IntegrationFor automotive assembly lines, the 12 Mbit/s throughput of this interface module is critical for maintaining real-time feedback from high-speed drives and robotic controllers. It allows the S7-400 to act as the primary coordinator, sending precise commands to various slave devices with minimal latency.

System Redundancy and ExpansionIn mission-critical infrastructure, such as airport baggage handling or power distribution, this module is used to add secondary or tertiary communication paths. Because the S7-400 can support multiple interface modules, the 6ES7964-2AA04-0AB0 allows for the segmentation of the network, preventing a failure in one area from affecting the entire facility's communication.

Field Device ManagementThe module’s DP-V1 functionality supports acyclic data exchange, which is essential for managing intelligent field devices. This allows technicians to perform remote parameterization and diagnostic checks on smart instruments while the cyclic control process continues to run, significantly reducing the need for on-site physical maintenance.
