Product Overview

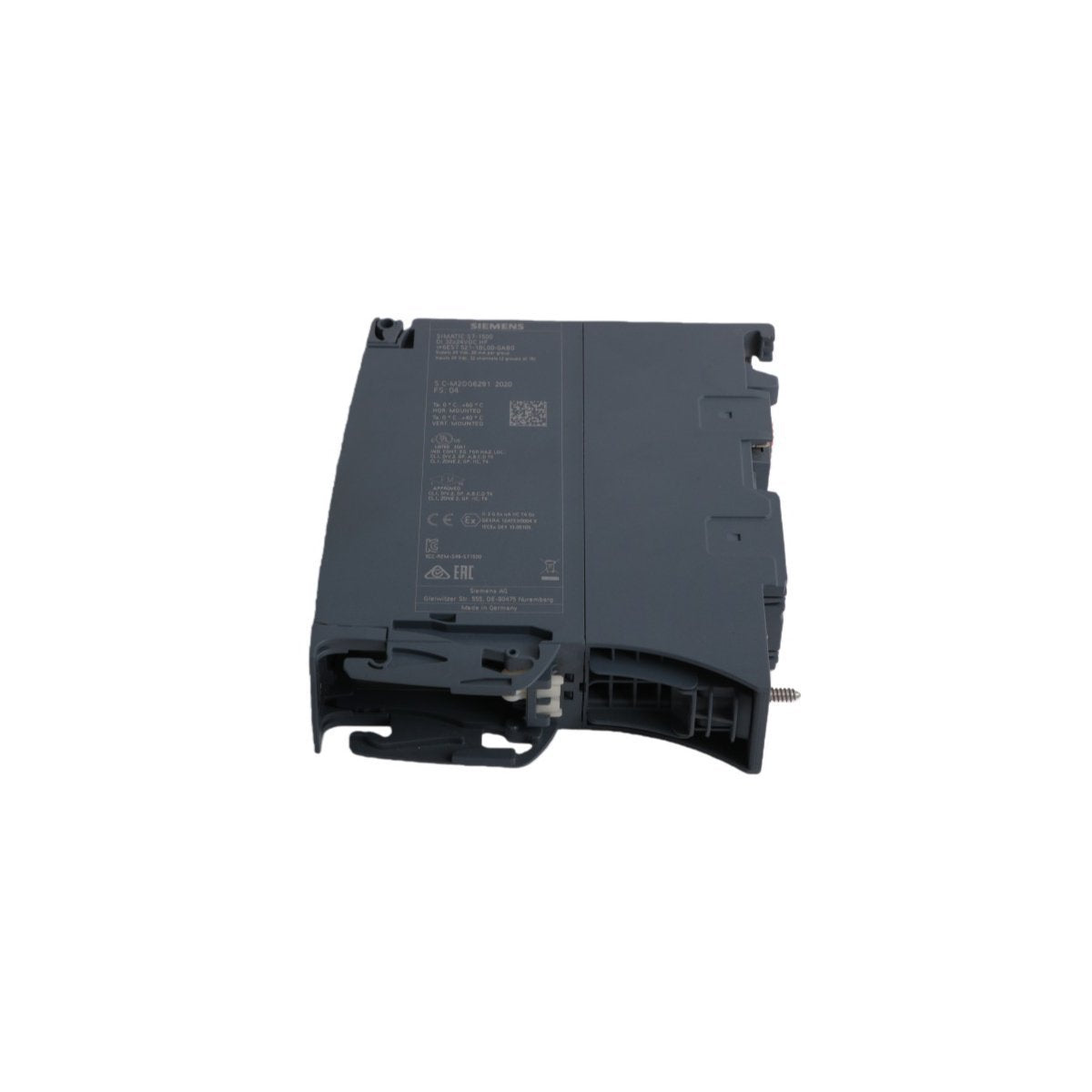

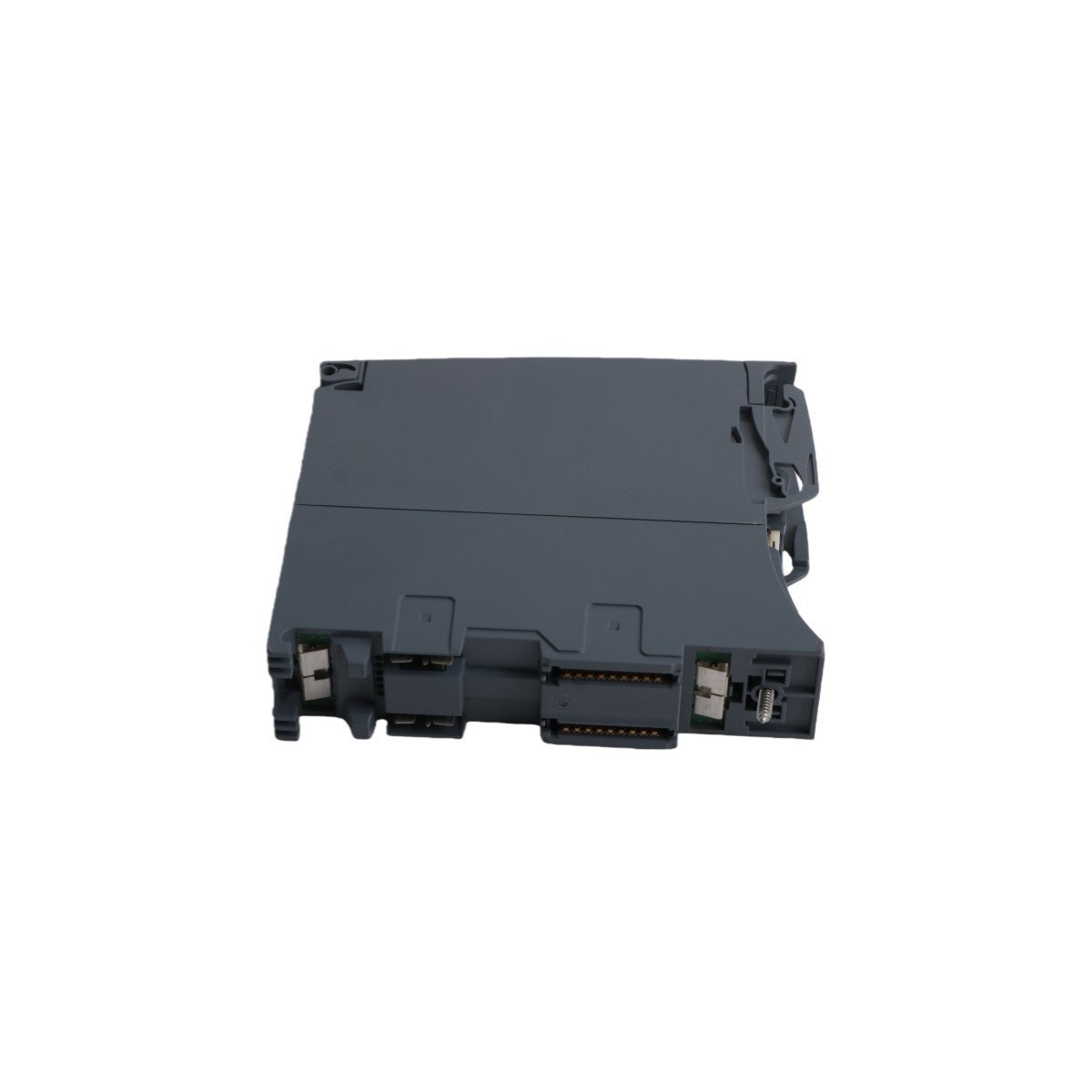

The Siemens 6ES7521-1BL10-0AA0 is a high-density "Basic" (BA) digital input expansion module designed for the SIMATIC S7-1500 PLC platform. This module allows the controller to interface with a large volume of field signals, offering 32 discrete input channels within a slim 35mm profile. By utilizing 24V DC logic, it provides a cost-effective solution for acquiring binary signals from switches, sensors, and encoders. Its integration into the TIA Portal environment ensures seamless configuration and hardware diagnostics, making it a staple component for modern, scalable automation architectures.

Functional Infrastructure and Physical Dimensions

This input module is built to balance space-saving design with robust industrial performance. Key technical specifications include:

• Input Density: 32 channels, arranged in two distinct potential groups of 16.

• Logic Type: Sinking input (P-reading); Type 3 characteristics according to IEC 61131-2.

• Signal Processing: Fixed input delay of typically 3.2 ms for stable signal debouncing.

• Front Connection: Support for 40-pin front connectors with push-in technology to minimize assembly labor.

• Mass: 0.95 kg.

• Module Size: 2.5 cm x 5.1 cm x 83.8 cm (Physical housing specifications).

• Power Supply: Rated 24V DC.

Professional Deployment Scenarios

The 6ES7521-1BL10-0AA0 is widely adopted in B2B industrial environments where high-volume binary data acquisition is necessary. Primary applications include:

• Factory Automation: Monitoring hundreds of limit switches and proximity sensors on high-speed assembly lines and conveyor systems.

• Machine Building: Serving as the primary I/O interface for CNC machines and packaging equipment where compact cabinet space is a requirement.

• Process Logistics: Tracking pallet movements and gate statuses in automated storage and retrieval systems (ASRS).

• Infrastructure Control: Managing digital feedback from lighting, HVAC dampers, and security contacts in large-scale building management systems.
