Product Overview

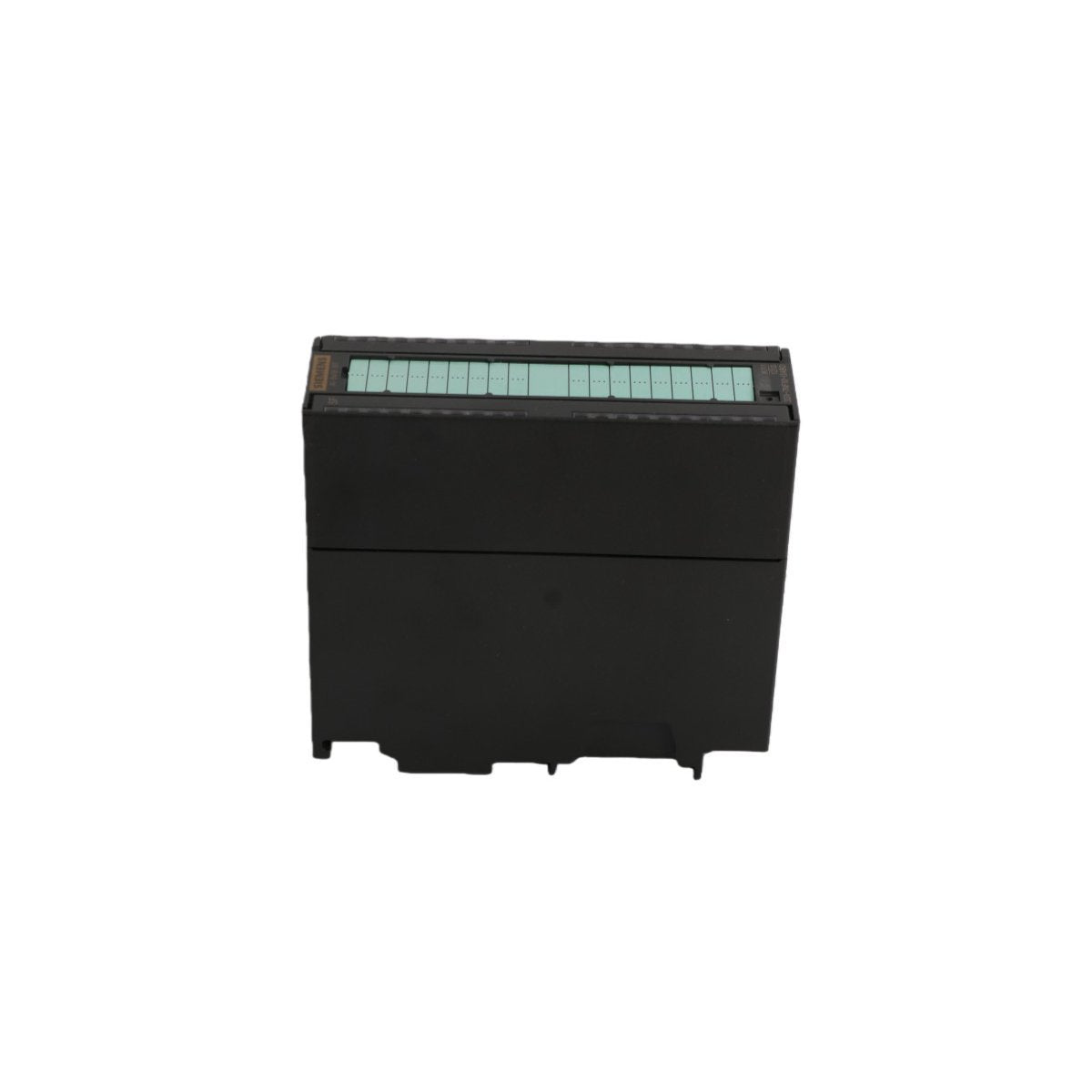

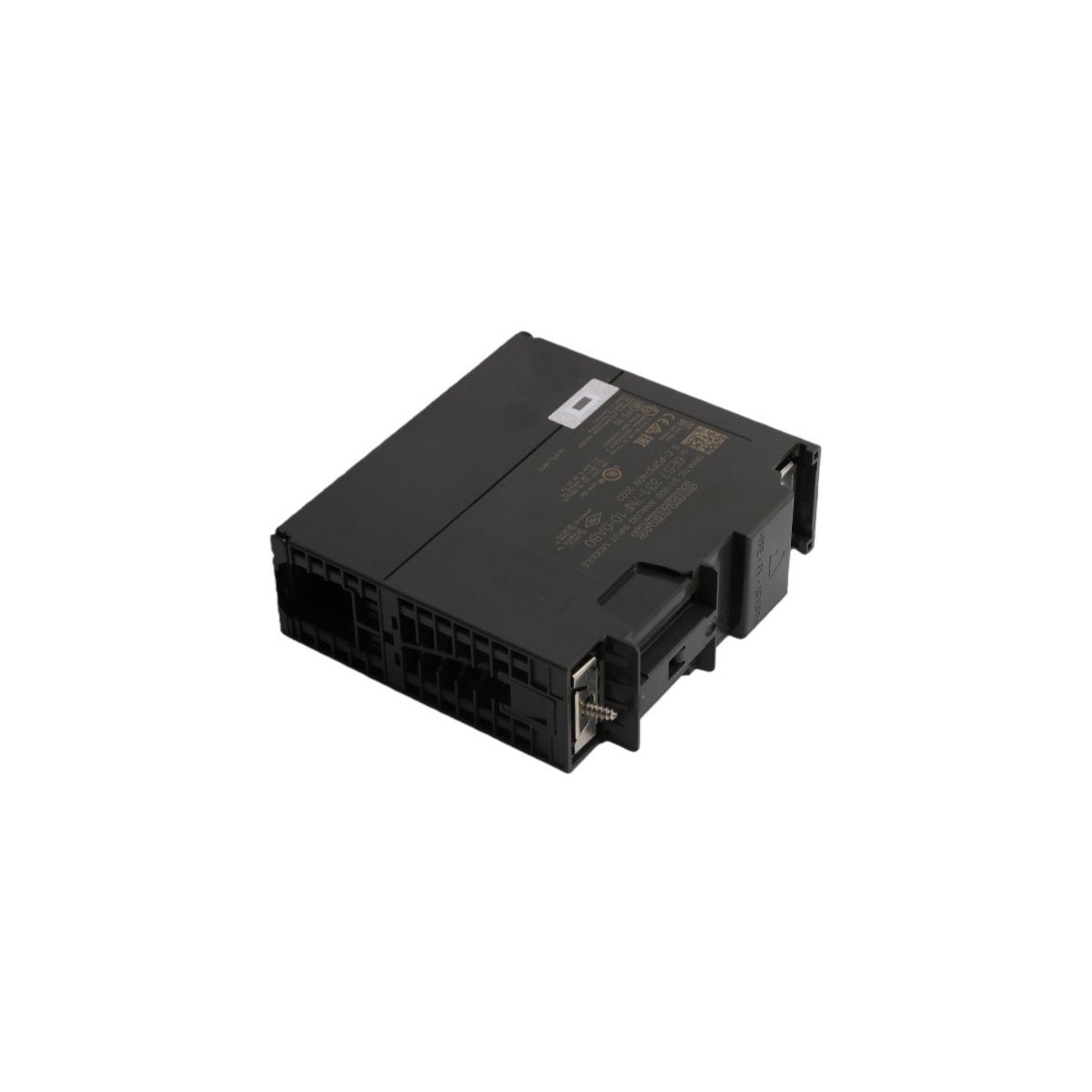

The Siemens 6ES7331-7NF10-0AB0 is a premium SM 331 analog input expansion designed for the SIMATIC S7-300 controller family. This high-density module is engineered for precision-heavy automation tasks, offering eight isolated channels with a high-resolution 16-bit architecture. It serves as a universal interface capable of processing a wide spectrum of voltage and current signals, from standard process loops to low-level instrumentation data. With its advanced filtering capabilities and rapid conversion cycles, the 6ES7331-7NF10-0AB0 ensures that critical process variables are digitized with maximum fidelity, providing the stable data foundation required for complex PID control and plant-wide monitoring.

Precision Measurement and Hardware Specifications

This module is distinguished by its high input impedance and robust galvanic isolation, protecting the central CPU from field-side electrical disturbances.

• Input Channel Capacity: 8 Isolated Analog Inputs

• Signal Resolution: 16-bit high-precision conversion

• Voltage Measurement Ranges: Plus or minus 10 V, Plus or minus 5 V, 1 V to 5 V

• Current Measurement Ranges: Plus or minus 20 mA, 0 mA to 20 mA, 4 mA to 20 mA

• Common Mode Voltage: Up to 60 V AC/DC (Permissible limit between channels and MANA)

• Input Resistance: 10 Megaohms in voltage mode / 25 Ohms in current mode

• Conversion Time: 10 ms (in 4-channel high-speed mode) to 95 ms (in 8-channel standard mode)

• Power Parameters: 24 V DC supply with a typical 3.0 W power loss

• Net Weight: 0.27 kg

• Gross Shipping Weight: 0.95 kg

• Device Dimensions: 40 mm W x 125 mm H x 120 mm D

• Packaged Size: 2.5 cm x 5.1 cm x 83.8 cm

• Manufacturing Origin: Germany

Industrial Deployment and Signal Processing Roles

High-Accuracy Chemical ProcessingIn pharmaceutical and chemical manufacturing, the 16-bit resolution of the 6ES7331-7NF10-0AB0 is vital for monitoring microscopic changes in pressure or pH levels. The module's high-speed 4-channel mode allows for rapid sampling of dynamic variables, ensuring that safety valves and dosing pumps react instantly to process deviations.

Energy Sector and Power MonitoringThis analog module is frequently used in power plants to monitor generator and transformer parameters. Thanks to its 60V common-mode voltage tolerance, it can safely acquire signals in high-interference environments, providing a clean data stream for SCADA systems to track grid stability and equipment health.

Water and Wastewater ManagementFor large-scale water treatment facilities, the 6ES7331-7NF10-0AB0 handles long-distance current loops (4-20 mA) from distributed flow meters and level sensors. The integrated reverse polarity protection and 75V overvoltage resistance safeguard the S7-300 rack against accidental wiring errors or localized surges common in outdoor instrumentation setups.

Machine Tool and Metal FabricationIn rolling mills and CNC environments, the module tracks high-precision position and tension sensors. The 10ms conversion speed ensures that the PLC receives feedback fast enough to maintain perfect synchronization between multiple drive axes, minimizing material waste and improving surface finish quality.
