Product Overview

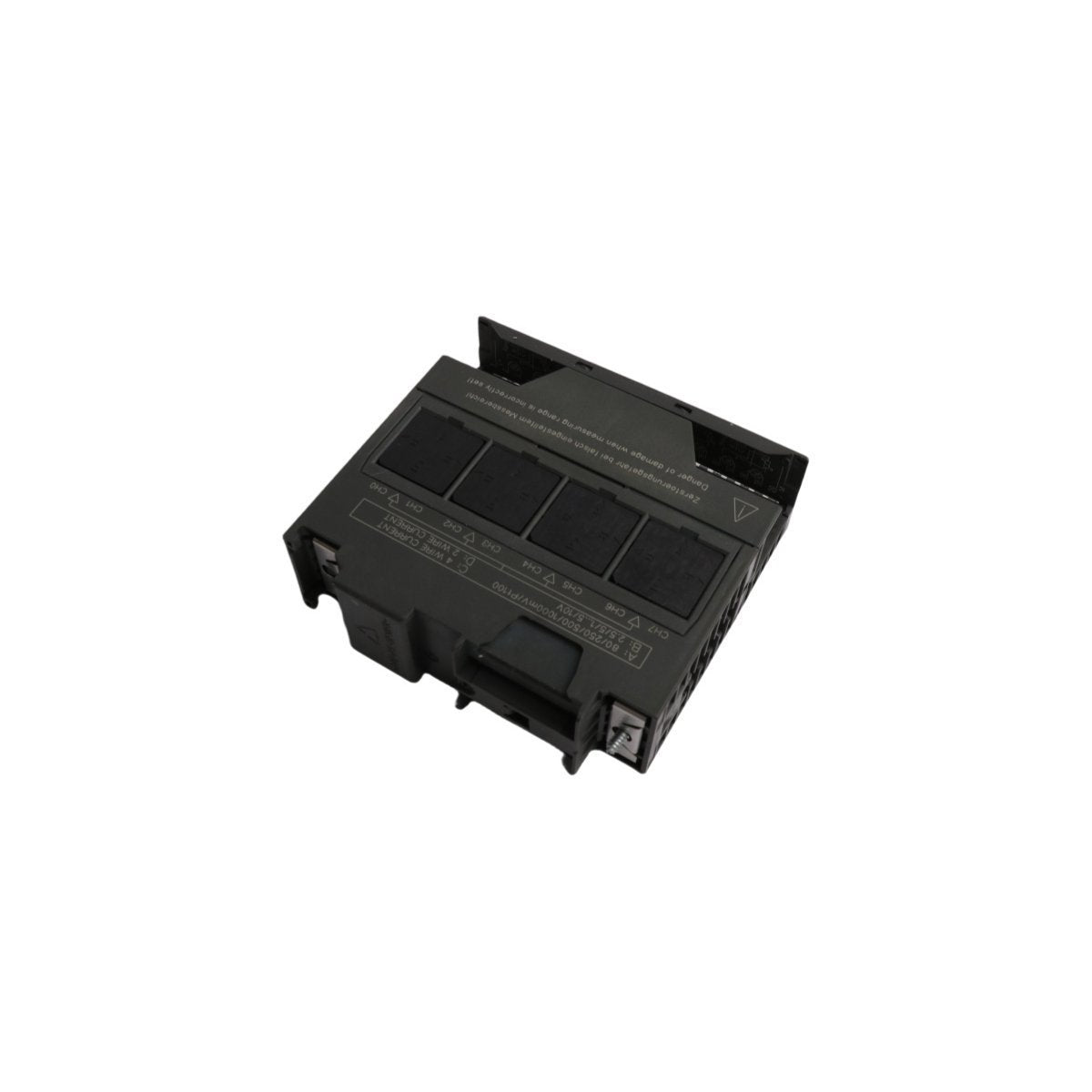

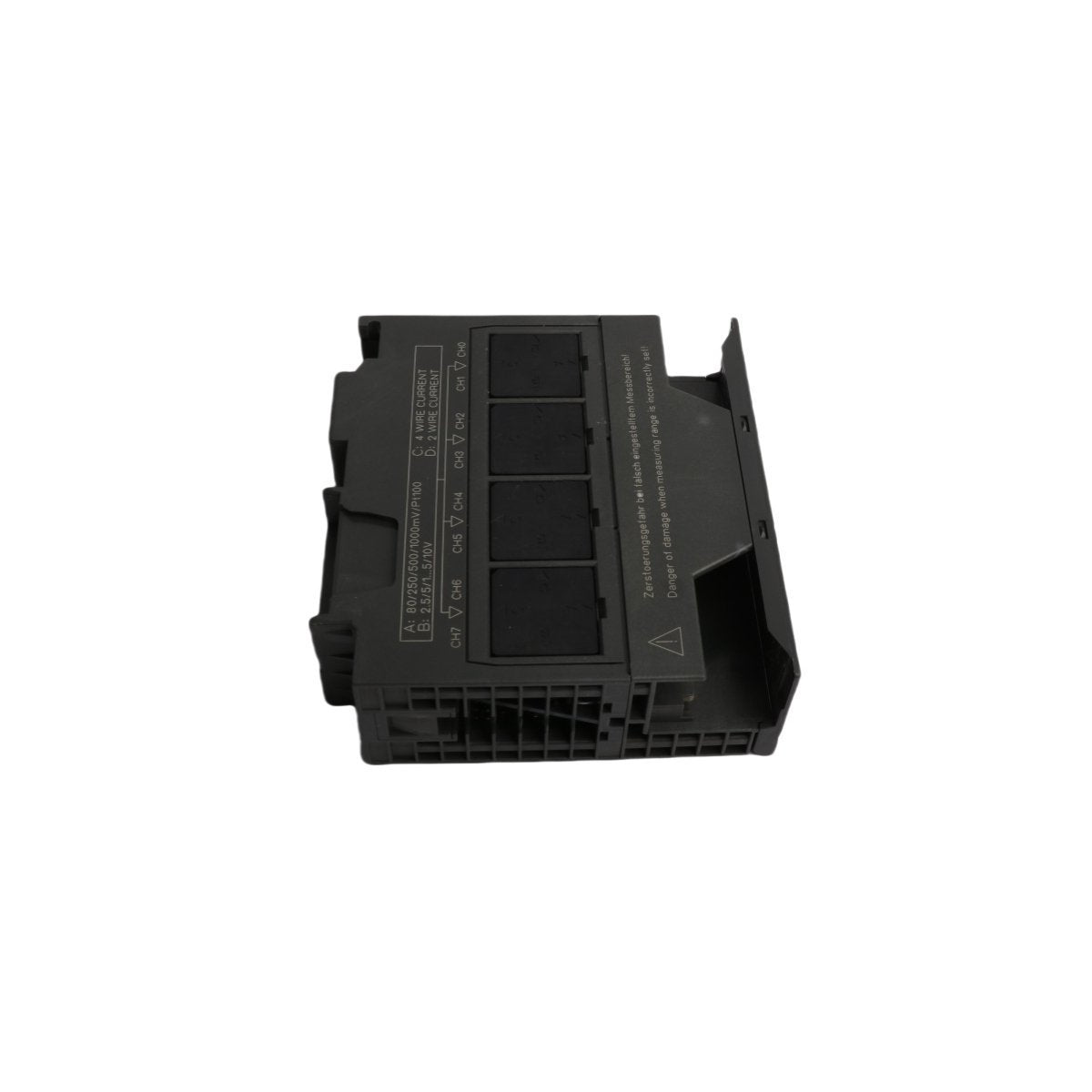

The Siemens 6ES7331-1KF02-0AB0 is a versatile 8-channel Analog Input Module designed for the SIMATIC S7-300 PLC series. This Signal Module (SM 331) facilitates the high-precision conversion of analog signals from the field into digital values for the controller. Engineered to handle a variety of signal types including voltage and current, it provides a 13-bit resolution, ensuring granular data acquisition for process variables such as pressure, level, and flow.

Designed for electromagnetic compatibility and industrial resilience, this module features a compact 40mm width that optimizes rail space. It is a staple in automated water treatment, chemical processing, and HVAC control systems where multiple sensor inputs must be processed with high accuracy and galvanic isolation to protect the central processing unit.

Technical Characteristics

• Input Channels: 8 Analog Inputs

• Resolution: 13 Bits

• Voltage Ranges: ±10 V, 1 to 5 V, 0 to 10 V

• Current Ranges: ±20 mA, 0 to 20 mA, 4 to 20 mA

• Accuracy: Voltage ±0.1%, Current ±0.2%

• Isolation: Galvanic isolation between channels and backplane bus (Triple Isolation)

• Measurement Principle: Integrating conversion for superior noise suppression

• Temperature Range: -20°C to +60°C operational

• Diagnostics: Configurable group fault indicators and status monitoring

• Calibration: Integrated auto-calibration for long-term signal stability

• Dimensions: 40mm (W) x 125mm (H) x 117mm (D)




Engineering and Safety Performance

The 6ES7331-1KF02-0AB0 SM 331 utilizes a "Triple Isolation" architecture. By electronically separating the field inputs, internal logic, and the backplane communication bus, the module effectively eliminates ground loops and prevents high-voltage transients from damaging the PLC rack. This is particularly critical in large-scale plants with diverse grounding potentials.

Configuration is handled seamlessly within the STEP 7 or TIA Portal engineering environments, where users can define per-channel input delays and smoothing filters. The module’s high immunity to interference is bolstered by shielded terminal connections, making it the preferred choice for environments with heavy motor traffic or frequency converters. Its active product status ensures long-term availability and compatibility with the extensive S7-300 hardware ecosystem.
