Product Overview

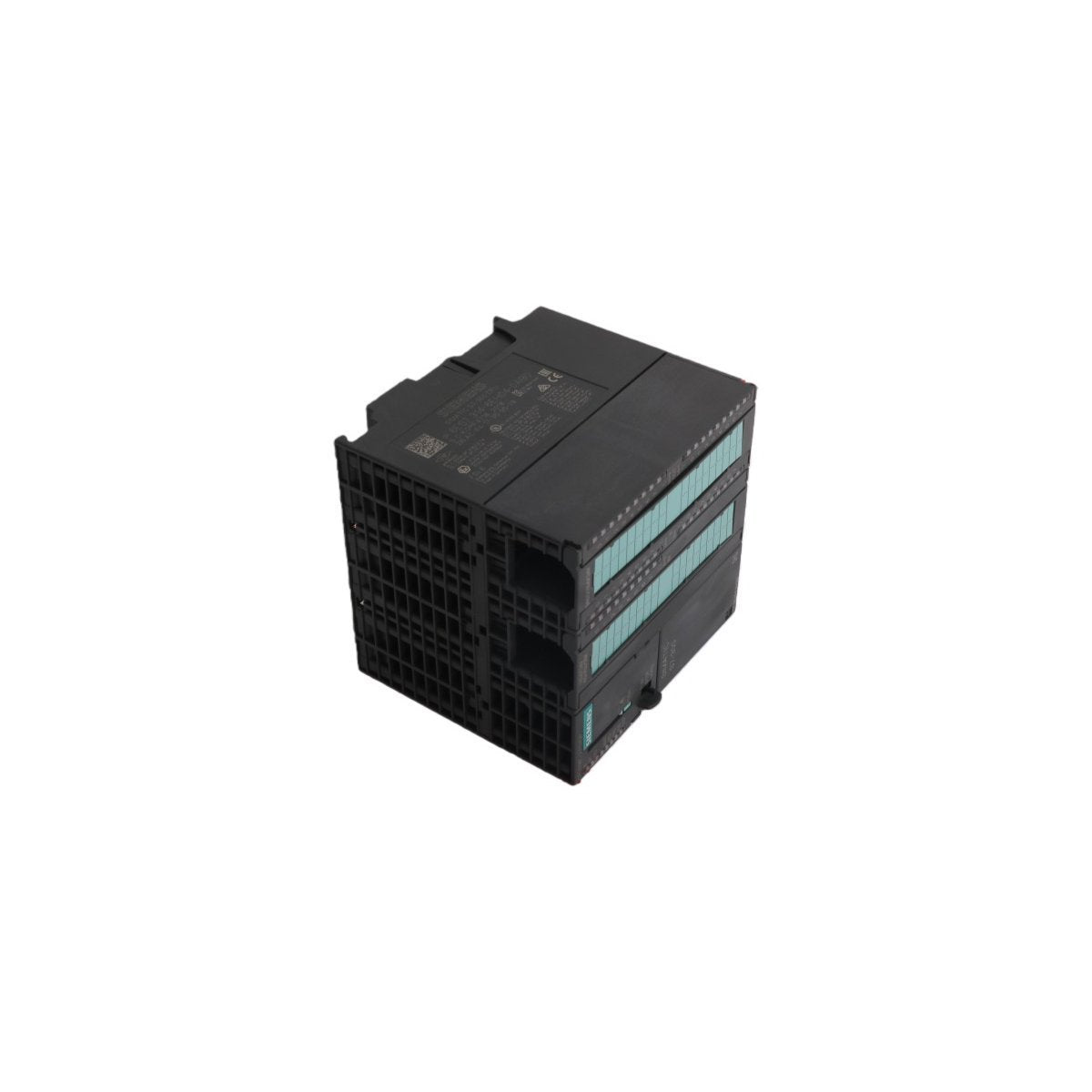

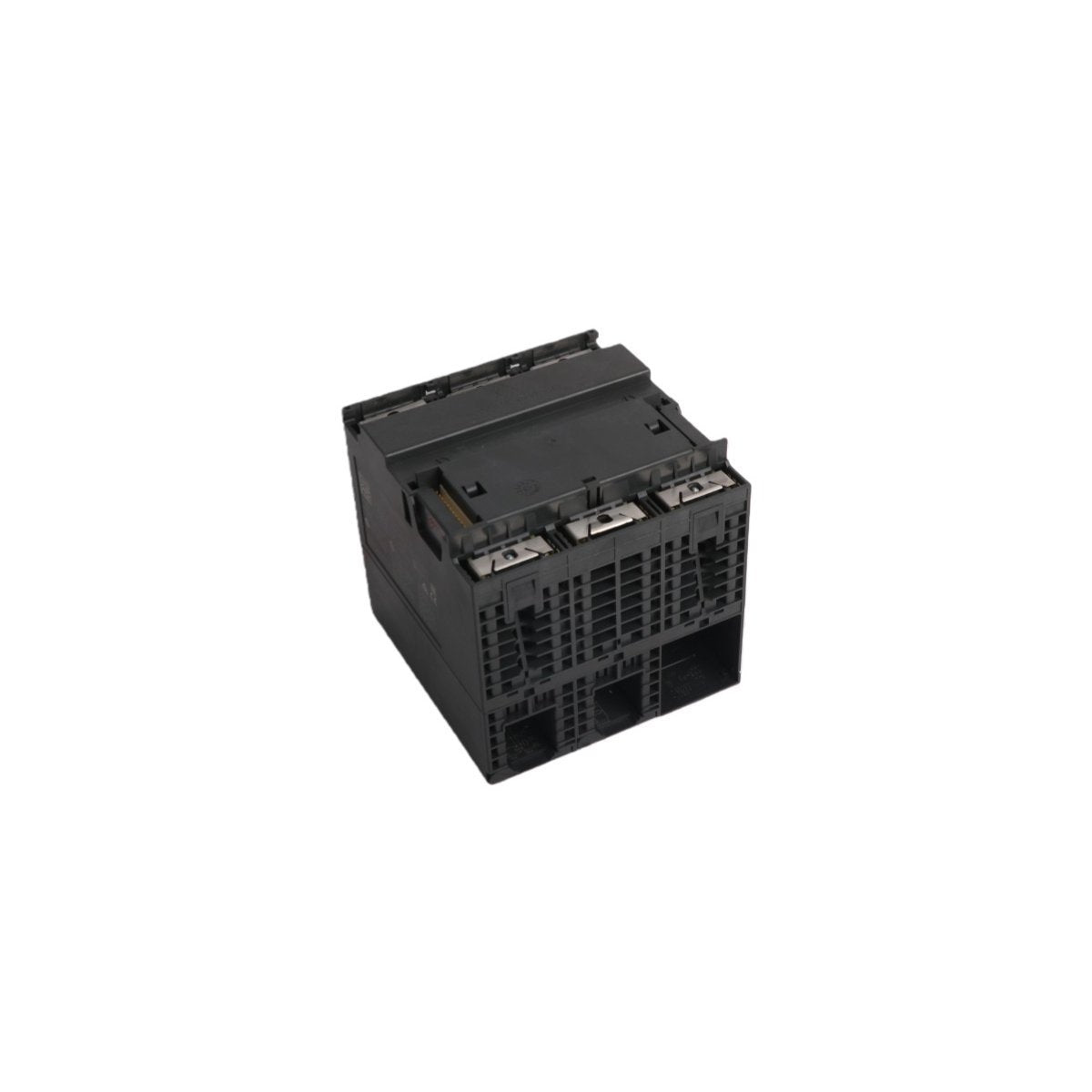

The Siemens 6ES7314-6EH04-0AB0 is a high-density, multi-functional Compact CPU belonging to the SIMATIC S7-300 family. Specifically engineered for space-critical applications that demand high-speed processing and versatile connectivity, this CPU 314C-2PN/DP acts as an all-in-one automation hub. By merging a powerful processor with an extensive array of integrated digital and analog I/O, it minimizes the physical footprint required in a control cabinet. With 192 KB of work memory and support for sophisticated networking via PROFINET and PROFIBUS, this unit provides a deterministic control platform for machines requiring rapid response times and complex logic execution.

Hardware Infrastructure and Measurement Profile

The 6ES7314-6EH04-0AB0 is defined by its massive onboard peripheral capabilities and dual-protocol communication stack, allowing for high-level integration without additional modules.

• Integrated Logic Memory: 192 KB of high-speed work memory for user programs and data blocks.

• Onboard Digital I/O: Features 24 integrated digital inputs and 16 digital outputs for localized control.

• Analog and Thermal Sensing: Equipped with 4 analog inputs, 2 analog outputs, and 1 dedicated input for Pt100 resistance thermometers.

• Technological Functions: Four high-speed counters (up to 60 kHz) facilitate precise positioning, frequency measurement, and rapid pulse counting.

• Dual Networking Interfaces: Includes one MPI/PROFIBUS DP port (12 Mbit/s) and one PROFINET interface with an integrated 2-port switch for linear or ring topologies.

• Wiring Architecture: Utilizes two 40-pin front connectors to maintain organized and secure field wiring.




Strategic Field Implementations and Scenarios

This compact controller is optimized for decentralized automation environments where high-speed technological functions and networking versatility are paramount.

Complex Precision Machinery

In the machine tool industry, the 6ES7314-6EH04-0AB0 utilizes its 60 kHz counters to handle encoder feedback and rapid positioning tasks. The integrated analog outputs allow for fine-tuned motor speed regulation, while the PROFINET interface facilitates real-time communication with the HMI and supervisory systems.

Process Automation and Thermal Regulation

With its direct Pt100 connection and analog I/O, the unit is frequently deployed in climate control and specialized oven applications. It can monitor temperature gradients and adjust heating elements or ventilation valves autonomously, ensuring tight process tolerances without the latency of an external bus.

Distributed Control and Hierarchical Networking

The dual-homing capability (PROFIBUS and PROFINET) makes this CPU an ideal bridge between legacy fieldbus segments and modern Industrial Ethernet backbones. It can act as a PROFIBUS master for localized drives while simultaneously reporting data to a factory-wide MES via PROFINET.

Packaging and Material Handling

In high-speed sorting and packaging lines, the compact design allows for localized intelligence at each station. The 24 digital inputs manage sensor arrays for jam detection and product tracking, while the 16 outputs trigger pneumatic actuators with microsecond precision.
