Product Overview

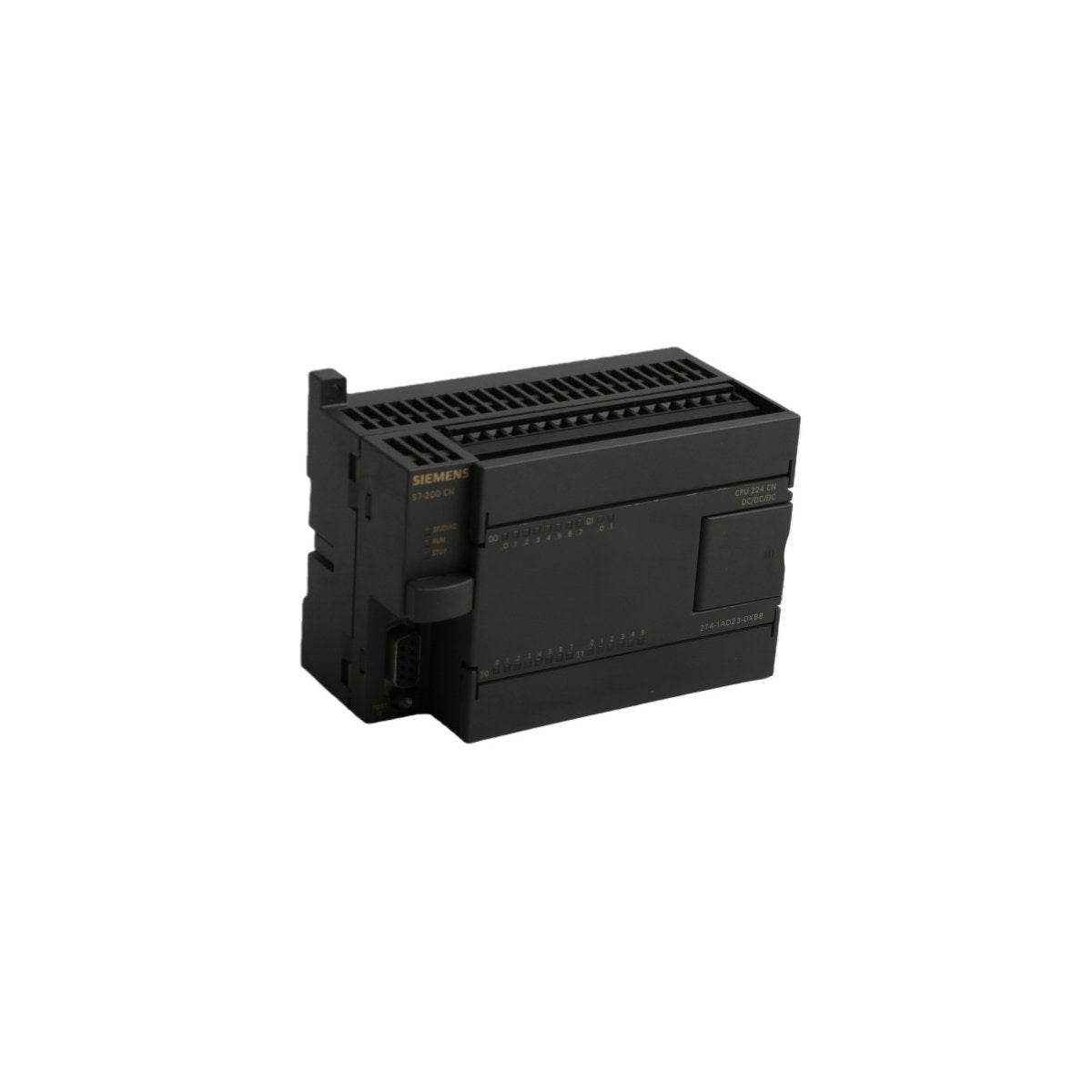

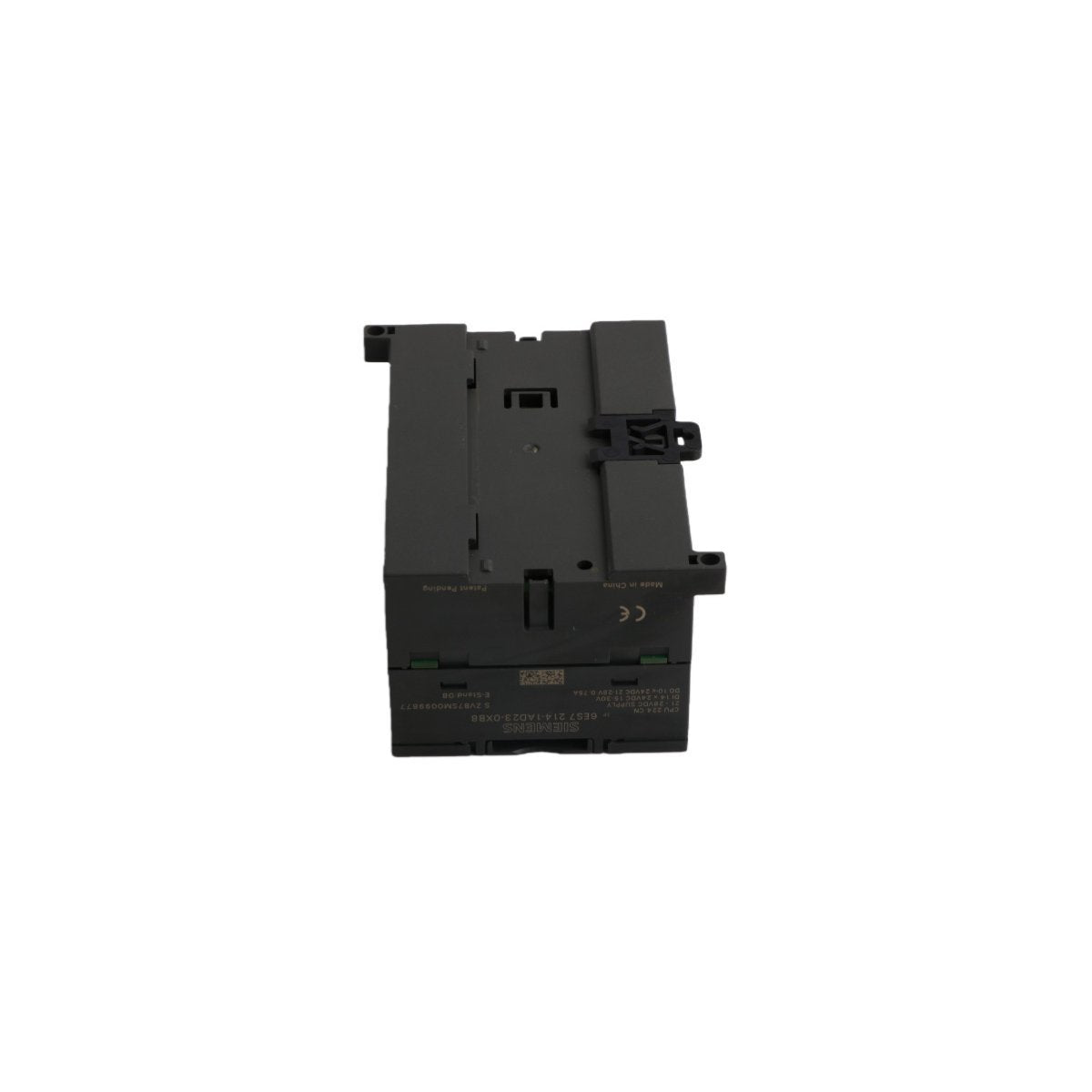

The Siemens 6ES7214-1AD23-0XB8 is a high-performance central processing unit from the established SIMATIC S7-200 micro-PLC family. Specifically designed as a CPU 224 compact unit, it integrates a powerful processor, dedicated memory, and a fixed I/O footprint into a single space-saving housing. This controller is ideal for standalone machine control or as a distributed intelligence node within larger industrial networks.

Engineered for precision and speed, the CPU 224 handles complex logic, timing, and counting tasks with ease. It is a preferred choice for applications requiring a reliable, high-density I/O solution in a small form factor, such as packaging machinery, building automation, and small-scale process control systems.

Technical Characteristics

• Digital Inputs: 14 Integrated Inputs (24V DC Sink/Source)

• Digital Outputs: 10 Integrated Outputs (24V DC Transistor)

• User Program Memory: 12 KB

• User Data Memory: 8 KB (EEPROM-backed)

• Input Voltage: 24V DC

• Dimentions:2.5 cm x 5.1 cm x 83.8 cm

• Expansion Capacity: Supports up to 7 local expansion modules

• Communication Interface: 1 RS-485 port (PPI/Freeport/Modbus RTU)

• High-Speed Counters: 6 Counters (up to 30 kHz)

• Pulse Outputs: 2 (up to 20 kHz for motion control)

• Real-Time Clock: Integrated as standard

• Networking: PROFIBUS DP expandable (with EM 277 module)

Operational Functionality and Scalability

The 6ES7214-1AD23-0XB8 is characterized by its significant "future-proof" flexibility. While the unit provides 24 integrated I/O points out of the box, it can be seamlessly expanded with S7-200 expansion modules to accommodate additional digital, analog, or specialized communication requirements. The onboard DC transistor outputs make it particularly suitable for high-speed switching and simple positioning tasks using pulse train outputs (PTO).

Maintenance is simplified through the use of an energy-independent memory architecture, ensuring that the user program is safely stored on an internal EEPROM without requiring a battery for long-term retention. Its robust housing is designed for DIN rail or panel mounting, ensuring high vibration resistance and reliable operation in demanding factory floor conditions.
