Product Overview

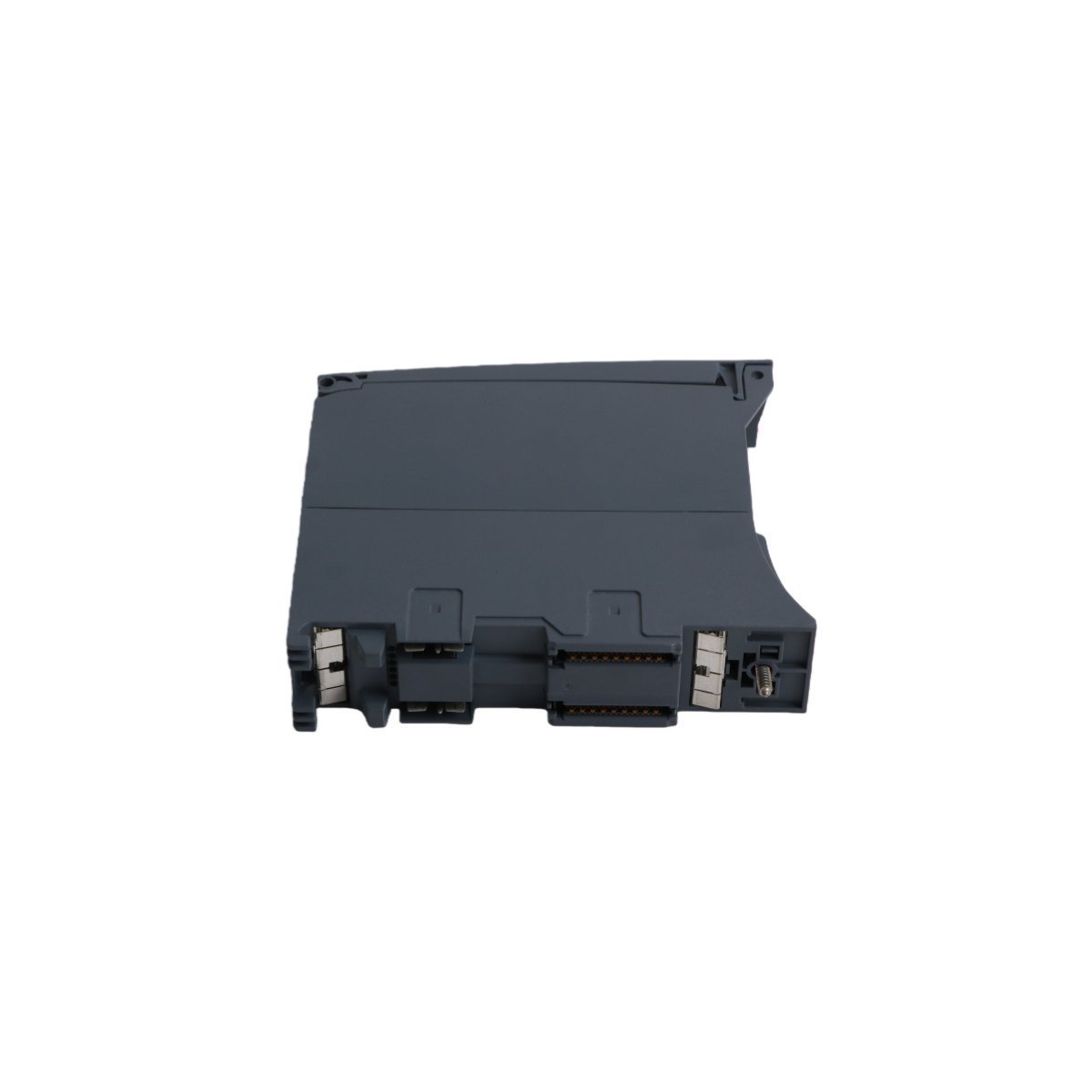

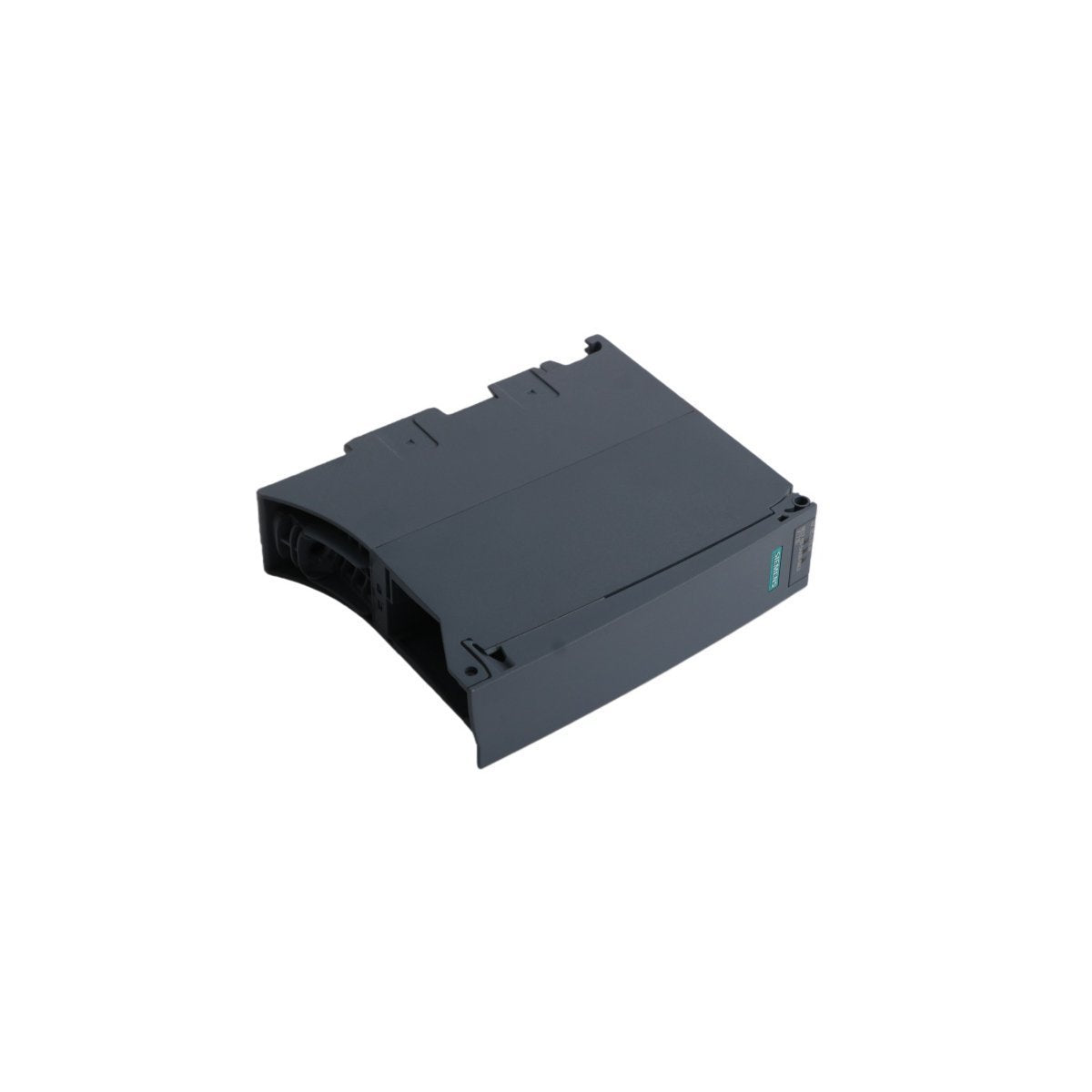

The Siemens 6ES7155-5AA01-0AB0 is a high-performance IM 155-5 PN ST interface module designed to act as the primary communication link for the SIMATIC ET 200MP distributed I/O system. This module facilitates the connection between a PROFINET IO controller and the local I/O modules, effectively functioning as a transparent gateway for industrial data. Engineered for the S7-1500 family, it allows for the decentralized setup of control systems, supporting a massive array of up to 30 I/O modules when properly powered. With its integrated 2-port switch, it simplifies network cabling by allowing daisy-chaining (line topology) without the need for external industrial switches.

System Specifications and Networking Parameters

This interface head station is characterized by its deterministic communication capabilities and its high-density module management within the TIA Portal environment.

• Communication Interface: PROFINET IO with integrated 2-port switch (RJ45).

• Module Capacity: Up to 12 modules (no additional PS) or up to 30 modules (with additional PS).

• Shortest Cycle Time: 0.25 ms for high-speed synchronization.

• Protocol Support: PROFINET IRT (Isochronous Real-Time) and MRP (Media Redundancy Protocol).

• Startup Speed: Supports Fast Startup (FSU) in under 500 ms.

• Cabling Flexibility: Auto-crossover and auto-negotiation supported on both ports.

• Diagnostic Features: Integrated I&M data (0 to 3) for digital asset tracking.

• Supply Voltage: 24 V DC.

• Physical Dimensions: 35 mm (W) x 147 mm (H) x 129 mm (D).

• Device Weight: 0.25 kg (Net) / 0.95 kg (Gross shipping weight).

Strategic Industrial Usage

High-Speed Synchronized ManufacturingIn robotic assembly and high-speed motion control, the IRT (Isochronous Real-Time) support of the 6ES7155-5AA01-0AB0 is critical. It ensures that data packets are delivered with microsecond precision, allowing for perfectly timed coordination between multiple axes and decentralized sensors.

Large-Scale Infrastructure RedundancyFor systems that cannot afford a network break, such as tunnel ventilation or water treatment, the Media Redundancy Protocol (MRP) allows the IM 155-5 to operate in a ring topology. If a PROFINET cable is damaged, the system reroutes communication instantly to maintain operation.

Modular Machine BuildingThe "Fast Startup" capability is a game-changer for tool-changing applications or modular production cells. When a module is plugged into the system, it becomes operational in less than half a second, minimizing the idle time during machine reconfigurations.

Distributed Control in Automotive PlantsThe ET 200MP system, led by this interface module, provides a space-efficient way to distribute I/O across large assembly halls. By utilizing PROFINET, the 6ES7155-5AA01-0AB0 reduces copper wiring costs by localizing the I/O near the actuators and sending all data back to the central S7-1500 CPU via a single industrial Ethernet cable.
