Product Overview

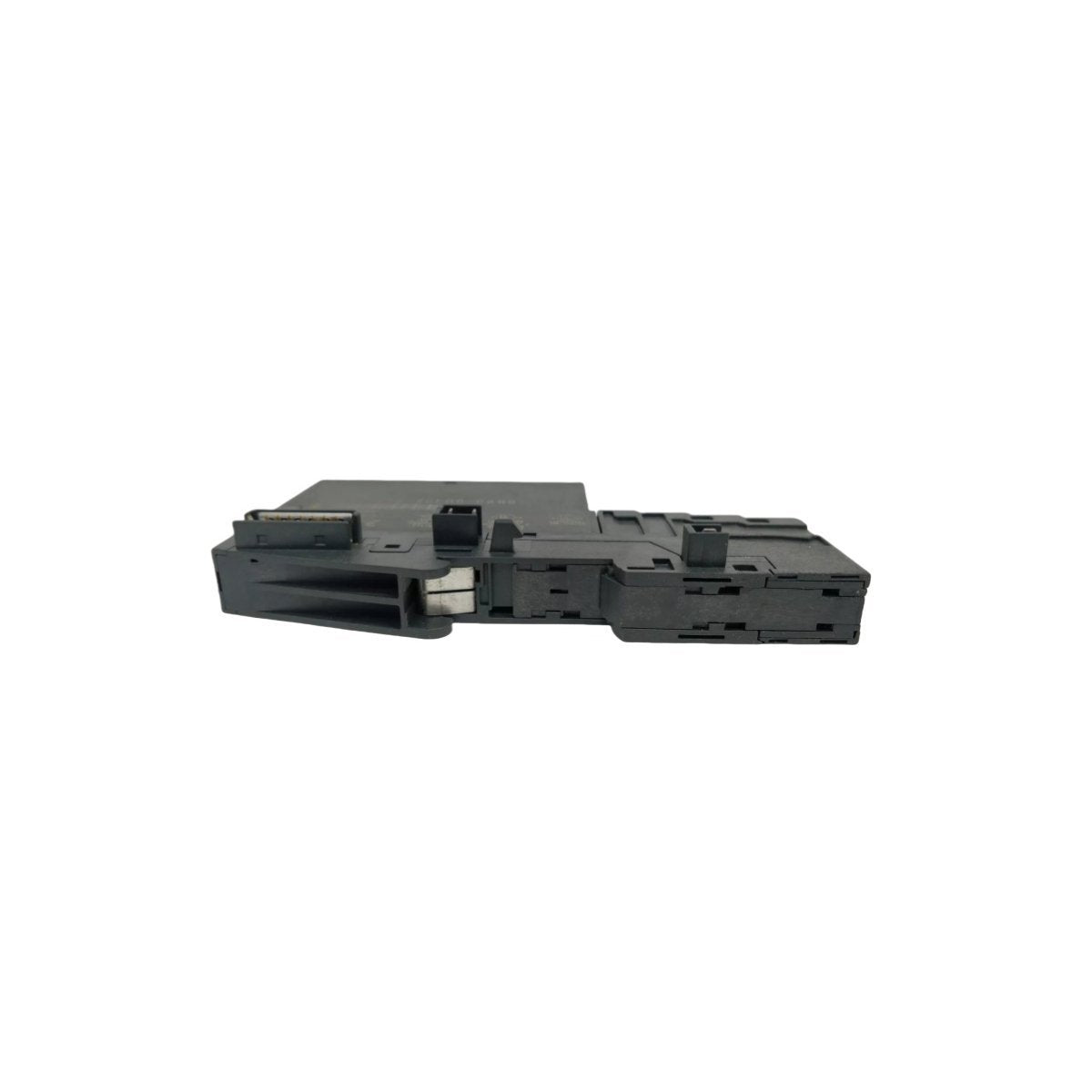

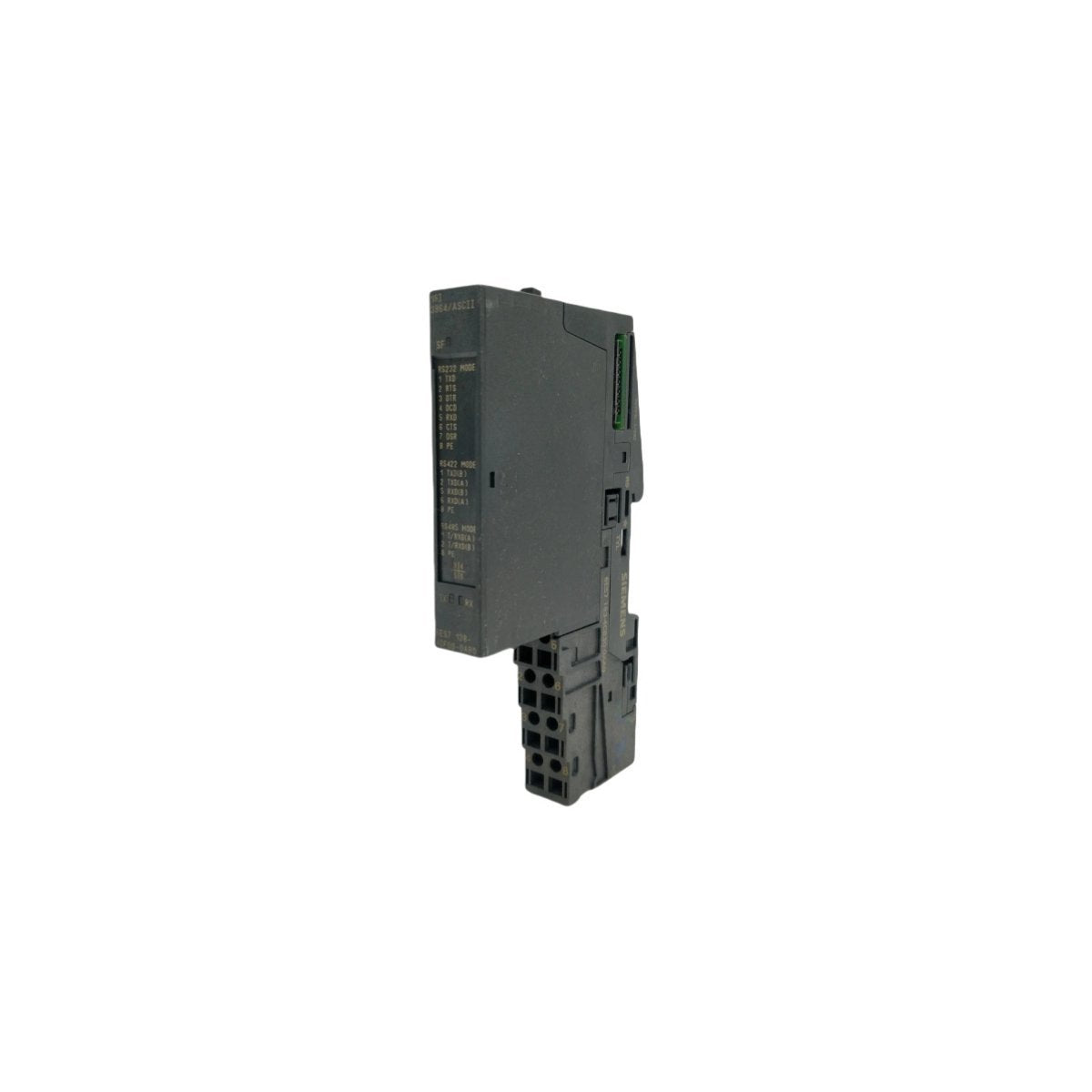

The Siemens 6ES7138-4DF00-0AB0 is a specialized serial communication module belonging to the SIMATIC ET 200S distributed I/O family. This "1SI" interface allows for the seamless integration of point-to-point serial connections into a PLC network. It acts as a universal communication bridge, enabling a controller to exchange data with various peripheral devices such as barcode scanners, printers, or legacy weight scales. Designed for high-density control cabinets, this module provides a single channel of serial connectivity while maintaining a narrow 15mm form factor, ensuring that complex communication requirements do not compromise valuable rail space.

Hardware Parameters and Module Diagnostics

• Manufacturer: Siemens

• Order Number: 6ES7138-4DF00-0AB0

• Interface Type: 1-Channel Serial Interface (1SI)

• Protocols Supported: ASCII, 3964(R)

• Physical Standards: RS232C, RS422, RS485

• Transmission Rate: Up to 115.2 kbit/s

• Supply Voltage: 24V DC (via Power Module PM-E)

• Current Consumption: Approx. 10 mA (nominal)

• Weight: 0.24 kg

• Dimensions: 10.5 cm x 12.5 cm x 4.0 cm

• Construction: 15mm width for ET 200S terminal modules

• Status Indicators: LED diagnostics for Group Fault (SF) and Data Transmission (TX/RX)

Functional Deployment Scenarios

This interface module is specifically engineered for decentralized automation tasks requiring non-standardized protocol communication. In logistics and warehousing, it is frequently used to interface with RS232-based barcode readers or automated labeling systems. In the manufacturing sector, the 6ES7138-4DF00-0AB0 provides the necessary RS422/RS485 link to connect with motor drives or specialized sensors that utilize the 3964R procedure for secure data transmission. Its ability to facilitate ASCII data exchange makes it an ideal choice for connecting older laboratory equipment or dedicated process displays to a modern SIMATIC S7 controller architecture. By providing localized diagnostics, the module minimizes downtime in complex production lines by immediately flagging communication interruptions or hardware discrepancies.
