Product Overview

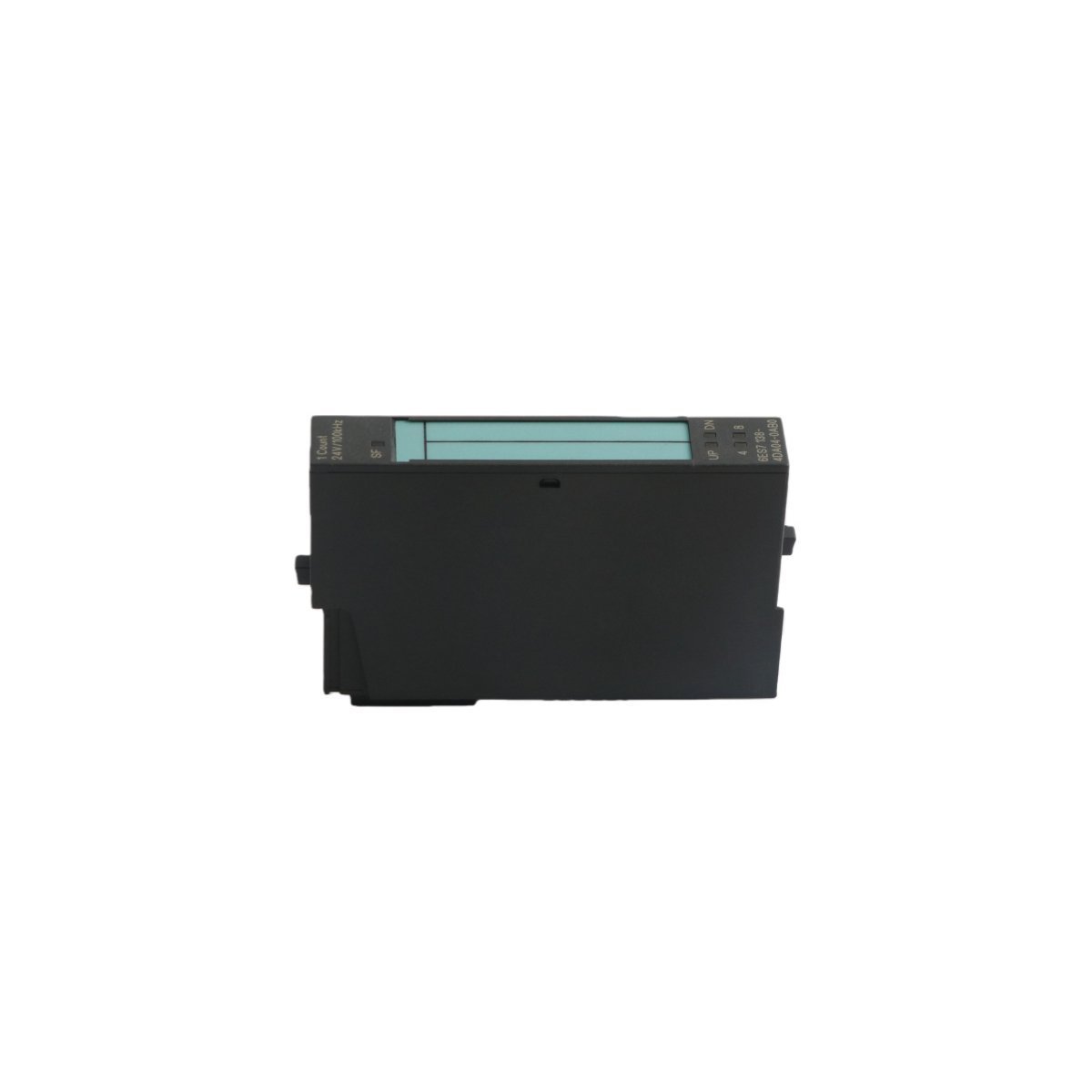

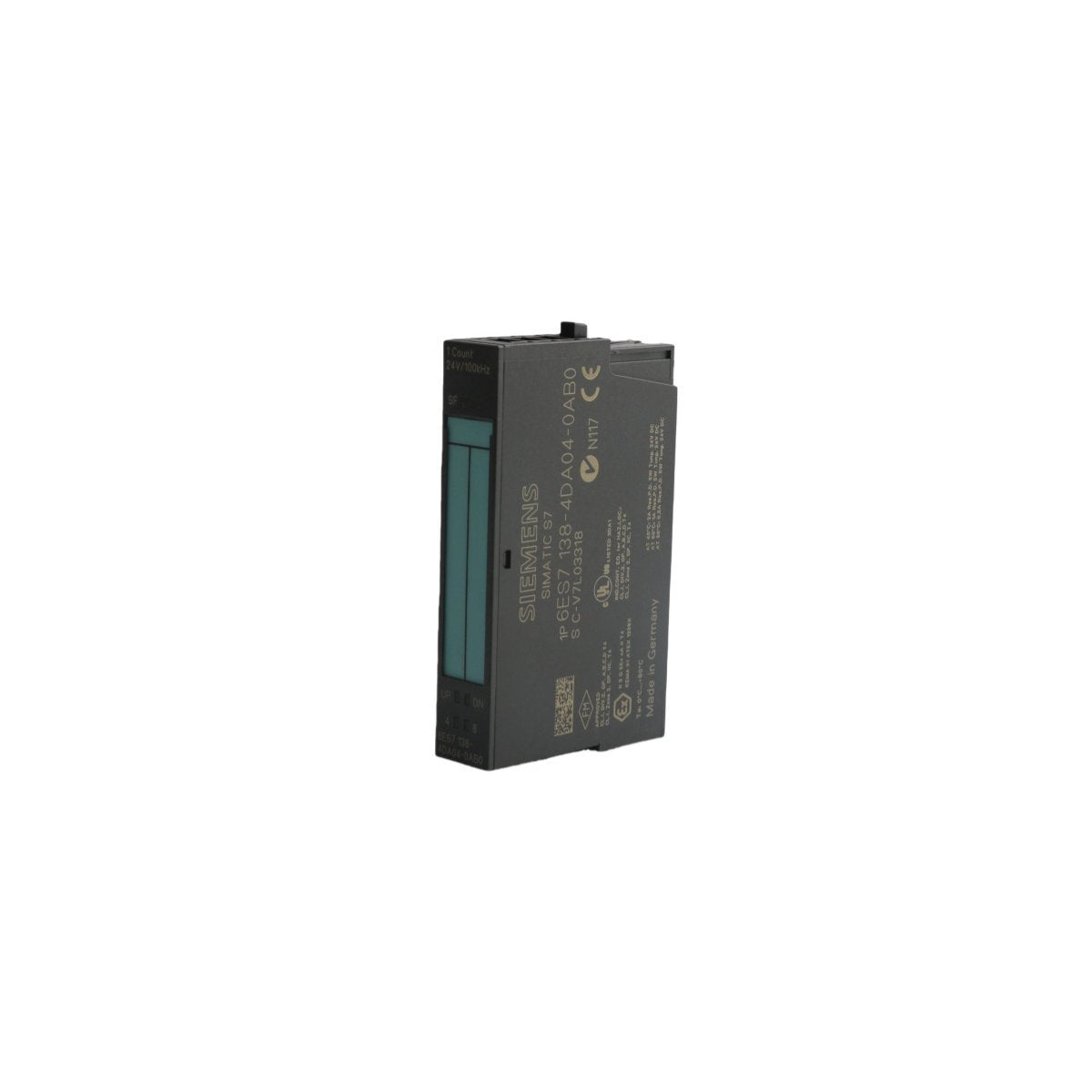

The Siemens 6ES7138-4DA04-0AB0 is a high-performance, single-channel universal counter module designed for the SIMATIC ET 200S distributed I/O station. Engineered to handle rapid pulse trains up to 100 kHz, this 1Count24V module is a critical component for systems requiring precise event counting, frequency measurement, or rotational speed monitoring. It functions by capturing 24V DC signals and processing them through various configurable operating modes, including continuous, periodic, or single counting. Its architecture is optimized for high-speed data acquisition, ensuring that fast-moving industrial processes are captured with absolute fidelity and integrated seamlessly into the higher-level PLC control logic.

Architectural Performance and Hardware Parameters

The following technical profile defines the functional boundaries and physical properties of the 6ES7138-4DA04-0AB0 counting unit:

• Pulse Frequency: Maximum counting frequency of 100 kHz.

• Signal Compatibility: Designed for 24V DC pulse generators and sensors.

• Operating Modes: Continuous counting, single counting, periodic counting, and frequency/speed measurement.

• Synchronization: Supports isochronous mode for clock-synchronized PROFIBUS/PROFINET cycles.

• Data Interface: Utilizes a 12-byte input and 6-byte output data structure for enhanced diagnostics.

• Installation: 15mm ultra-slim width; compatible with TM-E15S24-01 and TM-E15S26-A1 terminal modules.

• Physical Weight: 0.95 kg.

• Module Dimensions: 2.5 cm x 5.1 cm x 83.8 cm.

• Manufacturing Origin: Germany.

• Hardware Compatibility: Fully backward compatible with legacy ET 200S counting modules for effortless hardware migration.

Specialized Industrial Implementations

This electronic counting module is a cornerstone for precision-driven sectors such as packaging, material handling, and automotive manufacturing. In high-speed bottling lines, the 6ES7138-4DA04-0AB0 is used to track unit counts and conveyor speeds, ensuring synchronization between filling and capping stations. Its rotational speed measurement function is vital for monitoring turbine or motor shaft velocity in power generation and ventilation systems. Additionally, the isochronous operation makes it an ideal choice for multi-axis motion control applications where the timing of feedback pulses must be perfectly aligned with the bus cycle to maintain system stability. Whether implemented for simple piece counting or complex frequency analysis, this module provides the ruggedness and precision necessary for modern automation architectures.
