Product Overview

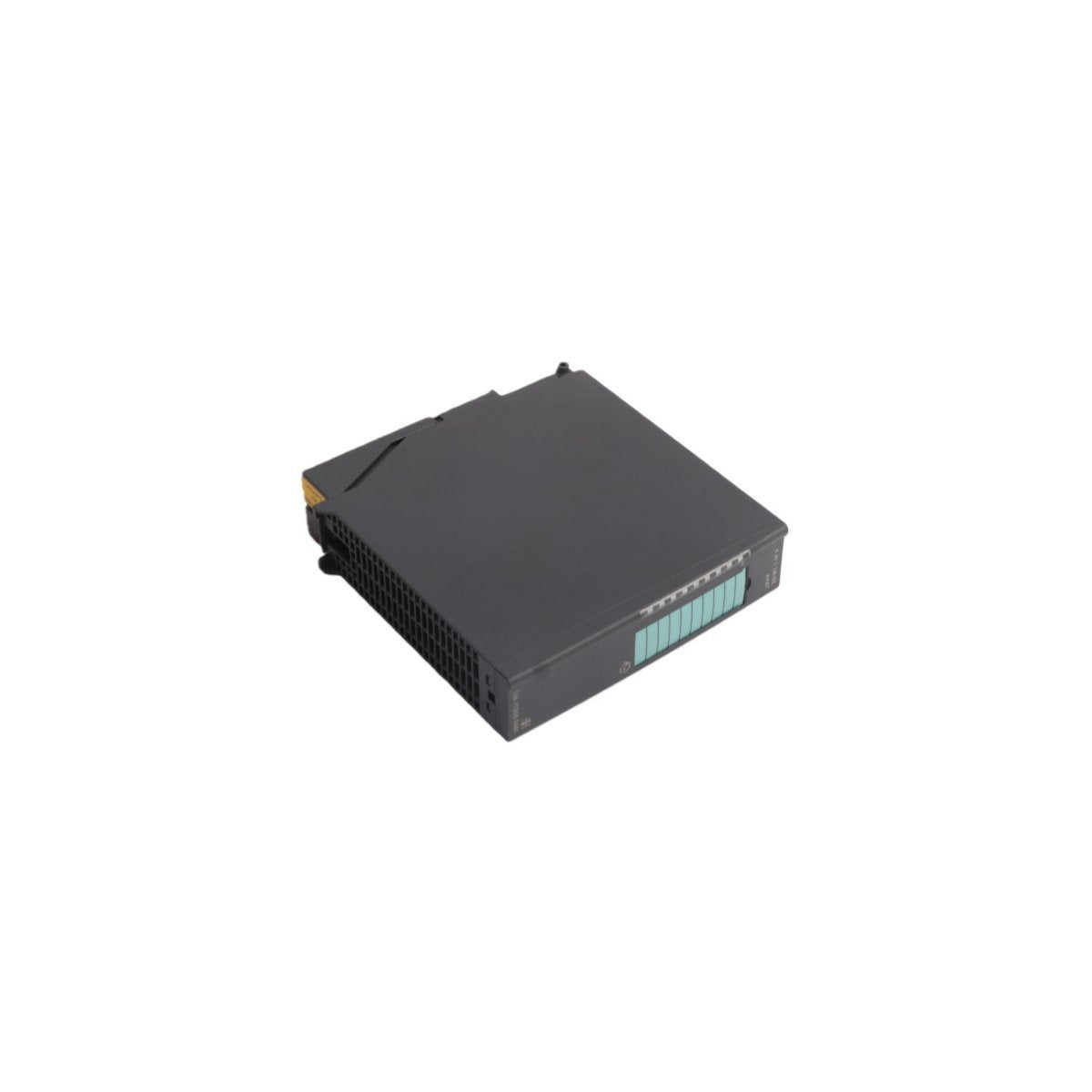

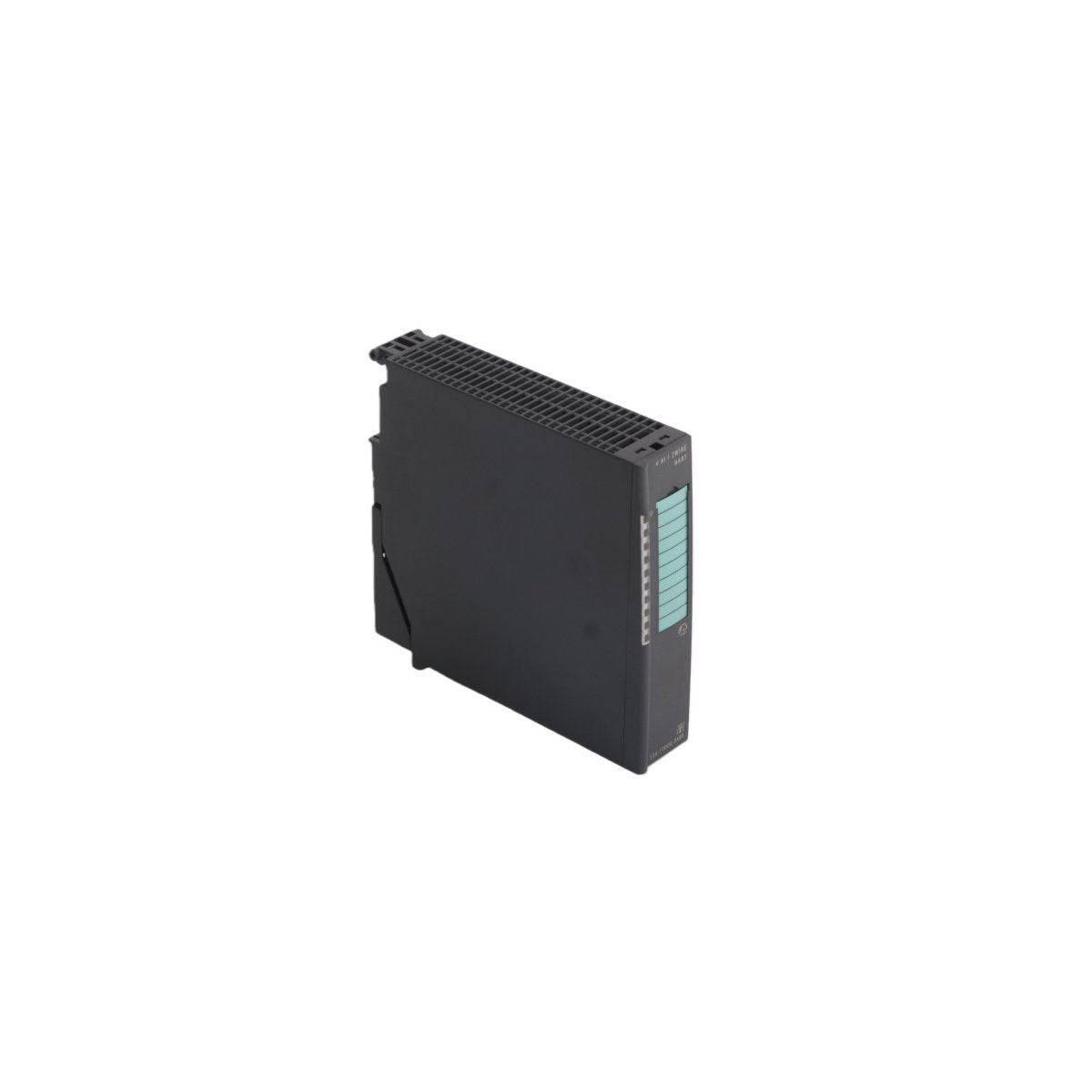

The 6ES7134-7TD50-0AB0 is a high-performance electronic module belonging to the Siemens SIMATIC ET 200iSP series, specifically engineered for hazardous industrial environments. This HART-compatible analog input module provides 4 channels of precision measurement for 4..20 mA signals. Designed as a decentralized peripheral for explosive atmospheres (Ex-zones), it facilitates the direct connection of pressure transmitters, flow meters, and other field sensors to a central PLC or DCS via PROFIBUS DP. Its intrinsic safety design allows for high-density installation in remote I/O stations, ensuring that critical process data is transmitted with high fidelity while maintaining the highest safety standards for volatile industrial sectors.

Hardware Parameters and Engineering Specifications

The 6ES7134-7TD50-0AB0 is characterized by its ultra-slim profile and robust electrical isolation, optimized for integration into ET 200iSP terminal modules.

• Manufacturer: Siemens

• Model Number: 6ES7134-7TD50-0AB0

• Module Function: 4-Channel Analog Input (AI) with HART support

• Signal Range: 4 to 20 mA (supports 2-wire and 4-wire transducers)

• Intrinsic Safety: Designed for use in Ex-environments (Zone 1/21)

• Net Weight: 0.95 kg

• Physical Dimensions: 2.5 cm x 5.1 cm x 83.8 cm

• Diagnostic Capabilities: Wire-break detection, short-circuit monitoring, and overflow/underflow alerts

• Isolation: Galvanic isolation between channels and the backplane bus

• Manufacturing Origin: Germany

• Tariff Code (HS): 8537101190

Industrial Applications and Deployment Scenarios

This electronic module is a fundamental component for automation architectures in specialized sectors where safety and precision are non-negotiable.

• Petrochemical and Oil Refineries: Precise monitoring of tank levels and pipe pressure in Zone 1 environments where explosive vapors are present.

• Chemical Processing: Integration with HART-enabled sensors to provide advanced device diagnostics and process variables for complex reactor control loops.

• Pharmaceutical Manufacturing: Managing sensitive environment sensors in clean rooms and processing areas requiring intrinsically safe I/O.

• Remote I/O Stations: Reducing cabling costs by placing the control interface closer to field instrumentation in large-scale industrial plants.

• TIA Portal Integrated Systems: Streamlined commissioning and maintenance through centralized engineering, allowing for real-time troubleshooting of field devices via the HART protocol.
