Product Overview

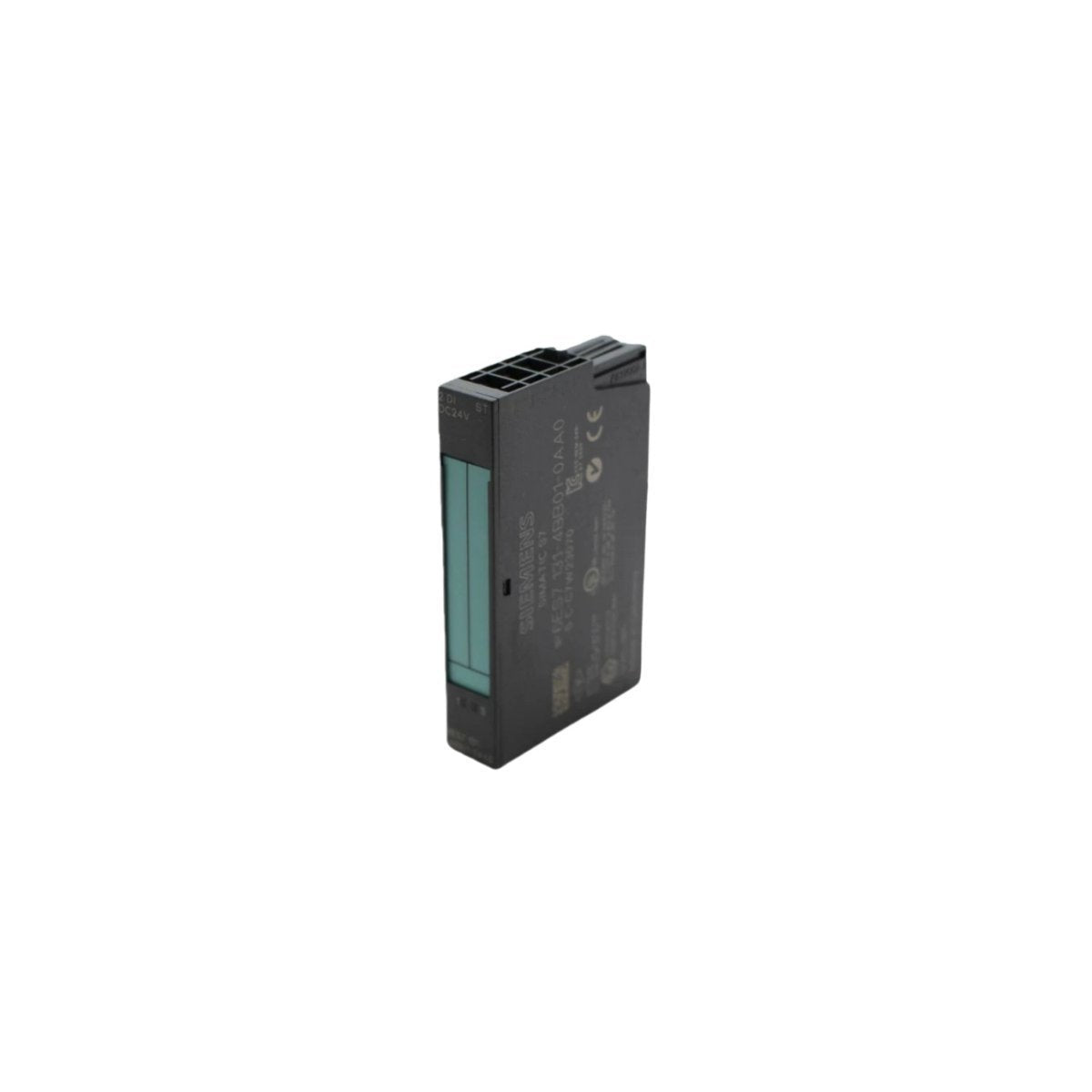

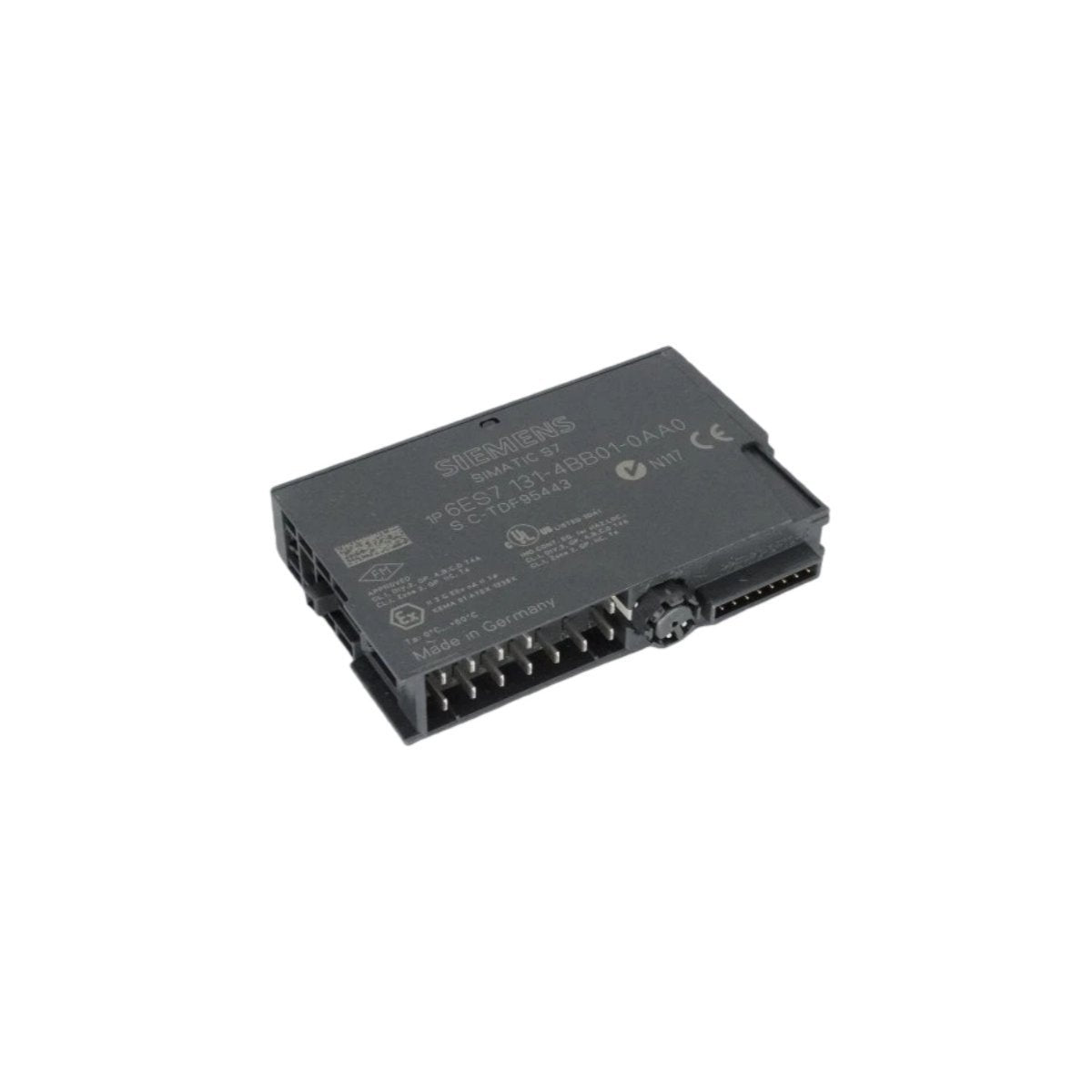

The 6ES7131-4BB01-0AA0 is a high-reliability digital input expansion component designed for the Siemens SIMATIC ET 200S distributed peripheral system. This "Standard" (ST) category electronic module provides two discrete 24V DC input channels for capturing field signals from sensors, switches, and proximity detectors. Its ultra-slim 15mm housing is specifically engineered to maximize rail density, allowing system integrators to pack more I/O points into smaller control enclosures. By decoupling the field wiring from the central PLC, this module facilitates a decentralized automation architecture that reduces cabling costs and improves signal integrity across the factory floor.

Technical Specifications & Hardware Architecture

• Input Configuration: 2 Digital Inputs (DI) per module

• Rated Supply Voltage: 24V DC with integrated reverse polarity protection

• Input Logic: Sinking (Type 1 according to IEC 61131)

• Signal Thresholds: Logic "1" detected at 15V to 30V; Logic "0" at -30V to +5V

• Energy Efficiency: Exceptionally low power loss of approximately 0.4W

• Hot-Swapping Support: Enables module replacement under power for zero-downtime maintenance

• Input Current: Typical 7mA per channel at 24V

• Cable Range: Supports unshielded lengths up to 600m and shielded up to 1000m

• Package Contents: Sold as a packing unit containing 5 individual modules

• Build Standard: German-engineered for high vibration and electromagnetic compatibility

Industrial Deployment & System Utility

• Machine Status Monitoring: Ideal for detecting binary states such as "Position Reached," "Safety Door Closed," or "Fluid Level High" in automated production lines.

• Decentralized Control Clusters: Utilized in large-scale logistics centers where input signals from photocells are required at multiple locations far from the central controller.

• Retrofitting and Expansion: Since the ET 200S system supports up to 64 modules per station, these units provide a scalable path for adding sensing capacity to existing PROFINET or PROFIBUS networks.

• High-Availability Environments: The ability to swap modules without halting the PLC makes this component essential for continuous process industries like chemical or water treatment.

• Component Consolidation: Streamlines inventory management for OEMs who require a standardized, multi-purpose digital input for various machine types.
