Product Overview

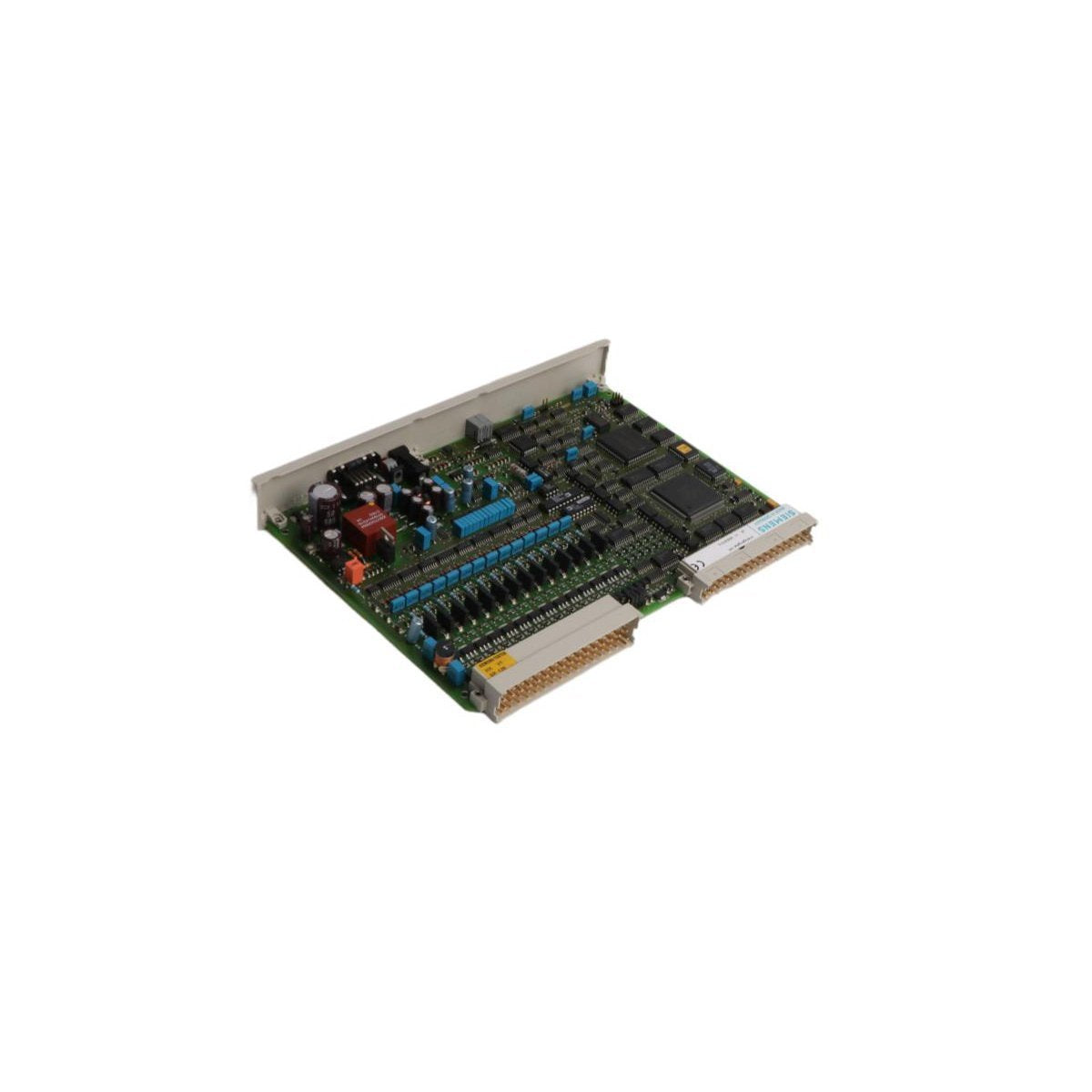

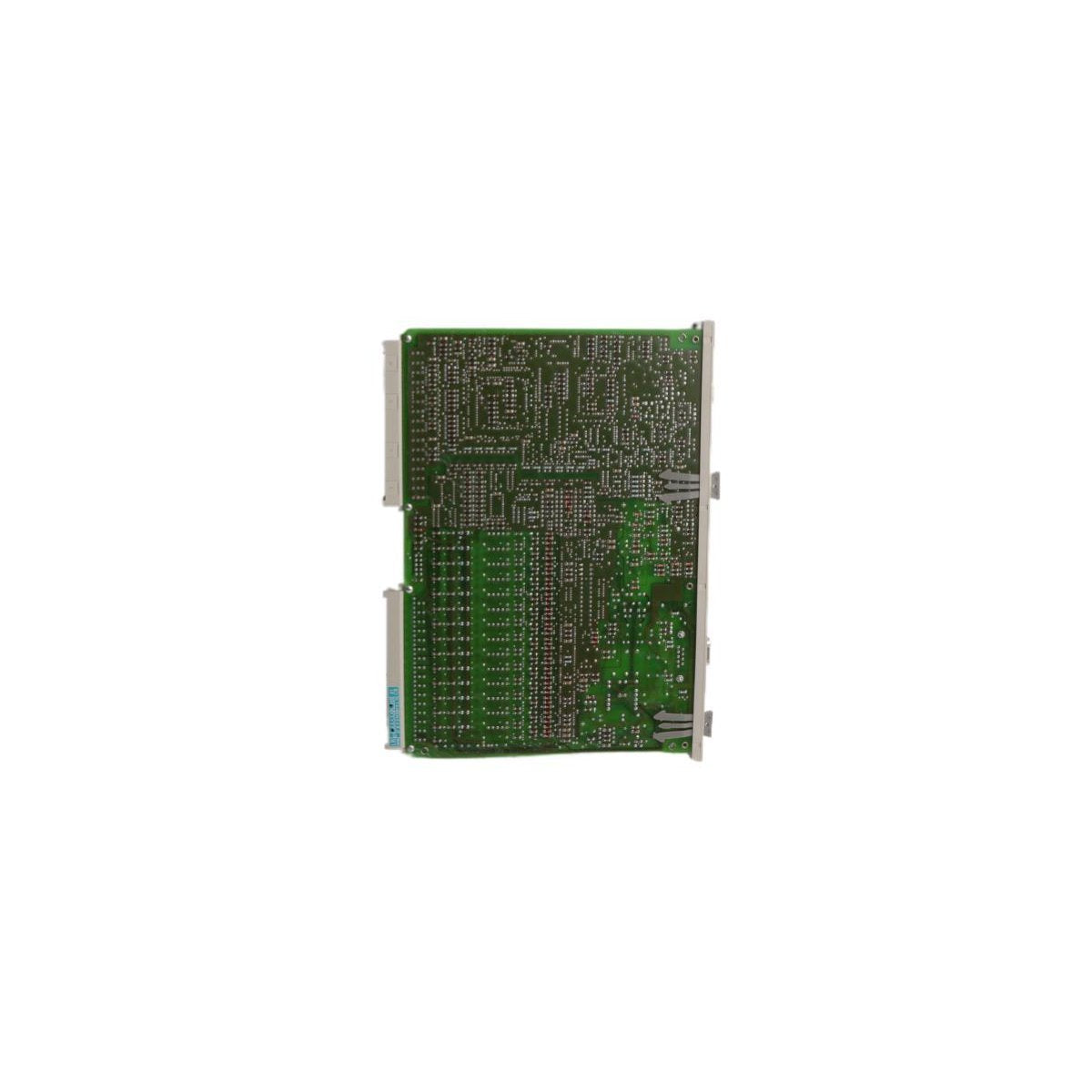

The Siemens 6DS1727-8AA is a high-precision analog signal processing board specifically engineered for the TELEPERM M distributed control system (DCS). This module functions as a critical bridge between the digital processing core and the analog field layer, facilitating the bidirectional flow of process data. It is designed to capture low-level signals from industrial sensors and convert them into 14-bit digital values, while simultaneously providing accurate control signals to actuators and final control elements. As a fundamental component of the TELEPERM architecture, the 6DS1727-8AA ensures deterministic performance and signal integrity in complex, continuous-process environments.

System Specifications and Hardware Metrics

This printed circuit board is manufactured to strict industrial tolerances, ensuring long-term stability and minimal signal drift under varying thermal conditions.

• Signal Conversion: Integrated 14-bit Analog-to-Digital Converter (ADC) for high-resolution data acquisition.

• Standard Interface: Optimized for 0-20 mA current loop inputs and outputs, providing high immunity against electromagnetic noise.

• Accuracy Profile: Delivers a precision rating of 0.1% of the full-scale span.

• Electrical Requirements: Operates on a standard 24 V DC supply (tolerance of ±10%) with a nominal 150 mA draw.

• Thermal Range: Fully functional within ambient temperatures ranging from 0°C to +60°C.

• Module Mass: 0.95 kg (Shipping Weight).

• Physical Footprint: 2.5 cm x 5.1 cm x 83.8 cm (Extended card format for TELEPERM subracks).

• Manufacturing Origin: Germany.

• HS Classification: 8537101190.

Industrial Deployment and Sector Applications

The 6DS1727-8AA is primarily utilized in large-scale process industries where high-density analog monitoring is required for system safety and efficiency.

• Power Generation: Monitoring critical turbine and boiler parameters, including high-accuracy temperature and pressure regulation loops.

• Chemical & Petrochemical: Managing complex flow control and level measurement in hazardous or high-interference processing zones.

• Water & Wastewater Treatment: Providing the analog interface for remote telemetry units and pump station controllers.

• DCS Modernization: Serving as a vital replacement component for maintaining legacy TELEPERM M installations in heavy manufacturing.

• Refining Operations: Handling precise signal conditioning for volatile process variables where 0.1% accuracy is non-negotiable for operational safety.
