Product Overview

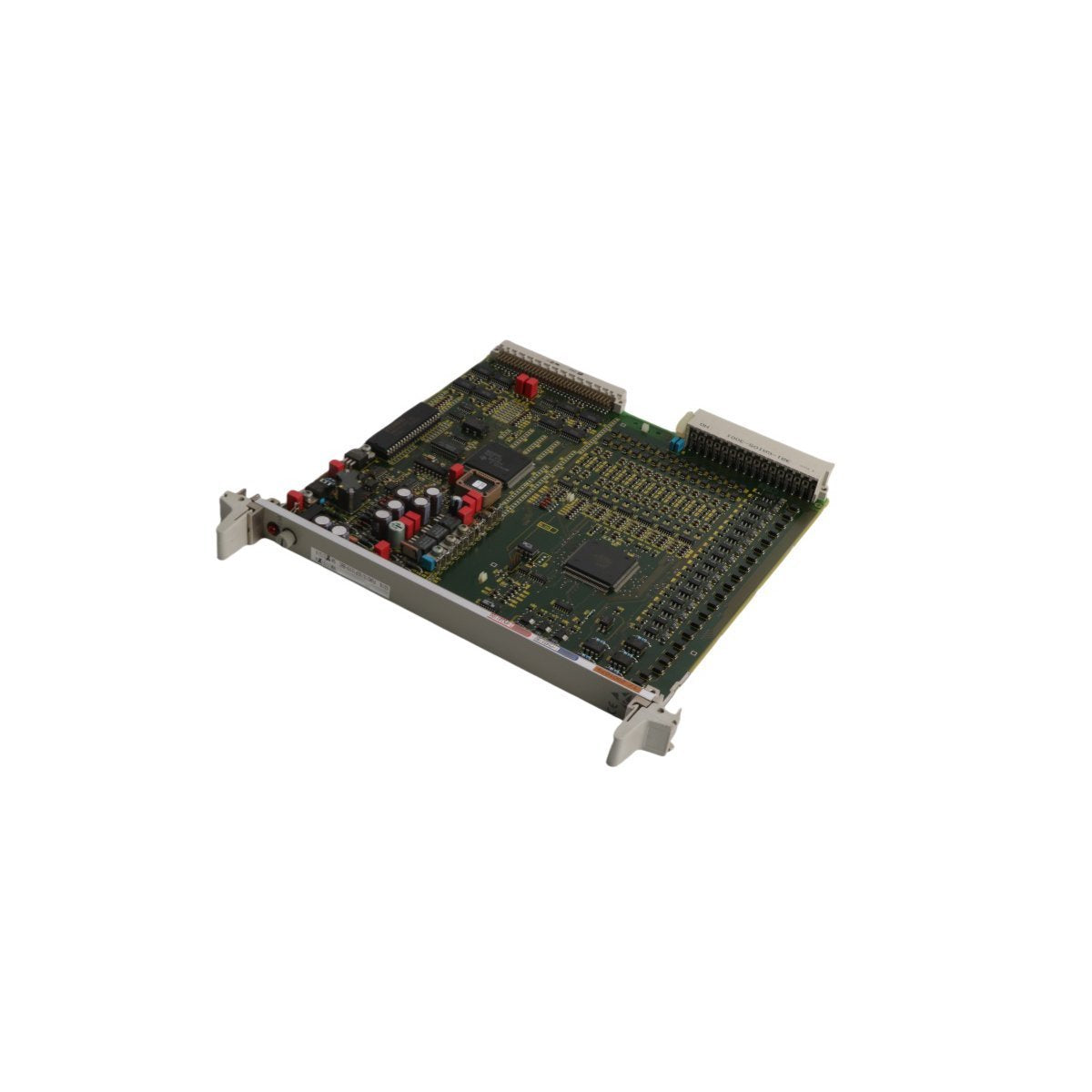

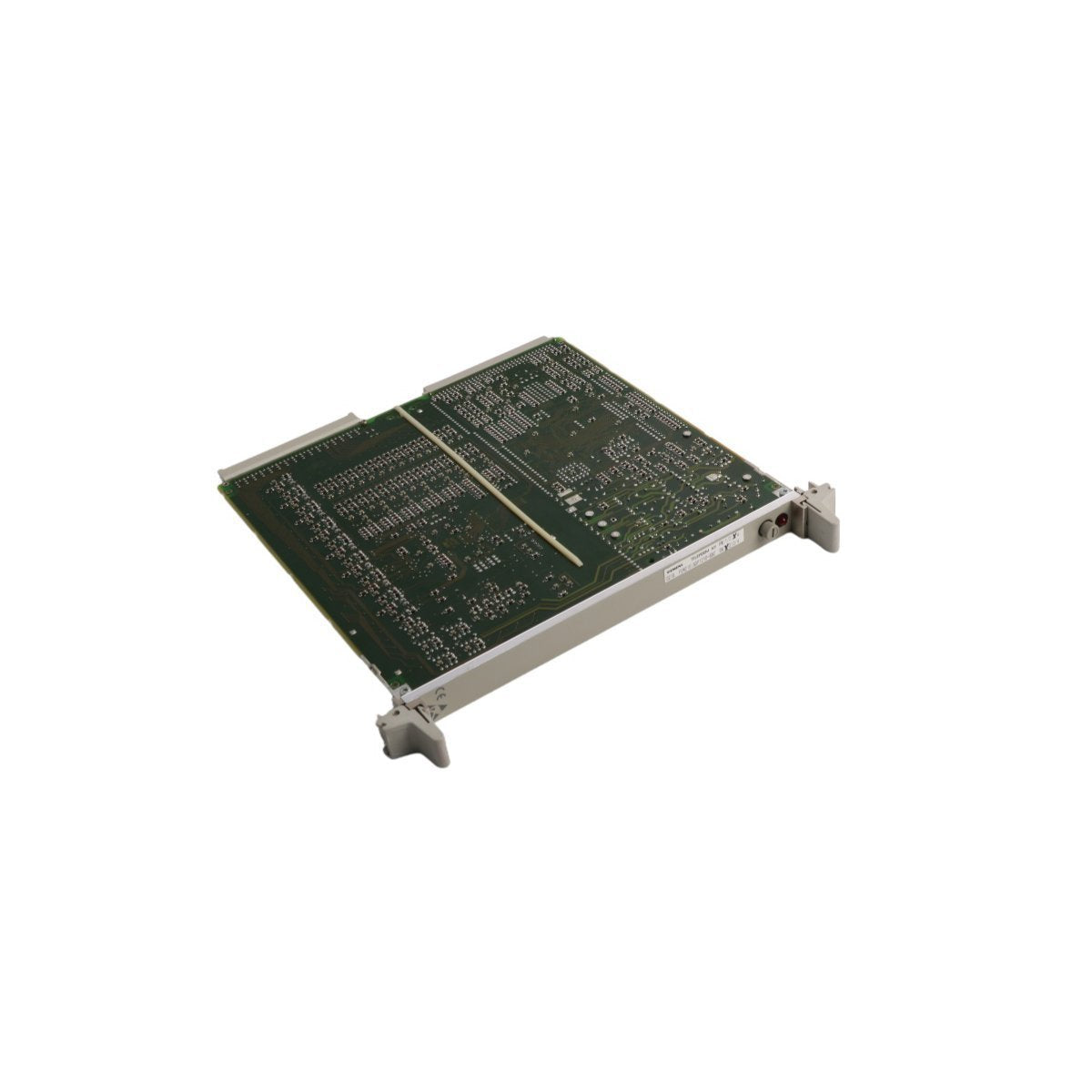

The 6DP1210-8CA is a high-performance signal acquisition and conditioning interface designed specifically for the Siemens Teleperm XP (TXP) control system environment. This module functions as a critical bridge between field instruments and the automation processor, specialized in the rapid processing of binary signals and drive control feedback. By providing integrated sensor power and continuous loop monitoring, the FUM 210 ensures high signal integrity for decentralized control architectures. Its design is tailored for complex power plant and process industry applications where precise binary state detection and actuator monitoring are non-negotiable for system safety.

Technical Configuration and Hardware Architecture

The 6DP1210-8CA module is characterized by its high density and flexible signal mapping:

• Logic Capacity: Supports up to 28 single contact inputs or 14 changeover contact configurations.

• Input Expansion: Features 28 additional binary inputs (without sensor supply) for auxiliary monitoring.

• Integrated Power: Built-in sensor supply circuits with comprehensive short-circuit protection and diagnostics.

• Platform Compatibility: Fully integrated with Teleperm XP FUM racks and TXP communication protocols.

• Mass: 0.95 kg (Shipping Weight)

• Dimensions: 2.5 cm x 5.1 cm x 83.8 cm

• Origin: Engineered and manufactured in Germany.

• System Status: Active component within specialized PLC and DCS maintenance environments.

Practical Engineering Scenarios and System Usage

This sensor conditioning unit is predominantly utilized in large-scale industrial infrastructures requiring high-reliability signal chains:

• Power Generation Facilities: Managing critical binary feedback from turbine protection systems and boiler control interlocks where millisecond response times are vital.

• Drive Control Feedback: Monitoring the operational status and end-stop positions of high-voltage motor starters and actuators.

• Process Safety Monitoring: Serving as the acquisition layer for smoke detection, gas sensors, and pressure switch arrays that require active loop monitoring and supply.

• Binary Signal Aggregation: Consolidating decentralized field signals into the Teleperm XP automation bus, reducing wiring complexity through high-density channel mapping.

• Critical Fault Detection: Utilizing integrated diagnostics to identify wire breaks or sensor failures before they impact plant availability.
