Product Overview

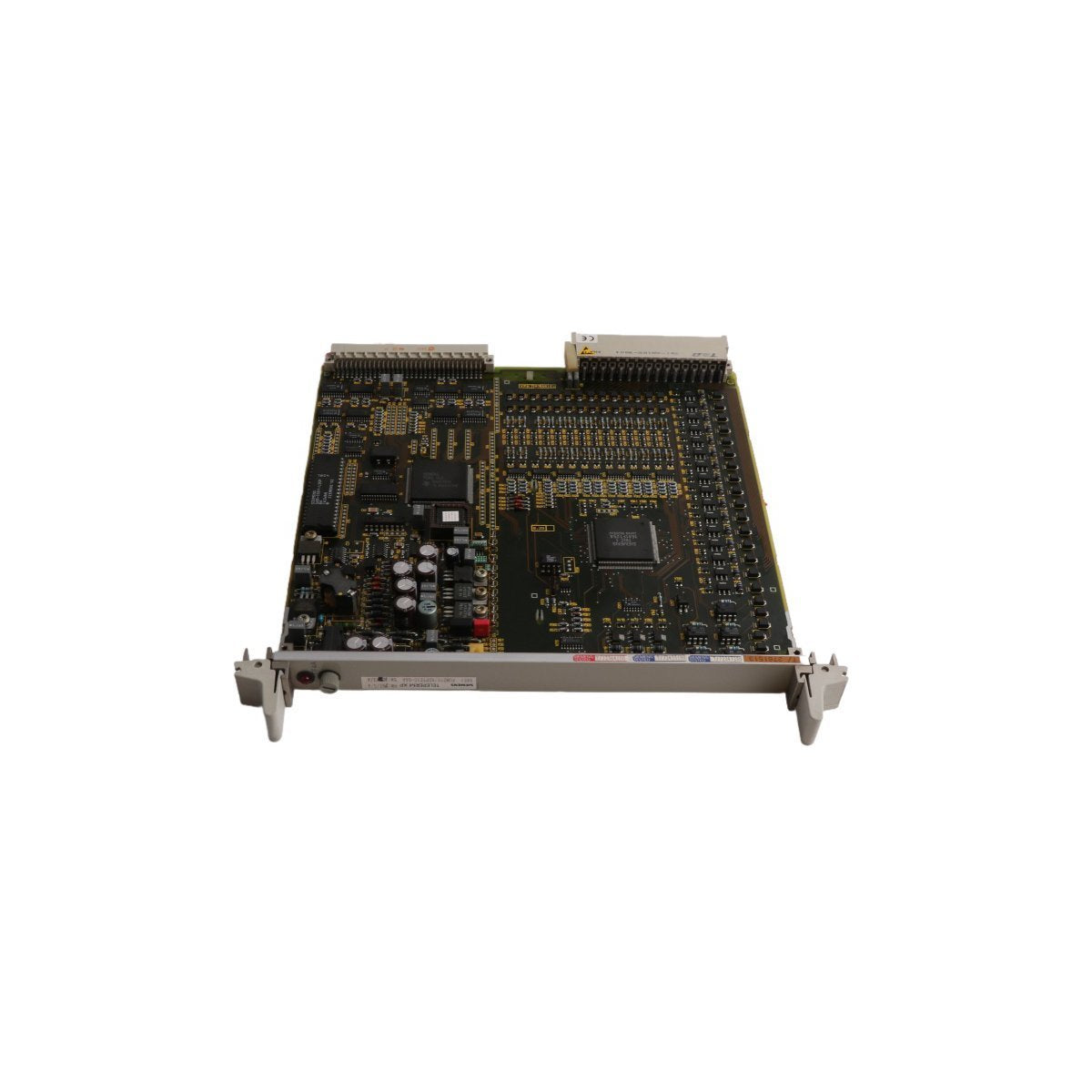

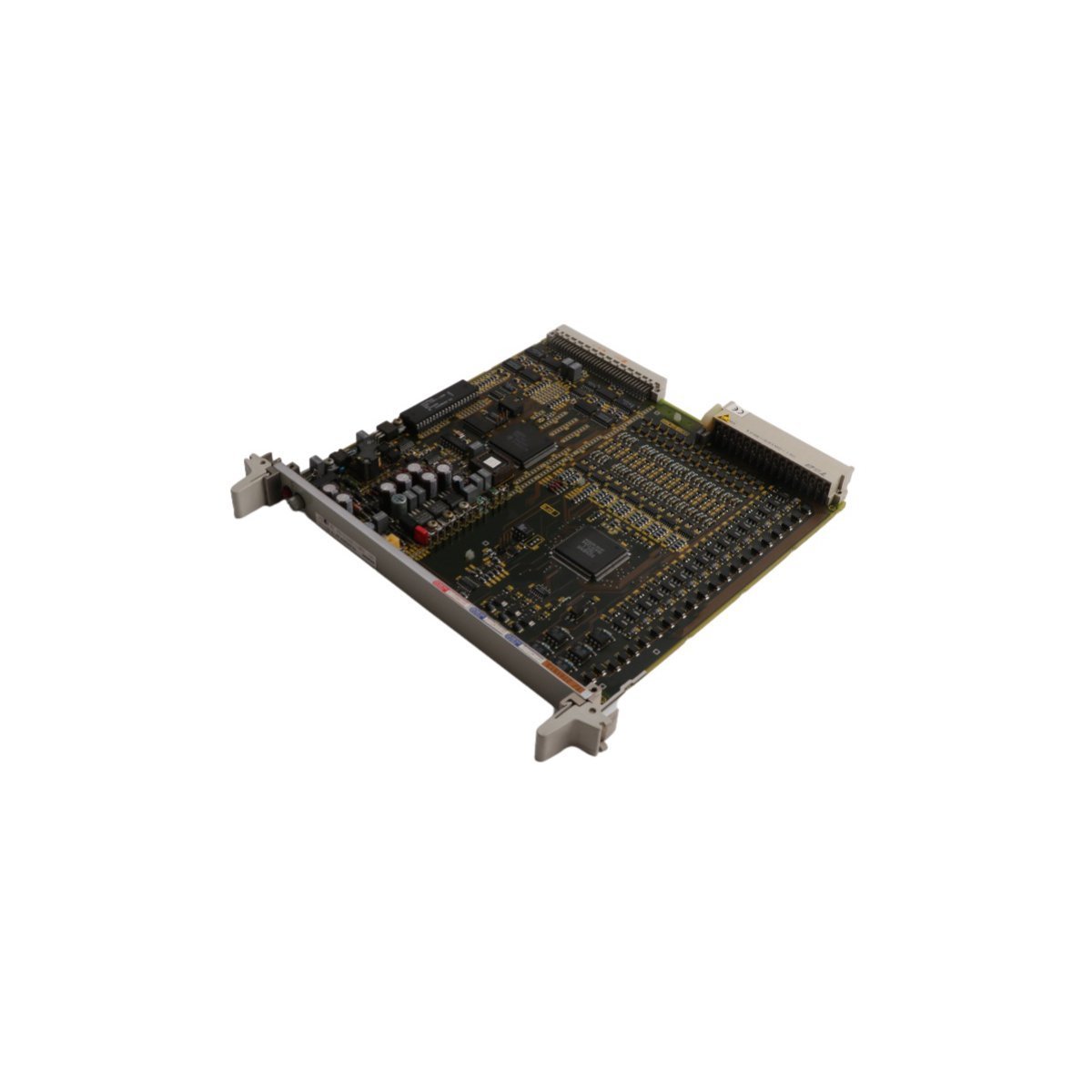

The 6DP1210-8AA is a high-performance binary signal processing module belonging to the legacy Siemens Teleperm M distributed control system (DCS) family. Engineered as an essential interface component, this module—often referred to as a FUM 210 signal transmitter—specializes in the acquisition and conditioning of digital inputs from the field. By serving as a bridge between process-level binary signals and the central processing unit, the 6DP1210-8AA ensures that operational data is transmitted with high fidelity and electrical isolation. Its time-tested architecture is specifically designed for long-cycle industrial environments, providing a reliable path for system maintenance and the expansion of existing automation infrastructures.

Architecture and Physical Specifications

• System Series: Teleperm M / Teleperm XP

• Module Function: Binary Signal Processing / Digital Input Acquisition

• Isolation Technology: Integrated optocoupler protection for superior noise immunity and circuit safety

• Signal Compatibility: Optimized for FUM 210 series binary transmitters and FUM 230 function modules

• Mounting Configuration: Rack-mountable PCB design for standard Siemens DCS sub-racks

• Weight: 0.95 kg (Shipping Mass)

• Physical Dimensions: 2.5 x 5.1 x 83.8 cm (Optimized for deep-rack integration)

• Manufacturing Origin: Germany

• Operational Supply: Standardized DC voltage for Teleperm system backplanes

Industrial Utility and Strategic Applications

• Power Plant Automation: Critical for monitoring binary states in boiler controls and turbine auxiliary systems where signal reliability is paramount for grid stability.

• Chemical and Petrochemical Processing: Used to acquire status data from flame detectors, pressure switches, and valve limit sensors in large-scale process loops.

• DCS Lifecycle Management: Acts as a vital replacement component for maintaining the operational status of Teleperm M installations, extending the ROI of legacy automation assets.

• Substation Monitoring: Facilitates the acquisition of status signals from circuit breakers and disconnectors in high-voltage environments, leveraging optocoupler isolation to prevent surges.

• Large-Scale Infrastructure: Integrated into heavy industrial manufacturing cells that require decentralized binary signal coupling across expansive facility layouts.
