Product Overview

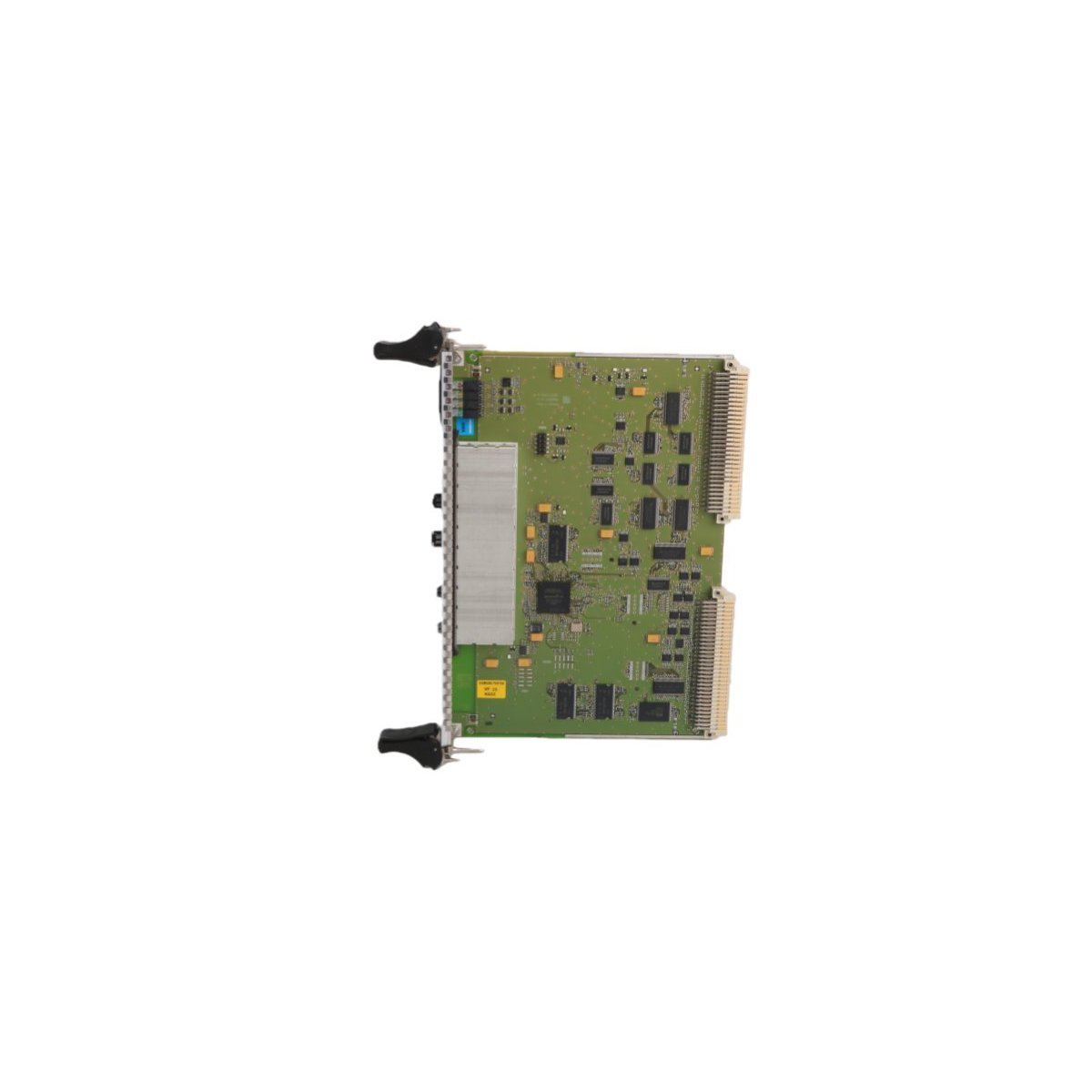

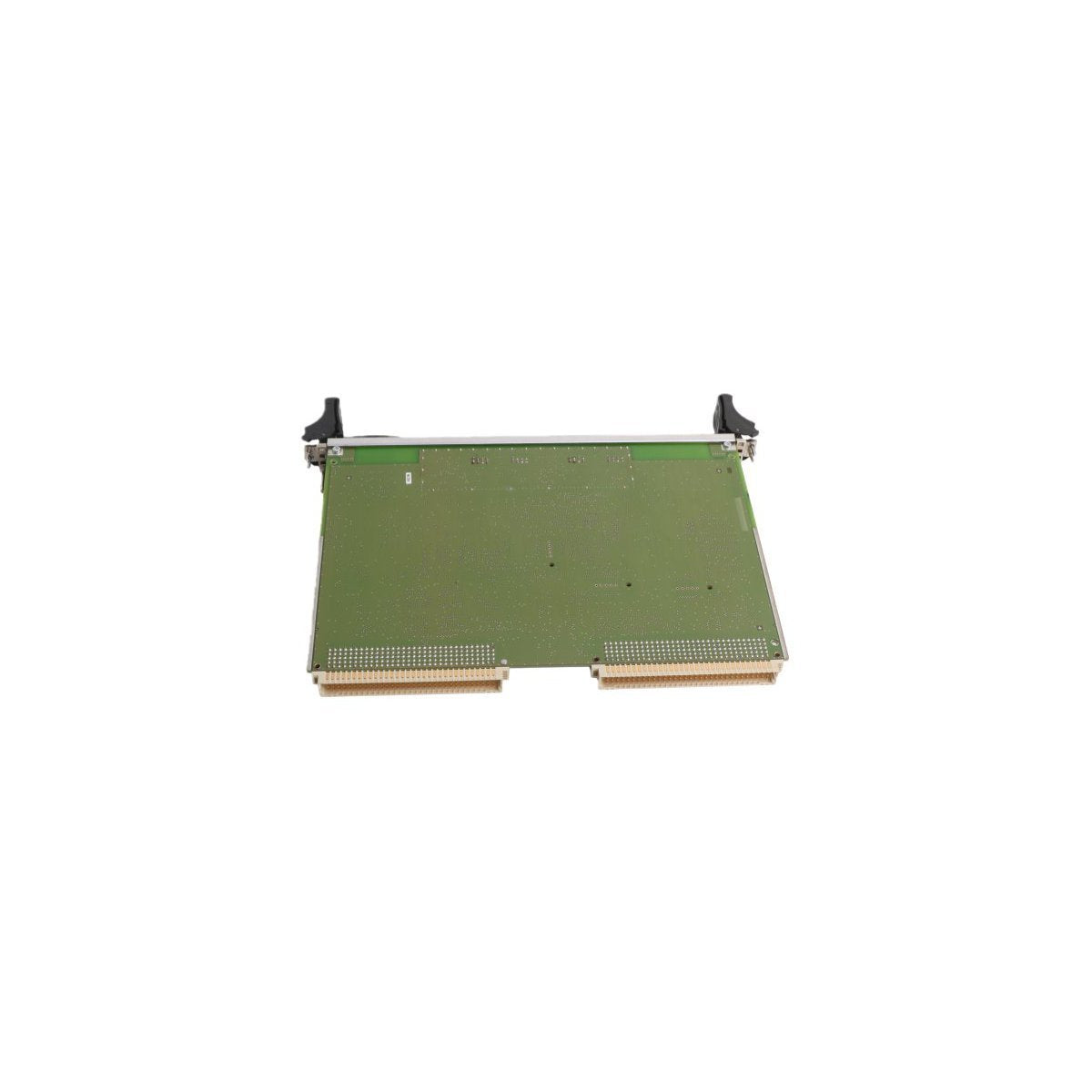

The 6DD1660-0BE0 is a high-speed communication processor specifically engineered for the Siemens SIMADYN D control system. This module functions as a primary interface for fiber optic data transmission, enabling deterministic and noise-immune connectivity across large-scale industrial automation networks. By utilizing optical fiber, the unit facilitates the rapid exchange of process variables between multiple subracks and expansion units without the risk of electromagnetic interference (EMI). This makes the 6DD1660-0BE0 a vital component for high-performance control environments where synchronization between master and slave processors must be maintained with microsecond precision.

Networking Capabilities and Hardware Specifications

• Communication Interface: Integrated fiber optic ports for high-speed, long-distance data throughput.

• System Integration: Designed for seamless insertion into SIMADYN D subracks and carrier modules.

• Synchronization: Supports high-precision clock synchronization for coordinated multi-axis control.

• Electrical Protection: Inherent galvanic isolation via optical transmission, protecting against potential differences between system segments.

• Data Integrity: Advanced error detection and noise suppression for stable performance in electrically "loud" environments.

• Reliability Features: Optimized for 24/7 continuous operation in heavy industrial temperature ranges.

• Expansion Support: Enables modular scalability by linking remote subracks to a centralized processing core.

• Backwards Compatibility: Fully integrates with existing SIMADYN D infrastructure for system maintenance or expansion.

Strategic Process Deployment and Sector Utility

High-Speed Metal Processing

In hot and cold rolling mills, the 6DD1660-0BE0 ensures that torque and speed setpoints are synchronized across various drive stands via its fiber optic link. The zero-latency nature of the optical signal is critical for preventing material tension issues during high-speed production.

Power Generation and Distribution

This communications module is frequently deployed in power plant excitation systems and HVDC (High Voltage Direct Current) control. Its immunity to electrical noise allows it to operate reliably in the vicinity of high-voltage transformers and switchgear where traditional copper cabling would fail.

Large-Scale Industrial Pumping

For municipal water treatment or oil pipeline management, the module facilitates the clustering of remote I/O subracks. This allows for a decentralized control architecture where the main SIMADYN D controller can manage localized pump stations over significant distances without signal degradation.

Legacy Infrastructure Preservation

For facilities still relying on the proven SIMADYN D platform, the 6DD1660-0BE0 serves as an essential upgrade or replacement part. It allows operators to maintain the high-speed communication backbone of their facility while ensuring compatibility with both newer and legacy slave modules.
