Product Overview

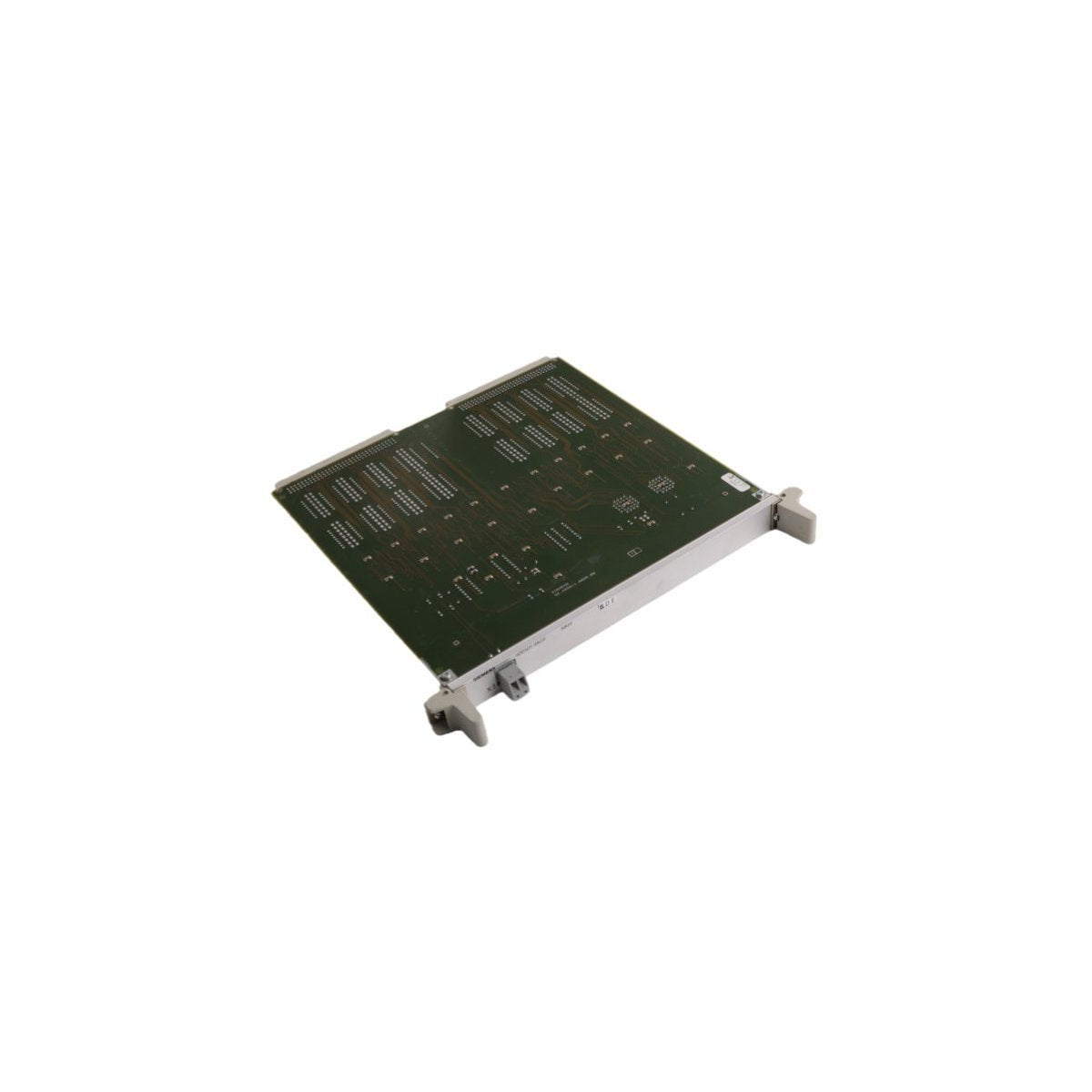

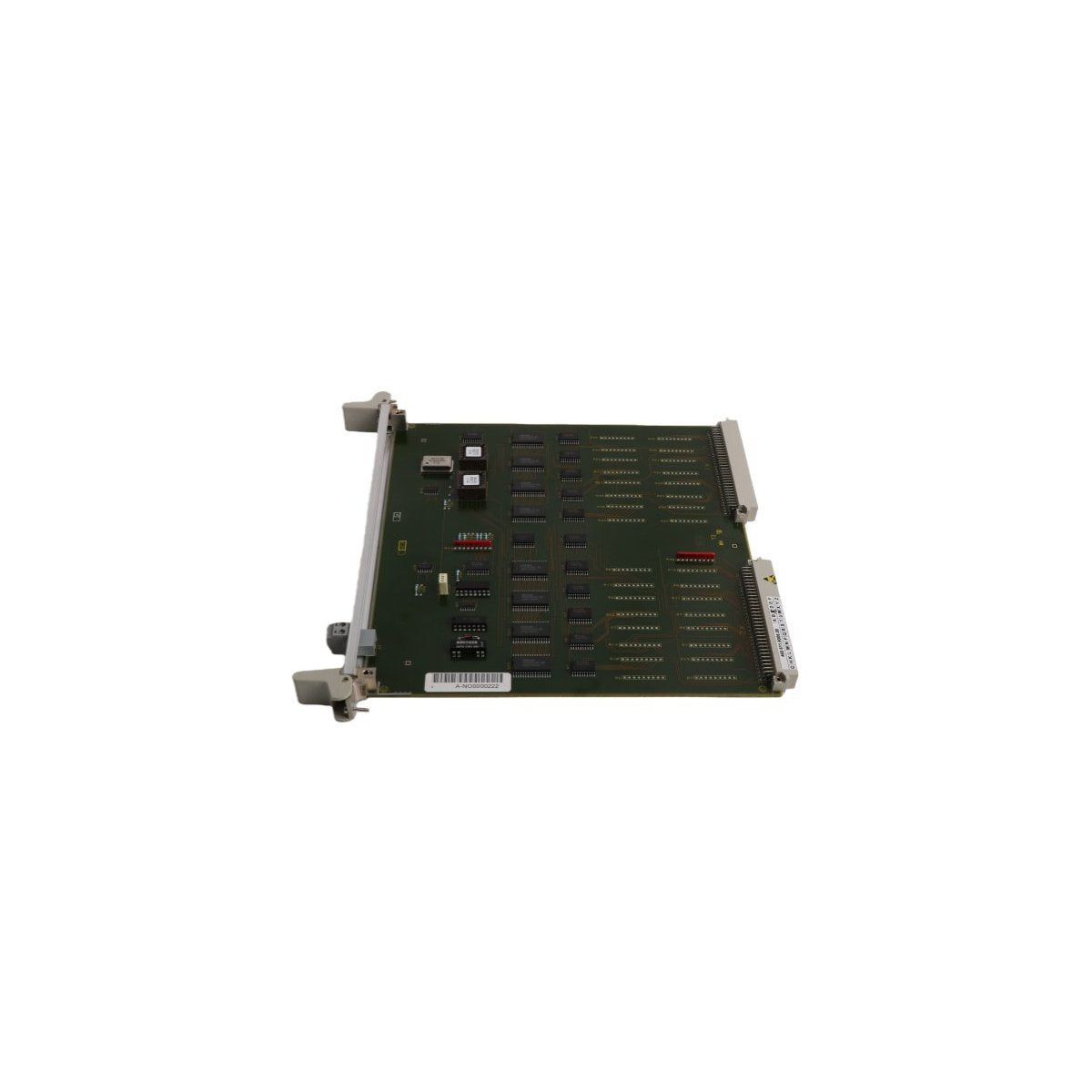

The Siemens 6DD1611-0AG0 is a specialized MM4 Mailbox Module engineered for the SIMADYN D high-performance control system. This component serves as a critical communication buffer, facilitating high-speed data transfer and synchronization between various processor modules within a multiprocessor rack. By acting as a central repository for shared data, the module ensures that complex control algorithms remain consistent across the entire system. Designed for rigorous industrial environments, this unit enables the high-speed processing required for large-scale power electronics and complex drive control systems.

Advanced Hardware Configurations

The 6DD1611-0AG0 is characterized by its robust memory architecture and dual-bus compatibility, ensuring low-latency communication in high-demand automation tasks.

• Bus Compatibility: Fully supports 32-bit L-bus and C-bus interfaces for multi-processor synchronization.

• Memory Capacity: Integrated 2MB RAM per channel dedicated to mailbox data storage and fast buffering.

• Diagnostic Signaling: Onboard system error signal output for immediate fault detection and safety interlocking.

• Processing Architecture: Optimized for real-time data exchange in SIMADYN D subracks.

• Physical Weight: 0.95 kg

• Product Dimensions: 2.5 cm x 5.1 cm x 83.8 cm

• Manufacturing Origin: Germany

• Hardware Reliability: Industrial-grade components designed for continuous duty cycles in high-EMI environments.

Industrial Deployment Scenarios

This Mailbox Module is typically found in high-performance sectors where standard PLCs lack the required processing speed or synchronization depth.

• Power Generation Control: Managing the complex logic and firing pulses for large-scale converters and grid stabilization systems.

• Metal Processing Mills: Coordinating multiple high-speed drives in rolling mills where microsecond synchronization is vital for product quality.

• Large Drive Systems: Facilitating data exchange between distributed controllers in heavy-duty mining or maritime propulsion systems.

• High-Speed Paper & Printing: Synchronizing tension control and speed across multiple axes in high-speed web handling applications.

• Research and Development: Implementing high-frequency control loops in specialized test benches and laboratory automation rigs.
