Product Overview

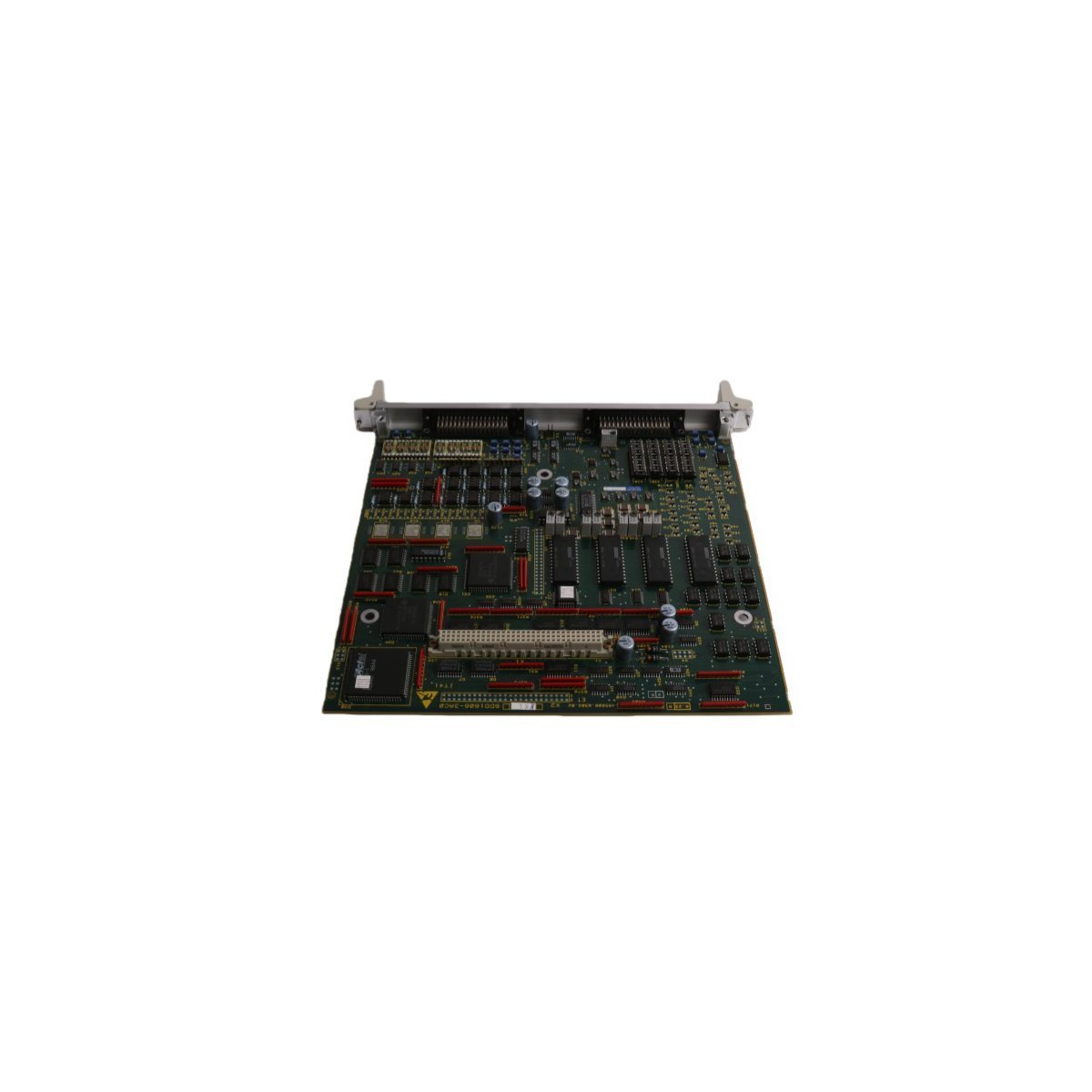

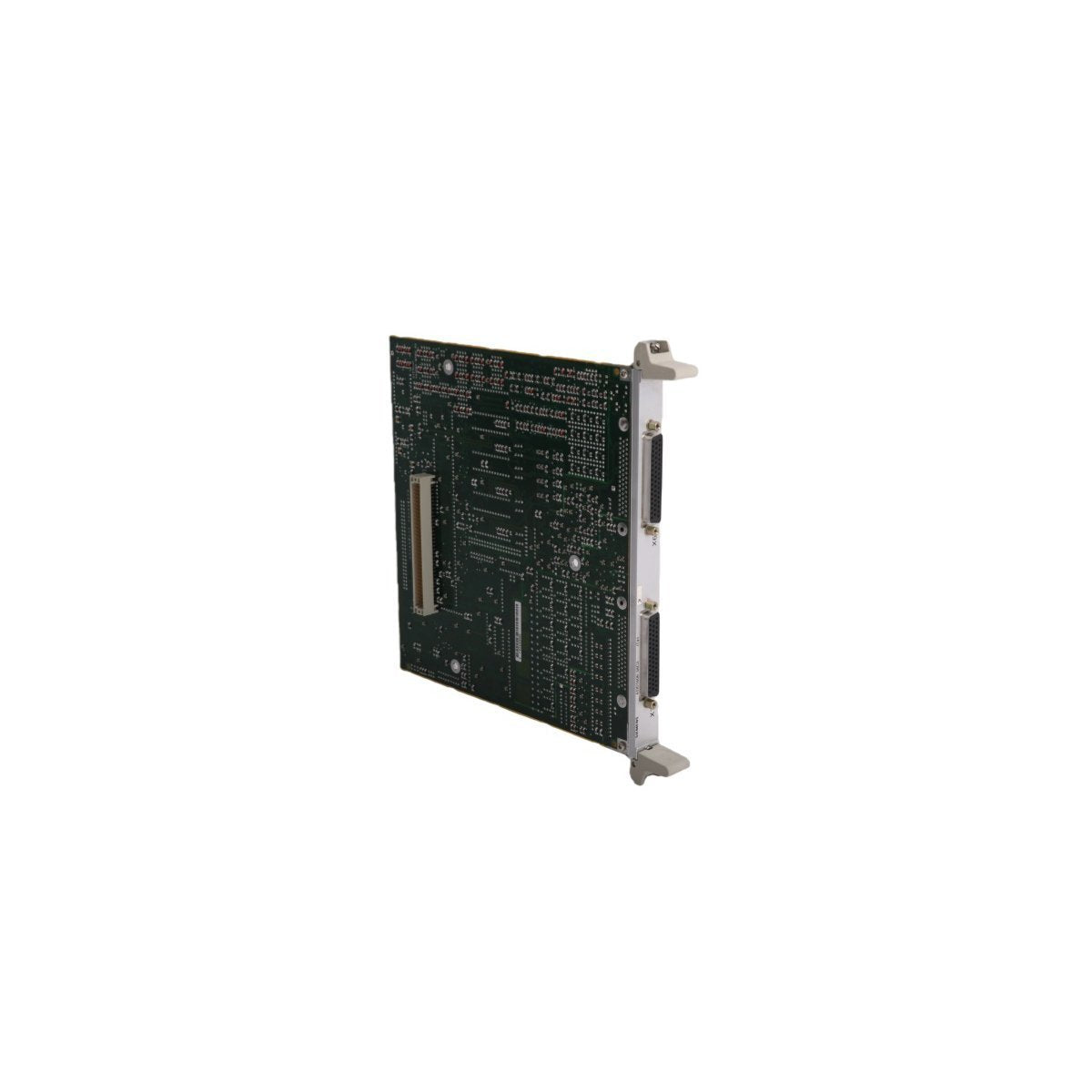

The Siemens 6DD1606-3AC0 is a high-density IT41 expansion submodule engineered for the SIMADYN D control system. This module serves as a comprehensive interface expansion for PM4, PM5, and PM6 processor modules, enabling high-performance signal processing for complex drive control and large-scale industrial automation. By integrating digital, analog, and encoder inputs into a single hardware footprint, the IT41 streamlines the connection between the central controller and diverse field instrumentation.

Designed for precision motion control and converter management, this module utilizes high-speed Sitore IF communication technology. It is a critical component for systems requiring rapid data sampling and deterministic response times, common in metal rolling mills, power transmission converters, and high-demand specialized machinery.

Technical Characteristics

• Binary Interface: 16 Bidirectional Digital Inputs and 16 Digital Outputs

• Analog Interface: 4 Analog Inputs and 4 Analog Outputs (High Resolution)

• Encoder Support: 4 Dedicated Incremental Encoder Inputs for position and speed feedback

• Processor Compatibility: Seamlessly integrates with PM4, PM5, and PM6 modules

• Expansion Slots: Supports up to 3 additional communication sub-modules for enhanced networking

• Data Transmission: High-speed Sitore IF interface for real-time control loops

• Operating Temperature: -25°C to +60°C (-13°F to 140°F)

• Weight: 0.548 kg (Net module weight)

• Dimentions:2.5 cm x 5.1 cm x 18.8 cm

• Construction: Robust industrial PCB module designed for rack-based mounting

Application and System Scalability

The 6DD1606-3AC0 IT41 module is built for scalability within the SIMADYN D ecosystem. Its ability to host additional sub-modules allows engineers to tailor the network capabilities of the controller, adapting to various fieldbus requirements without replacing the primary I/O hardware. This modularity ensures that the control system can evolve alongside plant requirements.

In operation, the module excels at managing commutated converters and complex drive sequences. The inclusion of four encoder inputs makes it particularly effective for multi-axis synchronization and high-precision speed regulation. Its wide operating temperature range and high-quality German manufacturing ensure long-term stability in the harsh electromagnetic environments typical of heavy industry and power generation facilities.
