Product Overview

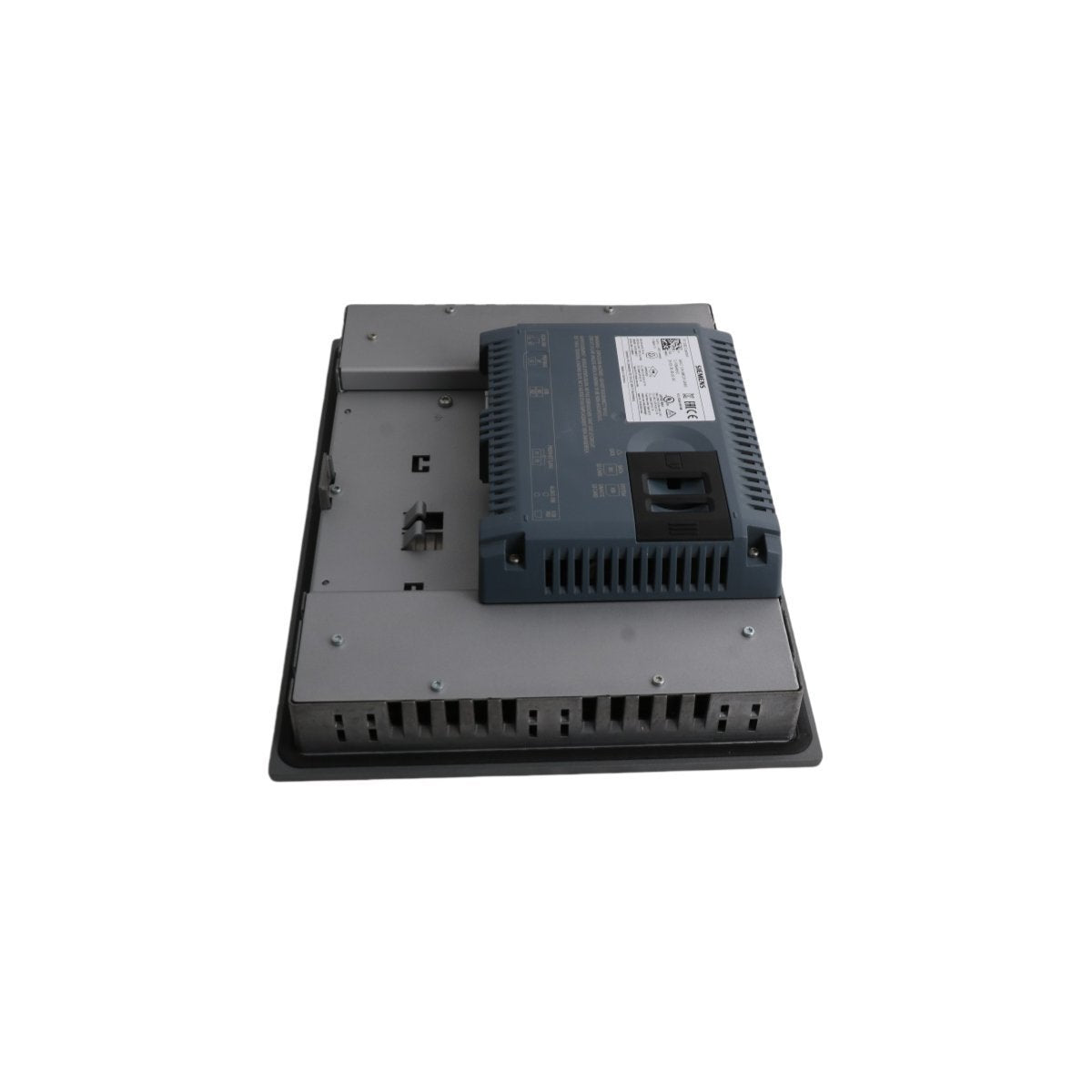

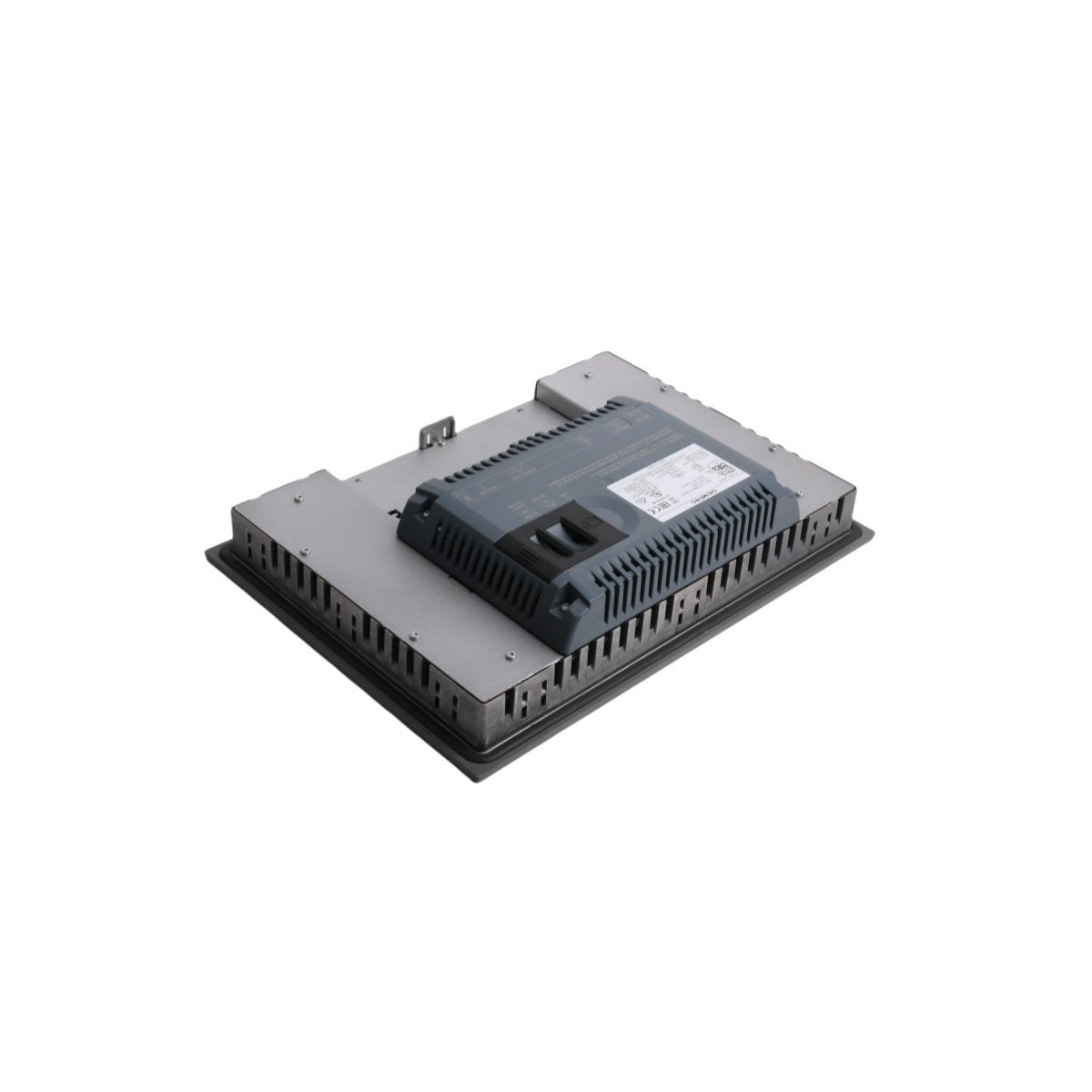

The Siemens 6AV2124-0MC01-0AX0 is a high-performance TP1200 Comfort Panel designed for sophisticated human-machine interface applications. Featuring a 12.1-inch widescreen TFT display, this unit provides a vivid visualization environment with 16 million colors and a resolution of 1280 x 800 pixels. As a core component of the SIMATIC HMI range, it facilitates precise monitoring and control of automated machinery through a robust resistive touch interface. The device is engineered to function as a seamless gateway within the Totally Integrated Automation (TIA) framework, bridging the gap between operator input and PLC execution.

Core Specifications and Hardware Architecture

This HMI terminal is built to handle data-intensive tasks with a high degree of reliability. It utilizes the Windows CE 6.0 operating system and is configured using WinCC Comfort (TIA Portal) V11 or higher.

• Display Technology: 12.1" Widescreen TFT with dimmable backlighting.

• Memory Capacity: 12 MB of integrated configuration memory for complex projects.

• Onboard Connectivity: Dual-port PROFINET (Ethernet) interface and one combined MPI/PROFIBUS DP interface.

• Peripheral Support: Two USB 2.0 host ports and one USB 2.0 5-pin Mini-B port for data exchange or peripheral connection.

• Power Requirements: 24V DC rated voltage with a permissible range of 19.2V to 28.8V.

• Physical Protection: IP65 rated front-side protection against dust and moisture ingress.

• Storage Expansion: Dual SD card slots—one for system functions and one for data logging/recipes.

Sector-Specific Deployment and Integration

The TP1200 Comfort Panel is strategically deployed across diverse industrial sectors where high-resolution process transparency is mandatory. Its versatile communication protocols allow it to interface with S7-1200, S7-1500, and legacy S7-300/400 controllers, as well as third-party PLCs via Modbus or Allen-Bradley protocols.

In manufacturing environments, it serves as a centralized control station for assembly lines, providing real-time alarm management and historical data trending. In the energy and water treatment sectors, its durable construction and 0 to 50°C operating temperature range make it suitable for control cabinet installation in various climate conditions. The inclusion of energy-saving features like PROFIenergy allows for coordinated shutdown of the display during production breaks, enhancing the overall efficiency of the automation cell.
