Product Overview

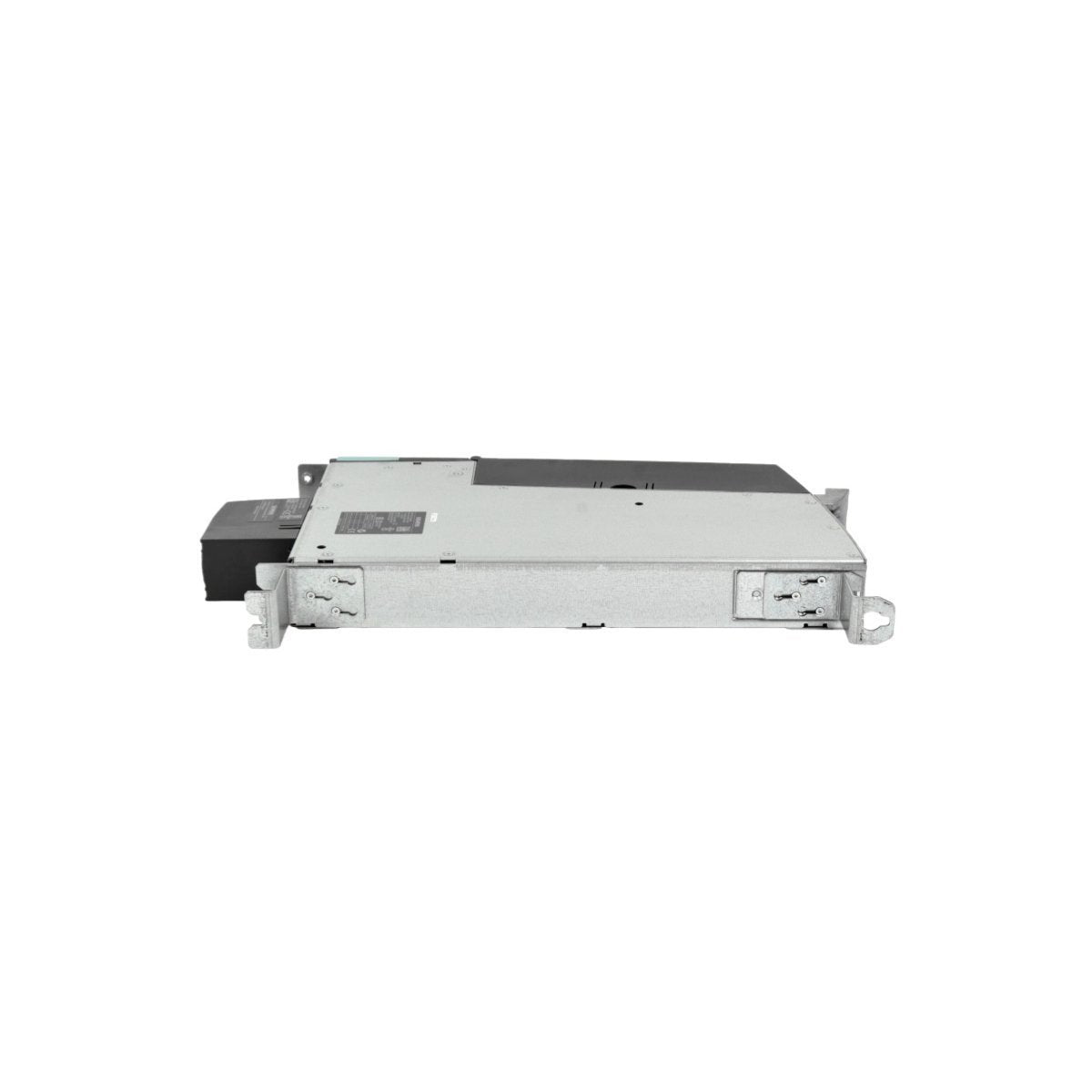

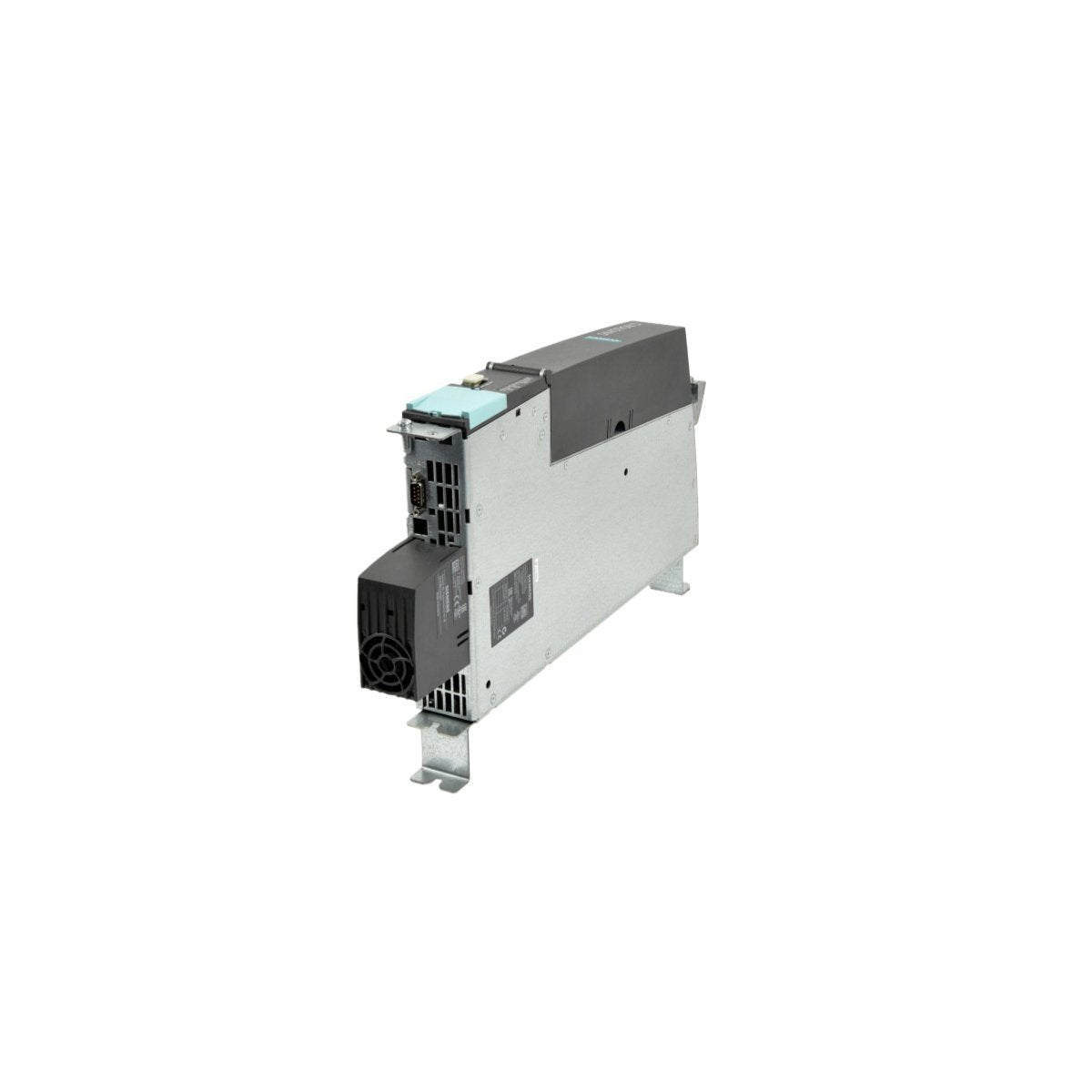

The 6AU1425-2AD00-0AA0 is a high-performance, drive-based control unit belonging to the Siemens SIMOTION D425-2 family. This programmable motion controller is engineered to bridge the gap between PLC logic and complex motion sequences, offering a "BASIC" performance tier capable of managing up to 16 axes. By integrating the controller directly onto a SINAMICS S120 multi-axis drive line-up, the SIMOTION D425-2 reduces system footprint while delivering exceptional deterministic response times. It serves as the intelligent core for machinery requiring synchronized movement, providing a unified platform for logic, motion control, and sophisticated diagnostic functions.

Core Processing and Hardware Capabilities

• Axis Capacity: Manages up to 16 axes of motion (positioning, synchronous, or path control).

• Clock Cycles: Features an ultra-responsive minimum servo cycle of 0.5 ms for high-speed precision.

• Onboard Memory: Equipped with 78 MB of working RAM for high-speed application execution.

• Storage Architecture: Utilizes a CompactFlash (CF) card interface providing up to 1.5 GB of user-persistent memory for recipes and data logging.

• DRIVE-CLiQ Connectivity: 4 integrated DRIVE-CLiQ ports for digital communication with SINAMICS power modules and encoders.

• Network Interfaces: Dual-protocol support via onboard PROFIBUS DP and PROFINET (IRT/RT) interfaces for plant-wide integration.

• Expansion Ports: Includes 2 USB ports and an Ethernet (TCP/IP) interface for local commissioning and HMI connectivity.

• Diagnostic Display: Integrated 7-segment display for immediate hardware status and error code visualization.

Industrial Motion Scenarios and System Deployment

High-Speed Packaging and Labeling

The SIMOTION D425-2 is a staple in the packaging sector, where it synchronizes rotary knives, tension controllers, and feeder belts. Its 0.5 ms cycle time allows for microscopic adjustments in real-time, ensuring label placement and cutting accuracy at extreme throughput speeds.

Modular Machine Building

Thanks to its extensive PROFINET and PROFIBUS connectivity, this control unit acts as a master controller for decentralized production cells. It can simultaneously manage local SINAMICS drives via DRIVE-CLiQ while coordinating remote I/O modules and third-party field devices over an industrial network.

Multi-Axis Material Handling

In automated warehousing and gantry systems, the module handles the complex interpolation required for 3D path movements. It manages the acceleration and deceleration ramps of multiple servo axes to ensure that heavy loads are moved smoothly without mechanical oscillation or stress.

Retrofitting Legacy Systems

The inclusion of both PROFIBUS and PROFINET makes the 6AU1425-2AD00-0AA0 an ideal candidate for system modernization. It allows engineers to maintain existing PROFIBUS-based fieldbus devices while introducing modern, high-speed PROFINET drives and sensors into the same control architecture.
