Product Overview

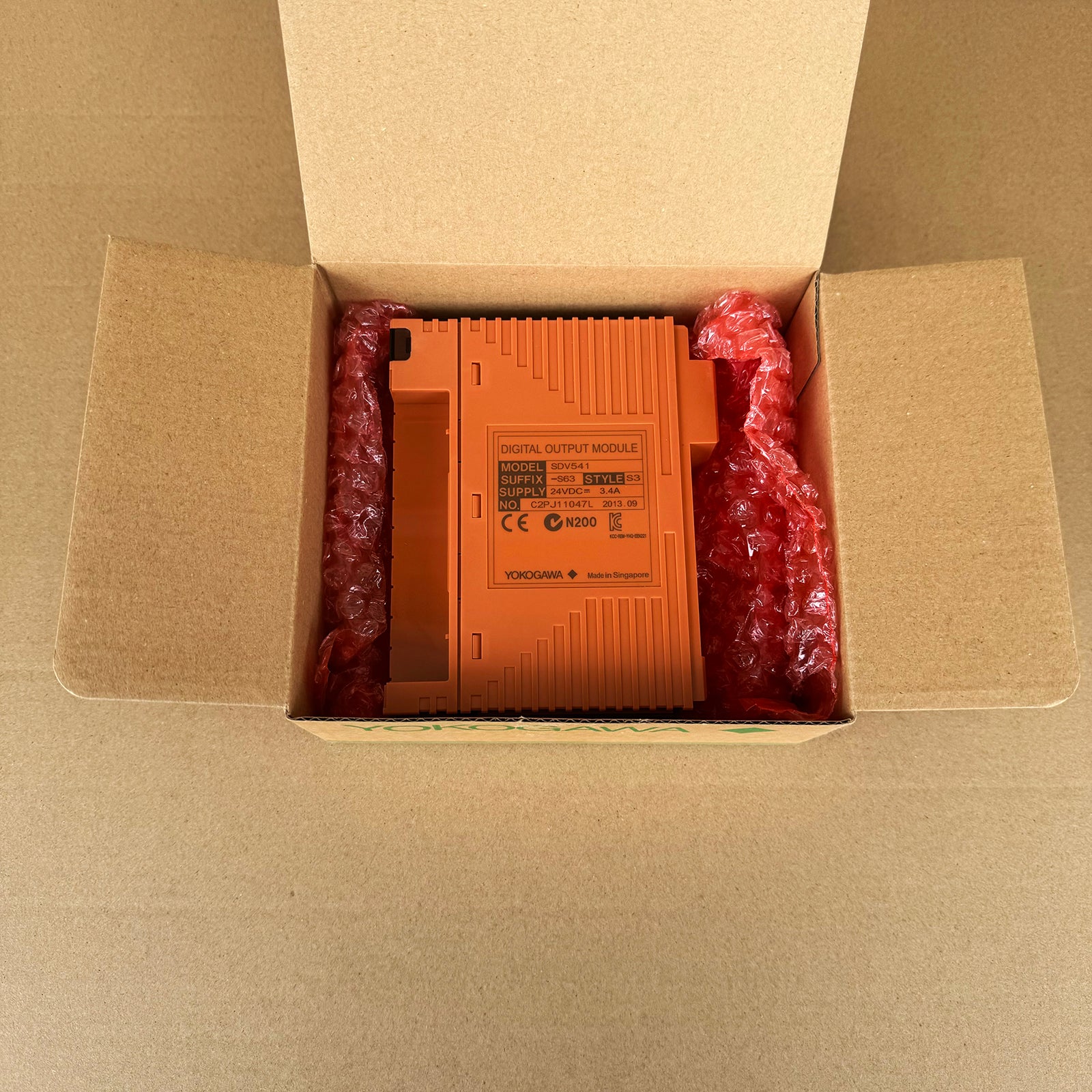

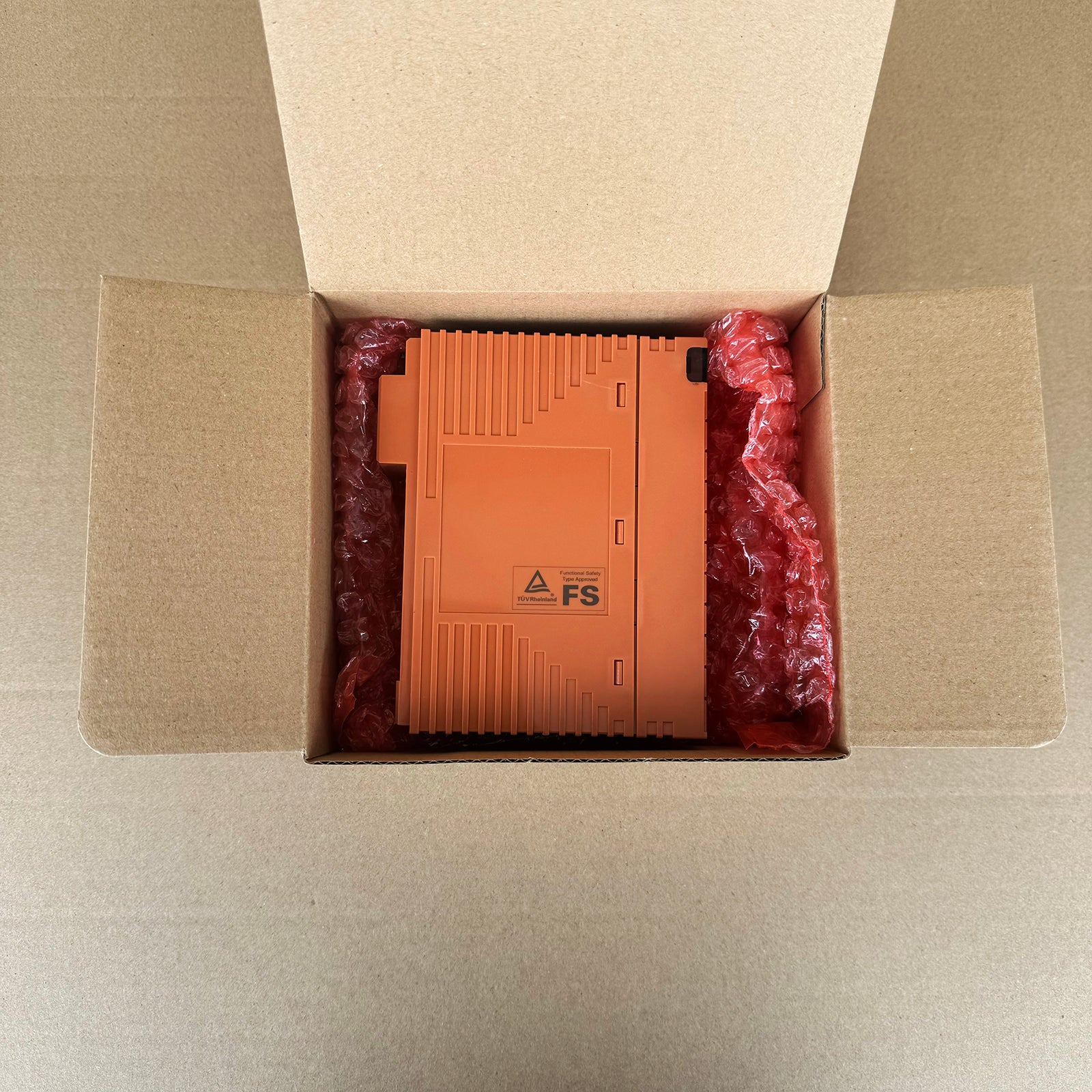

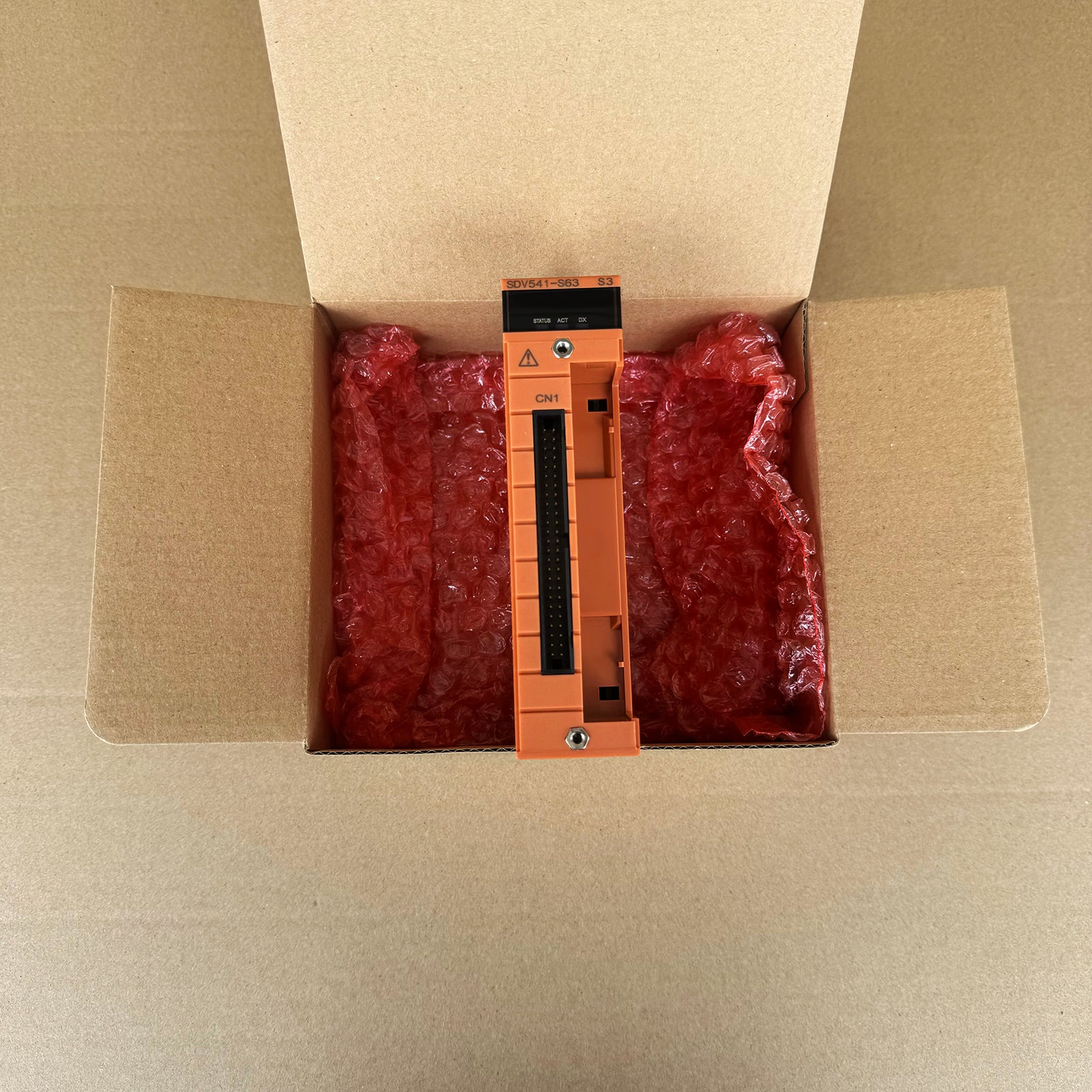

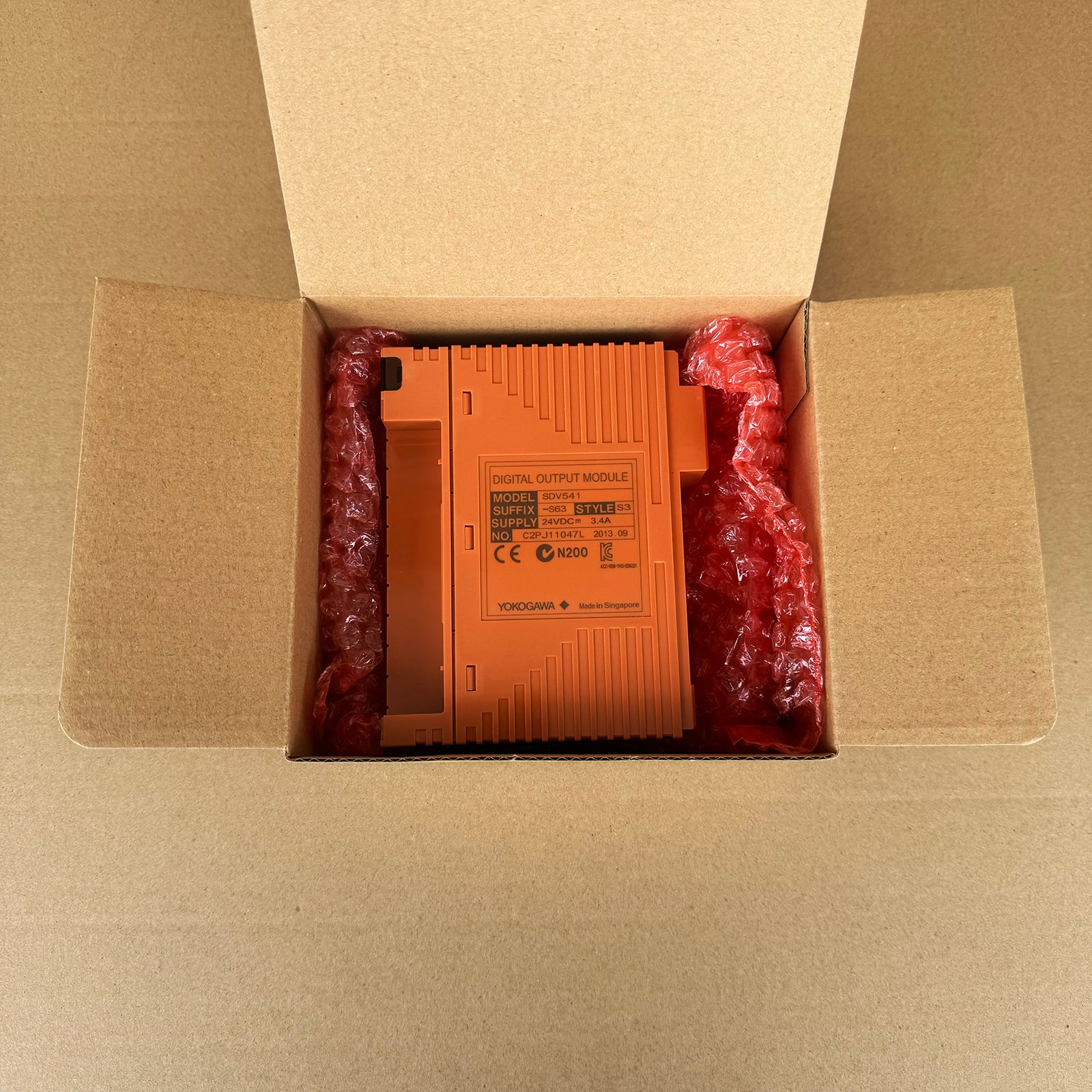

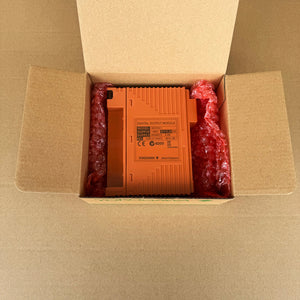

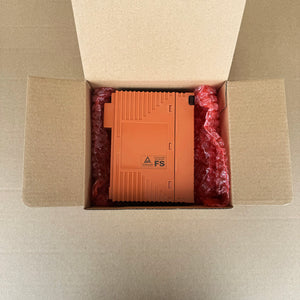

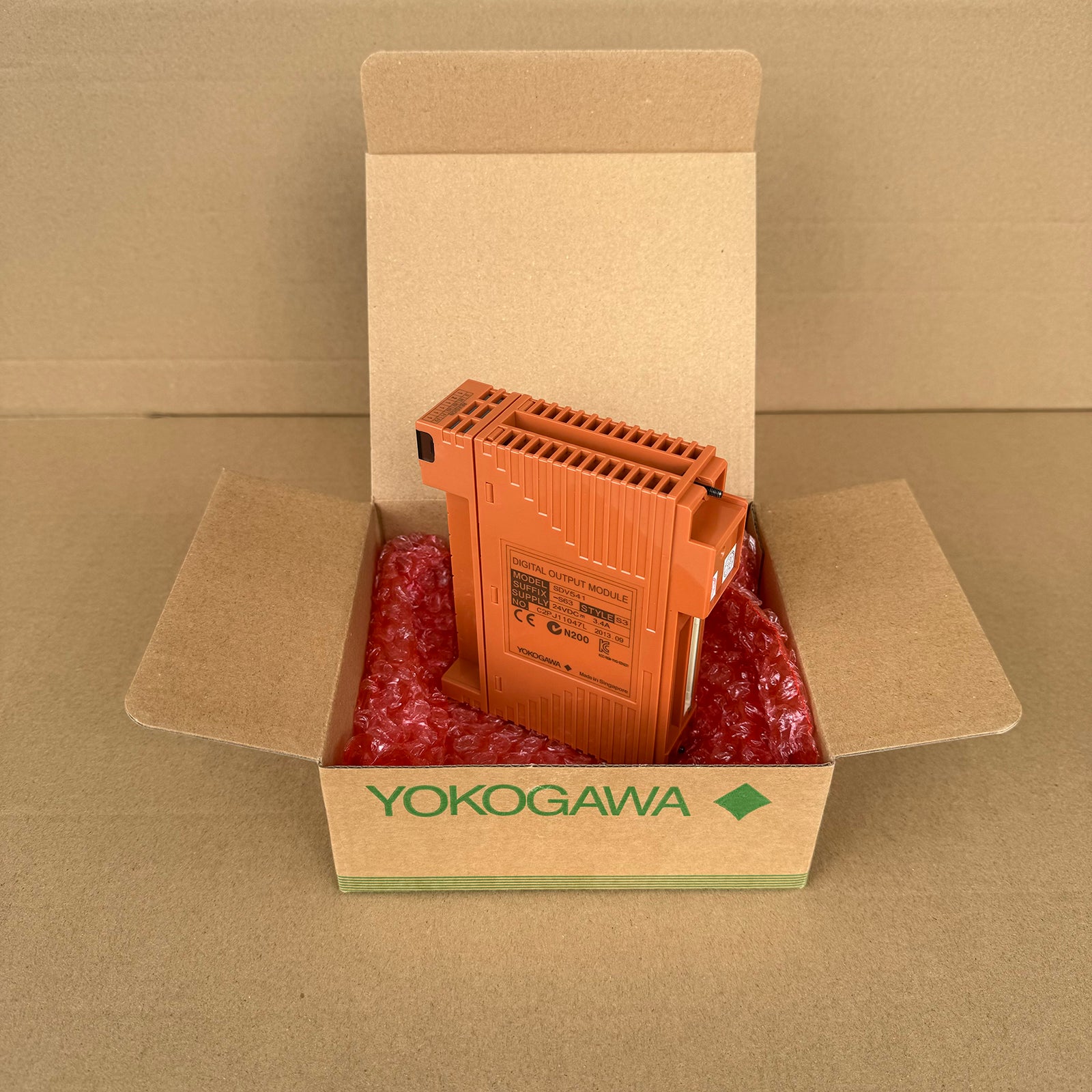

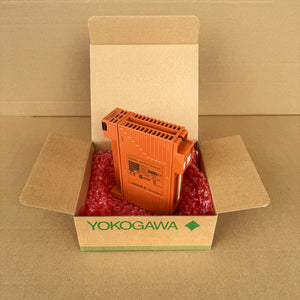

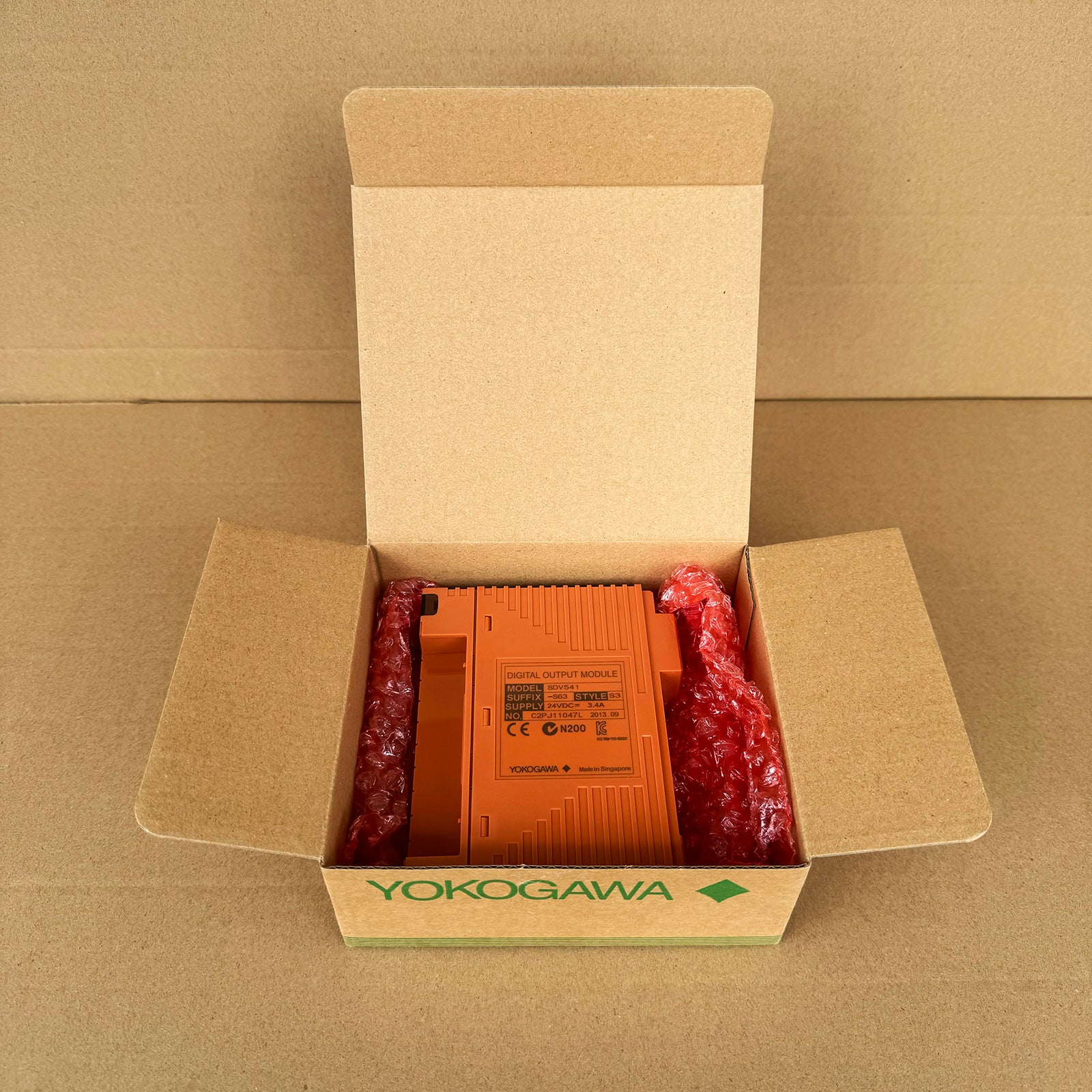

The Yokogawa SDV541-S63/PRP is a high-density digital output interface designed for integration into the ProSafe-RS safety instrumented system. This module provides 18 independent channels configured as current sources to drive field loads such as solenoid valves, indicating lights, and relay coils. Built for mission-critical reliability, the SDV541 features high galvanic isolation and integrated safety diagnostics to ensure that command execution is both accurate and secure. This specific configuration includes a signal cable interface adapter and is rated for ISA Standard G3 environments, making it suitable for deployment in corrosive or extreme-temperature industrial settings. The /PRP option further enhances installation safety by including a prevention pin to eliminate the risk of false module insertion into the incorrect slot.

Hardware Infrastructure and Signal Metrics

• Output Density: 18 channels (Module isolation)

• Output Configuration: Current source (24 V DC)

• Maximum Current Capacity: 0.2 A per channel (3.2 A total across all channels)

• Load Compatibility: Resistance range of 120 to 885 ohms

• Switching Latency: 30 ms maximum response time

• External Power Requirement: 24 V DC (+20% / -10%), 3.4 A minimum

• Dielectric Strength: 2 kV AC withstand voltage (Signal lines to system)

• Environmental Tolerance: Rated for G3 corrosive environments and -20°C to 70°C temperatures

• Energy Consumption: 300 mA at 5 V DC; 150 mA at 24 V DC

• Module Mass: 0.31 kg (including signal cable interface adapter)

• Physical Footprint: 130 mm (H) x 32.8 mm (W) x 107.5 mm (D)

Industrial Utility and Safety Deployments

The SDV541-S63/PRP is primarily utilized in safety-instrumented functions (SIF) where automated action is required to maintain plant integrity. Key applications include:

• Emergency Shutdown (ESD): Controlling final control elements like solenoid-operated valves to isolate process lines during an upset.

• Fire and Gas Systems (FGS): Driving audible alarms, visual beacons, and fire suppression release mechanisms in offshore or onshore facilities.

• Corrosive Processing Zones: Operating in chemical or pulp and paper mills where the G3 coating protects the internal electronics from sulfur and moisture.

• Burner Management (BMS): Providing the 24V DC signals required for fuel-trip valves and ignition sequences in high-temperature utility environments.

FAQ

Q: What is the benefit of the /PRP option on this specific module?

A: The /PRP option includes a physical prevention pin that ensures the module cannot be inserted into a slot intended for a different module type, preventing potential electrical damage and logic errors during maintenance.

Q: Can this module drive low-power LED indicators?

A: Yes, provided the total current draw for the channel is at least 35 mA. If the load is below this minimum current, a shunt resistor may be required to ensure proper channel diagnostic operation.

Q: Does the SDV541-S63/PRP require an external power supply for its outputs?

A: Yes, it requires an external 24 V DC power source with a minimum rating of 3.4 A to provide the necessary current for the 18 field output channels.

Q: Is this module compatible with the standard CENTUM VP I/O nodes?

A: While physically similar to CENTUM FIO modules, the SDV series is specifically designed for the ProSafe-RS safety system. Compatibility should be verified with your specific controller hardware and software revision.

Q: What type of cabling is required for the S63 variant?

A: The S63 variant comes with a signal cable interface adapter, which is designed for use with dedicated Yokogawa signal cables such as the AKE331 or AKB851 models.
